1-46  HEATER AND AIR CONDITIONING



Important Operations - Installation




7.  Bolt; Compressor to Bracket

N

⋅m (kgf⋅m/lb⋅ft)



Torque

44 (4.5/33)






6. Refrigerant Line

N

⋅m (kgf⋅m/lb⋅in)



Torque 11

∼19 (1.1/95∼1.9/168)








5. Drive Belt



Refer to SECTION 6A “COOLING SYSTEM”.




HEATER AND AIR CONDITIONING  1-47



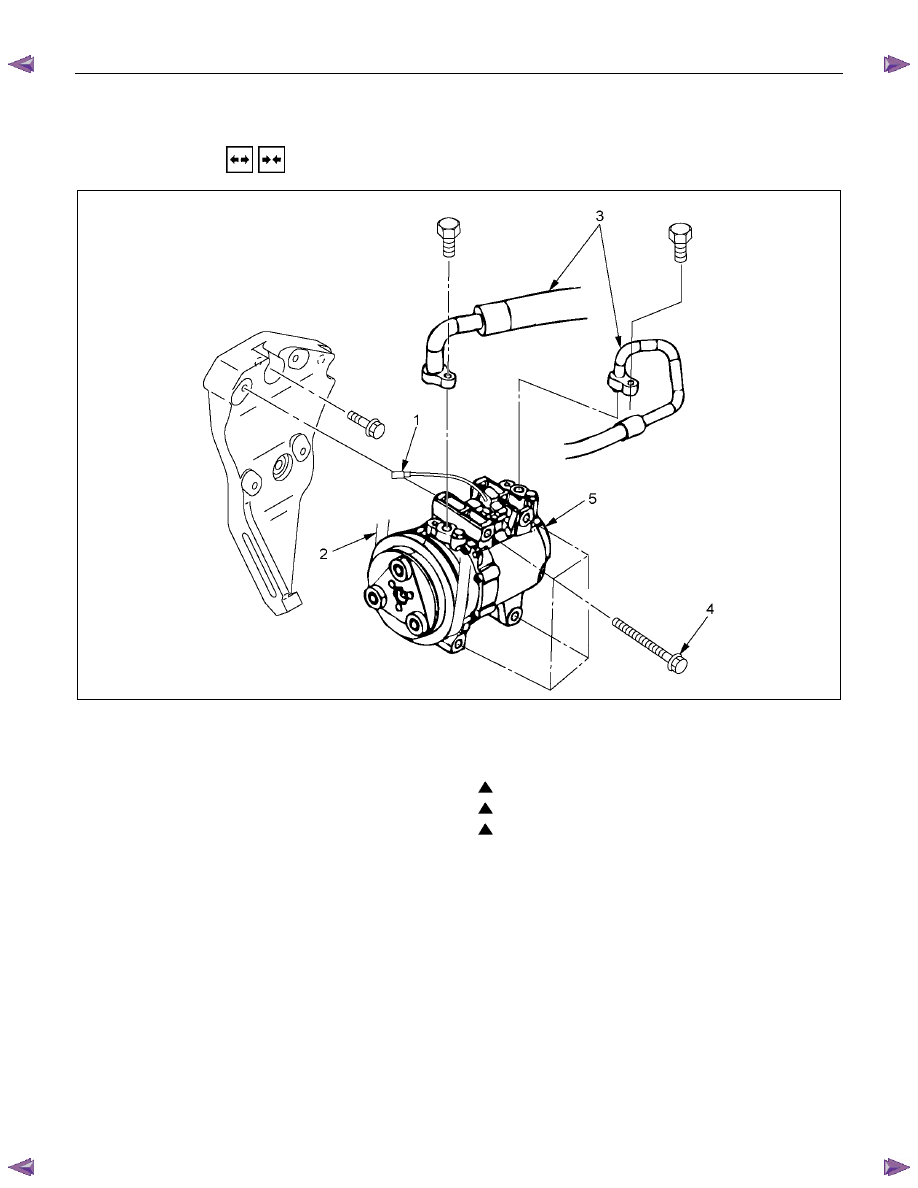

 REMOVAL AND INSTALLATION (4JJ1-TC Standard Output, 4JJ1-TC High Output, 4JK1-TC High Output)







RTW510MF000201



Removal Steps



1. Magnetic clutch harness connector



2. Drive belt



3. Refrigerant line



4. Bolt; compressor to bracket



5. Compressor assembly





Installation Steps



5. Compressor assembly

▲  4. Bolt; compressor to bracket
▲  3. Refrigerant line
▲  2. Drive belt


1. Magnetic clutch harness connector



1-48  HEATER AND AIR CONDITIONING



Important Operations - Installation




4.  Bolt; Compressor to Bracket

N

⋅m (kgf⋅m/lb⋅ft)



Torque

44 (4.5/33)






3. Refrigerant Line

N

⋅m (kgf⋅m/lb⋅in)



Torque 11

∼19 (1.1/95∼1.9/168)





2. Drive Belt



Refer to SECTION 6A “INTAKE MANIFOLD”.





HEATER AND AIR CONDITIONING  1-49





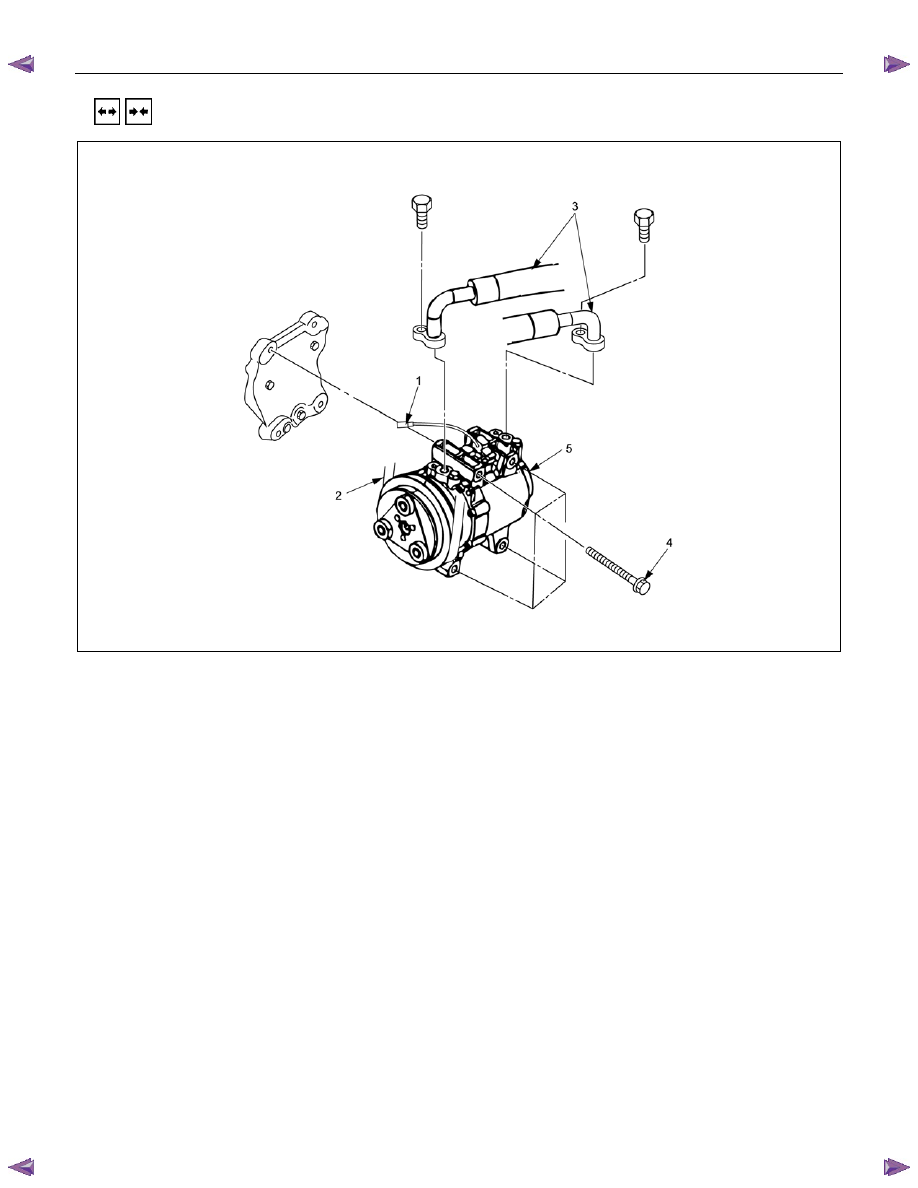

 REMOVAL AND INSTALLATION (C24SE)









RTW310MF000401



Removal Steps



1. Magnetic clutch harness connector



2. Drive belt



3. Refrigerant line



4. Bolt; compressor to bracket



5. Compressor assembly





Installation Steps



5. Compressor assembly

  4. Bolt; compressor to bracket

  3. Refrigerant line

  2. Drive belt



1. Magnetic clutch harness connector
