TM-210

< DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

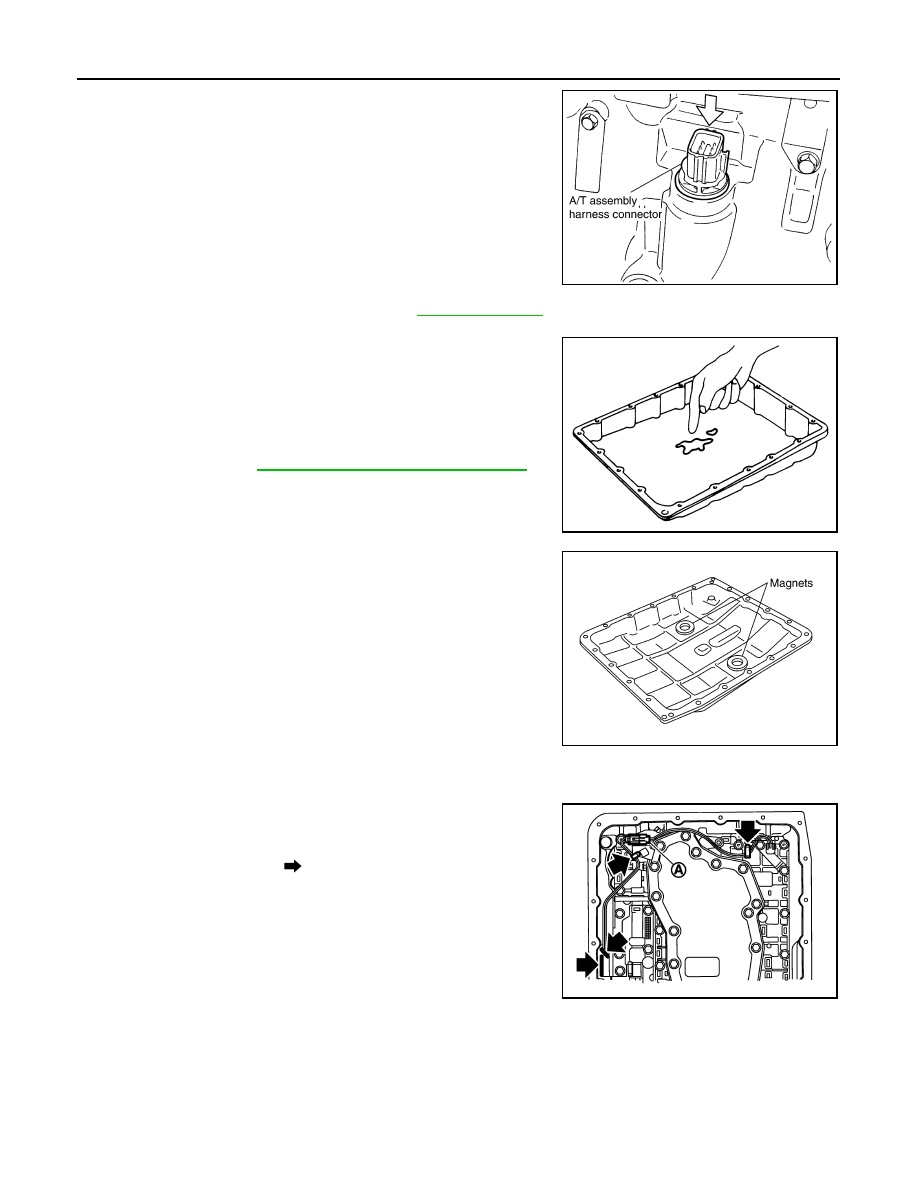

27. Push A/T assembly harness connector.

CAUTION:

Do not damage connector.

28. Remove oil pan and oil pan gasket. Refer to

TM-170, "Oil Pan"

.

29. Check foreign materials in oil pan to help determine causes of

malfunction. If the A/T fluid is very dark, smells burned, or con-

tains foreign particles, the frictional material (clutches, band)

may need replacement. A tacky film that will not wipe clean indi-

cates varnish build up. Varnish can cause valves, servo, and

clutches to stick and can inhibit pump pressure.

• If frictional material is detected, perform A/T fluid cooler

cleaning. Refer to

TM-152, "A/T Fluid Cooler Cleaning"

.

30. Remove magnets from oil pan.

31. If an A/T fluid temperature sensor 2 is attached, disconnect the A/T fluid temperature sensor 2 connector

as shown below.

a. Disconnect A/T fluid temperature sensor 2 connector (A).

CAUTION:

Do not damage connector.

b. Straighten terminal clips (

) to free terminal cord assembly and

A/T fluid temperature sensor 2 harness.

SCIA5022E

SCIA5199E

SCIA5200E

SCIA8124E

DISASSEMBLY

TM-211

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

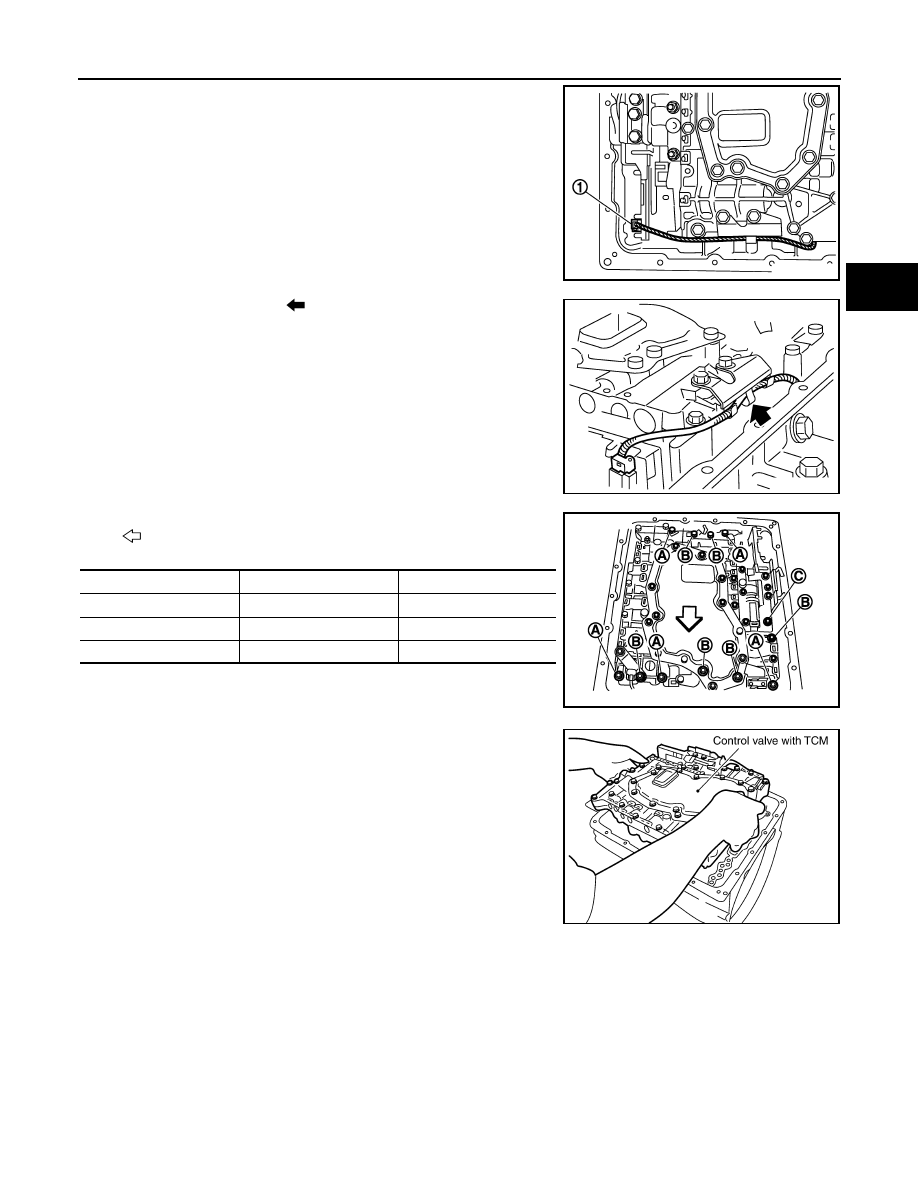

32. Disconnect output speed sensor connector (1).

CAUTION:

Do not damage connector.

33. Straighten terminal clip (

) to free output speed sensor har-

ness.

34. Remove bolts (A), (B) and (C) from control valve with TCM.

•

 : Front

35. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and

manual plate height. Remove it vertically.

36. Remove the A/T fluid temperature sensor 2 or plug as shown below.
a. A/T fluid temperature sensor 2

JSDIA1319ZZ

JSDIA1320ZZ

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8077E

SCIA5260E

TM-212

< DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

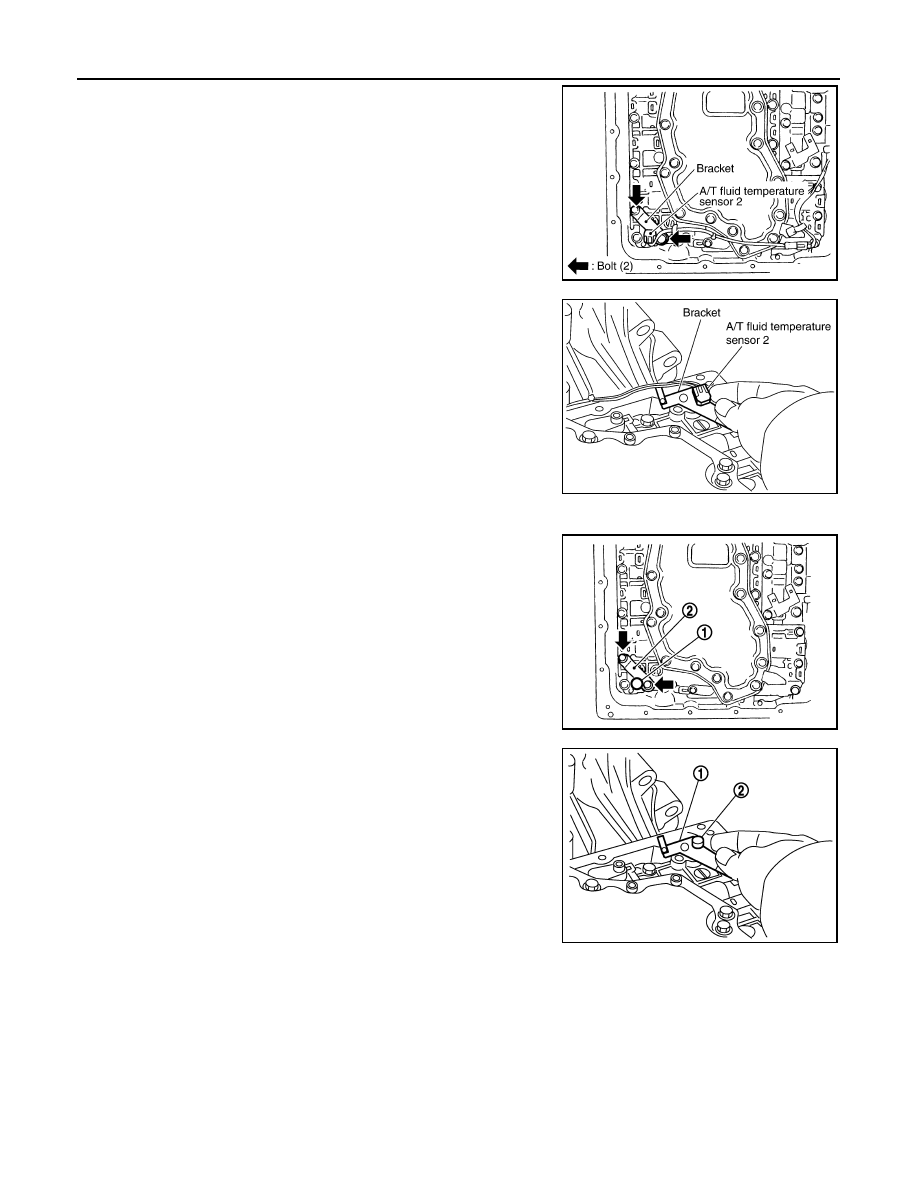

i.

Remove A/T fluid temperature sensor 2 with bracket from con-

trol valve with TCM.

ii.

Remove bracket from A/T fluid temperature sensor 2.

b. Plug
i.

Remove plug (1) with bracket (2) from control valve with TCM.

ii.

Remove bracket (1) from plug (2).

SCIA5253E

SCIA5264E

JSDIA1311ZZ

JSDIA1312ZZ

DISASSEMBLY

TM-213

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

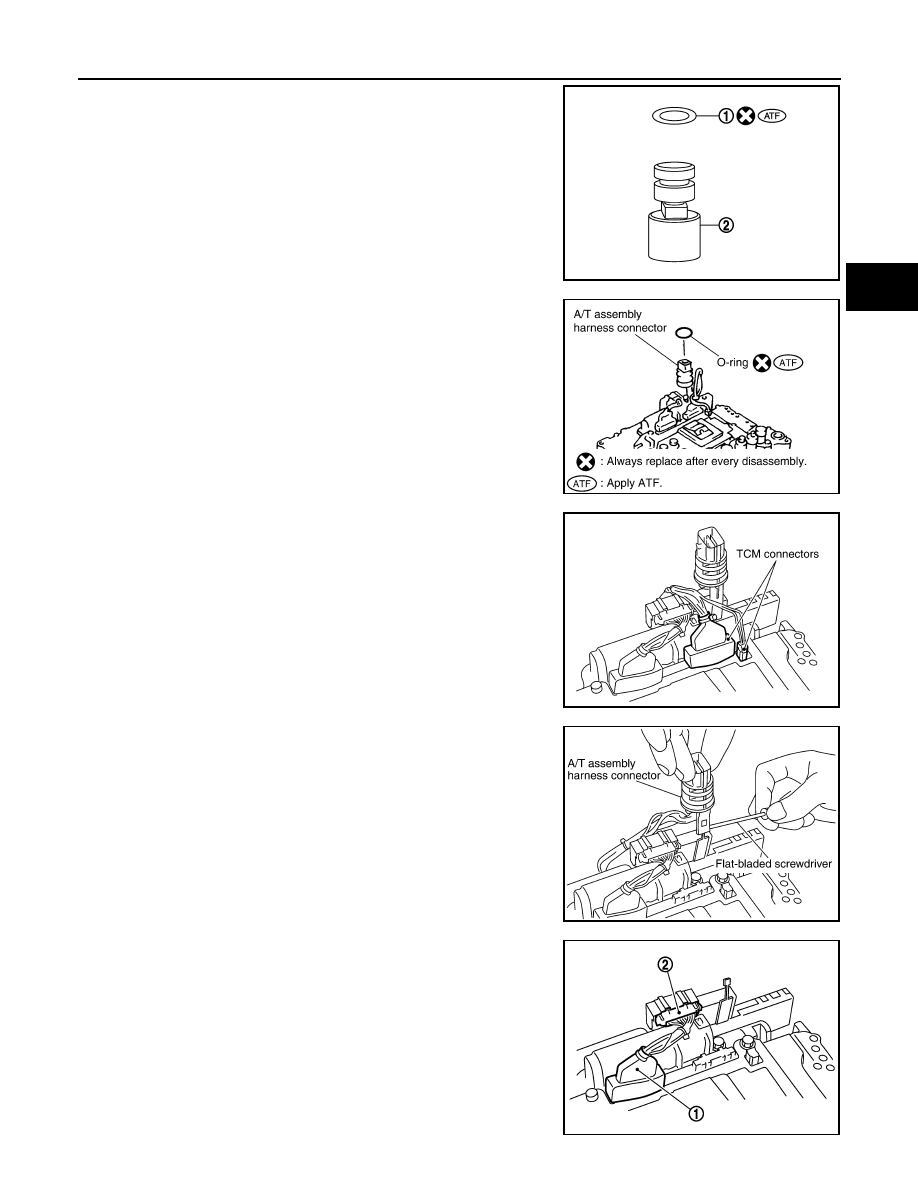

iii. RemoveO-ring (1) from plug (2).

37. Remove O-ring from A/T assembly harness connector.

38. Disconnect TCM connectors.

CAUTION:

Do not damage connectors.

39. Remove A/T assembly harness connector from control valve

with TCM using suitable tool.

40. Disconnect TCM connector (1) and transmission range switch

connector (2).

CAUTION:

Do not damage connectors.

JSDIA1313ZZ

SCIA5155E

SCIA5447E

SCIA5448E

JSDIA1317ZZ
