HEATED SEAT

SE-13

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

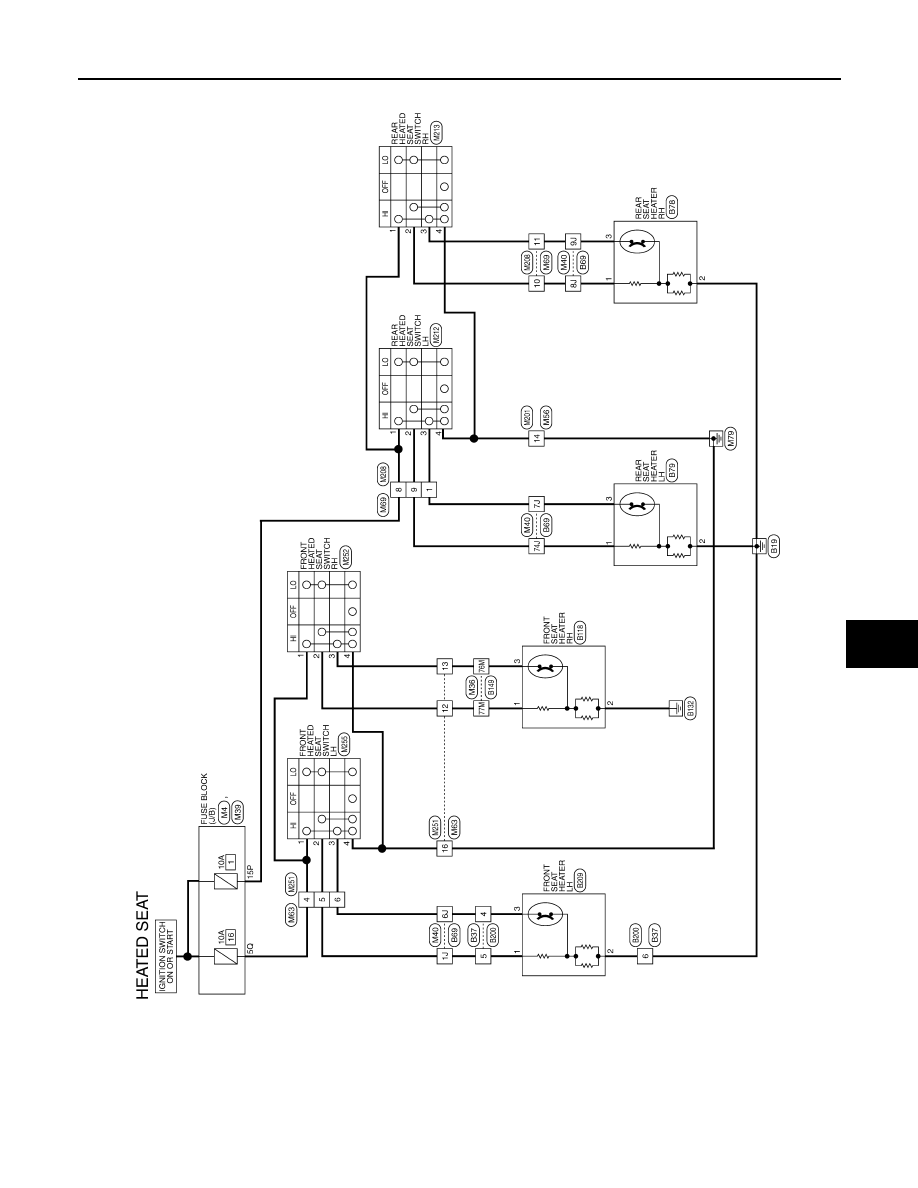

Wiring Diagram

INFOID:0000000005147386

ABJWA0098GB

SE-14

< COMPONENT DIAGNOSIS >

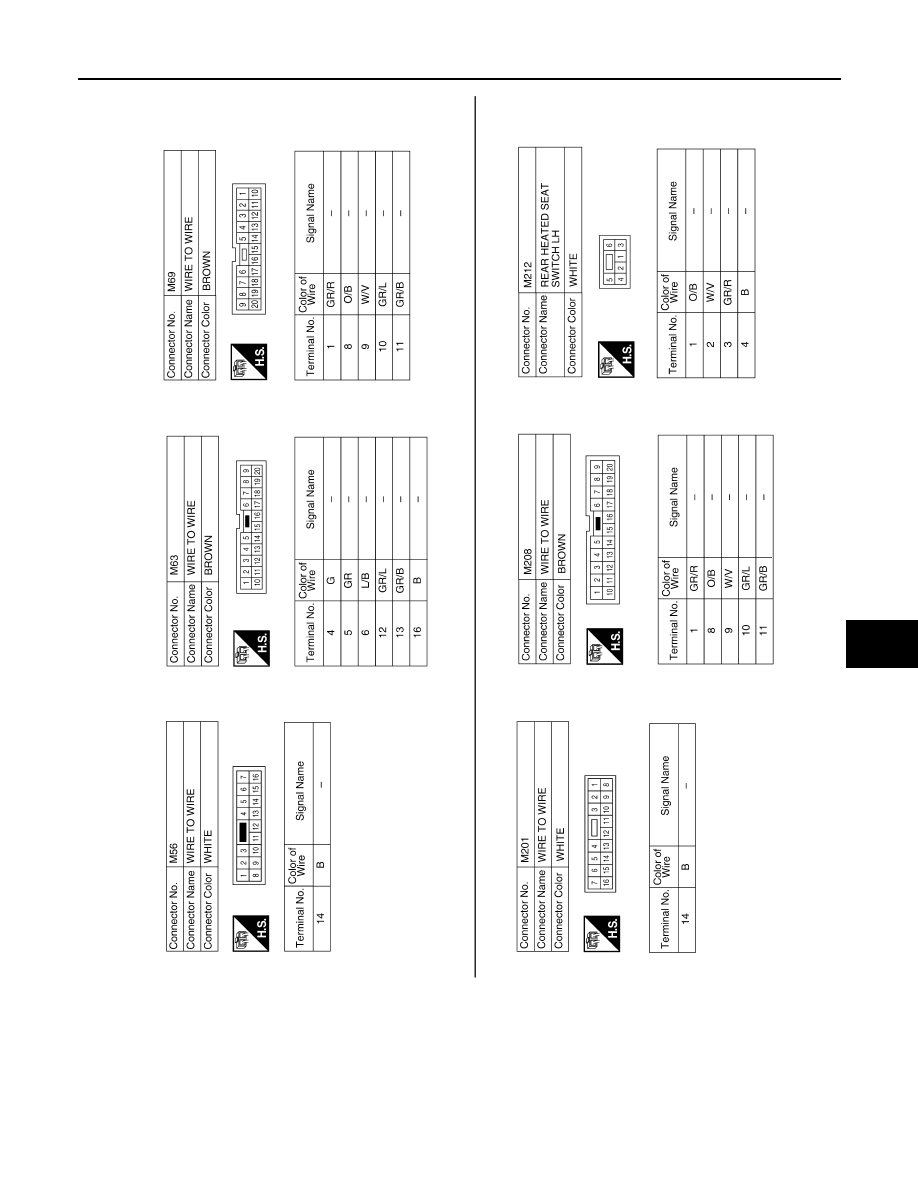

HEATED SEAT

ABJIA0114GB

HEATED SEAT

SE-15

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0116GB

SE-16

< COMPONENT DIAGNOSIS >

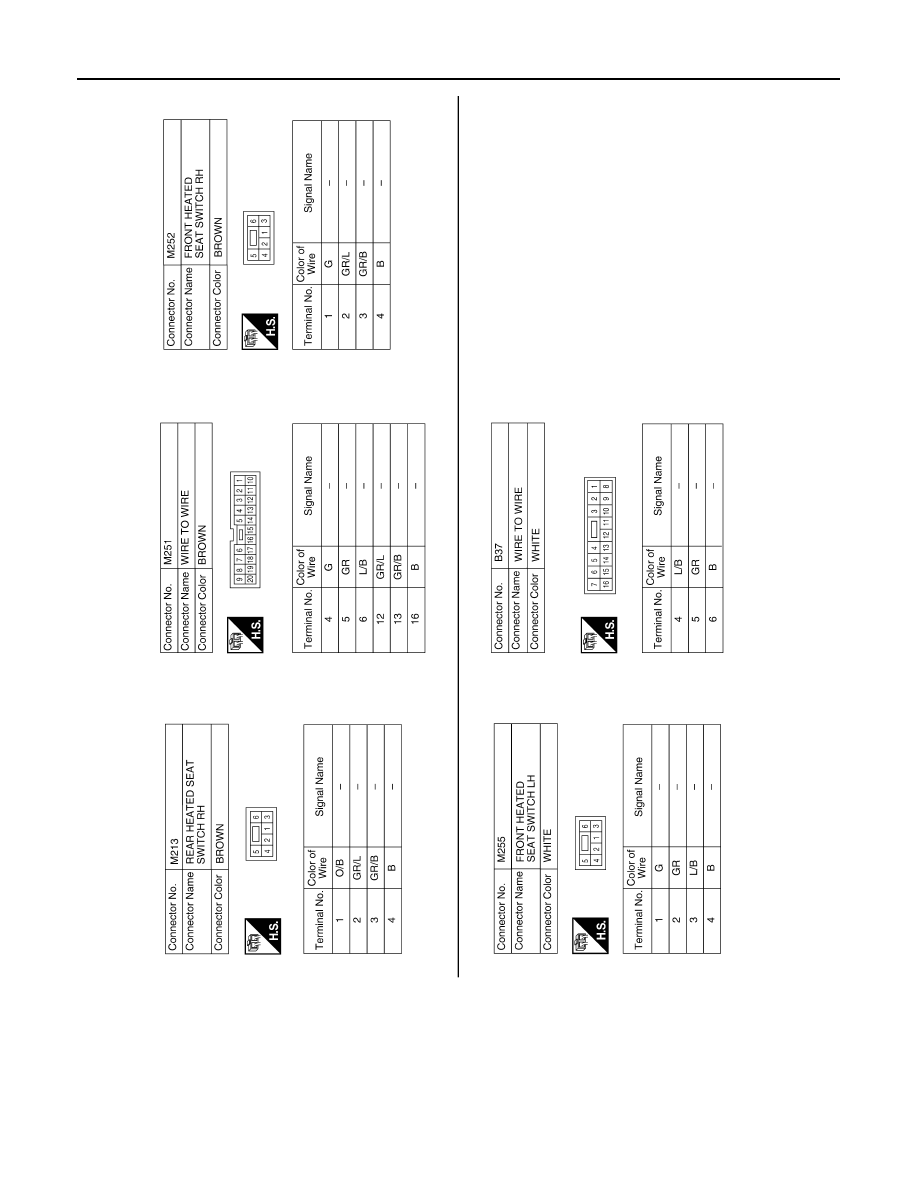

HEATED SEAT

ABJIA0306GB
