Infiniti QX56 (JA60). Manual - part 821

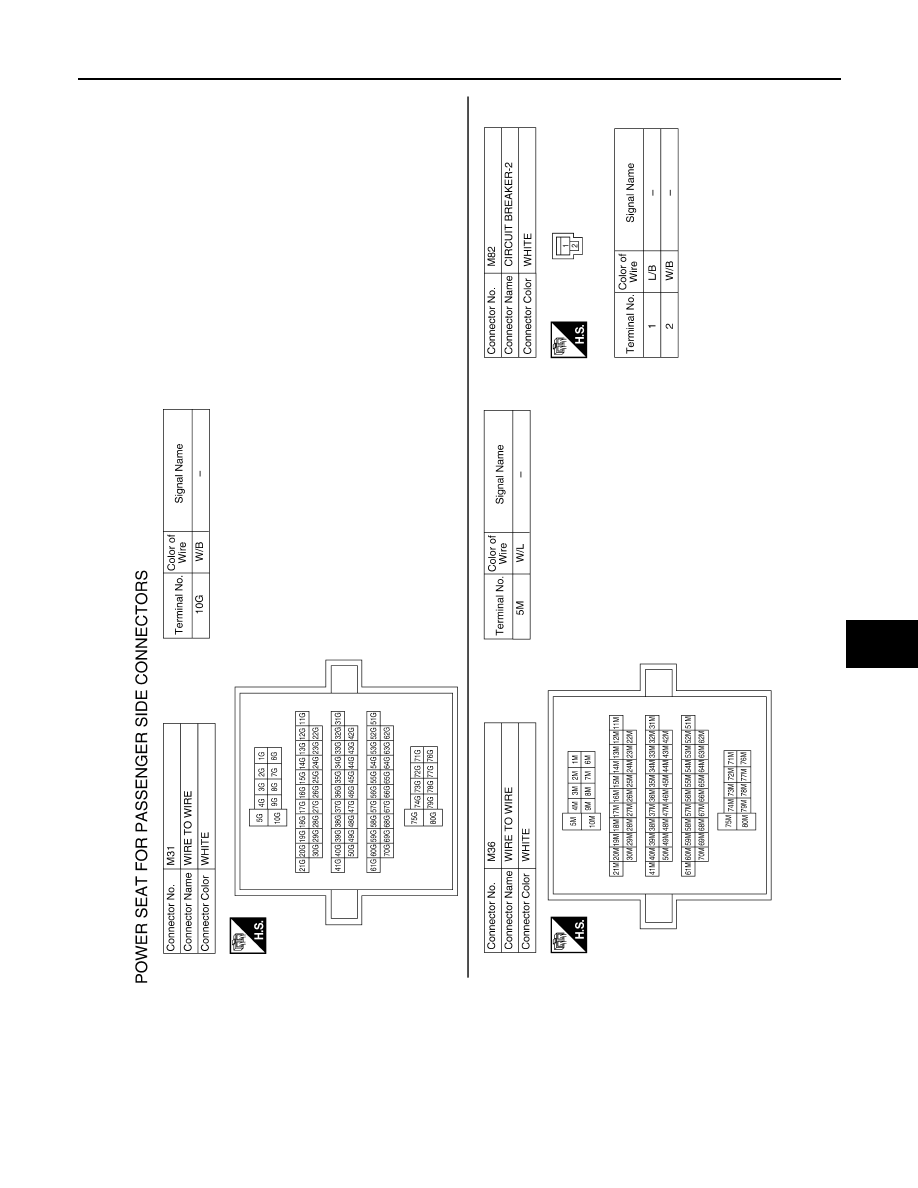

POWER SEAT

SE-9

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0300GB

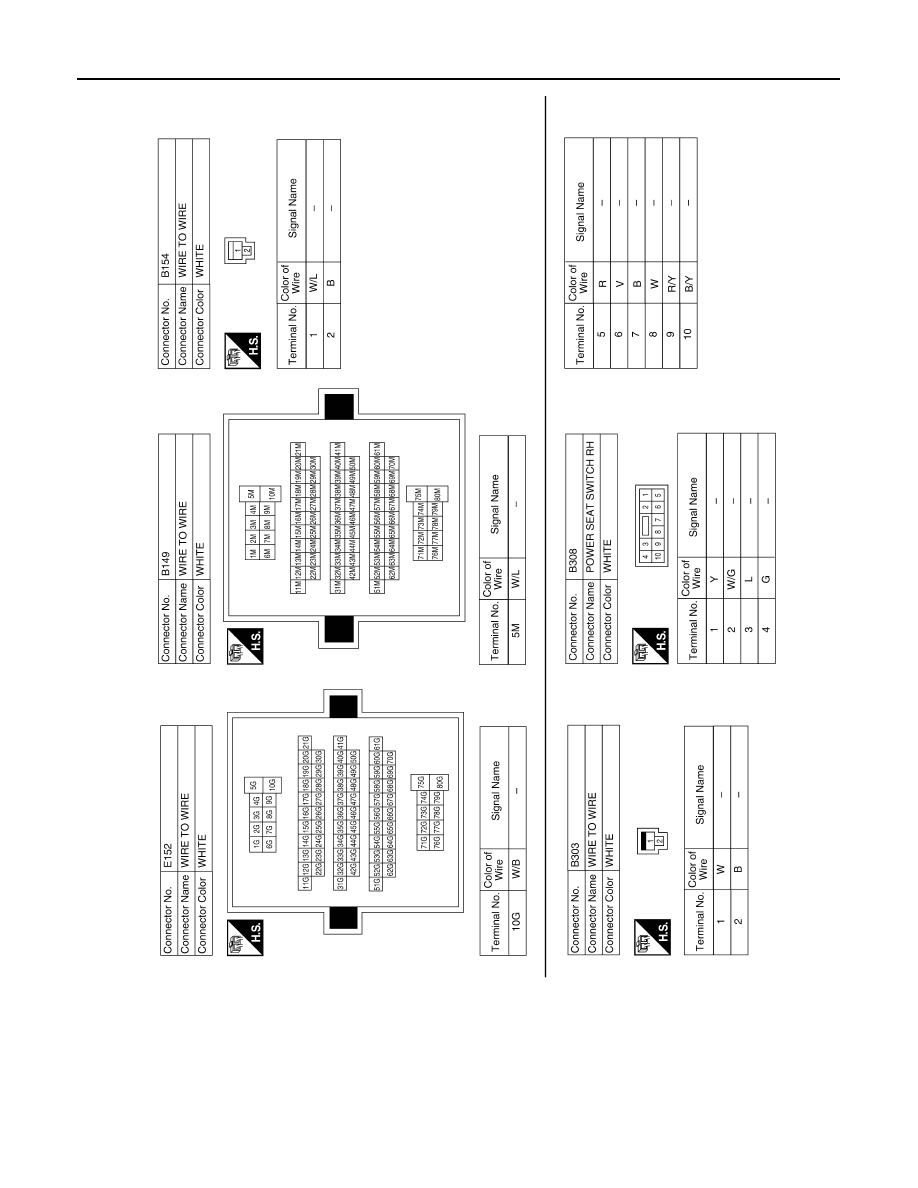

SE-10

< COMPONENT DIAGNOSIS >

POWER SEAT

ABJIA0305GB

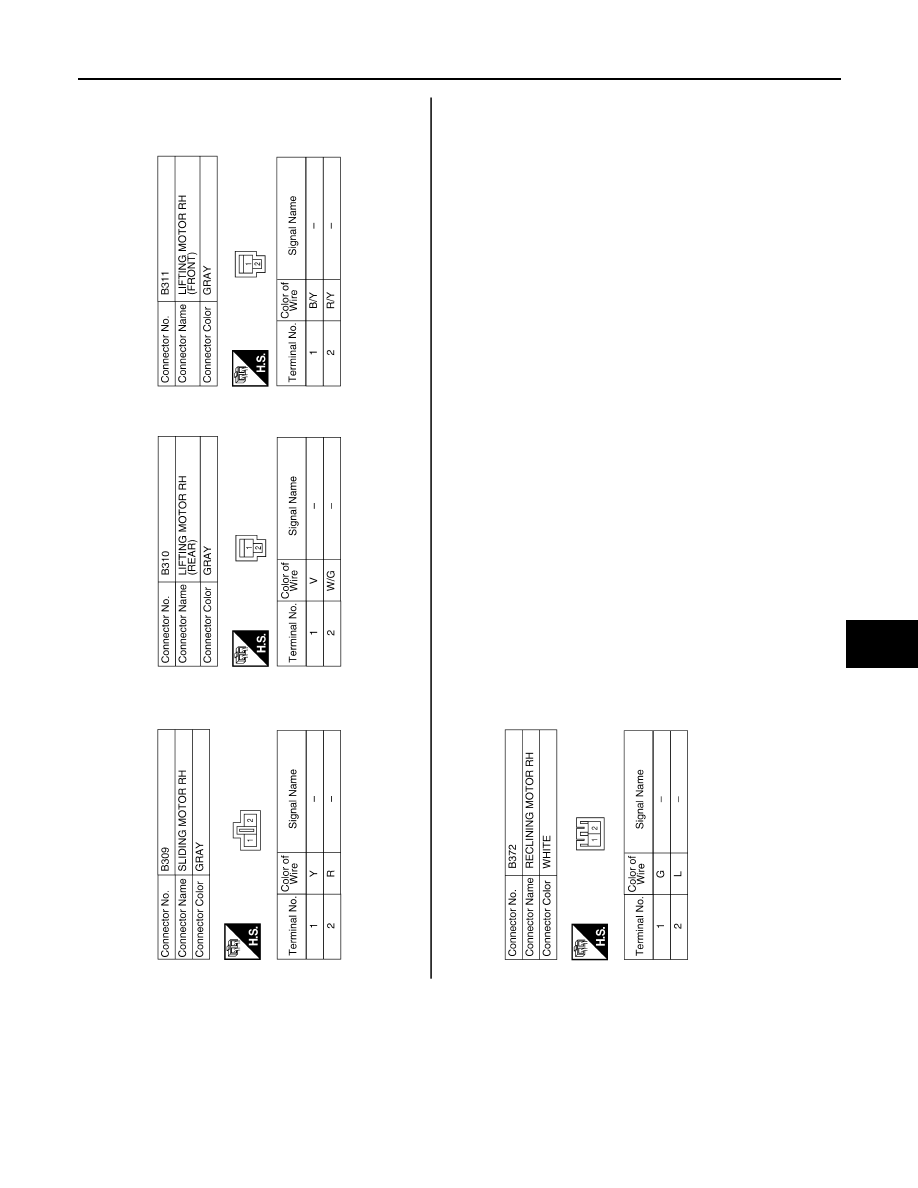

POWER SEAT

SE-11

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0084GB

SE-12

< COMPONENT DIAGNOSIS >

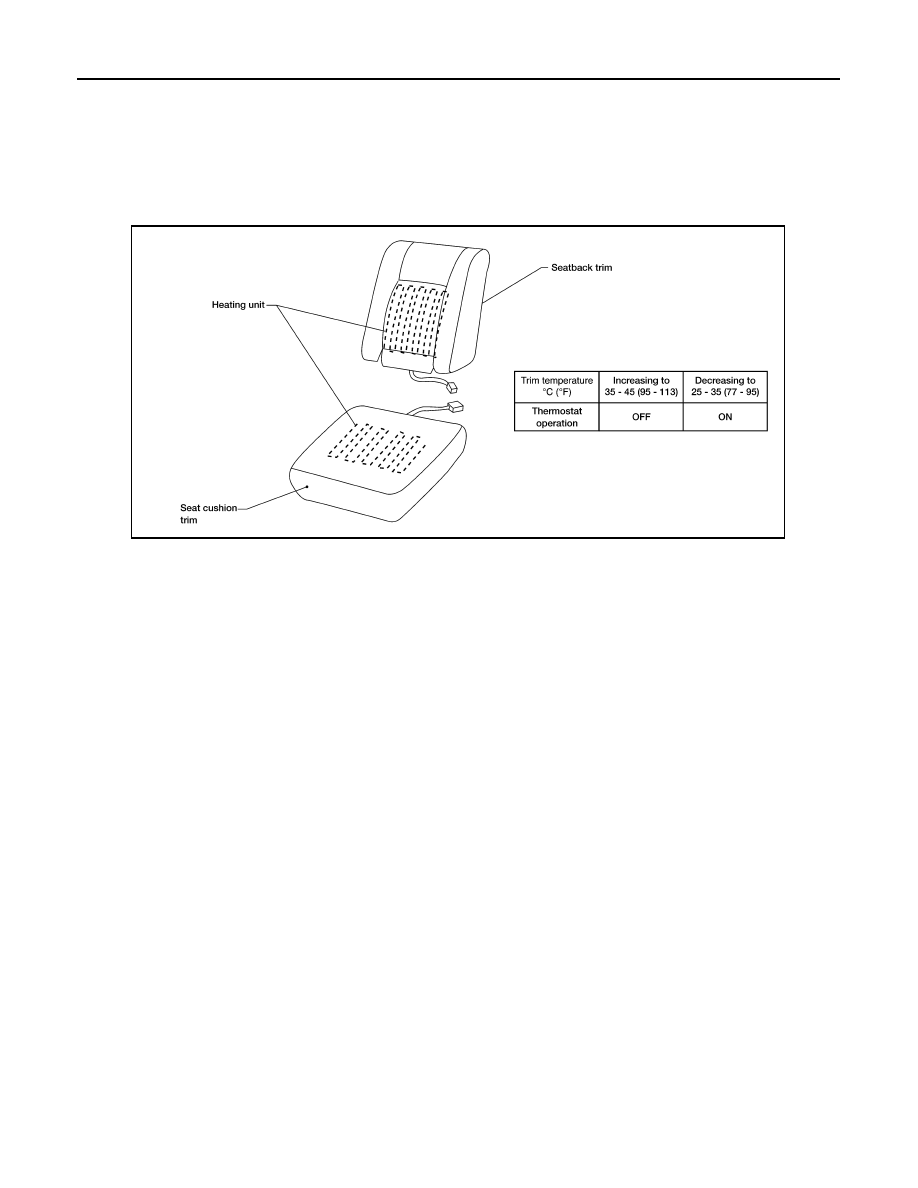

HEATED SEAT

HEATED SEAT

Description

INFOID:0000000005147385

• When handling seat, be extremely careful not to scratch heating unit.

• Front passenger seat cushion and seatbacks equipped with airbags cannot be disassembled. They are

replaced as assemblies only.

• Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trim.

WIIA0031E
