Infiniti QX56 (JA60). Manual - part 531

FRONT FOG LAMP

EXL-153

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Installation

Installation is in the reverse order of removal.

EXL-154

< REMOVAL AND INSTALLATION >

LIGHTING & TURN SIGNAL SWITCH

LIGHTING & TURN SIGNAL SWITCH

Removal and Installation

INFOID:0000000005146704

REMOVAL

1. Remove steering column cover.

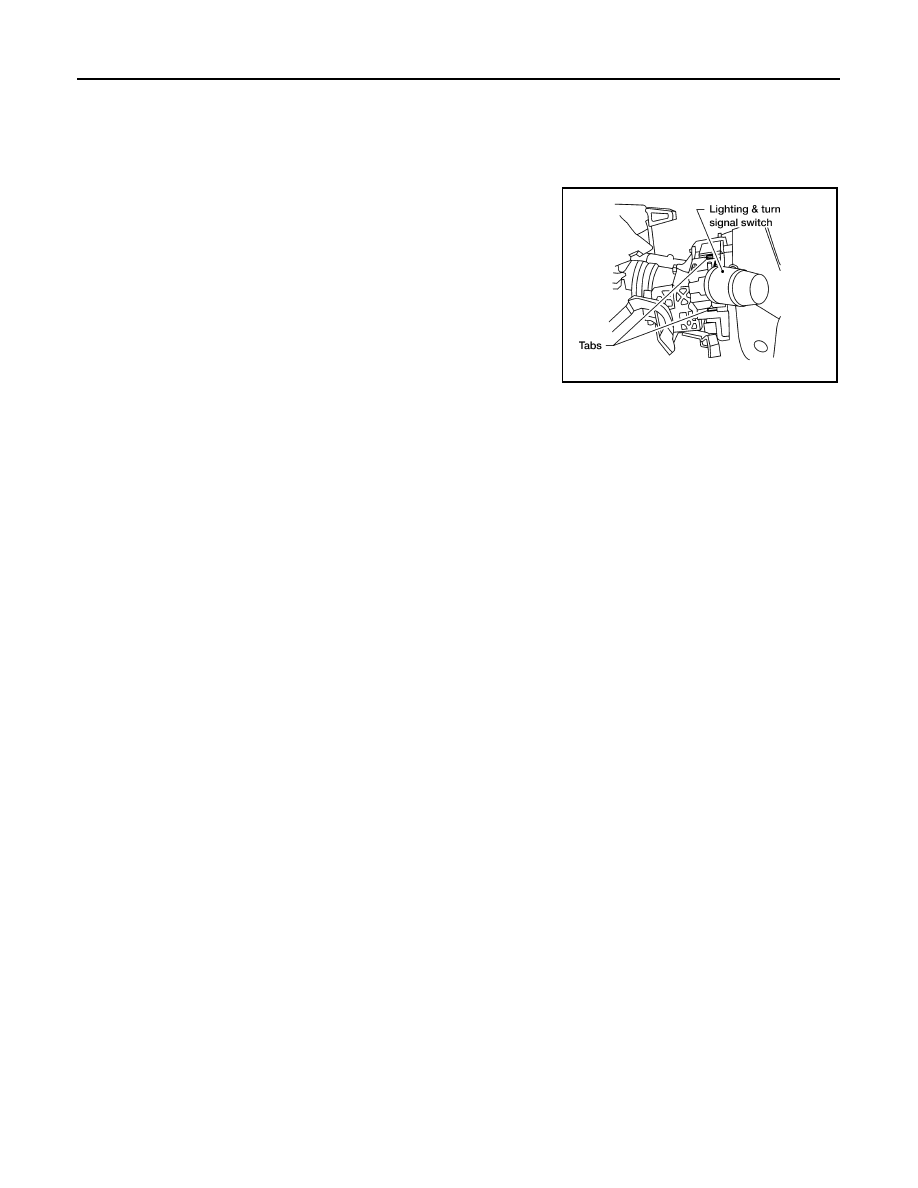

2. While pressing tabs, pull lighting and turn signal switch toward

driver door and disconnect from the base.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0013E

HAZARD SWITCH

EXL-155

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HAZARD SWITCH

Removal and Installation

INFOID:0000000005146705

REMOVAL

1. Remove cluster lid C. Refer to

IP-15, "Removal and Installation"

.

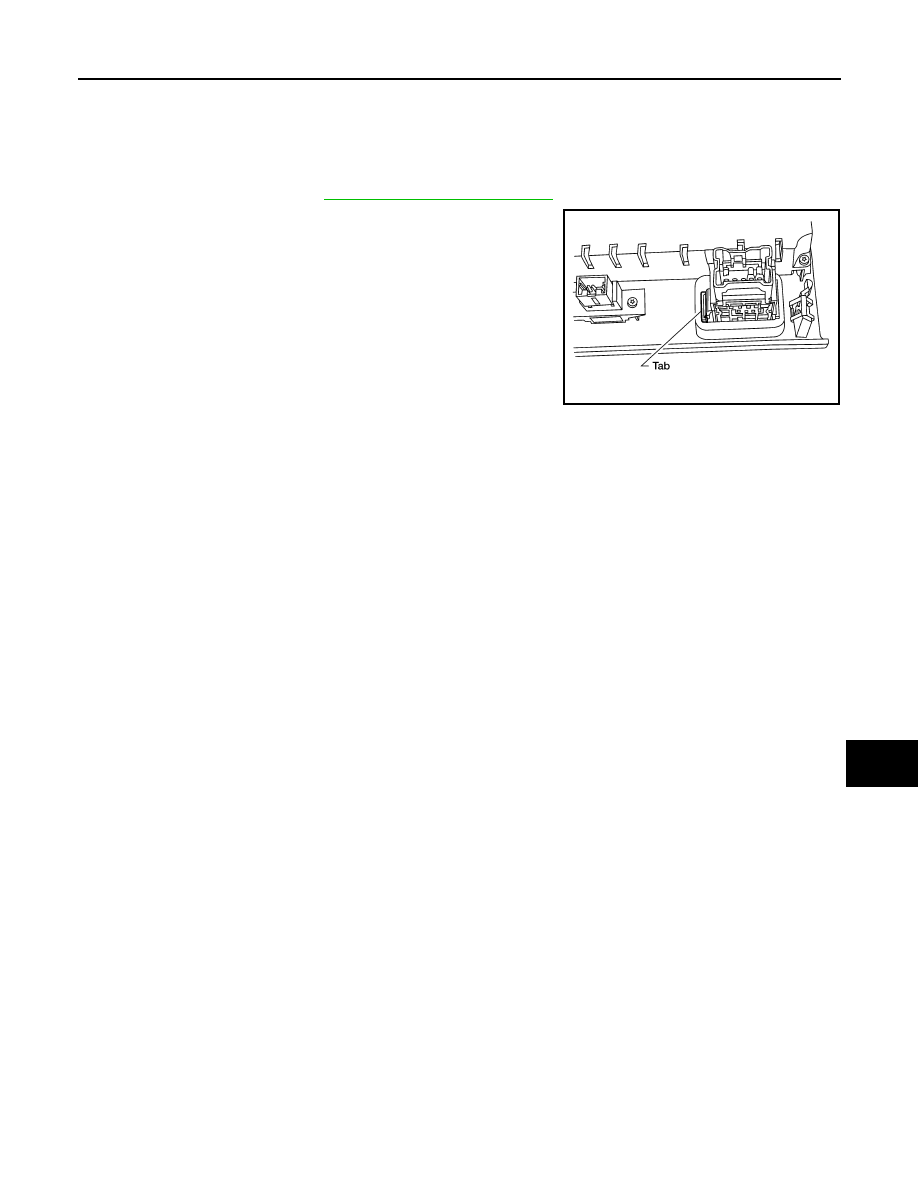

2. While pressing the tab, push out the hazard switch.

INSTALLATION

Installation is in the reverse order of removal.

WKIA1402E

EXL-156

< REMOVAL AND INSTALLATION >

LICENSE PLATE LAMP

LICENSE PLATE LAMP

Bulb Replacement

INFOID:0000000005146706

LICENSE PLATE LAMP

Removal

1. Remove back door lower finisher. Refer to

EXT-24, "Removal and Installation"

.

2. Turn bulb socket counterclockwise to remove it.
3. Pull bulb from socket.

Installation

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000005146707

LICENSE PLATE LAMP

Removal

1. Remove back door lower finisher. Refer to

INT-21, "Removal and Installation"

.

2. Remove license plate lamp screws.
3. Remove license plate lamp.

Installation

Installation is in the reverse order of removal.
