STOP LAMP

Bulb Replacement

INFOID:0000000005146708

HIGH-MOUNTED STOP LAMP

NOTE:

High-mounted stop lamp bulbs are not serviceable.

STOP LAMP

Refer to

EXL-157, "Removal and Installation"

.

Removal and Installation

INFOID:0000000005146709

HIGH-MOUNTED STOP LAMP

Removal

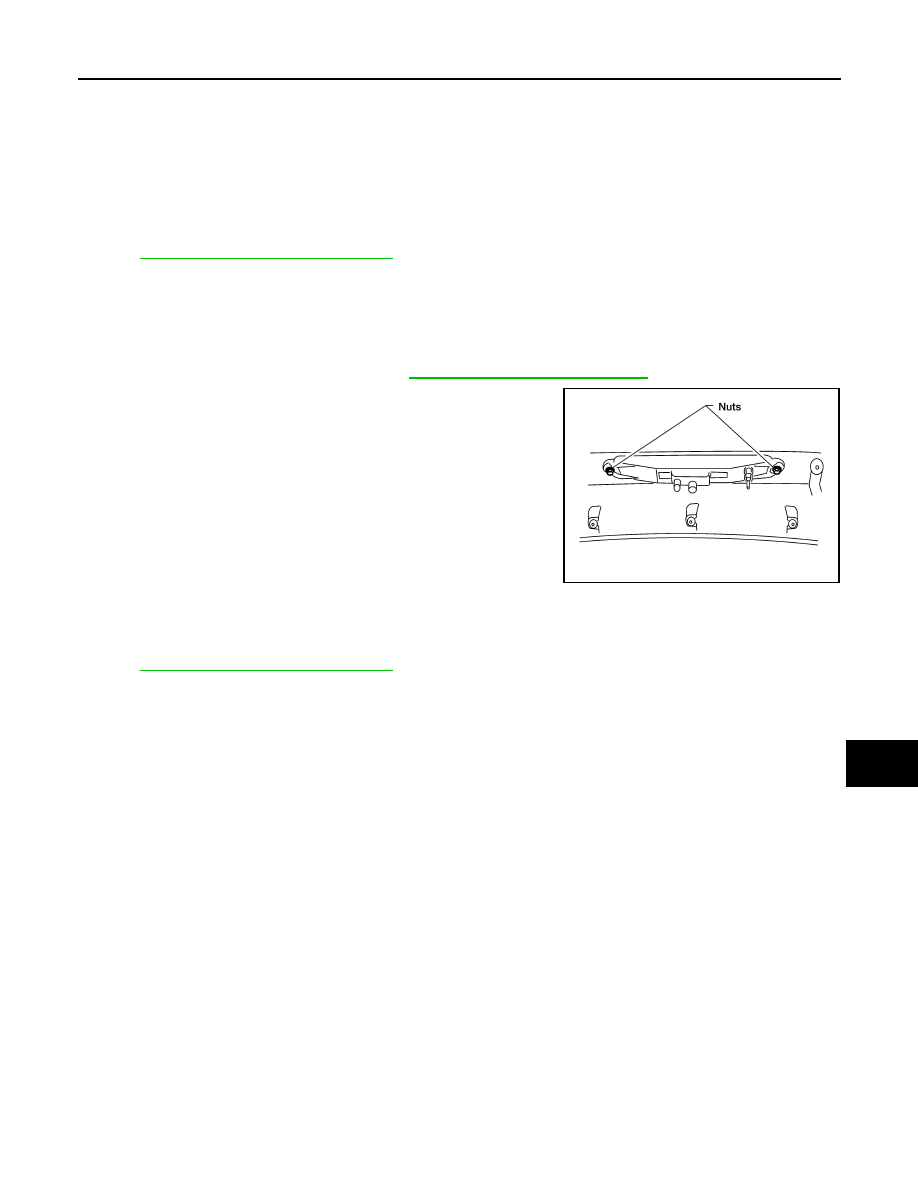

1. Remove back door upper finisher. Refer to

INT-21, "Removal and Installation"

.

2. Remove 2 nuts and remove high-mounted stop lamp.

Installation

Installation is in the reverse order of removal.

STOP LAMP

Refer to

EXL-158, "Removal and Installation"

.

WKIA1397E

EXL-158

< REMOVAL AND INSTALLATION >

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Bulb Replacement

INFOID:0000000005146710

REMOVAL

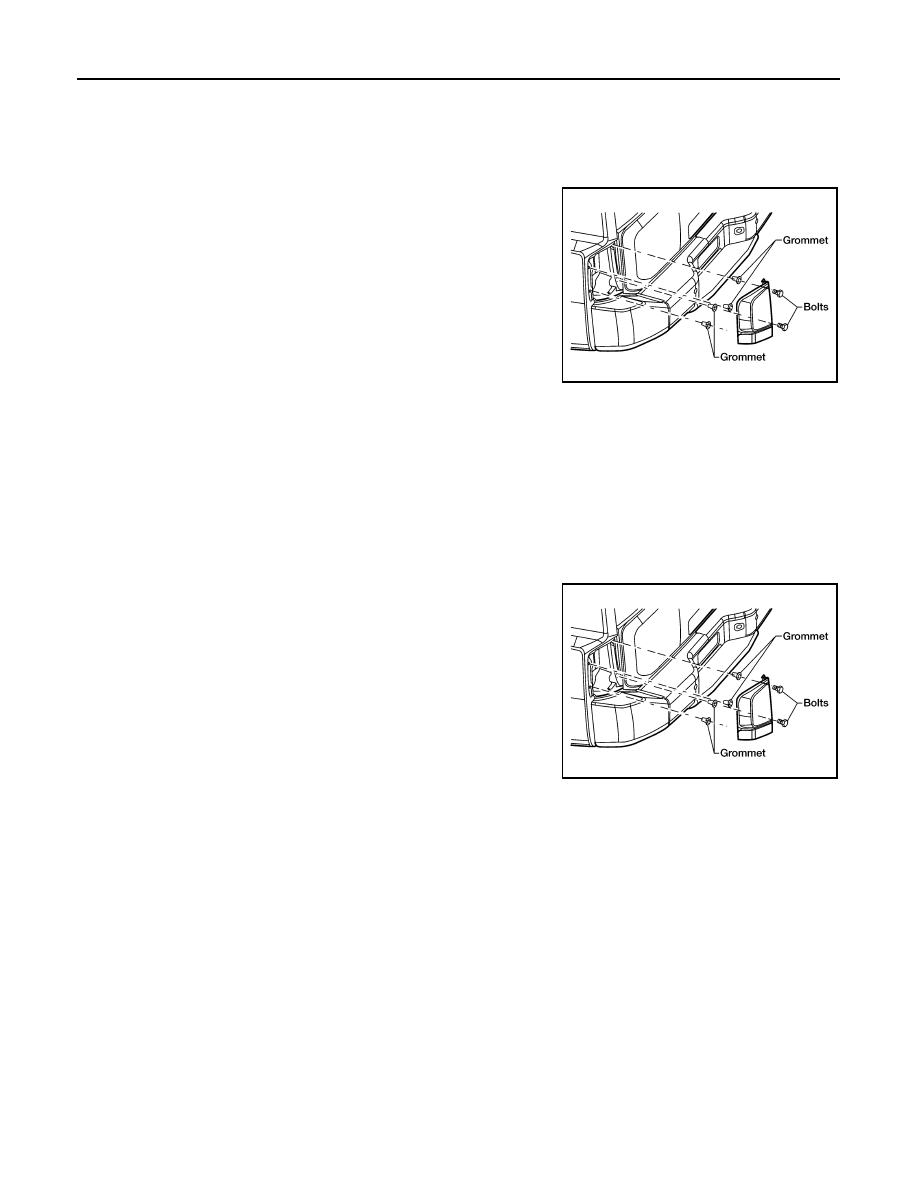

1. Remove rear combination lamp bolts.

2. Pull rear combination lamp to remove.
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000005146711

REMOVAL

1. Remove rear combination lamp bolts.
2. Pull rear combination lamp to remove.
3. Disconnect rear combination lamp connector.

INSTALLATION

Installation is in the reverse order of removal.

WKIA1393E

WKIA1393E

BULB SPECIFICATIONS

EXL-159

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

BULB SPECIFICATIONS

Headlamp

INFOID:0000000005146712

*: Always check with the Parts Department for the latest parts information.

Exterior Lamp

INFOID:0000000005146713

*: Always check with the Parts Department for the latest parts information.

Item

Wattage (W)*

Low

35

High

60/65

Item

Wattage (W)*

Front combination lamp

Parking lamp (inner)

7

Parking lamp (outer)

7

Side marker lamp (front)

7

Rear combination lamp

Stop/Tail lamp

LED*

Side marker lamp (rear)

*

Turn signal lamp

27

Back-up lamp

*

Turn/fog lamp

Fog

55

Turn

21

Puddle lamp

8

License plate lamp

*

High-mounted stop lamp

LED*

EXT-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

EXT

A

B

EXT

N

O

P

CONTENTS

EXTERIOR

SERVICE INFORMATION  ............................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
..

2

Service Notice  ...........................................................

3

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tool  ..........................................

4

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

5

Work Flow  .................................................................

5

Generic Squeak and Rattle Troubleshooting  ............

7

Diagnostic Worksheet  ...............................................

9

CLIP AND FASTENER .......................................

11

Description ..............................................................

11

FRONT BUMPER  ...............................................

13

Removal and Installation .........................................

13

REAR BUMPER  .................................................

15

Removal and Installation .........................................

15

FRONT GRILLE  .................................................

17

Removal and Installation  .........................................

17

COWL TOP  .......................................................

18

Removal and Installation  .........................................

18

FRONT FENDER ...............................................

20

Removal and Installation  .........................................

20

OVER FENDER .................................................

21

Removal and Installation  .........................................

21

FENDER PROTECTOR  ....................................

23

Removal and Installation  .........................................

23

LICENSE LAMP FINISHER  ..............................

24

Removal and Installation  .........................................

24

RUNNING BOARDS  .........................................

25

Removal and Installation  .........................................

25

REAR SPOILER ................................................

26

Removal and Installation  .........................................

26

ROOF RACK  .....................................................

27

Removal and Installation  .........................................

27

DOOR OUTSIDE MOLDING  .............................

28

Removal and Installation  .........................................

28

SIDE GUARD MOLDING ..................................

30

Removal and Installation  .........................................

30
