4WD MODE SWITCH

4WD MODE SWITCH

Removal and Installation

INFOID:0000000006222328

REMOVAL

NOTE:
4WD shift switch is integrated in 4WD switch assembly.

1.

Remove console finisher assembly from center console assembly. Refer to

IP-25, "Removal and Installa-

tion"

2.

Disconnect 4WD switch assembly harness connector.

3.

Press 4WD switch assembly fixing pawls, and remove 4WD switch assembly from console finisher
assembly.

INSTALLATION

Install in the reverse order of removal.

FRONT OIL SEAL

DLN-109

< REMOVAL AND INSTALLATION >

[TRANSFER: ATX90A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

FRONT OIL SEAL

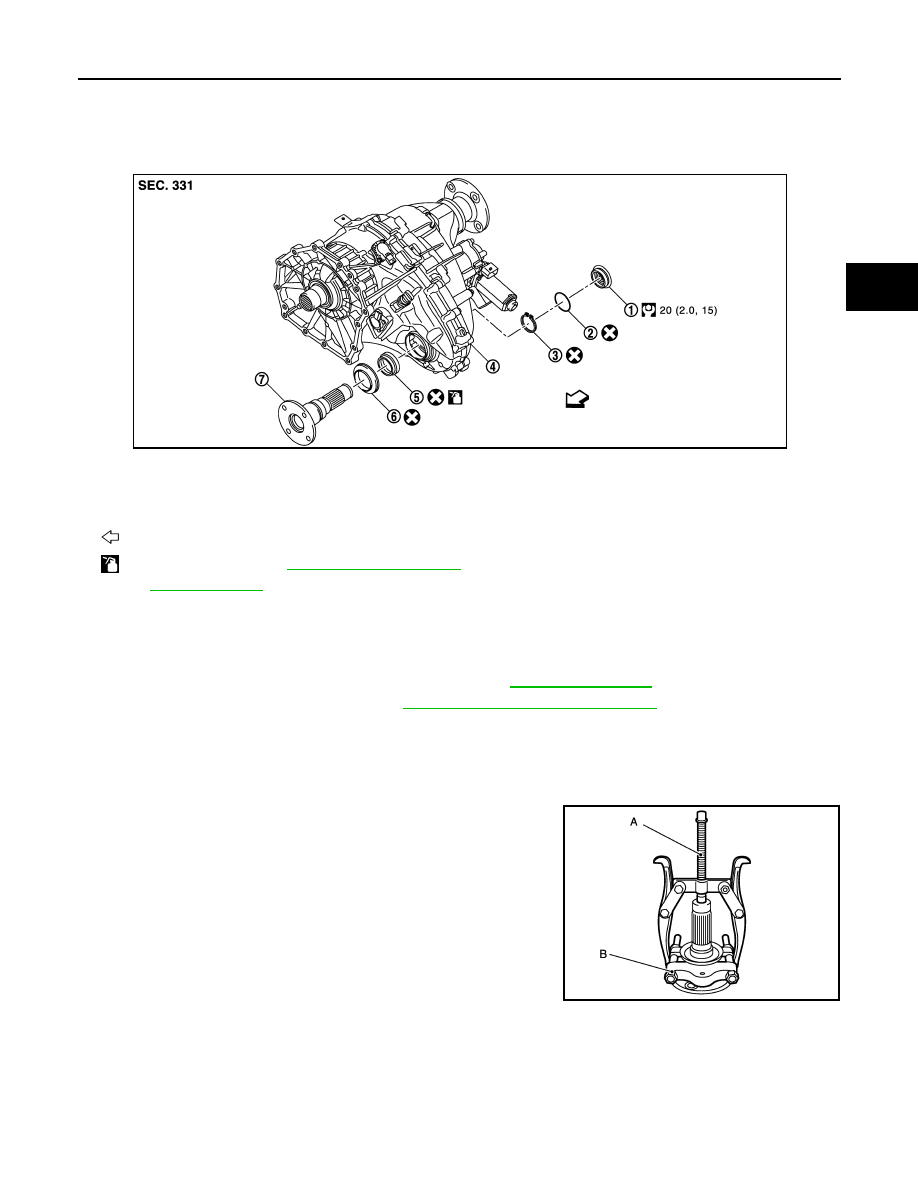

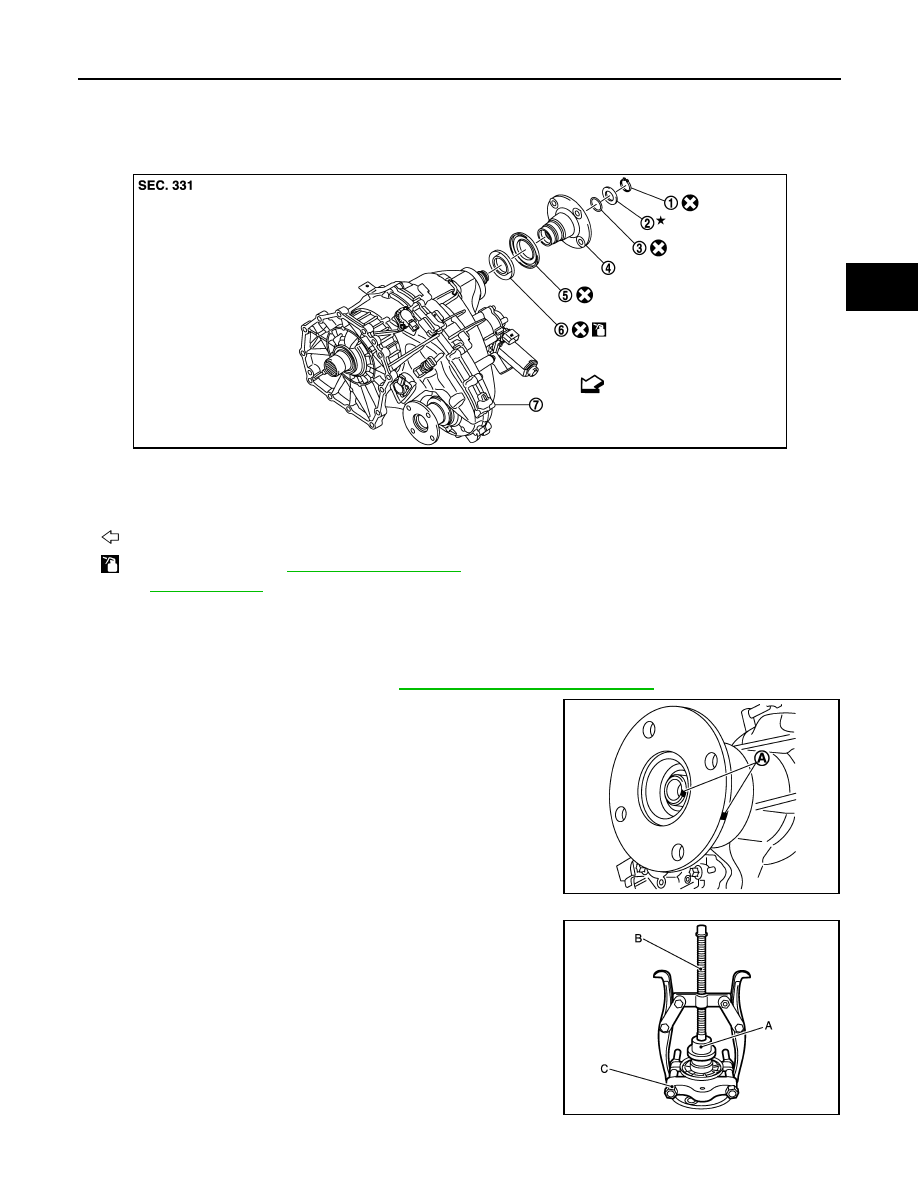

Exploded View

INFOID:0000000006222329

Removal and Installation

INFOID:0000000006222330

REMOVAL

1.

Remove the drain plug to drain the transfer fluid. Refer to

DLN-106, "Draining"

.

2.

Remove the front propeller shaft. Refer to

DLN-129, "Removal and Installation"

.

3.

Remove the plug.

4.

Remove the O-ring from the plug.

5.

Remove the snap ring.

6.

Remove the front shaft flange, using a plastic hammer.

7.

Remove the dust shield from the front shaft flange, using puller
and replacer.

8.

Remove front oil seal from front case.

CAUTION:

Never damage the front case.

INSTALLATION

1.

Plug

2.

O-ring

3.

Snap ring

4.

Transfer assembly

5.

Front oil seal

6.

Dust shield

7.

Front shaft flange

: Vehicle front

: Apply transfer fluid. Refer to

MA-10, "Fluids and Lubricants"

.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIE0280GB

A

: Puller (commercial service tool)

B

: Replacer (commercial service tool)

JPDIE0163ZZ

DLN-110

< REMOVAL AND INSTALLATION >

[TRANSFER: ATX90A]

FRONT OIL SEAL

1.

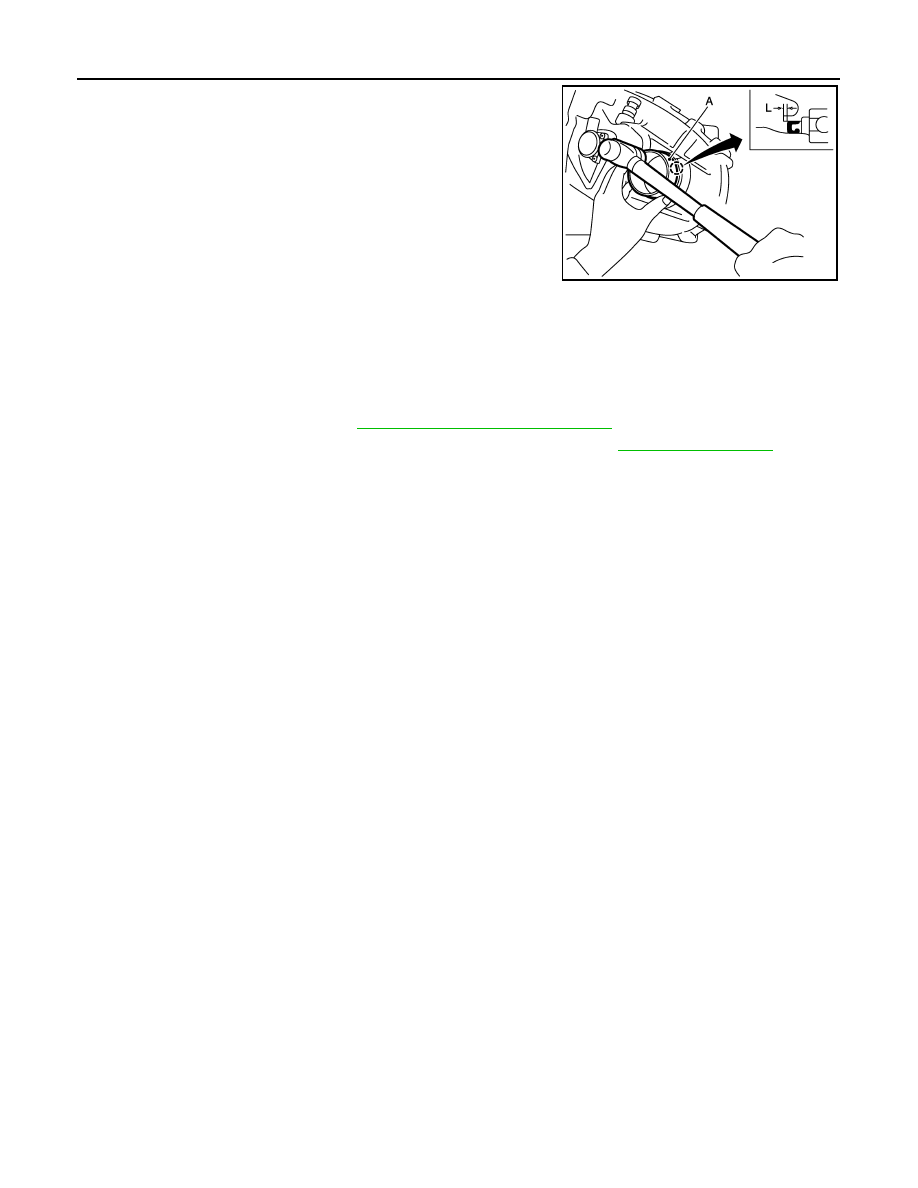

Install front oil seal with a drift (A) (commercial service tool)
within the dimension (L) shown as follows.

CAUTION:

• Never reuse front oil seal.
• Apply transfer fluid onto circumference of oil seal.

2.

Install the dust shield to the front shaft flange.

3.

Install the front shaft flange.

4.

Install the snap ring.

CAUTION:

Never reuse the snap ring.

5.

Install the O-ring to plug.

CAUTION:

• Never reuse the O-ring.
• Never damage the O-ring.

6.

Tighten the plug to specified torque.

7.

Install front propeller shaft. Refer to

DLN-129, "Removal and Installation"

.

8.

Fill with new transfer fluid, check fluid level and for fluid leakage. Refer to

DLN-106, "Inspection"

.

L

: 5.3 – 5.7 mm

JPDIE0160ZZ

REAR OIL SEAL

DLN-111

< REMOVAL AND INSTALLATION >

[TRANSFER: ATX90A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REAR OIL SEAL

Exploded View
