< SYMPTOM DIAGNOSIS >

[TRANSFER: ATX90A]

INFORMATION DISPLAY IS NOT DISPLAYED

INFORMATION DISPLAY IS NOT DISPLAYED

Description

INFOID:0000000006222321

Information display is not displayed.
NOTE:
When the combination meter receives 4WD shift switch signal, it displays a message on the information dis-
play and inform the driver of 4WD mode status. About indication contents, refer to

DLN-18, "4WD SYSTEM :

System Description"

 (4WD mode).

Diagnosis Procedure

INFOID:0000000006222322

1.

CHECK 4WD SHIFT SWITCH

Perform trouble diagnosis for 4WD shift switch. Refer to

DLN-67, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace error-detected parts.

2.

CHECK 4WD MODE INDICATOR LAMP

Perform trouble diagnosis for 4WD mode indicator. Refer to

DLN-98, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace error-detected parts.

3.

CHECK THE INFORMATION DISPLAY

Check that information except 4WD mode is displayed on information display.

Is the inspection result normal?

YES

>> Replace transfer control unit. Refer to

DLN-107, "Removal and Installation"

.

NO

>> Check information display. Refer to

MWI-29, "On Board Diagnosis Function"

.

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

DLN-105

< SYMPTOM DIAGNOSIS >

[TRANSFER: ATX90A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000006222323

Use the chart below to find the cause of the symptom. The numbers indicate the order of the inspection. If necessary, repair or replace these
parts.

Reference

DLN

-10

6,

 "

Inspe

c

ti

on

"

—

F

ron

t o

il se

al

:

DLN-109, "

Exp

lod

ed

 V

ie

w

"

Re

ar o

il

se

al

:

DLN-1

1

1

, "

E

x

p

lod

ed

 V

ie

w

"

—

—

—

SUSPECTED PARTS
(Possible cause)

T

R

ANSFER F

L

UID (Level

 low)

T

R

ANSFER F

L

UID (W

rong)

T

R

ANSFER F

L

UID (Level

 too high)

LI

QUI

D

 GASKET

 (Dam

ag

ed

)

OIL

 SEA

L (W

o

rn o

r da

m

age

d)

GEAR

 (W

orn

 o

r

da

ma

ge

d)

B

EARING (W

orn

 or

da

ma

ge

d)

T

R

ANSFER CAS

E

 (Damaged)

Symptom

Noise

1

2

3

3

3

Transfer fluid leakage

4

1

2

2

3

DLN-106

< PERIODIC MAINTENANCE >

[TRANSFER: ATX90A]

TRANSFER FLUID

PERIODIC MAINTENANCE

TRANSFER FLUID

Inspection

INFOID:0000000006222324

FLUID LEAKAGE

Check transfer surrounding area (oil seal, drain plug, and filler plug etc.) for fluid leakage.

FLUID LEVEL

1.

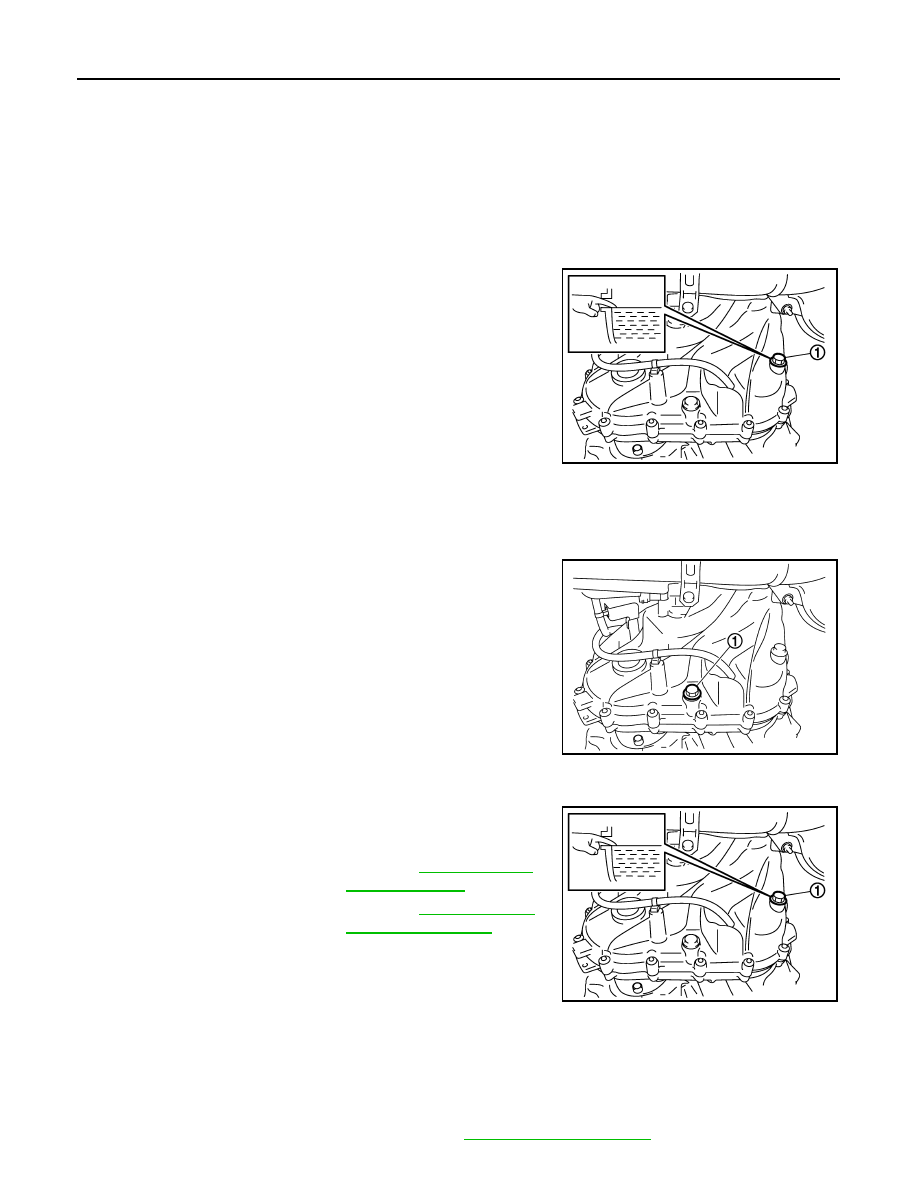

Remove filler plug (1) and gasket. Then check that fluid is filled
