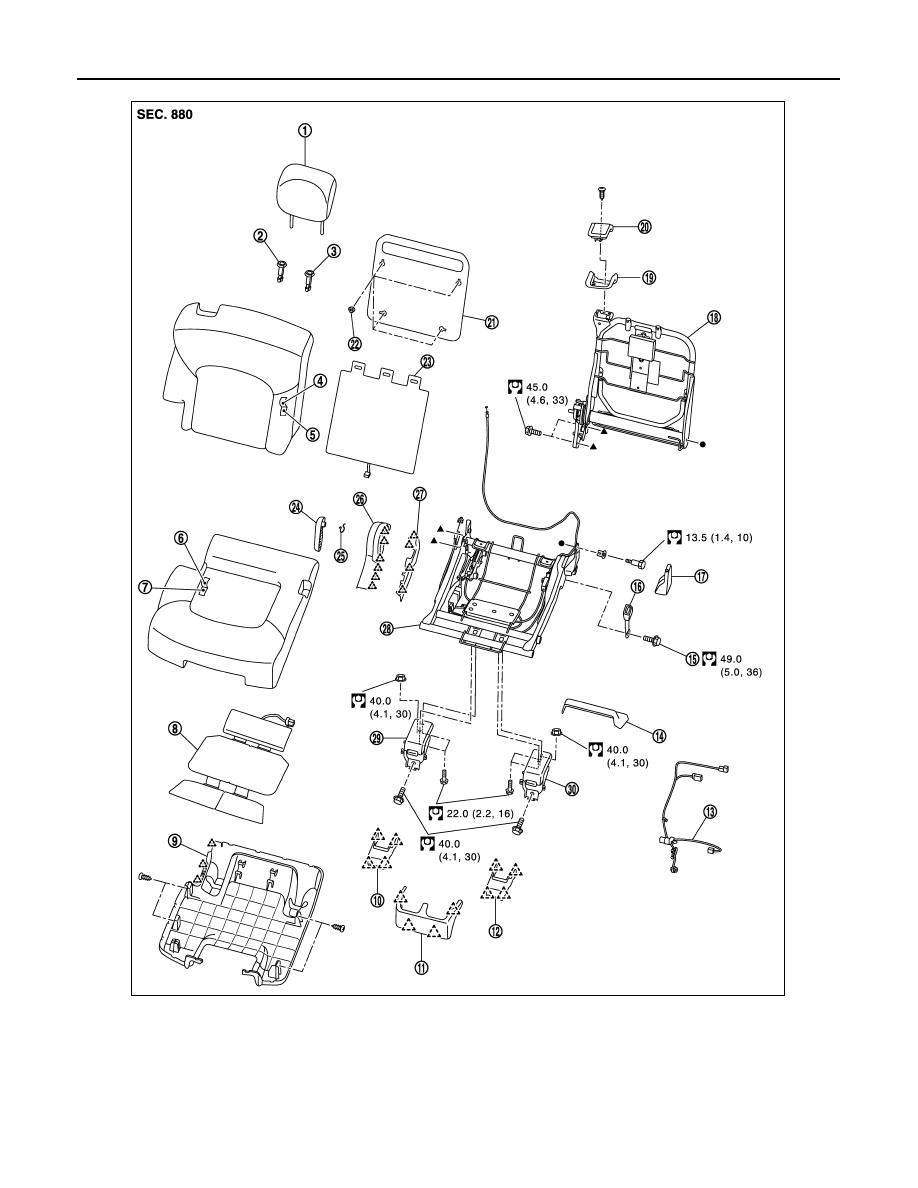

SECOND SEAT

1.

Headrest RH

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Seatback trim

5.

Seatback pad

6.

Seat cushion trim

7.

Seat cushion pad

8.

Seat cushion heater unit

*

9.

Seat cushion under cover

10. Seat cushion hinge cover RH

11.

Seat hinge cover RH

12. Seat cushion hinge cover LH

13. Seat harness assembly

14. Seat cushion carpet

15. Seat belt buckle anchor bolt

16. Seat belt buckle

17. Reclining inner cover (outside)

18. Seatback frame

JMJIA4580GB

SECOND SEAT

SE-123

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

*

: Heater seat model only.

CAPTAIN SEAT (LH SIDE)

19. Seat control lever escutcheon

20. Rear seat lever assembly

21. Seatback board

22. Seatback board clip

23. Seatback heater unit

*

24. Reclining lever knob

25. Snap ring

26. Reclining device outer cover (out-

side)

27. Reclining device outer cover (inside)

28. Seat cushion frame

29. Seat hinge assembly RH

30. Seat hinge assembly LH

: Pawl

Refer to

GI-4, "Components"

 for symbols in the figure.

SE-124

< REMOVAL AND INSTALLATION >

SECOND SEAT

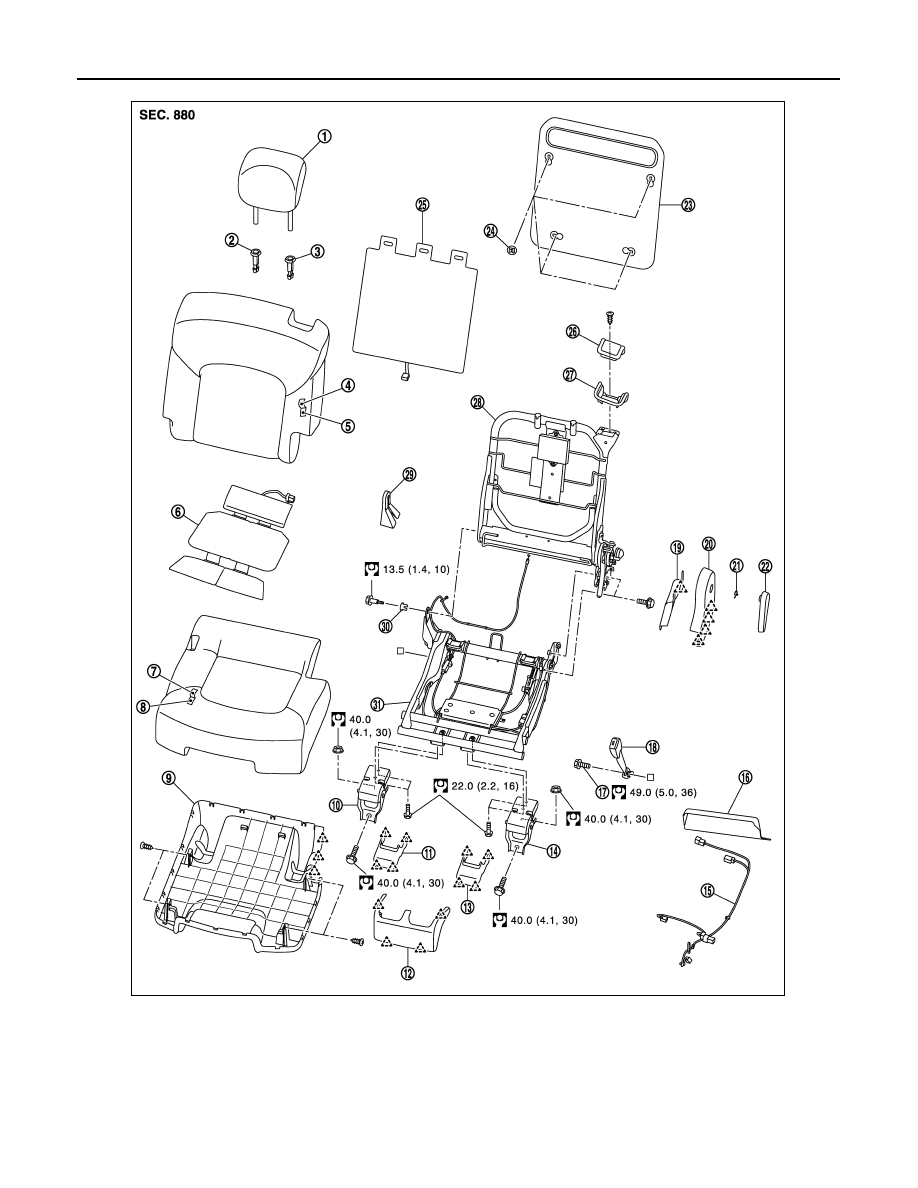

1.

Headrest

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Seatback trim

5.

Seatback pad

6.

Seat cushion heater unit

7.

Seat cushion trim

8.

Seat cushion pad

9.

Seat cushion under cover

10. Seat hinge assembly RH

11.

Seat cushion hinge cover RH

12. Seat hinge cover LH

13. Seat cushion hinge cover LH

14. Seat hinge assembly LH

15. Seat harness assembly

16. Seat cushion carpet

17. Anchor bolt

18. Seat belt buckle

JMJIA4581GB

SECOND SEAT

SE-125

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Removal and Installation

INFOID:0000000006217430

REMOVAL

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• When removing and installing, 2 workers are required so as to prevent it from dropping.

1.

Remove the headrest.

2.

Remove the seat hinge cover.

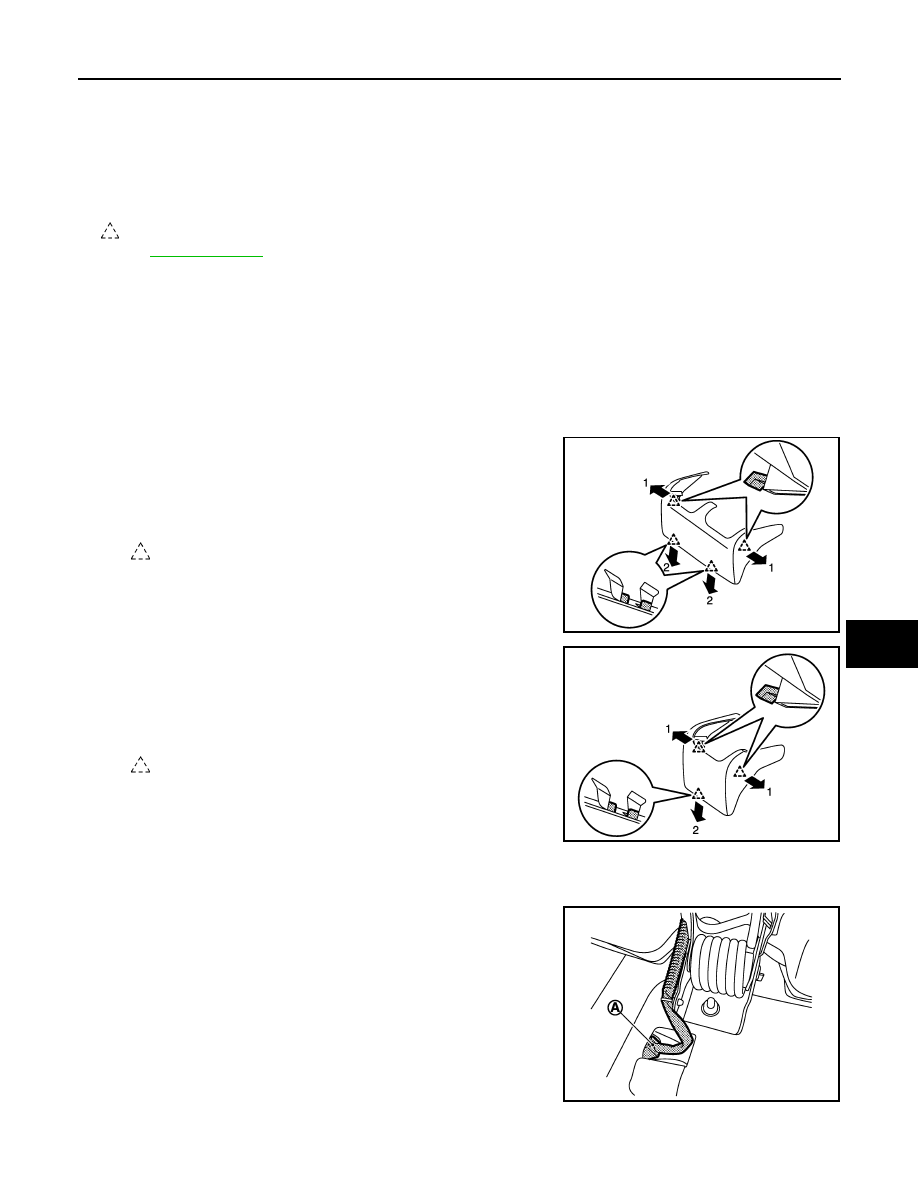

a.

Bench seat (RH side) and captain seat
• Open pawls on upper side to outside and disconnect the

pawls.

• Pull the cover forward, side the pawl on lower side downward,

and disconnect the pawl.

b.

Bench seat (LH side)
• Open pawls on upper side to outside and disconnect the

pawls.

• Pull the cover forward, side the pawl on lower side downward,

and disconnect the pawl.

3.

Remove the from mounting bolt of seat hinge assembly.

4.

Operate rear seat lever or reclining lever to release seat lock assembly lock and to fold seat forward.

5.

Disconnect seat harness assembly harness connector (A).

6.

Remove the rear mounting nut of seat hinge assembly.

19. Reclining device outer cover (inside) 20. Reclining device outer cover (out-

side)

21. Snap ring

22. Reclining lever knob

23. Seatback board

24. Seatback board clip

25. Seatback heater unit

26. Rear seat lever assembly

27. Seat control lever escutcheon

28. Seatback frame

29. Reclining device inner cover (out-

side)

30. Bush

31. Seat cushion frame

: Pawl

Refer to

GI-4, "Components"

 for symbols in the figure.

: Pawl

JMJIA3870ZZ

: Pawl

JMJIA3869ZZ

JMJIA4261ZZ
