Infiniti QX56 (Z62). Manual - part 1145





SE-118

< REMOVAL AND INSTALLATION >

FRONT SEAT

CAUTION:

• Never strongly press panel surface of display (glass area).
• Never strongly press or pull out the movable part of display.

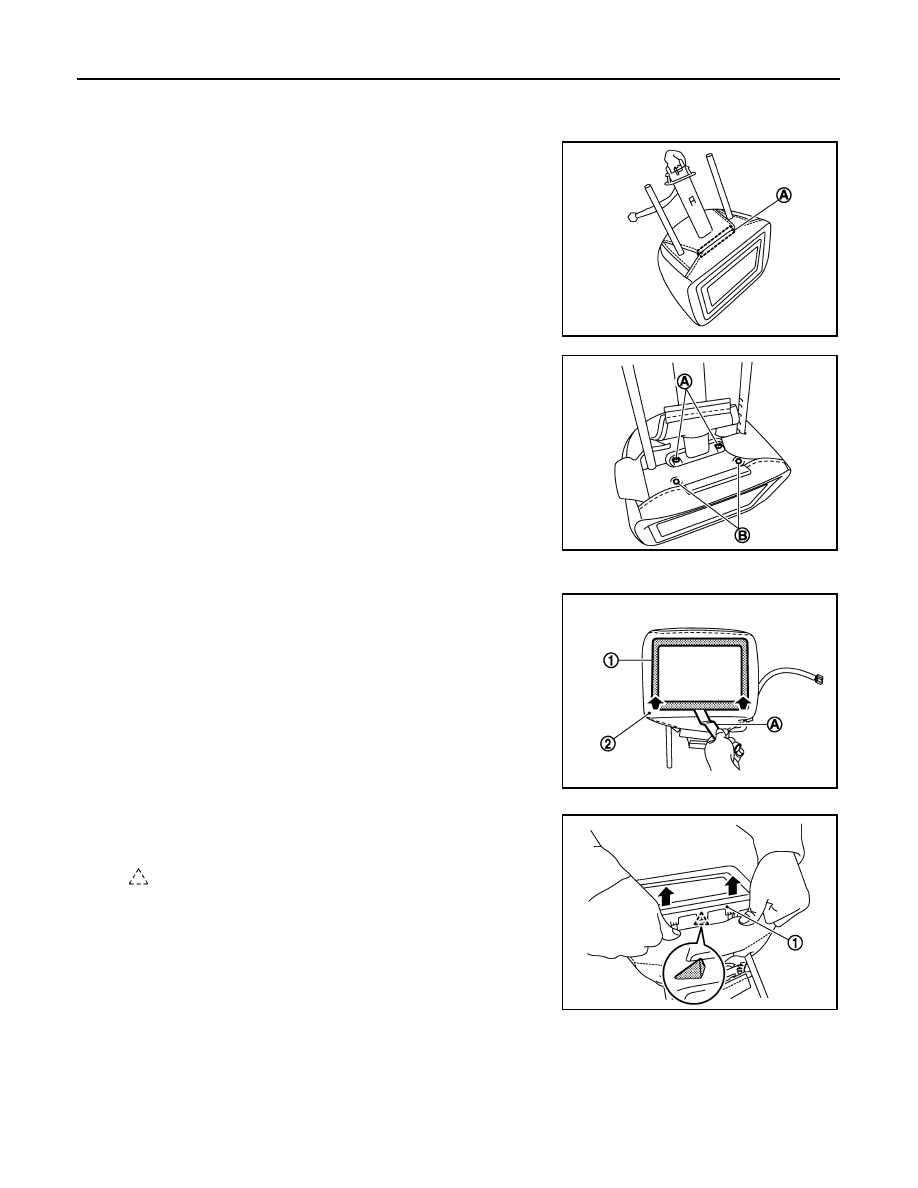

1.

Remove the headrest trim retainer (A).

2.

Remove the headrest display harness and upper tube fixing
screws (A), and then remove headrest display unit mounting
bolts (B).

3.

Remove the headrest display escutcheon and headrest display.
1.

Insert a remover tool (A) between lower side of headrest
display escutcheon (1) and headrest trim (2) and pull out
lower side of escutcheon.

2.

Pull out headrest display escutcheon (1) to the position that
pawl is visible and disengage pawl.

3.

Pull out lower side of headrest display escutcheon from headrest.

CAUTION:

Be careful not to damage pawls on upper side headrest display escutcheon since pawl are not
fixed yet.

JMJIA4069ZZ

JMJIA4070ZZ

JMJIA4071ZZ

: Pawl

JMJIA4232ZZ

FRONT SEAT

SE-119

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

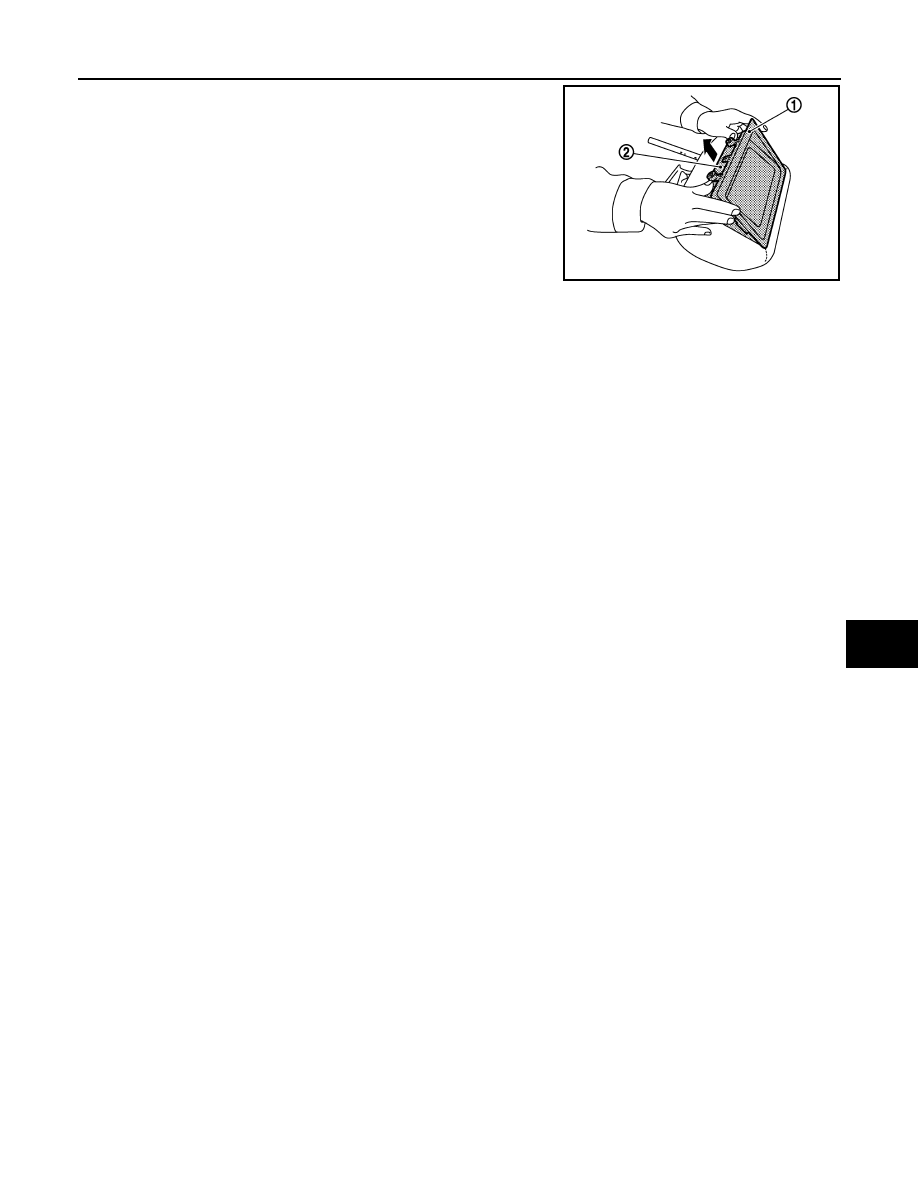

4.

Pull downward and remove headrest display escutcheon (1)
and headrest display unit (2) by pulling them out and remov-
ing pins on upper side of display.

5.

Disconnect inner harness connector.

6.

Remove headrest display escutcheon from headrest display unit.
Press headrest display escutcheon to the headrest display unit side. Disconnect pawls on upper side
and remove headrest display escutcheon.

4.

Remove the headrest display harness upper tube from headrest trim.

5.

Remove the headrest trim from headrest pad and frame.

ASSEMBLY

Assembly in the reverse order of disassembly.

JMJIA4233ZZ

SE-120

< REMOVAL AND INSTALLATION >

SECOND SEAT

SECOND SEAT

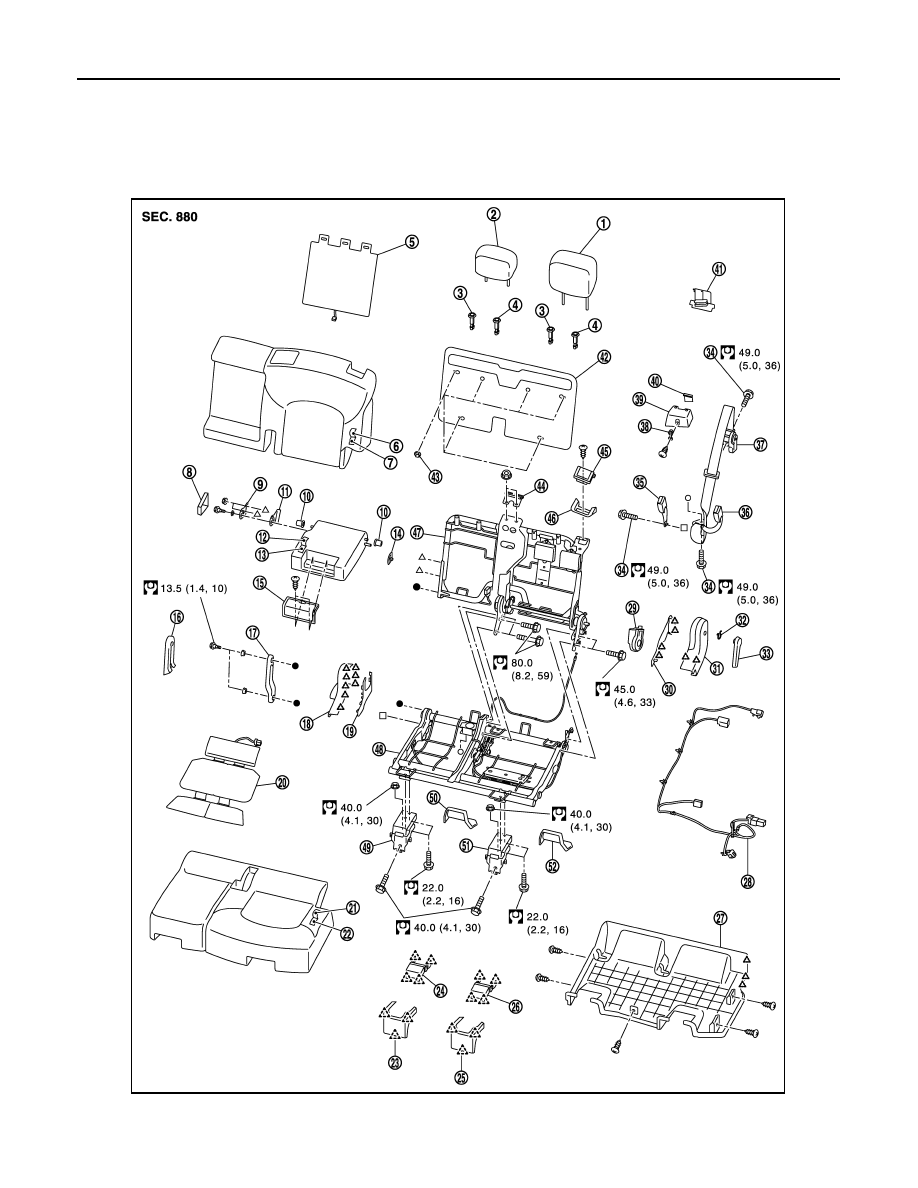

Exploded View

INFOID:0000000006217429

BENCH SEAT (LH SIDE)

JMJIA4338GB

SECOND SEAT

SE-121

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

*

: Heater seat model only.

BENCH SEAT (RH SEAT) AND CAPTAIN SEAT (RH SEAT)

1.

Headrest LH

2.

Headrest (center)

3.

Headrest holder (free)

4.

Headrest holder (locked)

5.

Seatback heater unit

*

6.

Seatback trim

7.

Seatback pad

8.

Armrest outer cover

9.

Armrest outer bracket

10. Bush

11.

Armrest inner cover RH

12. Armrest trim

13. Armrest pad & frame

14. Armrest inner cover LH

15. Cup holder

16. Reclining inner cover (outside)

17. Seat inner hinge

18. Reclining device inner cover (out-

side)

19. Reclining device inner cover (inside) 20. Seat cushion heater unit

*

21. Seat cushion trim

22. Seat cushion pad

23. Seat hinge cover RH

24. Seat cushion hinge cover RH

25. Seat hinge cover LH

26. Seat cushion hinge cover LH

27. Seat cushion under cover

28. Seat harness assembly

29. Device arm cover

30. Reclining device outer cover (inside)

31. Reclining device outer cover (out-

side)

32. Snap ring

33. Reclining lever knob

34. Anchor bolt

35. Seat belt buckle (center)

36. Seat belt buckle LH

37. Center seat belt retractor

38. Screw cap

39. Seatback center finisher

40. Seatback center finisher cover

41. Center seat belt shoulder guide

42. Seatback board

43. Seatback board clip

44. Center seat belt guide

45. Rear seat lever assembly

46. Seat control lever escutcheon

47. Seatback frame

48. Seat cushion frame

49. Seat hinge assembly RH

50. Seat cushion carpet RH

51. Seat hinge assembly LH

52. Seat cushion carpet LH

: Pawl

Refer to

GI-4, "Components"

 for symbols in the figure.
