Infiniti Q45 (FY33). Manual - part 416





SEM436F

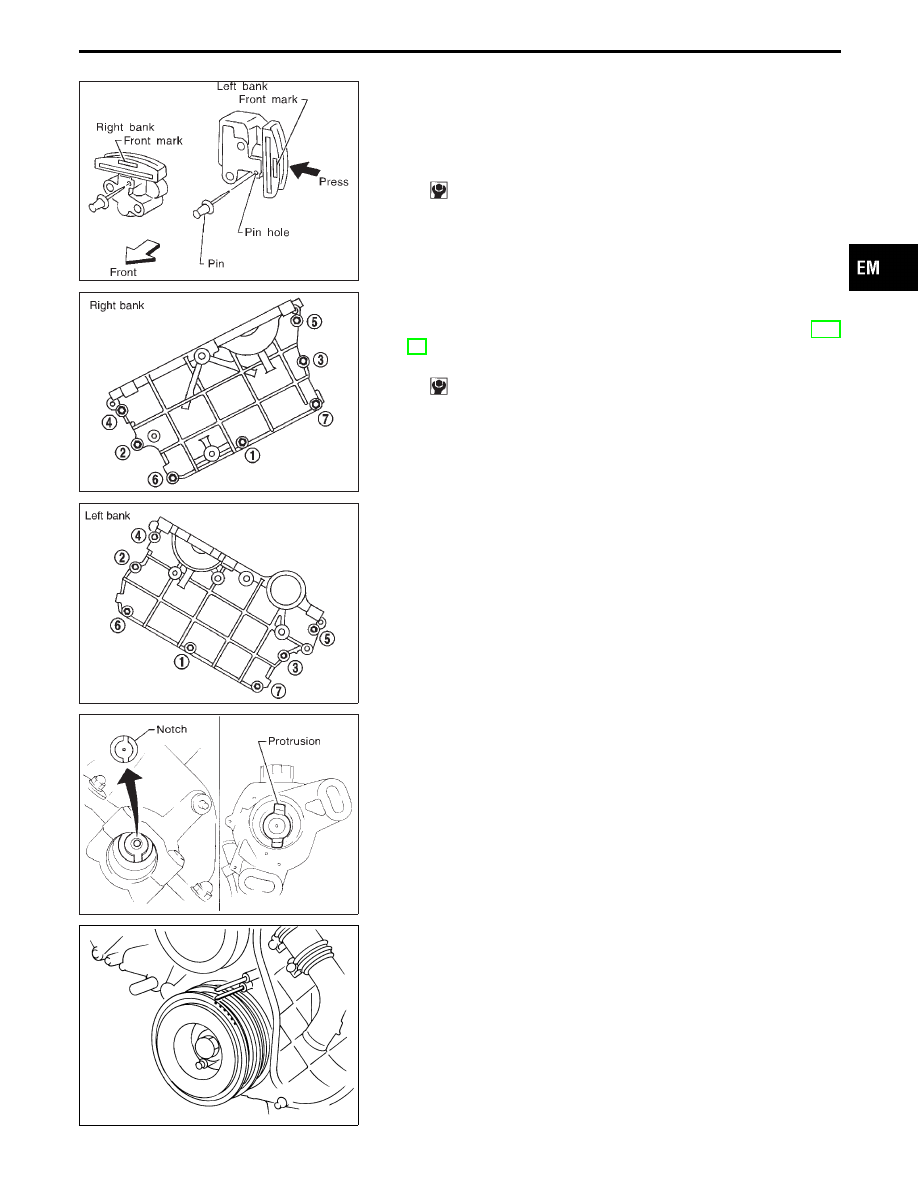

21. Install chain tensioner.

I

Press chain tensioner in and insert 1 mm (0.04 in) diameter pin
in pin hole to secure tensioner and then install tensioner.
Reference: Reuse the accessory pin when replacing the chain
tensioner with a new part.

Tighten bolts to specified torque.

: 9.2 - 10.8 N

m (0.94 - 1.1 kg-m, 81.6 - 95.5 in-lb)

Remove pin after installation is completed.

I

Install chain tensioner guide in the direction shown in the
figure.

22. Lubricate timing chain and chain sliding parts with new engine

oil.

SEM437F

23. Install front cover upper.

I

Apply liquid gasket to front cover upper.
Refer to ”POSITION FOR APPLYING LIQUID GASKET” (EM-
14).

I

Install bolts in the numerical order shown in the figure.

: 6.3 - 8.3 N

m (0.64 - 0.85 kg-m, 55.6 - 73.8 in-lb)

Before installing cover, check that timing chain and sprocket
mating marks are aligned correctly.

I

Install chain guide bolt on front cover upper.

SEM438F

SEM682E

24. Install camshaft position sensor.
Note:
Notch on exhaust camshaft on left bank is off-centered so that
camshaft position sensor can be installed properly.
25. Install crankshaft pulley.

SEM257G

26. Set No. 1 piston at TDC on its compression stroke.

Align the timing mark on crankshaft pulley with timing indica-
tor on front cover.

GI

MA

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TIMING CHAIN

Installation (Cont’d)

EM-25

SEM415F

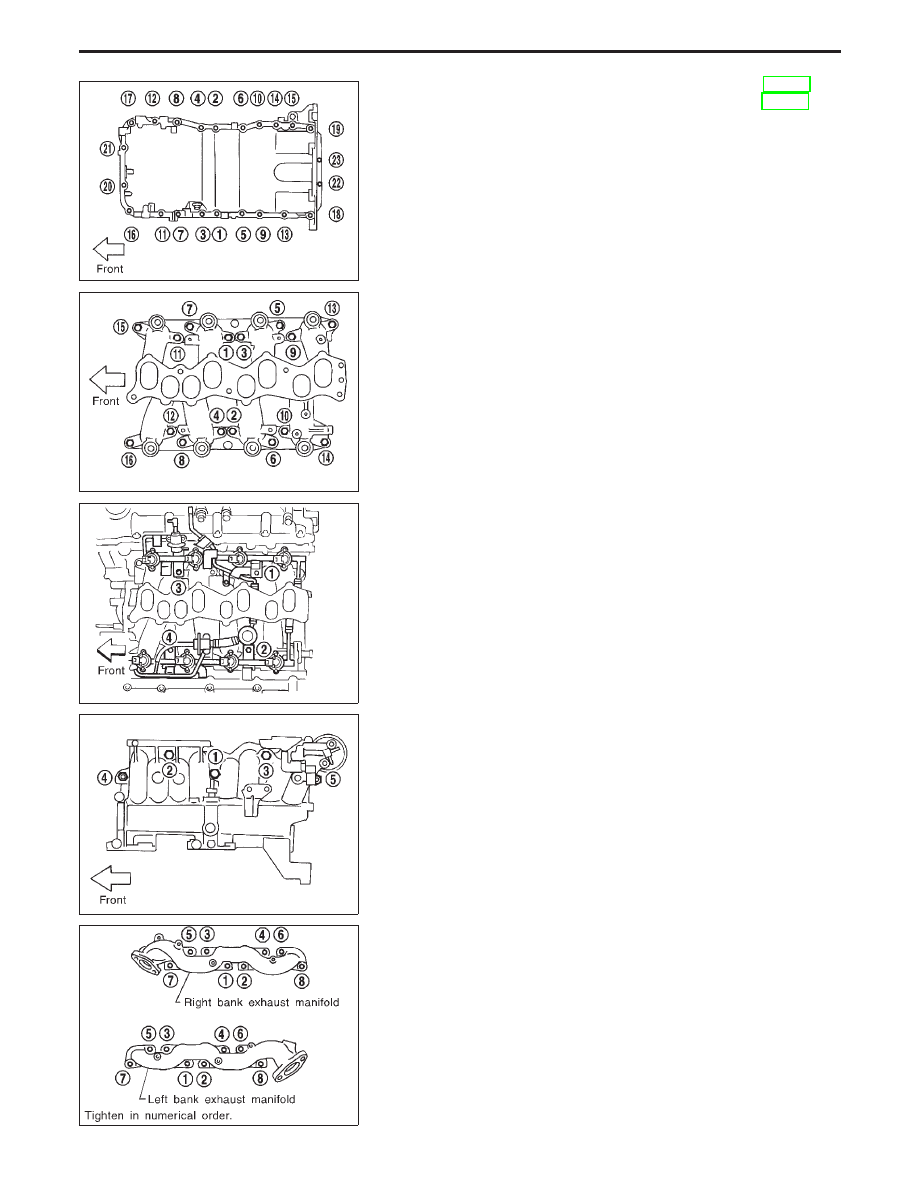

27. Install oil pan. Refer to “Installation” in “OIL PAN” (EM-12).
28. Install rocker cover. Refer to “CYLINDER HEAD” (EM-40).

SEM439F

29. Install intake manifold.

I

Tighten bolts in numerical order as shown in the figure.

SEM440F

30. Install fuel tube assembly.

I

Tighten in numerical order as shown in the figure.

a.

Tighten all bolts to 9.3 to 10.8 N

m (0.95 to 1.1 kg-m, 6.9 to 8.0

ft-lb).

b.

Tighten all bolts to 21 to 26 N

m (2.1 to 2.7 kg-m, 15 to 20 ft-

lb).

SEM441F

31. Install intake manifold collector.

I

Tighten in numerical order as shown in the figure.

SEM442F

32. Install exhaust manifolds.

TIMING CHAIN

Installation (Cont’d)

EM-26

VALVE OIL SEAL

1.

Remove rocker cover. Refer to “Removal” in “CYLINDER
HEAD” (EM-30).

2.

Remove camshaft.

3.

Remove rocker arm.

4.

Remove valve spring and valve oil seal with suitable tool.

Piston concerned should be set at TDC to prevent valves from
falling.

SEM917C

5.

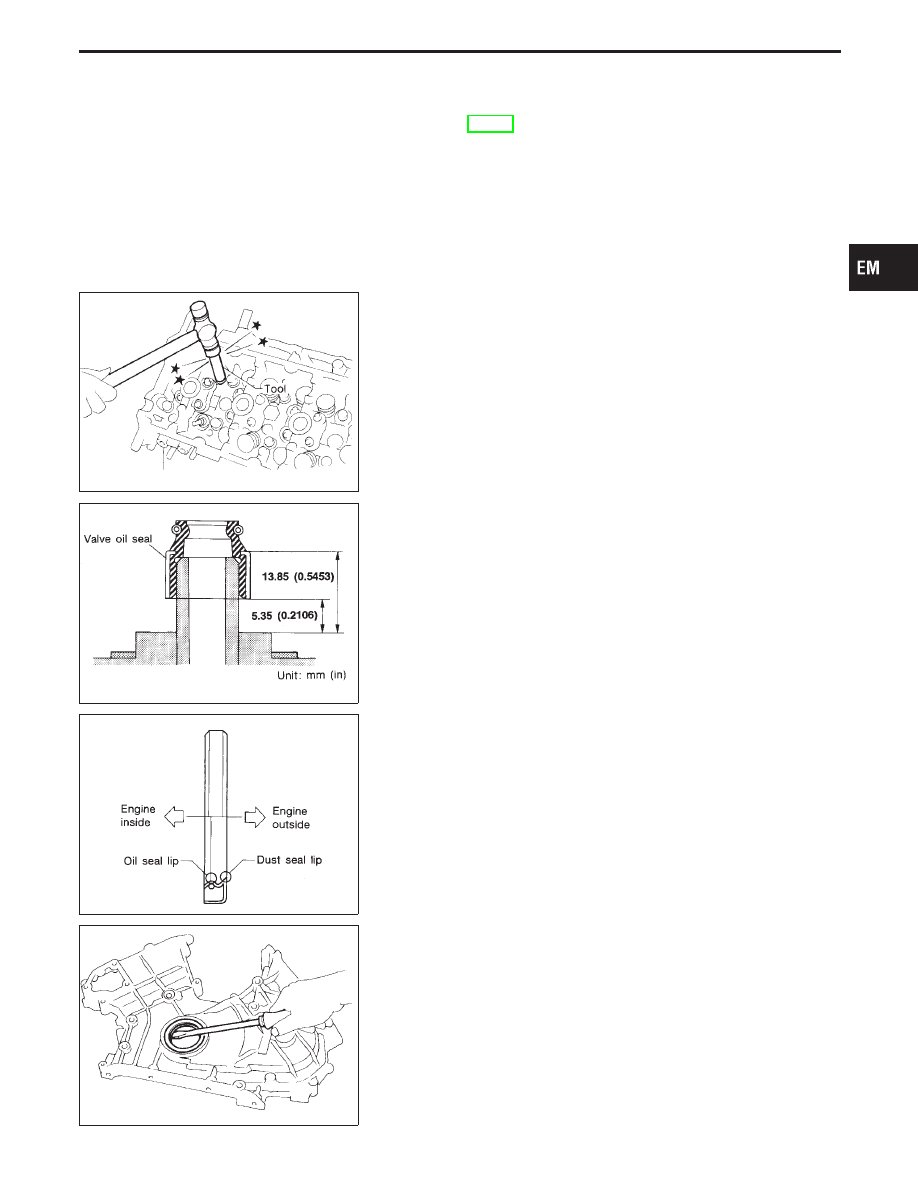

Apply engine oil to new valve oil seal and install it with Tool.

SEM690E

SEM715A

OIL SEAL INSTALLING DIRECTION

I

Install new oil seal in the direction shown in the figure.

SEM919C

FRONT OIL SEAL

1.

Remove the following parts.

I

Engine under cover

I

Cooling fan

I

Drive belts

I

Crankshaft pulley

2.

Remove front oil seal.

Be careful not to scratch front cover.

GI

MA

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

OIL SEAL REPLACEMENT

EM-27

SEM920C

3.

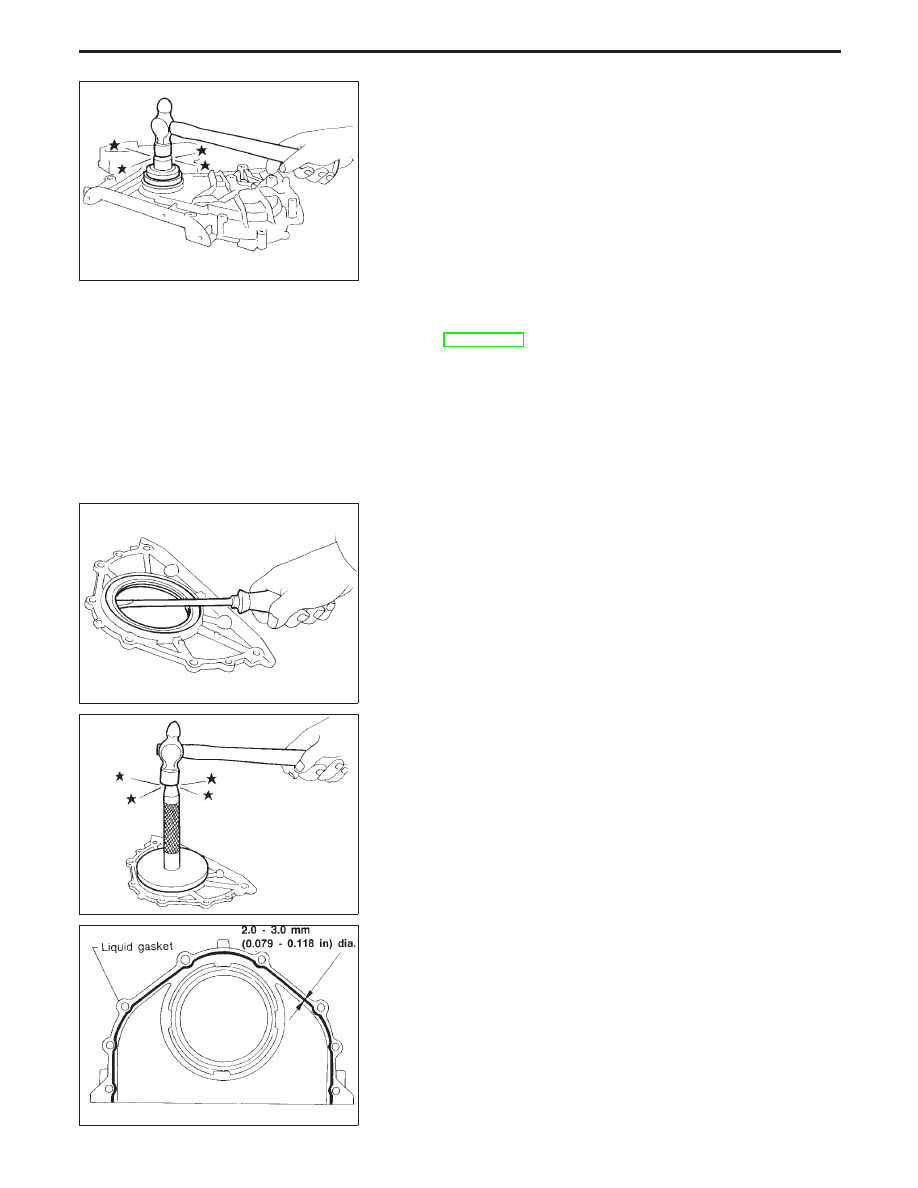

Apply engine oil to new oil seal and install it using suitable tool.

REAR OIL SEAL

1.

Remove transmission.

Refer to AT section.
2.

Remove drive plate.

3.

Remove rear oil seal retainer.

4.

Remove traces of liquid gasket using scraper.

SEM921C

5.

Remove rear oil seal from rear oil seal retainer.

SEM922C

6.

Apply engine oil to new oil seal and install it using suitable tool.

SEM923C

7.

Apply a continuous bead of liquid gasket to rear oil seal
retainer.

OIL SEAL REPLACEMENT

EM-28
