Infiniti Q45 (FY33). Manual - part 153





SEF176Y

SEF549P

Procedure for malfunction B

CAUTION:

Always drive vehicle at a safe speed.
TESTING CONDITION:
This test may be conducted with the drive wheels lifted in the
shop or by driving the vehicle. If a road test is expected to be
easier, it is unnecessary to lift the vehicle.

1) Wait until engine coolant temperature is less than 90°C

(194°F).
(a) Turn ignition switch “ON”.
(b) Select “DATA MONITOR” mode with CONSULT-II.
(c) Check the engine coolant temperature.
(d) If the engine coolant temperature is not less than

90°C (194°F), turn ignition switch “OFF” and cool
down engine.

I

Perform the following steps before engine coolant tem-
perature is above 90°C (194°F).

2) Turn ignition switch “ON”.
3) Select “DATA MONITOR” mode with CONSULT-II.
4) Start engine and turn TCS switch “OFF”.
5) Hold vehicle speed more than 70 km/h (43 MPH) for

100 consecutive seconds.

6) If 1st trip DTC is detected, go to “DIAGNOSTIC

PROCEDURE”, EC-143.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ OR ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Follow the procedure “With CONSULT-II” above.

GI

MA

EM

LC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

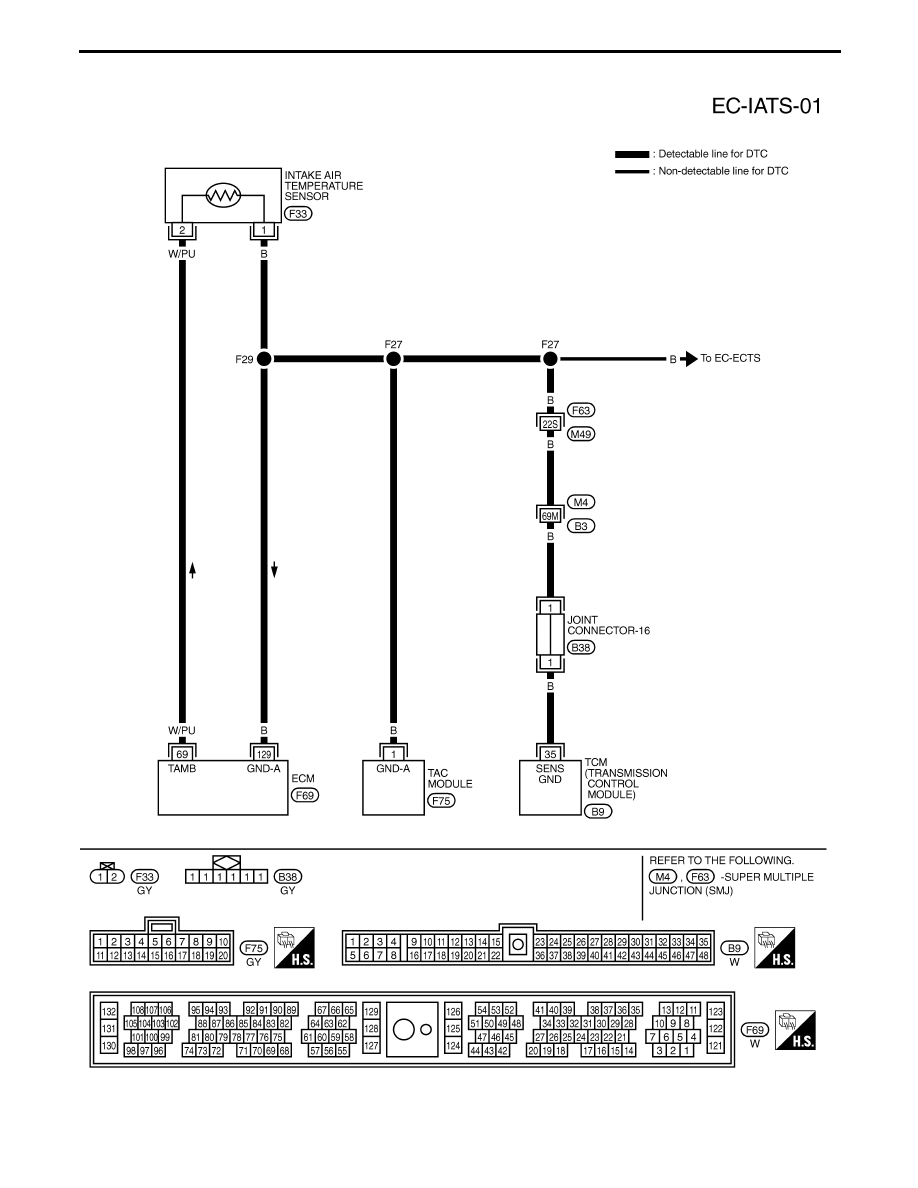

TROUBLE DIAGNOSIS FOR DTC P0110

Intake Air Temperature Sensor (Cont’d)

EC-141

TEC042M

TROUBLE DIAGNOSIS FOR DTC P0110

Intake Air Temperature Sensor (Cont’d)

EC-142

SEF051T

SEF321R

SEF322R

DIAGNOSTIC PROCEDURE

INSPECTION START

CHECK POWER SUPPLY.
1. Turn ignition switch “OFF”.
2. Disconnect intake air temperature sen-

sor harness connector.

3. Turn ignition switch “ON”.
4. Check voltage between terminal

q

2

and ground.
Voltage:

Approximately 5V

OK

E

NG

Repair harness or connec-
tors.

CHECK GROUND CIRCUIT.
1. Turn ignition switch “OFF”.
2. Check harness continuity between ter-

minal

q

1

and engine ground.

Continuity should exist.
If OK, check harness for short to
power.

OK

E

NG

Check the following.

I

Harness connectors

F63

,

M49

I

Harness connectors

M4

,

B3

I

Joint connector-16

I

Harness for open or
short between ECM and
intake air temperature
sensor

I

Harness for open or
short between air tem-
perature sensor and
throttle actuator control
(TAC) module

I

Harness for open or
short between TCM
(Transmission Control
Module) and intake air
temperature sensor

If NG, repair open circuit or
short to power in harness
or connectors.

CHECK COMPONENT
(Intake air temperature sensor).
Refer to “COMPONENT INSPECTION” on
next page.

OK

E

NG

Replace intake air tem-
perature sensor.

Perform “TROUBLE DIAGNOSIS FOR
INTERMITTENT INCIDENT”, EC-117.

INSPECTION END

GI

MA

EM

LC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TROUBLE DIAGNOSIS FOR DTC P0110

Intake Air Temperature Sensor (Cont’d)

H

H

H

H

H

EC-143

SEF947Q

COMPONENT INSPECTION

Intake air temperature sensor

Check resistance as shown in the figure.

SEF012P

<Reference data>

Intake air temperature

°C (°F)

Resistance k

20 (68)

2.1 - 2.9

80 (176)

0.27 - 0.38

If NG, replace intake air temperature sensor.

TROUBLE DIAGNOSIS FOR DTC P0110

Intake Air Temperature Sensor (Cont’d)

EC-144
