HAZARD SWITCH

LT-103

C

D

E

F

G

H

I

J

L

M

A

B

LT

HAZARD SWITCH

PFP:25290

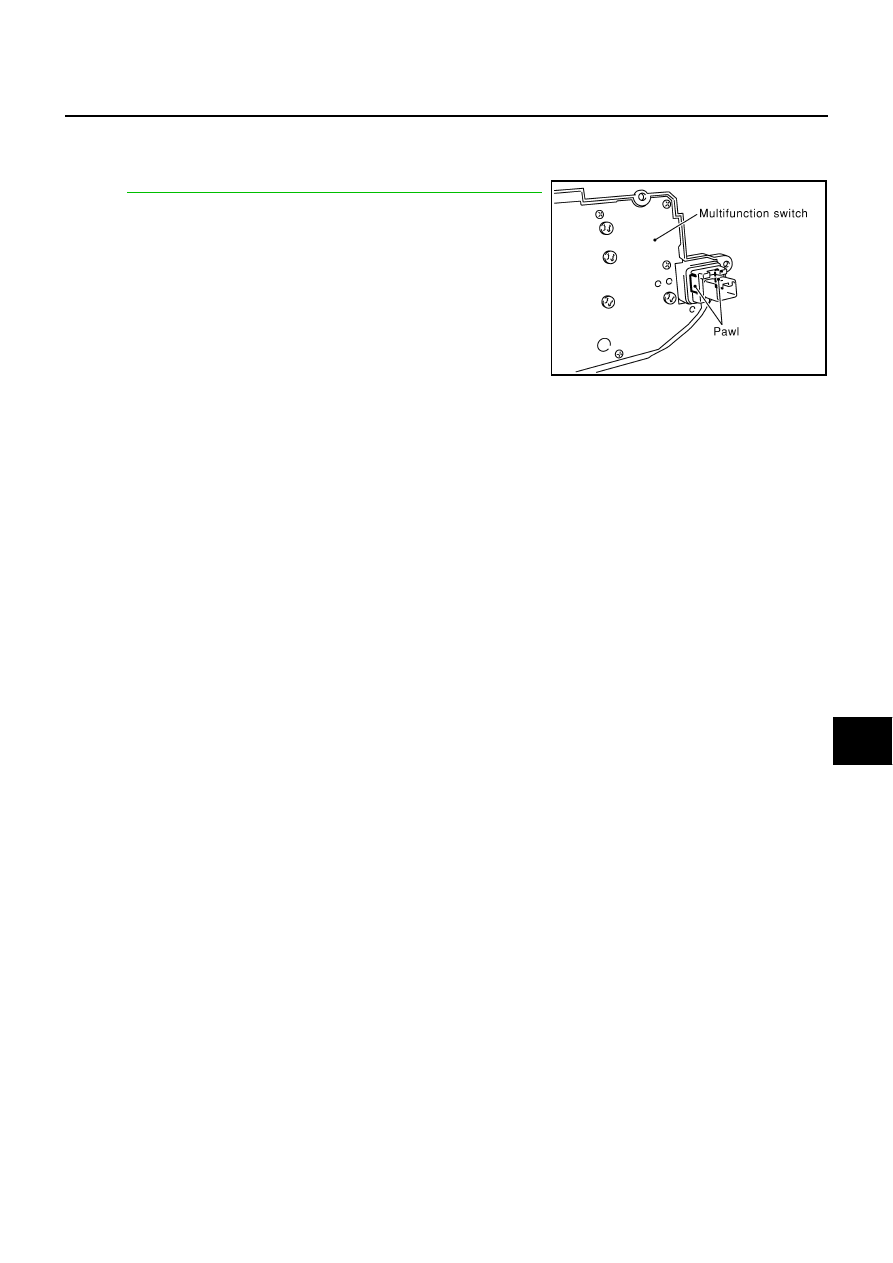

Removal and Installation

AKS002G2

Refer to

DI-88, "Disassembly and Assembly for Multifunction Switch"

in “DRIVER INFORMATION SYSTEM (DI)” section.

PKIA0186E

LT-104

STOP LAMP

STOP LAMP

PFP:26550

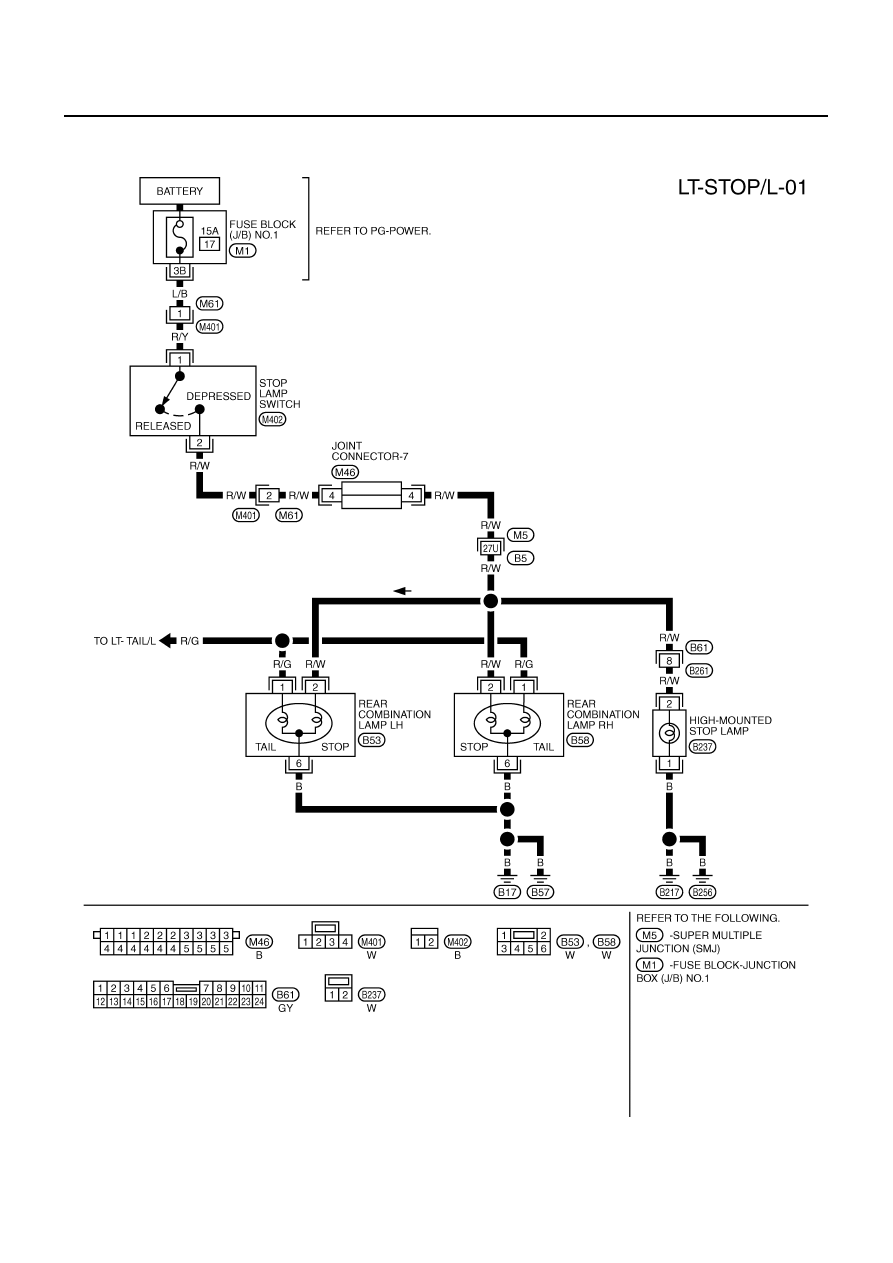

Wiring Diagram — STOP/L —

AKS002G3

TKWA0545E

STOP LAMP

LT-105

C

D

E

F

G

H

I

J

L

M

A

B

LT

Bulb Replacement

AKS002G4

STOP LAMP

Refer to

LT-125, "REAR COMBINATION LAMP"

  in “PARKING, LICENSE PLATE AND TAIL LAMPS”.

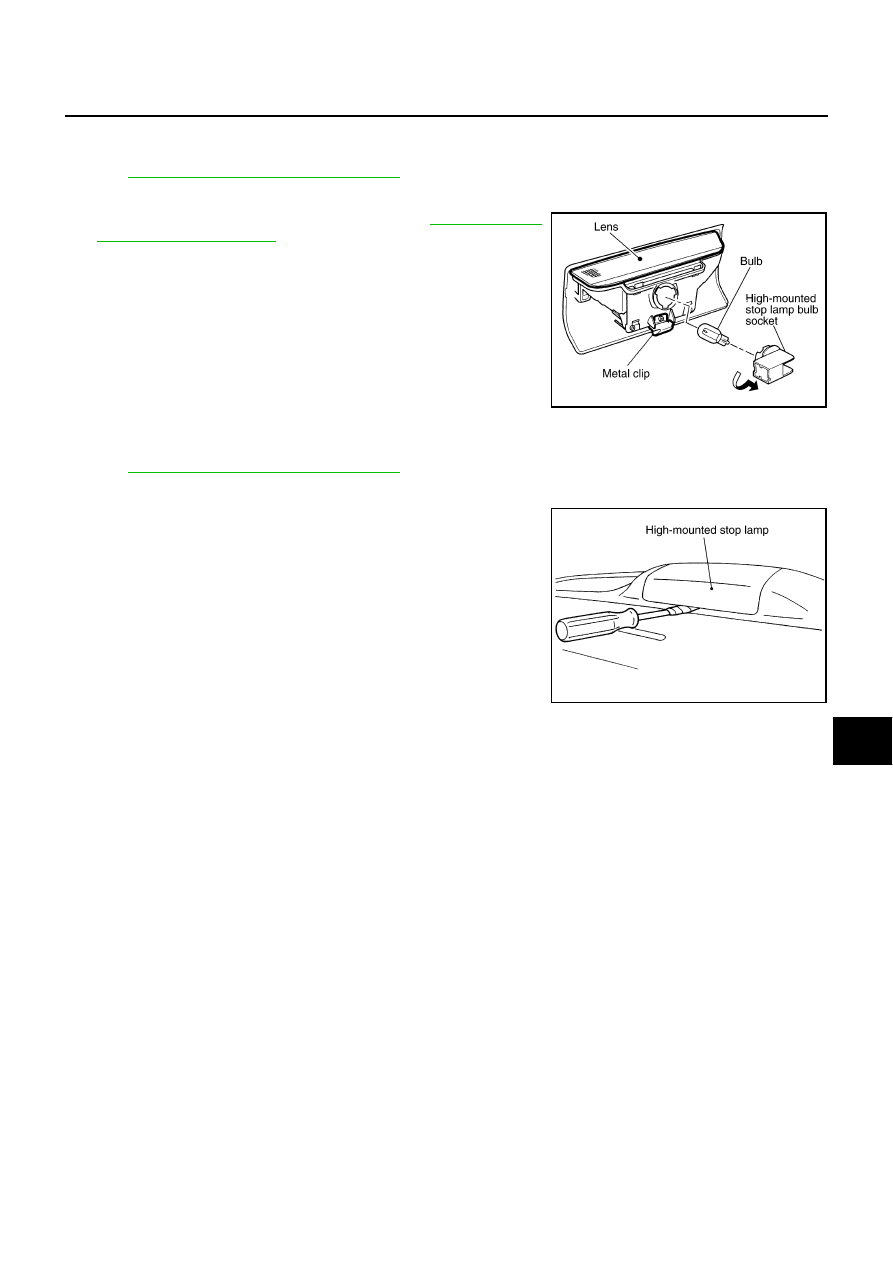

HIGH-MOUNTED STOP LAMP

1.

Remove high-mounted stop lamp. Refer to

LT-105, "HIGH-

MOUNTED STOP LAMP"

  in “Removal and Installation”.

2.

Turn high-mounted stop lamp bulb socket counterclockwise and
unlock it.

3.

Remove bulb.

Removal and Installation

AKS002G5

STOP LAMP

Refer to

LT-127, "REAR COMBINATION LAMP"

  in “PARKING, LICENSE PLATE AND TAIL LAMPS”.

HIGH-MOUNTED STOP LAMP

1.

Pull up high-mounted stop lamp while pressing it toward rear of
the vehicle and remove from the vehicle.

2.

Disconnect high-mounted stop lamp connector.

High-mounted stop lamp

: 12V 18W

PKIA7000E

PKIA2251E

LT-106

BACK-UP LAMP

BACK-UP LAMP

PFP:26550

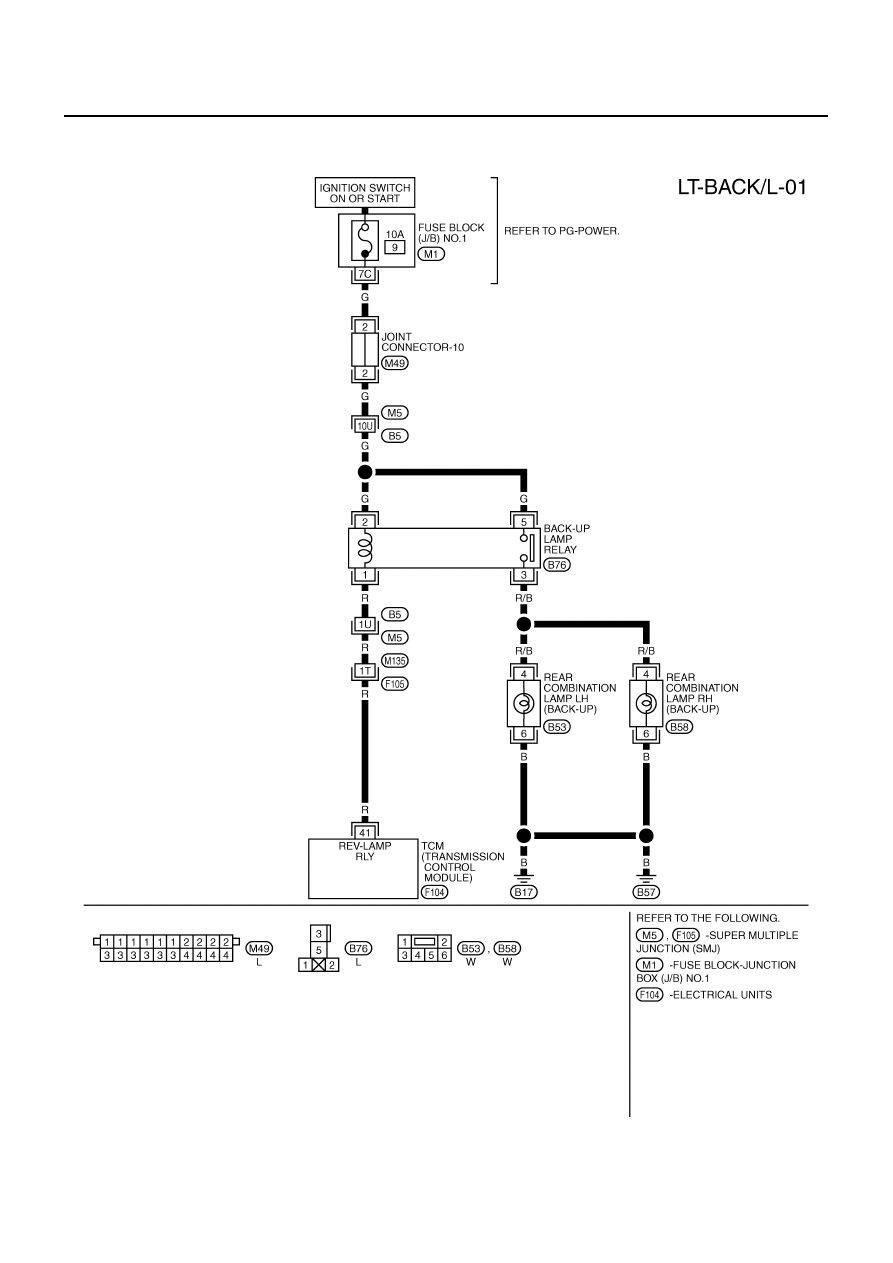

Wiring Diagram — BACK/L —

AKS002G6

TKWA0546E
