Infiniti M35/M45 Y50. Manual - part 820

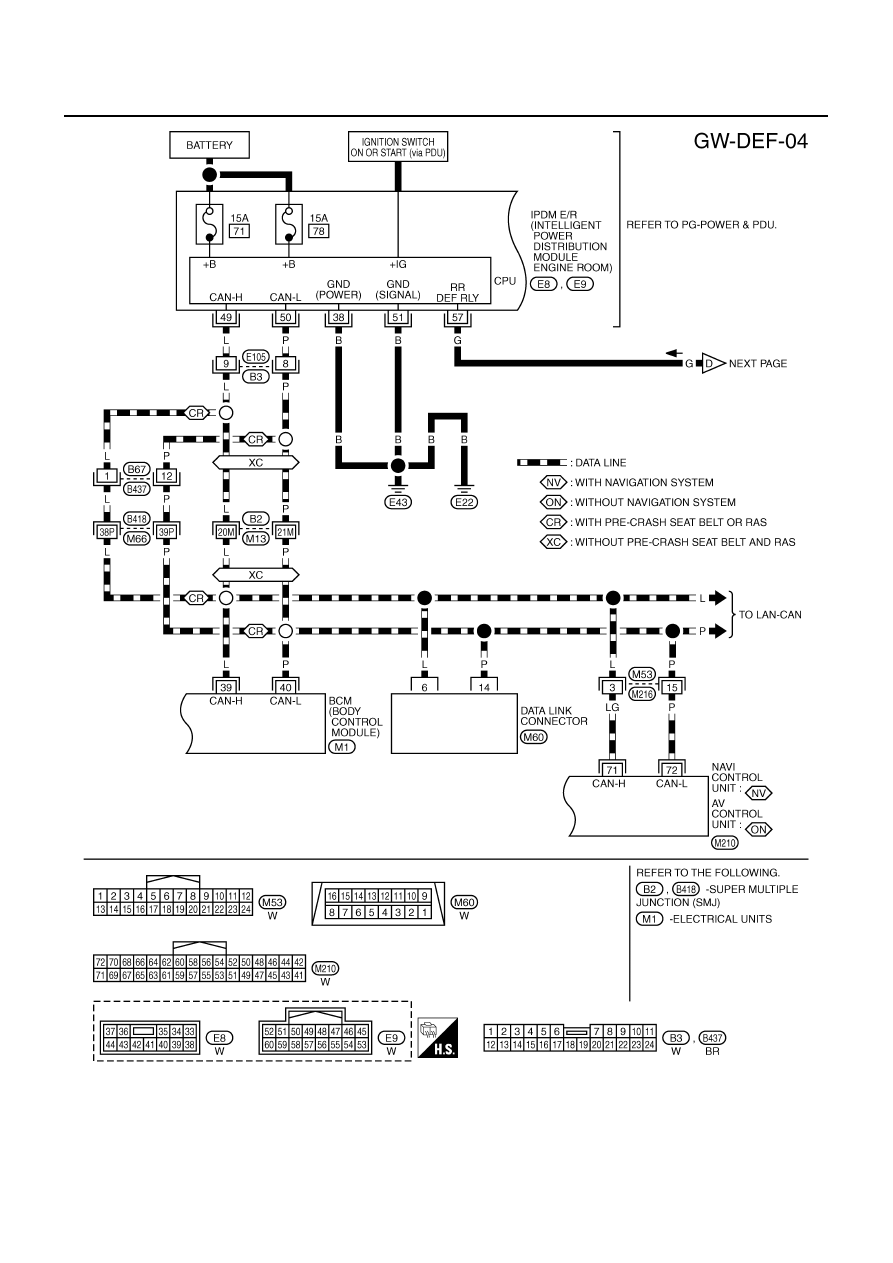

REAR WINDOW DEFOGGER

GW-77

C

D

E

F

G

H

J

K

L

M

A

B

GW

TIWT2040E

GW-78

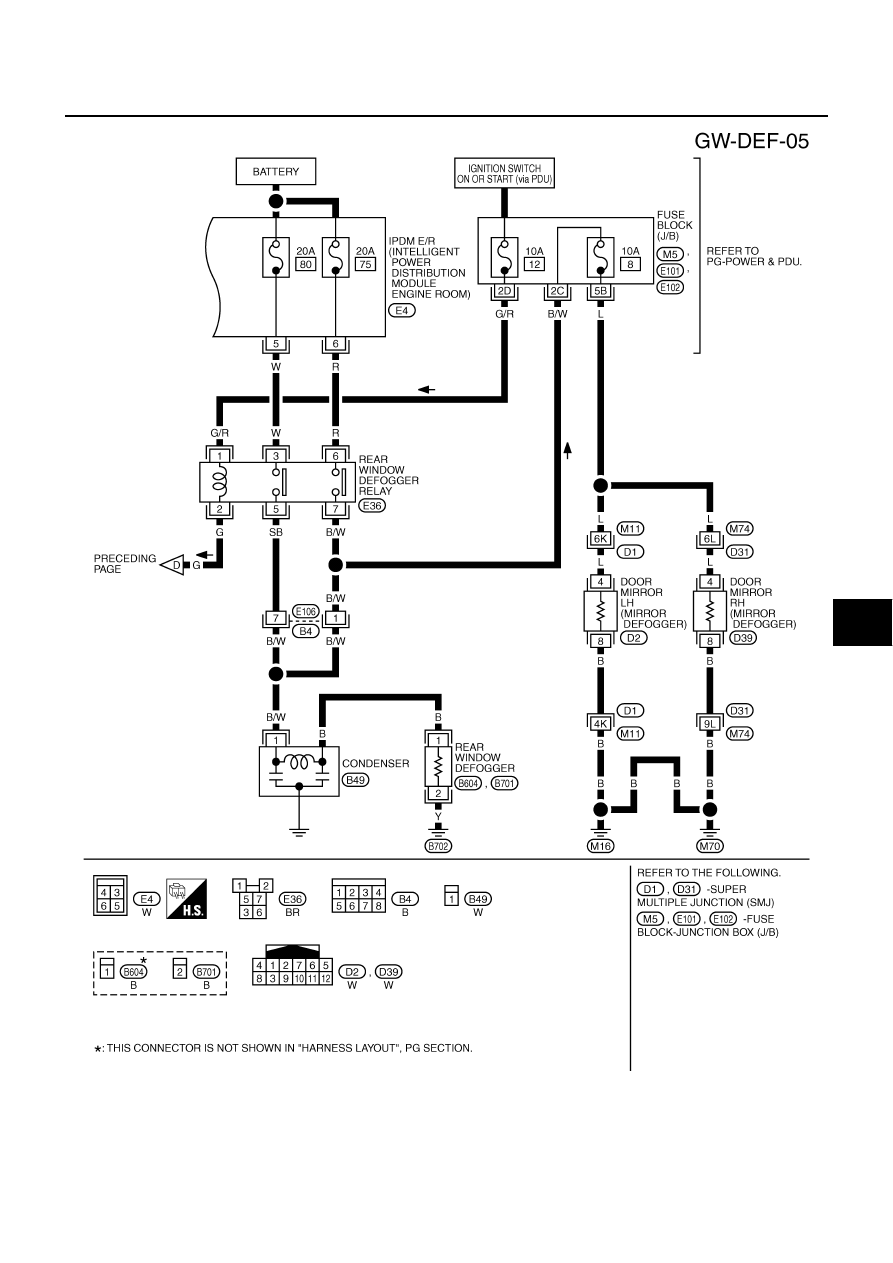

REAR WINDOW DEFOGGER

TIWT2041E

REAR WINDOW DEFOGGER

GW-79

C

D

E

F

G

H

J

K

L

M

A

B

GW

TIWT2042E

GW-80

REAR WINDOW DEFOGGER

Terminal and Reference Value for BCM

NIS0022M

Terminal and Reference Value for IPDM E/R

NIS0022N

Termi-

nal

Wire

color

Item

Signal

Input/

Output

Condition

Voltage (V)

(Approx.)

38

W

Ignition switch ON or START

Input

Ignition switch (ON or START position)

Battery voltage

39

L

CAN

−

 H

Input/

Output

—

—

40

P

CAN

−

 L

Input/

Output

—

—

42

P

Power source (Fuse)

Input

—

Battery voltage

52

B

Ground

—

—

0

55

W

Power source (Fusible link)

Input

—

Battery voltage

Termi-

nal

Wire

color

Item

Signal

Input/

Output

Condition

Voltage (V)

(Approx.)

5

W

Battery power supply

Output

—

Battery voltage

6

R

Battery power supply

Output

—

Battery voltage

38

B

Ground (Power)

—

—

0

49

L

CAN

−

 H

Input/

Output

—

—

50

P

CAN

−

 L

Input/

Output

—

—

51

B

Ground (Signal)

—

—

0

57

G

Rear window defogger relay
control signal

Input

When rear window defogger switch is ON.

0

When rear window defogger switch is OFF.

Battery voltage
