REAR WINDOW DEFOGGER

GW-73

C

D

E

F

G

H

J

K

L

M

A

B

GW

With power and ground supplied, door mirror defogger filaments heat and defog the mirror.

CAN Communication System Description

NIS0022I

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Unit

NIS0022J

Refer to

LAN-50, "CAN System Specification Chart"

 .

GW-74

REAR WINDOW DEFOGGER

Schematic

NIS0022K

TIWT1352E

REAR WINDOW DEFOGGER

GW-75

C

D

E

F

G

H

J

K

L

M

A

B

GW

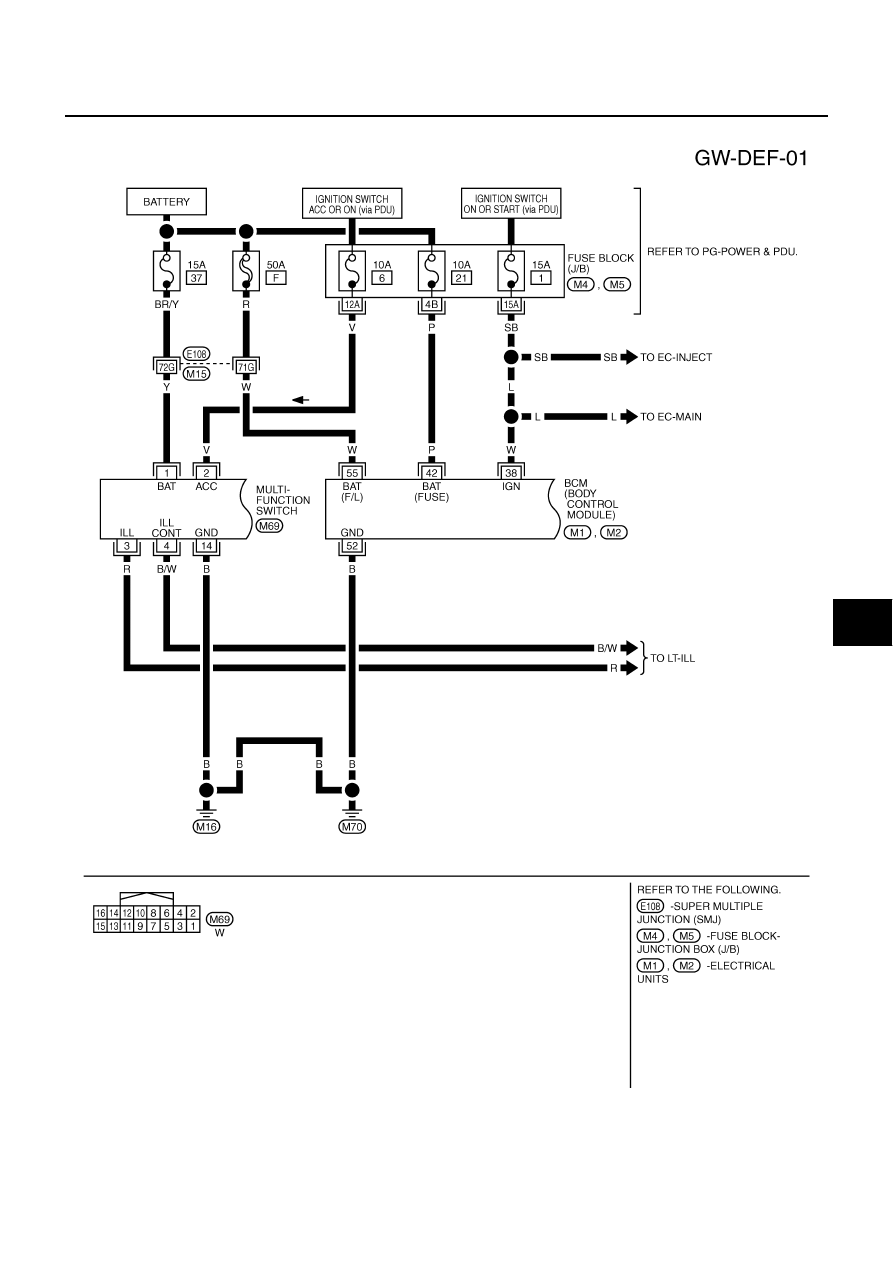

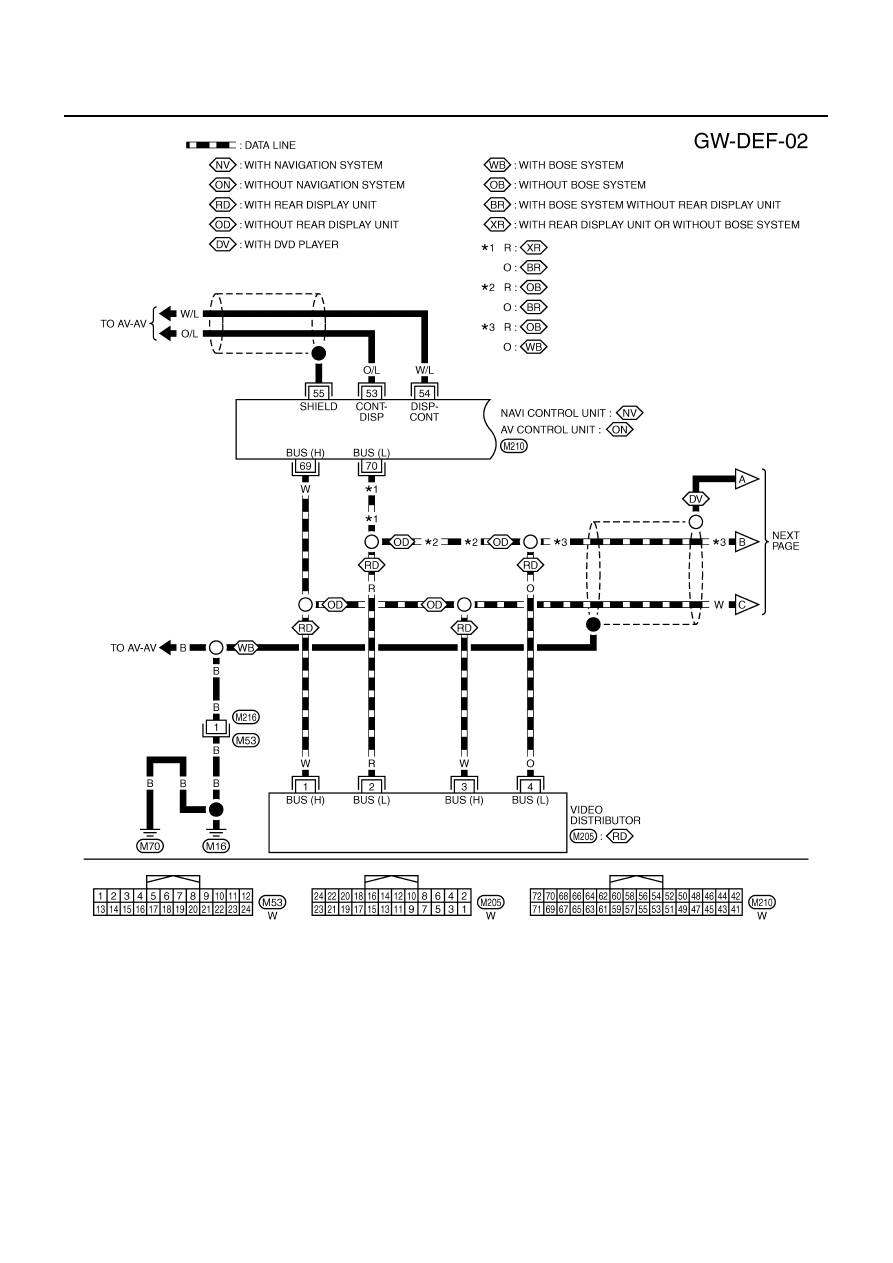

Wiring Diagram — DEF —

NIS0022L

TIWT2117E

GW-76

REAR WINDOW DEFOGGER

TIWT2039E
