DESCRIPTION

FFD-7

C

E

F

G

H

I

J

K

L

M

A

B

FFD

DESCRIPTION

PFP:00000

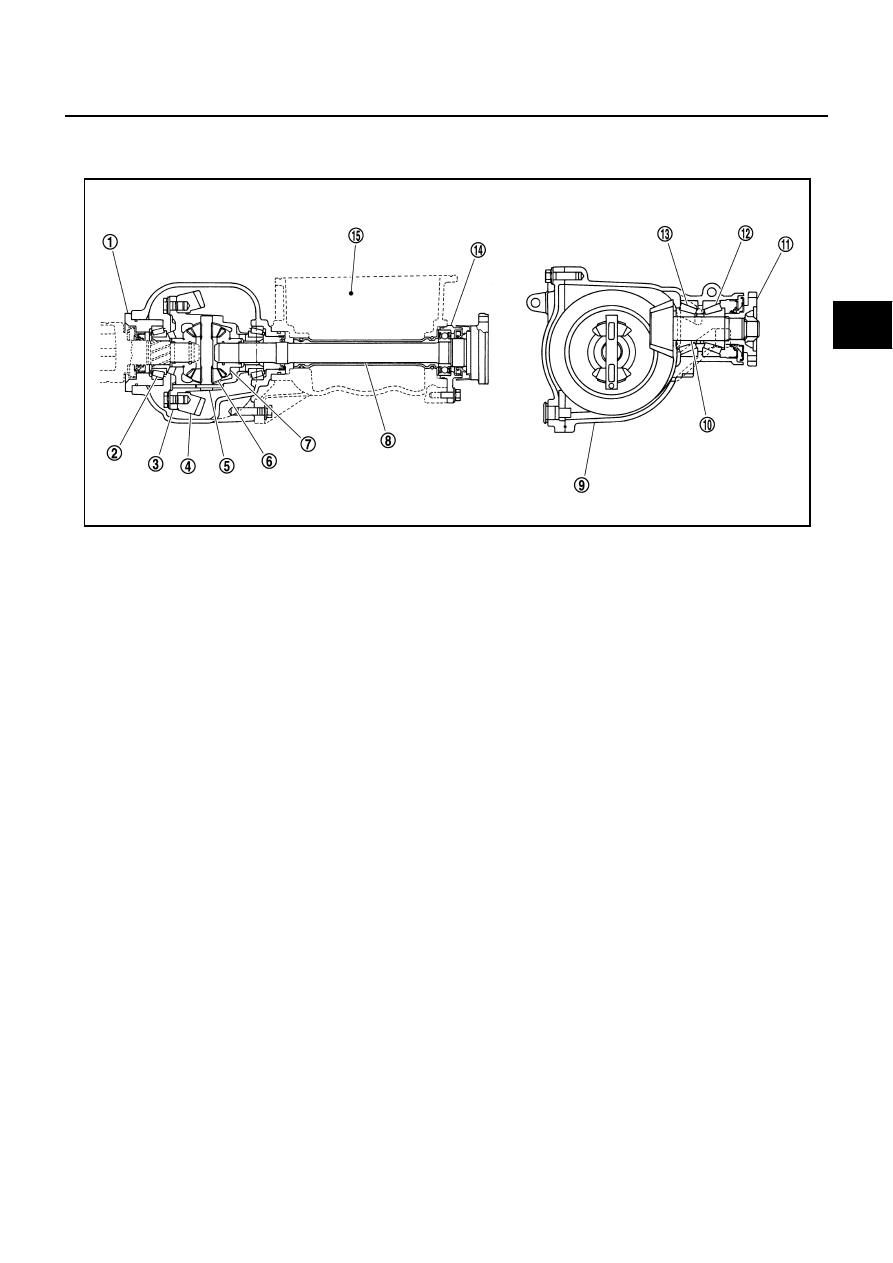

Cross-Sectional View

NDS000EP

1.

Side retainer

2.

Side bearing

3.

Differential case

4.

Drive gear

5.

Pinion mate shaft

6.

Pinion mate gear

7.

Side gear

8.

Side shaft

9.

Gear carrier

10. Drive pinion

11.

Companion flange

12. Pinion front bearing

13. Pinion rear bearing

14. Extension tube retainer

15. Engine assembly

PDIA0647E

FFD-8

DIFFERENTIAL GEAR OIL

DIFFERENTIAL GEAR OIL

PFP:KLD30

Changing Differential Gear Oil

NDS000EQ

DRAINING

1.

Stop engine.

2.

Remove drain plug (1) and drain gear oil.

3.

Set a gasket on drain plug (1) and install it to final drive assem-
bly and tighten to the specified torque. Refer to

FFD-15, "COM-

PONENTS"

 .

CAUTION:

Do not reuse gasket.

FILLING

1.

Remove filler plug (1). Fill with new gear oil until oil level reaches
the specified level near filler plug mounting hole.

2.

After refilling oil, check oil level. Set a gasket to filler plug (1),
then install it to final drive assembly. Refer to

FFD-15, "COMPO-

NENTS"

 .

CAUTION:

Do not reuse gasket.

Checking Differential Gear Oil

NDS000ER

OIL LEAKAGE AND OIL LEVEL

Make sure that oil is not leaking from final drive assembly or around it.

Remove filler plug (1) and check oil level from filler plug mount-
ing hole as shown in the figure.

CAUTION:

Do not start engine while checking oil level.

Set a gasket on filler plug (1) and install it on final drive assem-
bly. Refer to

FFD-15, "COMPONENTS"

 .

CAUTION:

Do not reuse gasket.

PDIA0781J

Oil grade and Viscosity:

Refer to

MA-12, "Fluids and Lubricants"

 .

Oil capacity:

Approx. 0.65  (1-3/8 US pt, 1-1/8 Imp pt)

PDIA0782J

PDIA0782J

FRONT OIL SEAL

FFD-9

C

E

F

G

H

I

J

K

L

M

A

B

FFD

FRONT OIL SEAL

PFP:38189

Removal and Installation

NDS000ES

REMOVAL

1.

Drain gear oil. Refer to

FFD-8, "DRAINING"

 .

2.

Remove front propeller shaft. Refer to

PR-5, "Removal and Installation"

 .

3.

Remove front drive shaft both. Refer to

FAX-11, "Removal and Installation"

 .

4.

Remove side shaft assembly.

5.

Remove drive pinion lock nut using a flange wrench.

6.

Put matching mark (B) on the end of the drive pinion. The
matching mark (B) should be in line with the matching mark (A)
on companion flange (1).

CAUTION:

For matching mark, use paint. Do not damage companion
flange and drive pinion.

NOTE:
The matching mark (A) on the final drive companion flange (1)
indicates the maximum vertical runout position.

7.

Remove companion flange using a puller.

8.

Remove front oil seal using the puller.

CAUTION:

Be careful not to damage gear carrier.

PDIA0784J

PDIA0783J

PDIA0652E

Tool number

A: KV381054S0 (J-34286)

PDIA0785J

FFD-10

FRONT OIL SEAL

INSTALLATION

1.

Apply multi-purpose grease to front oil seal lips.

2.

Using the drifts, install front oil seal as shown in figure.

CAUTION:

Do not reuse oil seal.

When installing, do not incline oil seal.

3.

Align the matching mark (B) of drive pinion with the matching
mark (A) of companion flange, and then install the companion
flange (1).

4.

Apply anti-corrosion oil to the thread and seat of new drive pin-
ion lock nut, and temporarily tighten drive pinion lock nut to drive
pinion.

CAUTION:

Do not reuse drive pinion lock nut.

5.

Tighten to drive pinion lock nut, while adjust total preload torque.

CAUTION:

Adjust to the lower limit of the drive pinion lock nut tight-
ening torque first.

After adjustment, rotate drive pinion back and forth 2 to 3
times to check for unusual noise, rotation malfunction,
and other malfunctions.

If measured value is out of the specification, remove final
drive assembly and disassemble drive pinion parts to check
and adjust each part. Refer to

FFD-13, "Removal and Installa-

tion"

  and

FFD-15, "Disassembly and Assembly"

 .

6.

Install front propeller shaft. Refer to

PR-5, "Removal and Installation"

 .

7.

Install side shaft assembly.

8.

Install front drive shaft both. Refer to

FAX-11, "Removal and Installation"

 .

9.

Refill gear oil to the final drive and check oil level. Refer to

FFD-8, "FILLING"

 .

10. Check the final drive for oil leakage. Refer to

FFD-8, "OIL LEAKAGE AND OIL LEVEL"

 .

Tool number

A: ST33400001 (J-26082)

B: KV38102510 (

)

PDIA0786J

PDIA0783J

Tool number

A: ST3127S000 (J-25765-A)

Drive pinion lock nut tightening torque:

127.4 - 245.0 N·m (13.0 - 25.0 kg-m, 94 - 181 ft-lb)

Total preload torque:

1.56 - 2.65 N·m (0.16 - 0.27 kg-m, 14 - 23 in-lb)

PDIA0969E
