DTC P0130, P0150 A/F SENSOR 1

EC-949

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

8.

Make sure that “TESTING” changes to “COMPLETED”.
If “TESTING” changed to “OUT OF CONDITION”, retry from
step 6.

9.

Make sure that “OK” is displayed after touching “SELF-DIAG
RESULT”.
If “NG” is displayed, go to

EC-953, "Diagnostic Procedure"

 .

Overall Function Check

NBS005DT

Use this procedure to check the overall function of the A/F sensor 1 circuit. During this check, a 1st trip DTC
might not be confirmed.

 WITH GST

1.

Start engine and warm it up to normal operating temperature.

2.

Drive the vehicle at a speed of 80 km/h (50 MPH) for a few minutes in the suitable gear position.

3.

Set D position, then release the accelerator pedal fully until the vehicle speed decreases to 50 km/h (30
MPH).

NOTE:
Never apply brake during releasing the accelerator pedal.

4.

Repeat steps 2 to 3 for five times.

5.

Stop the vehicle and turn ignition switch OFF.

6.

Wait at least 10 seconds and restart engine.

7.

Repeat steps 2 to 3 for five times.

8.

Stop the vehicle and connect GST to the vehicle.

9.

Make sure that no DTC is displayed.
If the DTC is displayed, go to

EC-953, "Diagnostic Procedure"

 .

SEF578Z

EC-950

[VK45DE]

DTC P0130, P0150 A/F SENSOR 1

Wiring Diagram

NBS005DU

BANK 1

TBWT1046E

DTC P0130, P0150 A/F SENSOR 1

EC-951

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

2

SB

A/F sensor 1 heater
(bank 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 5V

16

W/L

A/F sensor 1 (bank 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 3.1V

35

GR/L

Approximately 2.6V

56

LG/B

Approximately 2.3V

75

Y

Approximately 2.3V

PBIB1584E

EC-952

[VK45DE]

DTC P0130, P0150 A/F SENSOR 1

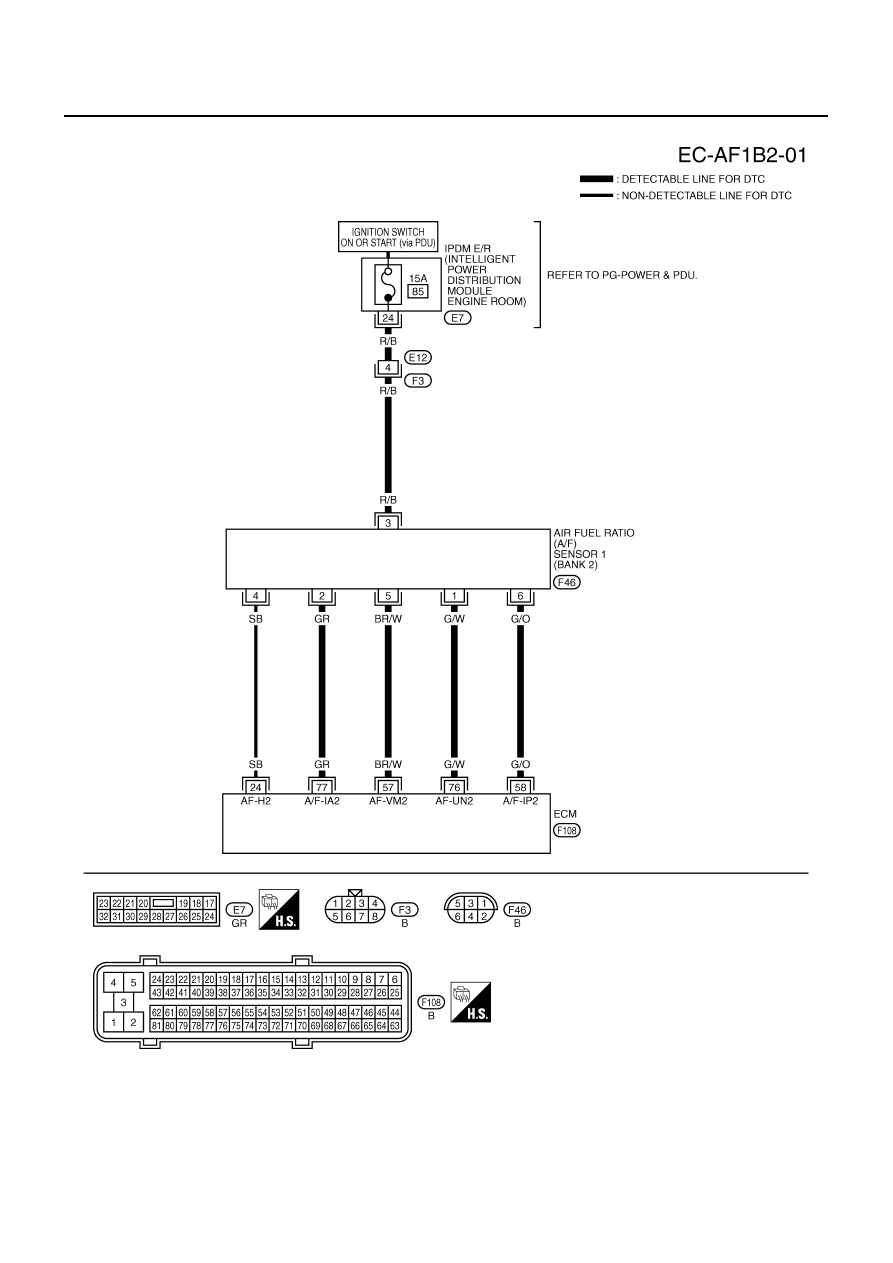

BANK 2

TBWT1047E
