DTC P2A00, P2A03 A/F SENSOR 1

EC-649

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

2

SB

A/F sensor 1 heater
(bank 1)

[Engine is running]

Warm-up condition

Idle speed

Approximately 5V

16

G/W

A/F sensor 1 (bank 1)

[Engine is running]

Warm-up condition

Idle speed

Approximately 3.1V

35

BR/W

Approximately 2.6V

56

G

Approximately 2.3V

75

GR

Approximately 2.3V

PBIB1584E

EC-650

[VQ35DE]

DTC P2A00, P2A03 A/F SENSOR 1

BANK 2

TBWT0980E

DTC P2A00, P2A03 A/F SENSOR 1

EC-651

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

NBS0057M

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten two ground screws on the body.
Refer to

EC-160, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

24

O

A/F sensor 1 heater
(bank 2)

[Engine is running]

Warm-up condition

Idle speed

Approximately 5V

57

GR/L

A/F sensor 1 (bank 2)

[Engine is running]

Warm-up condition

Idle speed

Approximately 2.6V

58

LG/B

Approximately 2.3V

76

W/L

Approximately 3.1V

77

Y

Approximately 2.3V

PBIB1584E

1.

Body ground M70

2.

Body ground M16

PBIB2782E

EC-652

[VQ35DE]

DTC P2A00, P2A03 A/F SENSOR 1

2.

RETIGHTEN A/F SENSOR 1

1.

Loosen and retighten the A/F sensor 1.

>> GO TO 3.

3.

CHECK FOR INTAKE AIR LEAK

1.

Start engine and run it at idle.

2.

Listen for an intake air leak after the mass air flow sensor.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace.

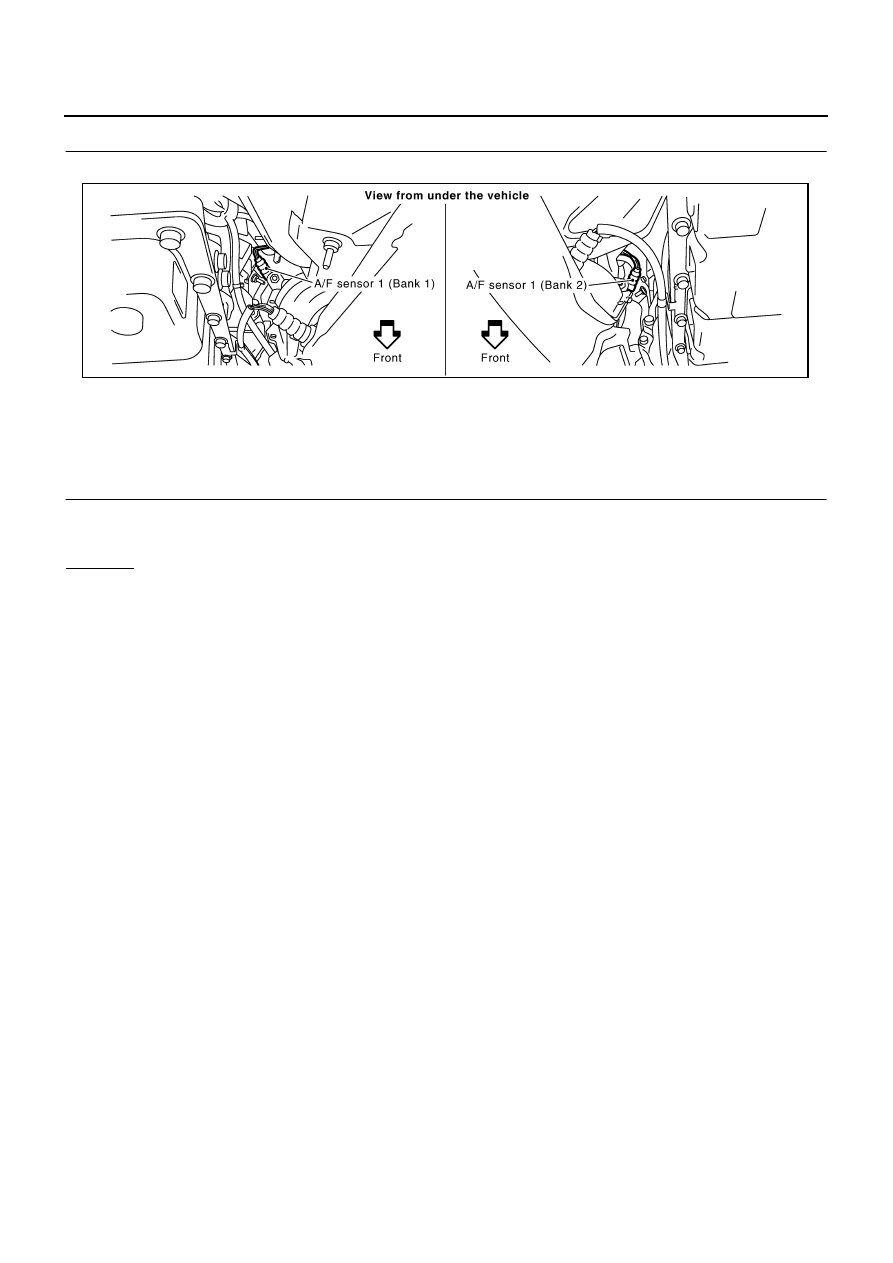

Tightening torque: 50 N-m (5.1 kg-m, 37 ft-lb)

PBIB2200E
