DTC P2A00, P2A03 A/F SENSOR 1

EC-653

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

4.

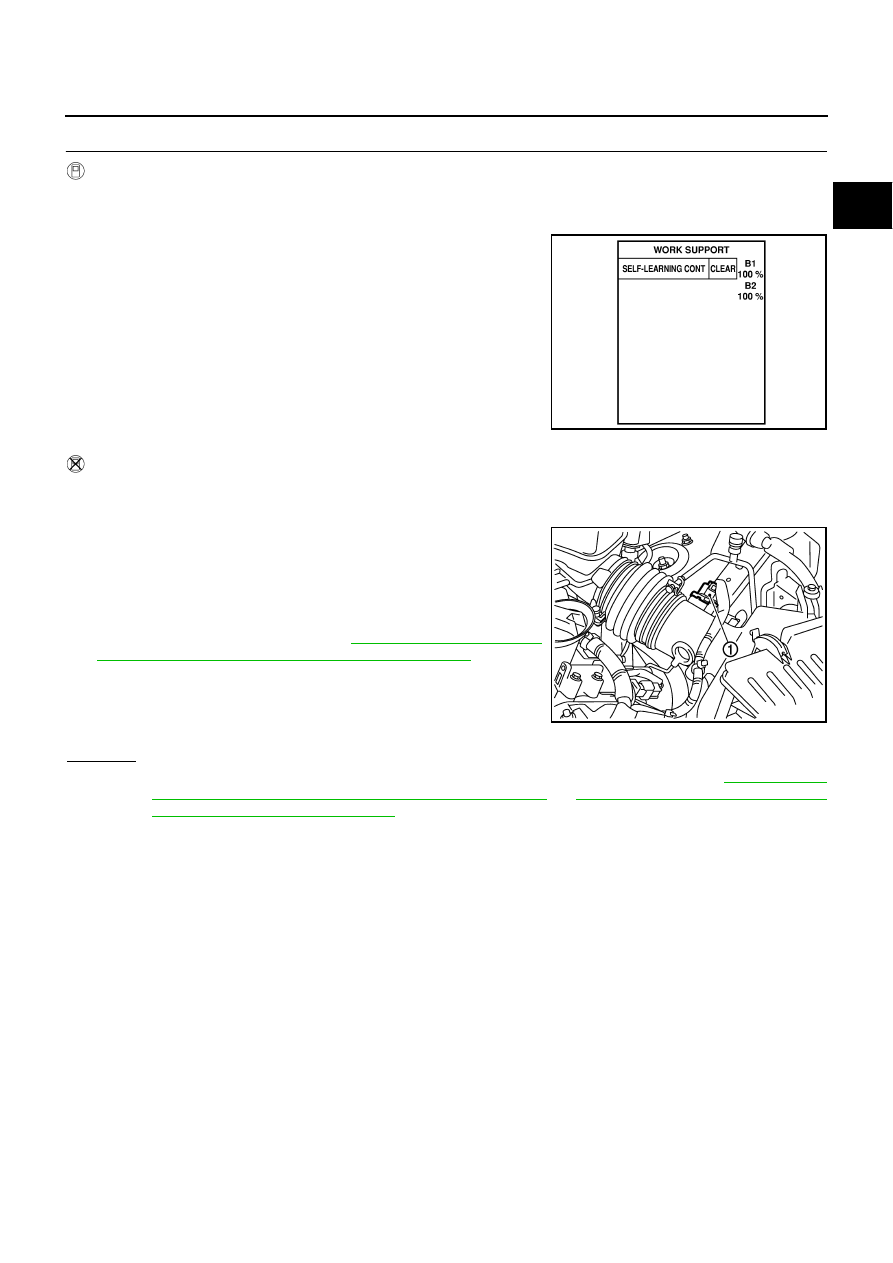

CLEAR THE SELF-LEARNING DATA

 With CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-II.

3.

Clear the self-learning control coefficient by touching “CLEAR”.

4.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?
Is it difficult to start engine?

 Without CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF.

3.

Disconnect mass air flow sensor (1) harness connector.

4.

Restart engine and let it idle for at least 5 seconds.

5.

Stop engine and reconnect mass air flow sensor harness con-
nector.

6.

Make sure DTC P0102 is displayed.

7.

Erase the DTC memory. Refer to

EC-68, "HOW TO ERASE

EMISSION-RELATED DIAGNOSTIC INFORMATION"

 .

8.

Make sure DTC P0000 is displayed.

9.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?
Is it difficult to start engine?

Yes or No

Yes

>> Perform trouble diagnosis for DTC P0171, P0174 or P0172, P0175. Refer to

EC-309, "DTC

P0171, P0174 FUEL INJECTION SYSTEM FUNCTION"

  or

EC-320, "DTC P0172, P0175 FUEL

INJECTION SYSTEM FUNCTION"

 .

No

>> GO TO 5.

SEF968Y

PBIB2783E

EC-654

[VQ35DE]

DTC P2A00, P2A03 A/F SENSOR 1

5.

CHECK HARNESS CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect A/F sensor 1 harness connector.

3.

Check harness connector for water.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace harness connector.

6.

CHECK A/F SENSOR 1 POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

Check voltage between A/F sensor 1 terminal 3 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E12, F3

●

IPDM E/R harness connector E7

●

15A fuse

●

Harness for open or short between A/F sensor 1 and fuse

>> Repair or replace harness or connectors.

Water should not exit.

PBIB2794E

Voltage: Battery voltage

PBIB1683E

DTC P2A00, P2A03 A/F SENSOR 1

EC-655

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

8.

CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.
Refer to Wiring Diagram.

4.

Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.

5.

Also check harness for short to power.

OK or NG

OK

>> GO TO 9.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK A/F SENSOR 1 HEATER

Refer to

EC-176, "Component Inspection"

 .

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 11.

10.

CHECK INTERMITTENT INCIDENT

Perform

EC-153, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

OK or NG

OK

>> GO TO 11.

NG

>> Repair or replace.

A/F sensor 1 terminal

ECM terminal

Bank1

1

16

2

75

5

35

6

56

Bank 2

1

76

2

77

5

57

6

58

Continuity should exist.

Bank 1

Bank 2

A/F sensor 1 terminal

ECM terminal

A/F sensor 1 terminal

ECM terminal

1

16

1

76

2

75

2

77

5

35

5

57

6

56

6

58

Continuity should not exist.

EC-656

[VQ35DE]

DTC P2A00, P2A03 A/F SENSOR 1

11.

REPLACE AIR FUEL RATIO (A/F) SENSOR 1

Replace malfunctioning air fuel ratio (A/F) sensor 1.

CAUTION:

●

Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; use a new one.

●

Before installing new A/F sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

>> INSPECTION END

Removal and Installation

NBS0057N

AIR FUEL RATIO (A/F) SENSOR 1

Refer to

EM-28, "EXHAUST MANIFOLD"

 .
