Infiniti M35/M45 Y50. Manual - part 357

COMBINATION METERS

DI-11

C

D

E

F

G

H

I

J

L

M

A

B

DI

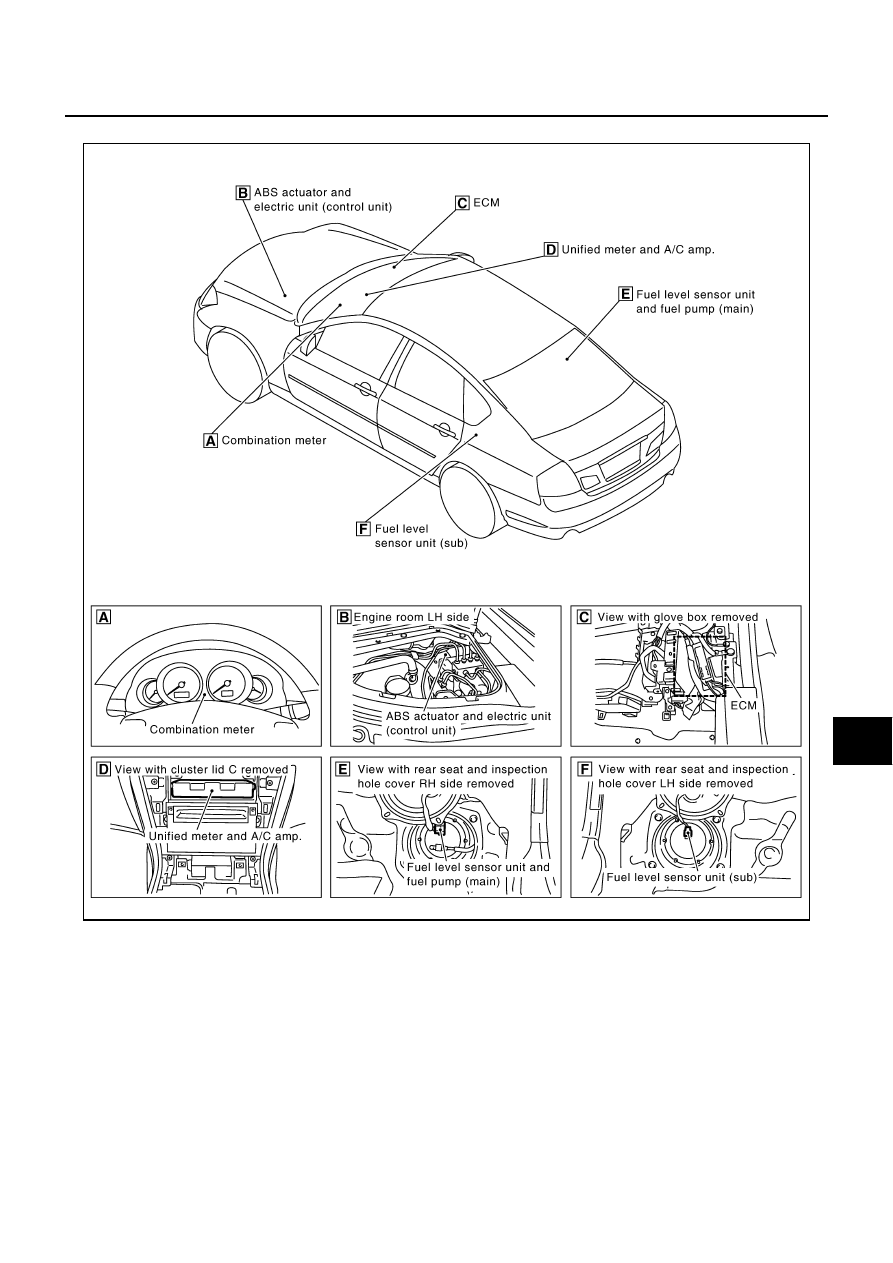

Component Parts Location

NKS003TX

SKIB8947E

DI-12

COMBINATION METERS

Internal Circuit

NKS003TY

TKWT3421E

COMBINATION METERS

DI-13

C

D

E

F

G

H

I

J

L

M

A

B

DI

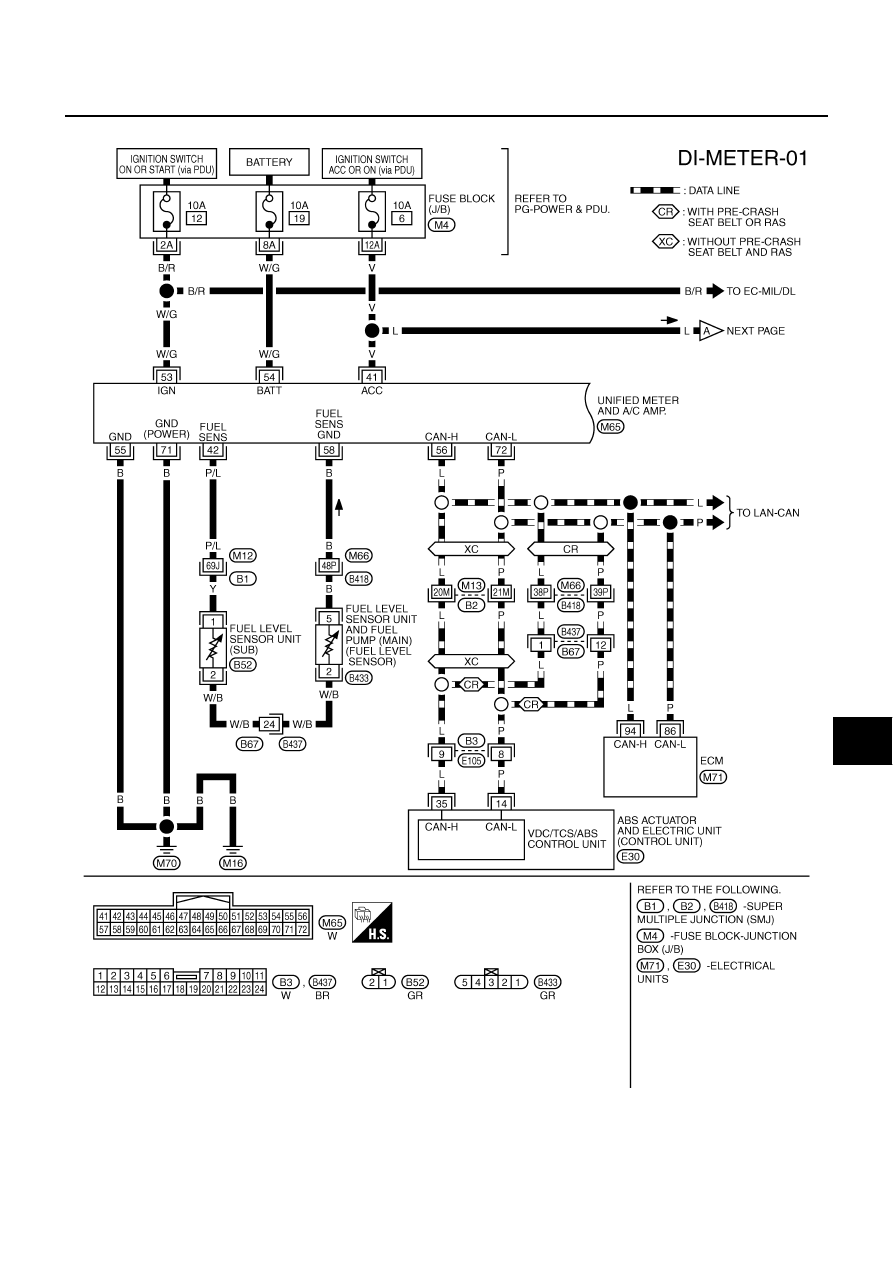

Wiring Diagram — METER —

NKS003TZ

TKWT5280E

DI-14

COMBINATION METERS

TKWT5082E
