PREPARATION

CO-5

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

PREPARATION

PFP:00002

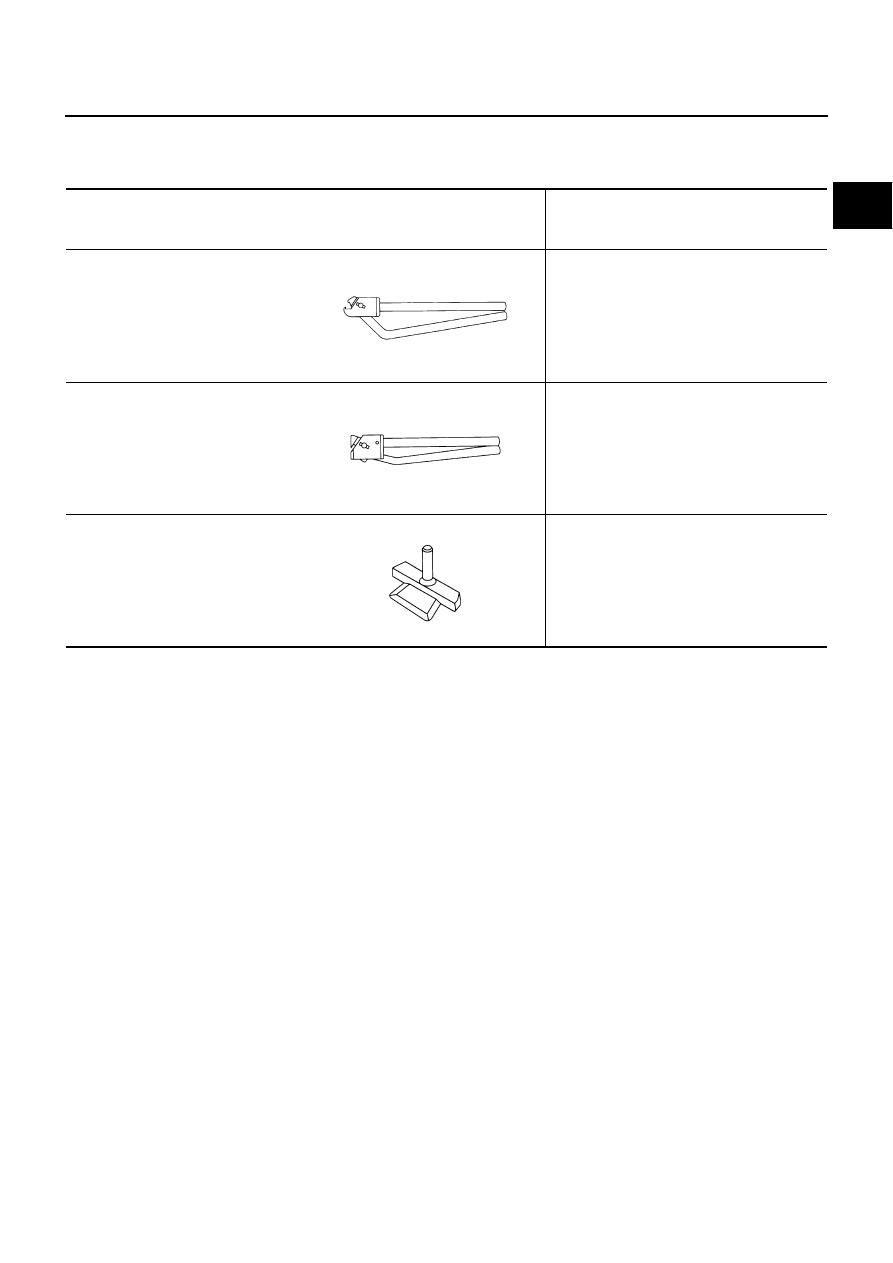

Special Service Tools

NBS004QL

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV99103510
(

—

)

Radiator plate pliers A

Installing radiator upper and lower tanks

KV99103520
(

—

)

Radiator plate pliers B

Removing radiator upper and lower tanks

KV10111100
(J37228)
Seal cutter

Removing chain tensioner cover and water
pump cover

S-NT224

S-NT225

NT046

CO-6

[VQ35DE]

PREPARATION

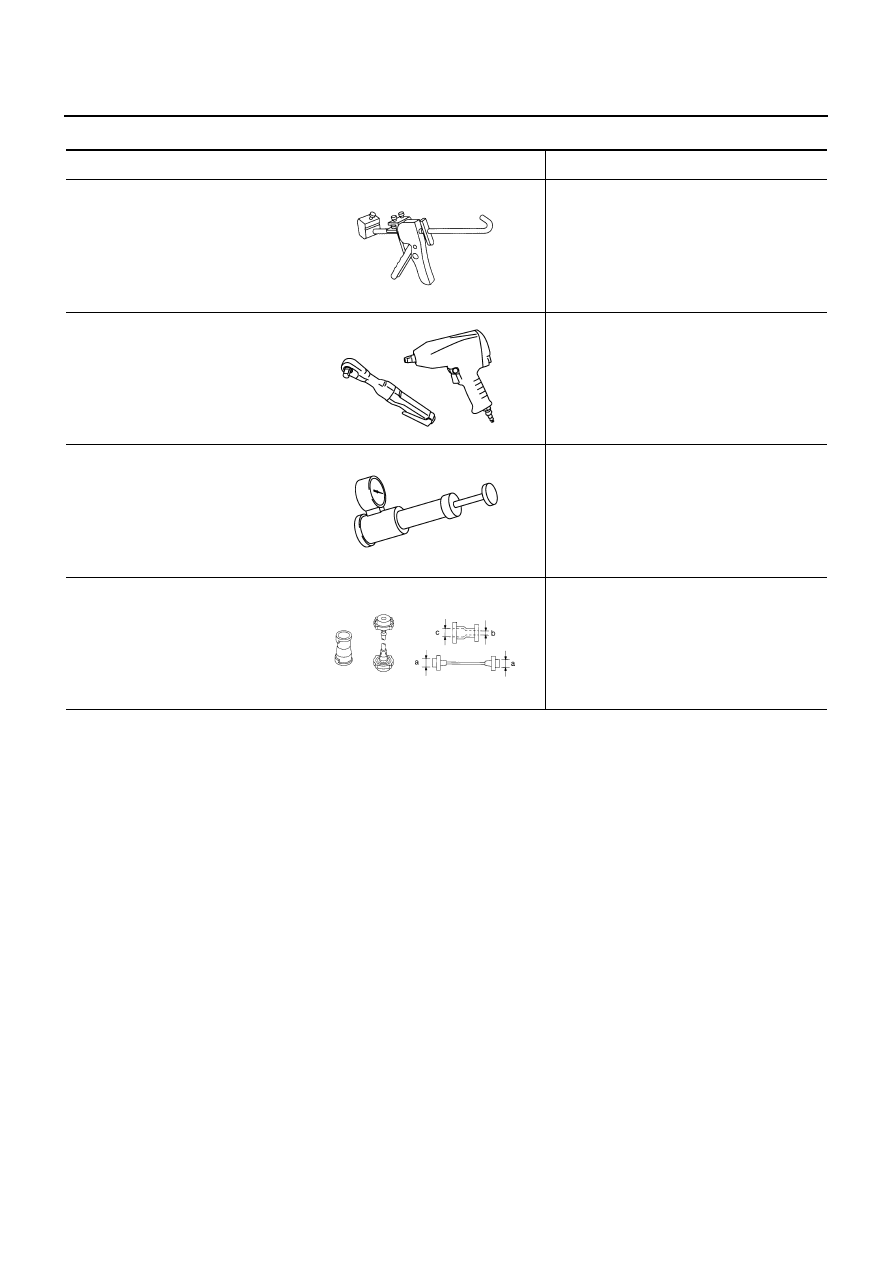

Commercial Service Tools

NBS004QM

Tool name

Description

Tube presser

Pressing the tube of liquid gasket

Power tool

Loosening nuts and bolts

Radiator cap tester

Checking radiator and radiator cap

Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

S-NT052

PBIC0190E

PBIC1982E

S-NT564

OVERHEATING CAUSE ANALYSIS

CO-7

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

OVERHEATING CAUSE ANALYSIS

PFP:00012

Troubleshooting Chart

NBS004QN

Symptom

Check items

Cooling sys-
tem parts
malfunction

Poor heat transfer

Water pump malfunction

Worn or loose drive belt

—

Thermostat stuck closed

—

Damaged fins

Dust contamination or
paper clogging

Physical damage

Clogged radiator cooling
tube

Excess foreign material
(rust, dirt, sand, etc.)

Reduced air flow

Cooling fan does not oper-
ate

Fan assembly

—

High resistance to fan rota-
tion

Damaged fan blades

Damaged radiator shroud

—

—

—

Improper engine coolant
mixture ratio

—

—

—

Poor engine coolant quality

—

Engine coolant density

—

Insufficient engine coolant

Engine coolant leaks

Cooling hose

Loose clamp

Cracked hose

Water pump

Poor sealing

Radiator cap

Loose

Poor sealing

Radiator

O-ring for damage, deterio-
ration or improper fitting

Cracked radiator tank

Cracked radiator core

Reservoir tank

Cracked reservoir tank

Overflowing reservoir tank

Exhaust gas leaks into
cooling system

Cylinder head deterioration

Cylinder head gasket dete-
rioration

CO-8

[VQ35DE]

OVERHEATING CAUSE ANALYSIS

Except cool-
ing system
parts mal-
function

—

Overload on engine

Abusive driving

High engine rpm under no
load

Driving in low gear for
extended time

Driving at extremely high
speed

Powertrain system mal-
function

—

Installed improper size
wheels and tires

Dragging brakes

Improper ignition timing

Blocked or restricted air
flow

Blocked bumper

—

—

Blocked radiator grille

Installed car brassiere

Mud contamination or
paper clogging

Blocked radiator

—

Blocked condenser

Blocked air flow

Installed large fog lamp

Symptom

Check items
