2.

CHECK DOOR MIRROR LH SENSOR

 With CONSULT–II

Check that “VOLTAGE” is displayed on “MIR/SE LH R–L, MIR/SE LH U–D” in the DATA MONITOR.

 Without CONSULT–II

1.

Turn ignition switch to ACC.

2.

Check voltage between automatic drive positioner control unit connector and ground.

OK or NG

OK

>> Mirror sensor LH circuit is OK.

NG

>> GO TO 3.

Monitor item

[OPERATION or UNIT]

Contents

MIR/
SEN LH R–L

“V”

Voltage output from door mirror LH sensor (LH/
RH) is displayed.

MIR/
SEN LH U–D

“V”

Voltage output from door mirror LH sensor (UP/
DOWN) is displayed.

PIIB6495E

Automatic

drive posi-

tioner con-

trol unit

connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

M6

22

Ground

Mirror motor is
operated LEFT or
RIGHT

Changes between

3.5 (close to right edge) –

 0.5 (close to left edge)

6

Mirror motor is
operated UP or
DOWN

Changes between

4.2 (close to peak) – 0.5

(close to valley)

PIIB6163E

SE-66

AUTOMATIC DRIVE POSITIONER

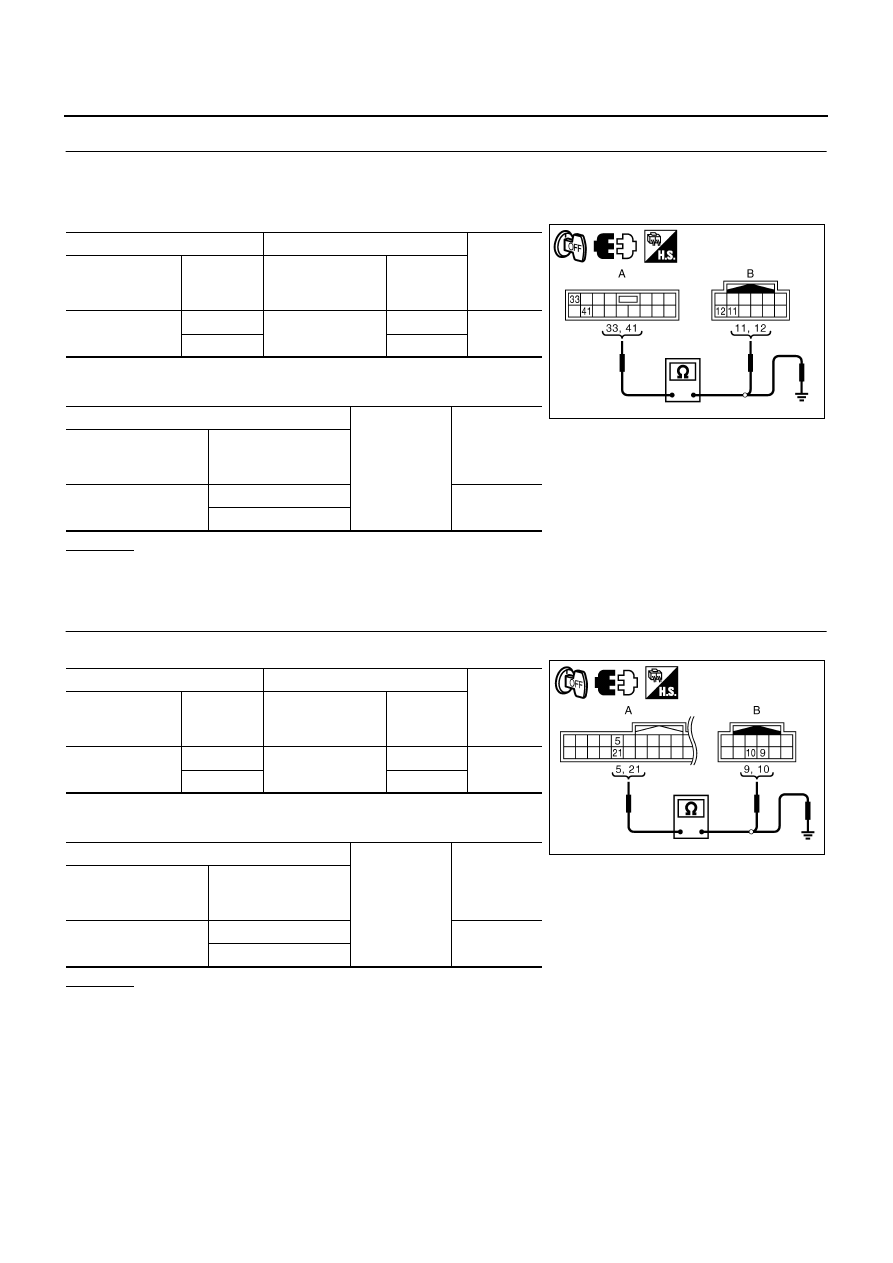

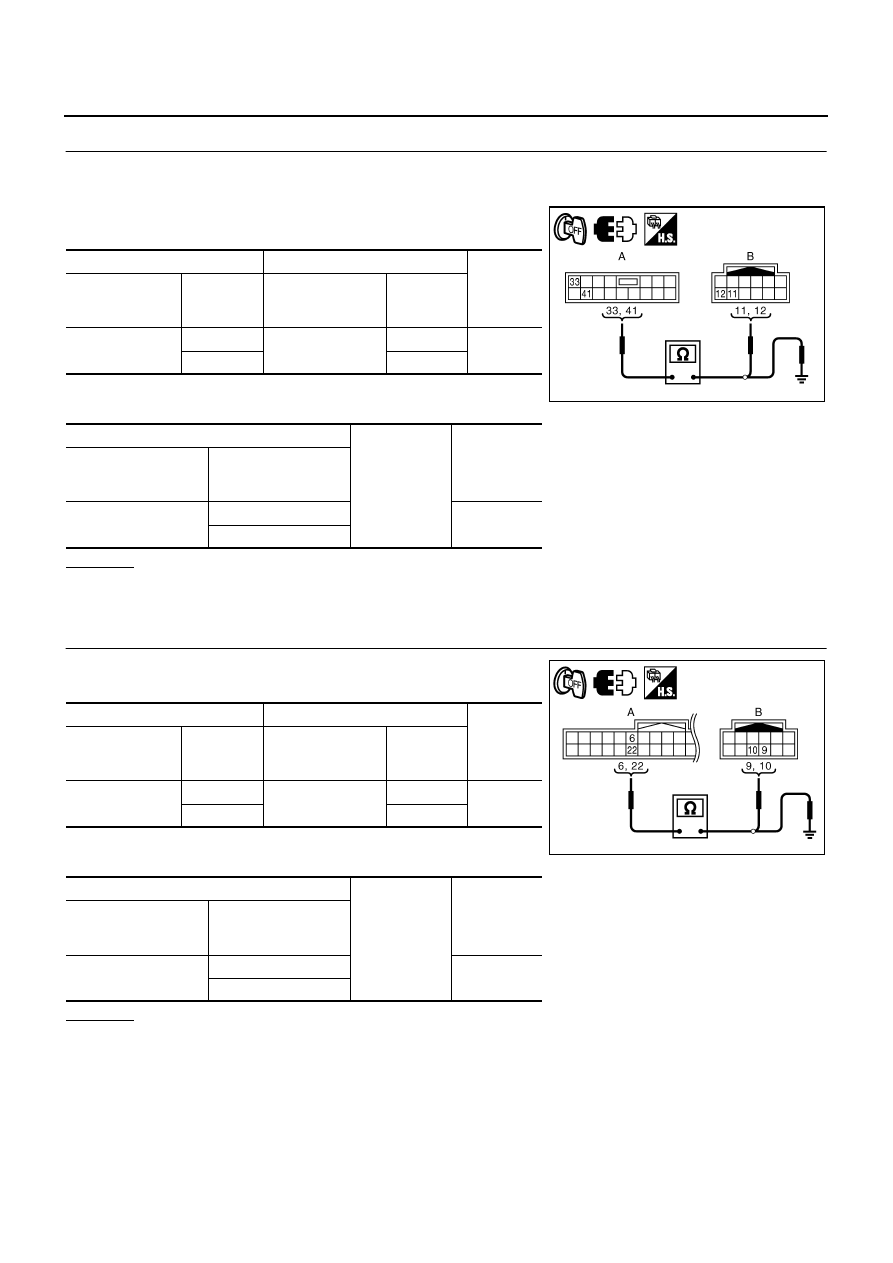

3.

CHECK HARNESS CONTINUITY 1

1.

Turn ignition switch OFF.

2.

Disconnect automatic drive positioner control unit connector and door mirror LH connector.

3.

Check continuity between automatic drive positioner control unit
connector and door mirror LH connector.

4.

Check continuity between automatic drive positioner control unit
connector and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness.

4.

CHECK HARNESS CONTINUITY 2

1.

Check continuity between automatic drive positioner control unit
connector and door mirror LH connector.

2.

Check continuity between automatic drive positioner control unit
connector and ground.

OK or NG

OK

>> Replace door mirror LH.

NG

>> Repair or replace harness.

A

B

Continuity

Automatic drive

positioner control

unit connector

Terminal

Door mirror LH

connector

Terminal

M7

33

D2

11

Yes

41

12

A

Ground

Continuity

Automatic drive posi-

tioner control unit con-

nector

Terminal

M7

33

No

41

PIIB6164E

A

B

Continuity

Automatic drive

positioner control

unit connector

Terminal

Door mirror LH

connector

Terminal

M6

6

D2

9

Yes

22

10

A

Ground

Continuity

Automatic drive posi-

tioner control unit con-

nector

Terminal

M6

6

No

22

PIIB6165E

AUTOMATIC DRIVE POSITIONER

SE-67

C

D

E

F

G

H

J

K

L

M

A

B

SE

Check Door Mirror Sensor RH Circuit

NIS0026K

1.

CHECK DOOR MIRROR FUNCTION

Check the following items.
Operation malfunction in memory operation.

NOTE:
If a door mirror face position is set to an implausible angle, the set position may not be reproduced.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace the malfunctioning parts, and check the symptom again.

2.

CHECK DOOR MIRROR RH SENSOR

 With CONSULT–II

Check that “VOLTAGE” is displayed on “MIR/SE RH R–L, MIR/SE RH U–D” in the DATA MONITOR.

 Without CONSULT–II

1.

Turn ignition switch to ACC.

2.

Check voltage between automatic drive positioner control unit  connector and ground.

OK or NG

OK

>> Mirror sensor RH circuit is OK.

NG

>> GO TO 3.

Monitor item

[OPERATION or UNIT]

Contents

MIR/
SEN RH R–L

“V”

Voltage output from door mirror RH sensor (LH/
RH) is displayed.

MIR/
SEN RH U–D

“V”

Voltage output from door mirror RH sensor (UP/
DOWN) is displayed.

PIIB6495E

Automatic

drive posi-

tioner con-

trol unit

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

M6

21

Ground

Mirror motor is
operated UP or
DOWN

Changes between

3.5 (close to left edge) –
 0.5 (close to right edge)

5

Mirror motor is
operated UP or
DOWN

Changes between

4.2 (close to peak) –

0.5 (close to valley)

PIIB6166E

SE-68

AUTOMATIC DRIVE POSITIONER

3.

CHECK HARNESS CONTINUITY 1

1.

Turn ignition switch OFF.

2.

Disconnect automatic drive positioner control unit connector and door mirror RH connector.

3.

Check continuity between automatic drive positioner control unit connector and door mirror RH connector.

4.

Check continuity between automatic drive positioner control unit
connector and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness.

4.

CHECK HARNESS CONTINUITY 2

1.

Check continuity between automatic drive positioner control unit connector and door mirror RH connector.

2.

Check continuity between automatic drive positioner control unit
connector and ground.

OK or NG

OK

>> Replace door mirror RH.

NG

>> Repair or replace harness.

A

B

Continuity

Automatic drive

positioner control

unit connector

Terminal

Door mirror RH

connector

Terminal

M7

33

D39

11

Yes

41

12

A

Ground

Continuity

Automatic drive posi-

tioner control unit con-

nector

Terminal

M7

33

No

41

PIIB6164E

A

B

Continuity

Automatic drive

positioner control

unit connector

Terminal

Door mirror RH

connector

Terminal

M6

5

D39

9

Yes

21

10

A

Ground

Continuity

Automatic drive posi-

tioner control unit con-

nector

Terminal

M6

5

No

21

PIIB6167E
