AUTOMATIC DRIVE POSITIONER

SE-17

C

D

E

F

G

H

J

K

L

M

A

B

SE

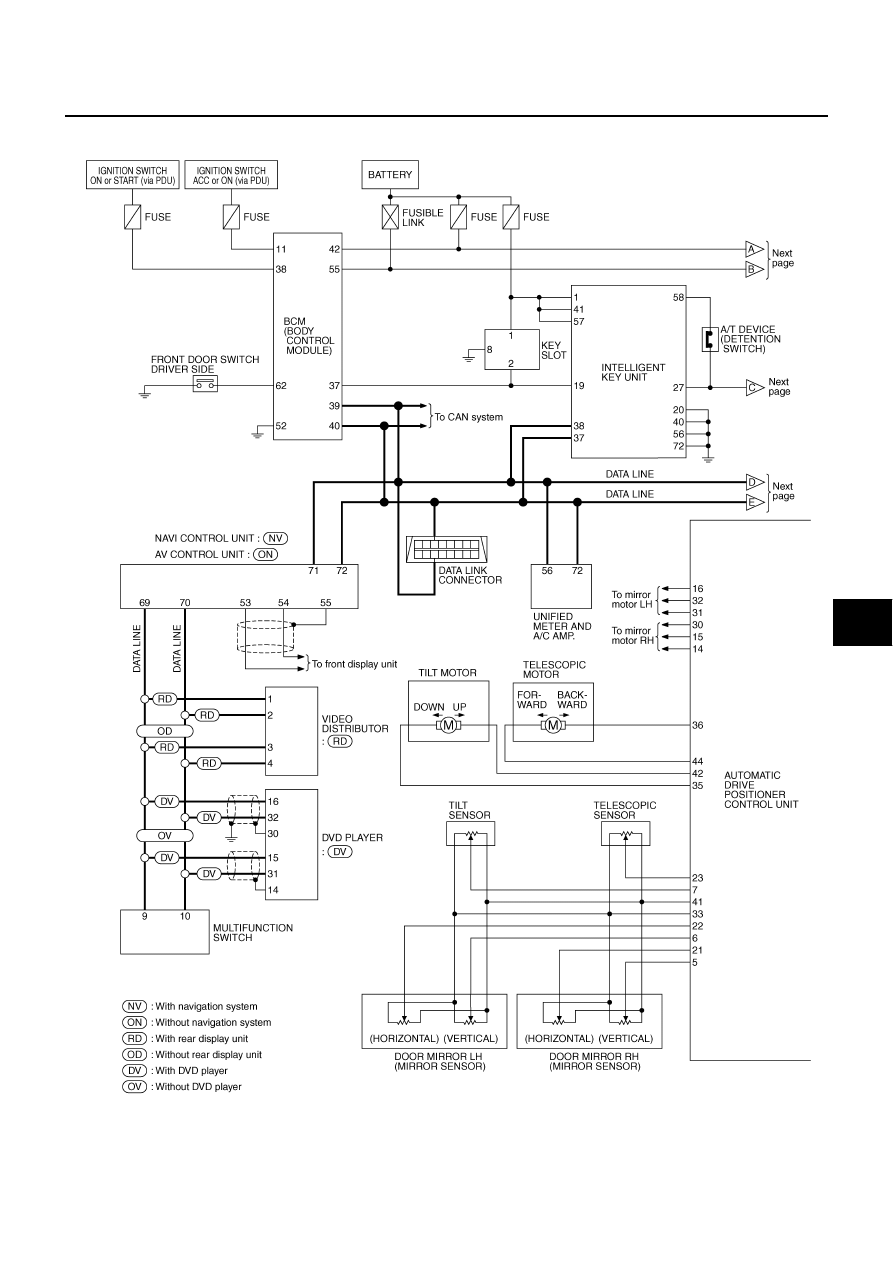

Schematic

NIS0025U

TIWT1371E

SE-18

AUTOMATIC DRIVE POSITIONER

TIWT2133E

AUTOMATIC DRIVE POSITIONER

SE-19

C

D

E

F

G

H

J

K

L

M

A

B

SE

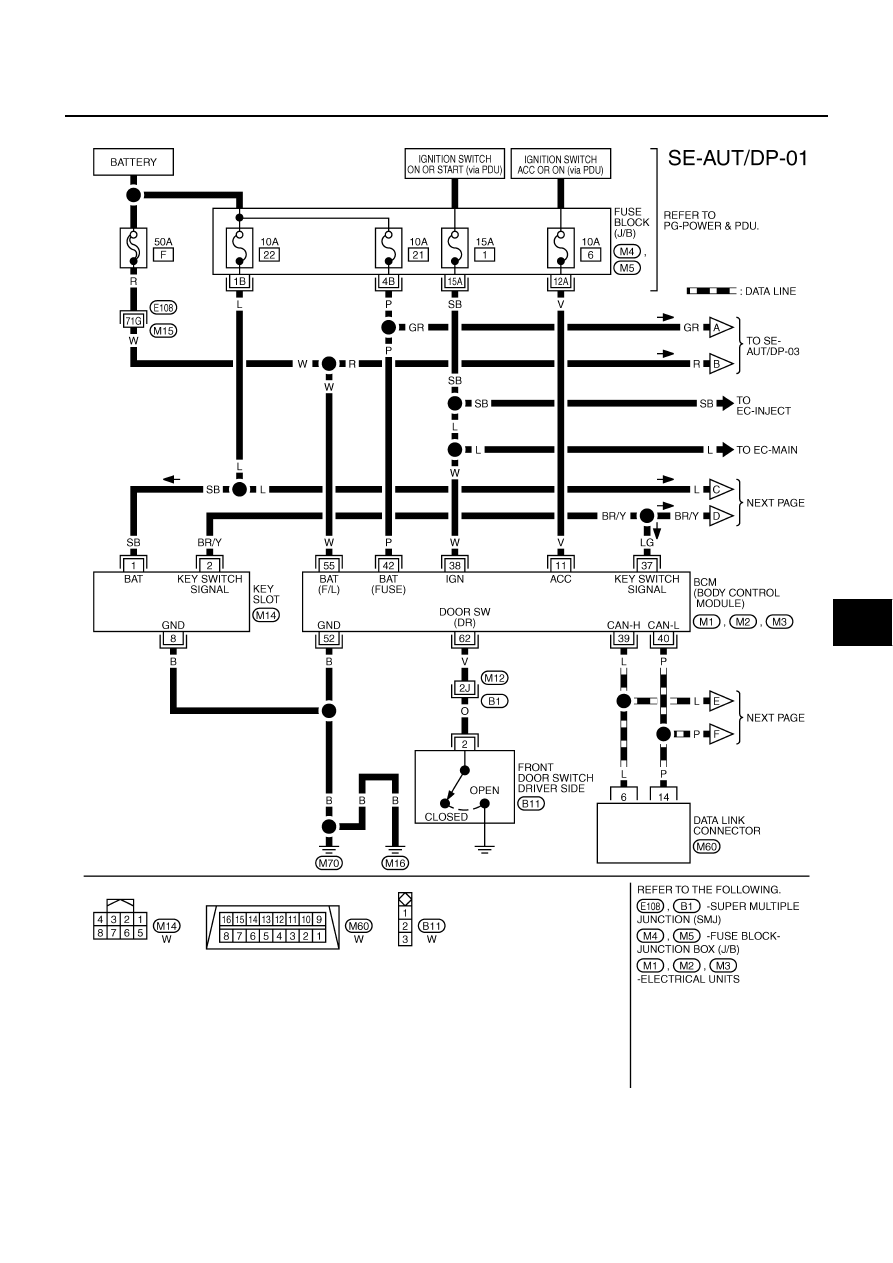

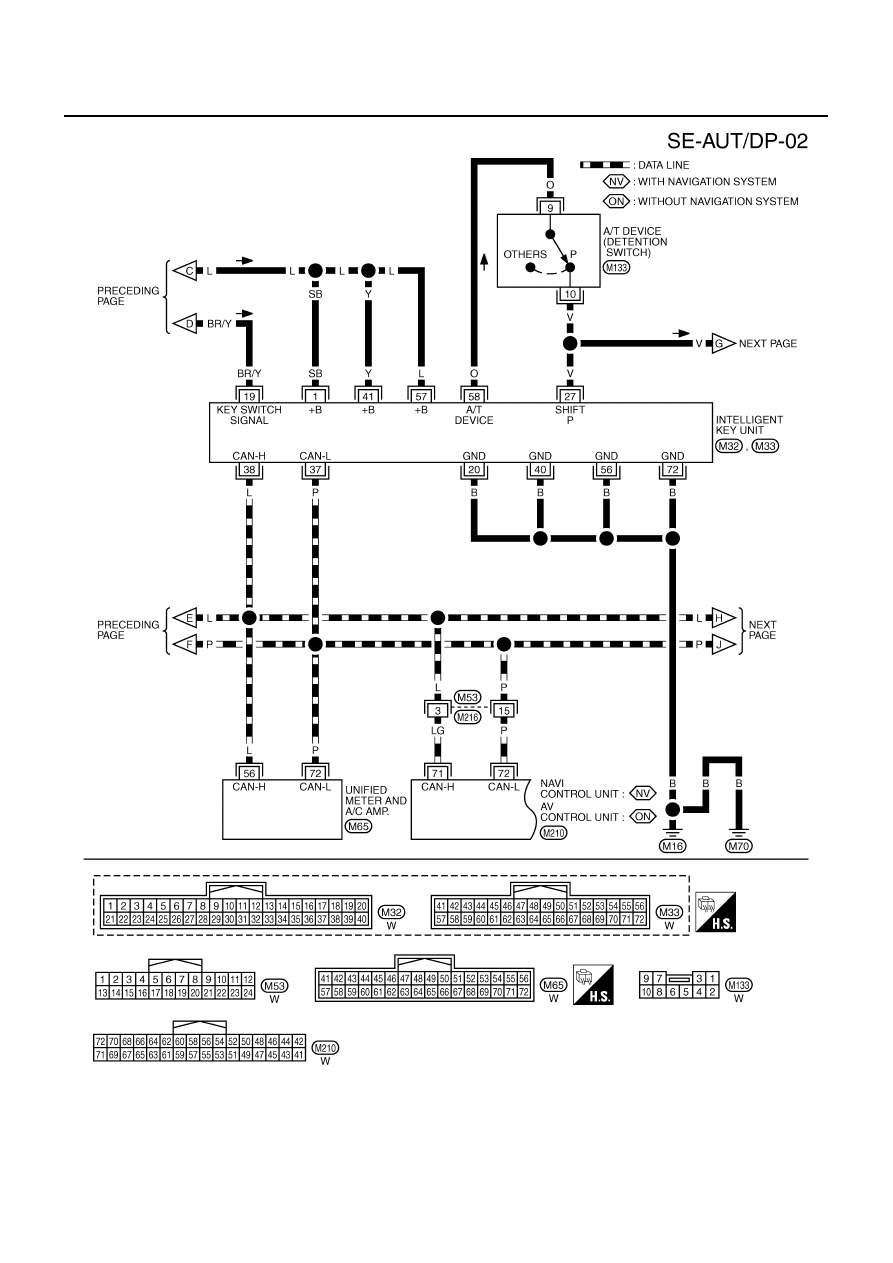

Wiring Diagram — AUT/DP —

NIS0025V

TIWT2127E

SE-20

AUTOMATIC DRIVE POSITIONER

TIWT1374E
