DISASSEMBLY

AT-319

D

E

F

G

H

I

J

K

L

M

A

B

AT

66. Remove return spring from servo assembly.

67. Remove O-rings from servo assembly.

68. Remove one of the following parts.

●

Rear extension assembly (VQ35DE models for 2WD)

●

Adapter case assembly (AWD models)

●

Output shaft & companion flange complement (VK45DE models for 2WD)

a.

VQ35DE models

i.

Remove needle bearing (1) from rear extension (2WD models)
or adapter case (AWD models).

ii.

Remove parking actuator support from rear extension (2WD
models) or adapter case (AWD models).

SCIA5717E

SCIA5719E

SCIA6179J

SCIA3423E

AT-320

DISASSEMBLY

iii.

Remove parking pawl (with return spring) and pawl shaft from
rear extension (2WD models) or adapter case (AWD models).

iv.

Remove return spring (1) from parking pawl (2).

v.

Remove rear oil seal from rear extension (2WD models) or
adapter case (AWD models).

CAUTION:

Be careful not to scratch rear extension (2WD models) or
adapter case (AWD models).

b.

VK45DE models

i.

Remove parking actuator support (1) from output shaft & com-
panion flange complement.

SCIA3424E

SCIA6180J

SCIA5481E

SCIA7065E

DISASSEMBLY

AT-321

D

E

F

G

H

I

J

K

L

M

A

B

AT

ii.

Remove parking pawl (with return spring) (1) and pawl shaft (2)
from output shaft & companion flange complement.

iii.

Remove return spring (1) from parking pawl (2).

SCIA7066E

SCIA6180J

AT-322

REPAIR FOR COMPONENT PARTS

REPAIR FOR COMPONENT PARTS

PFP:00000

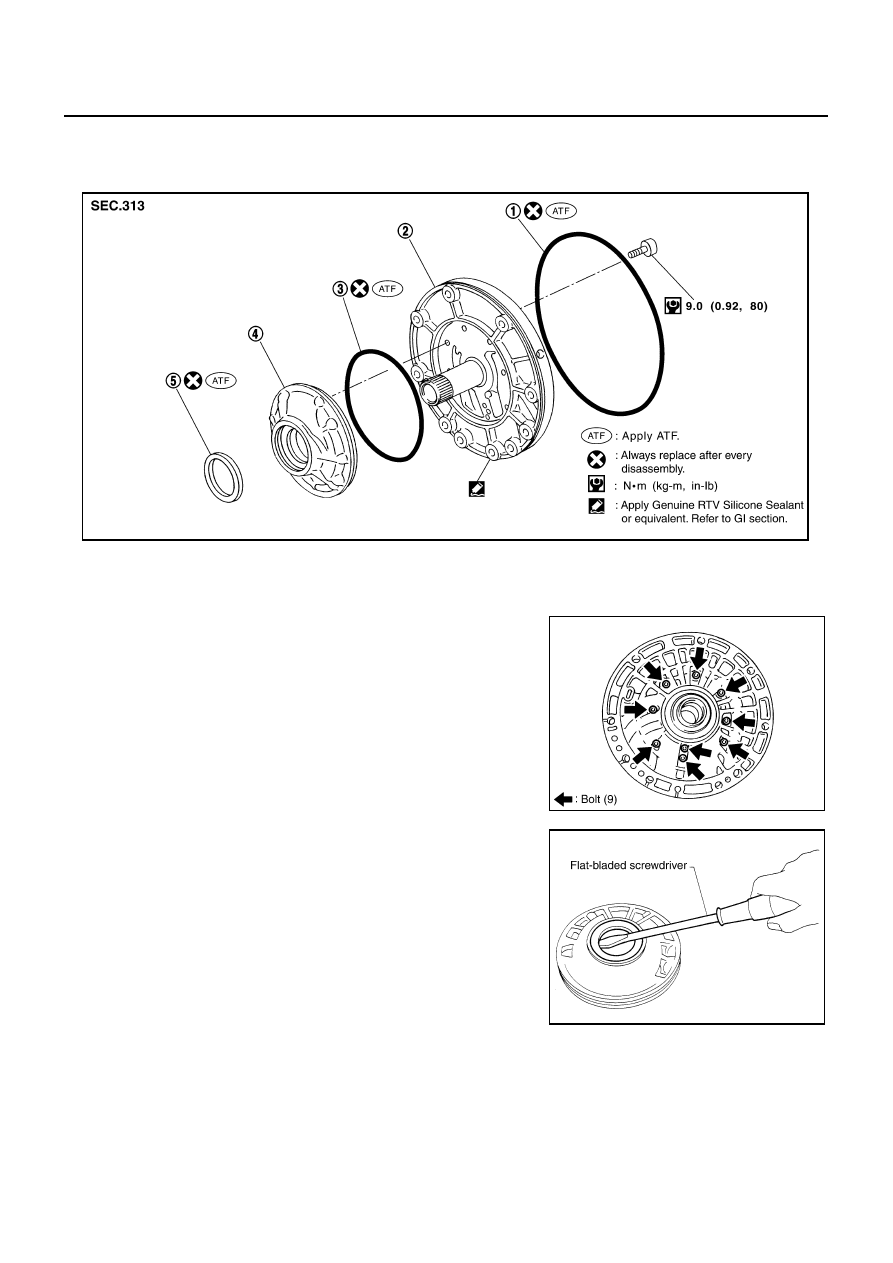

Oil Pump

NCS001R4

COMPONENTS

DISASSEMBLY

1.

Remove oil pump housing from oil pump cover.

2.

Remove oil pump housing oil seal using a flat-bladed screw-
driver.

CAUTION:

Be careful not to scratch oil pump housing.

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Oil pump housing oil seal

SCIA5227E

SCIA5228E

SCIA2840E
