SERVICE DATA AND SPECIFICATIONS (SDS)
PS-29
C
D
E
F
H
I
J
K
L
M
A
B
PS
Steering Gear
EGS0007E
Oil Pump
EGS0007F
Steering Fluid
EGS0007G

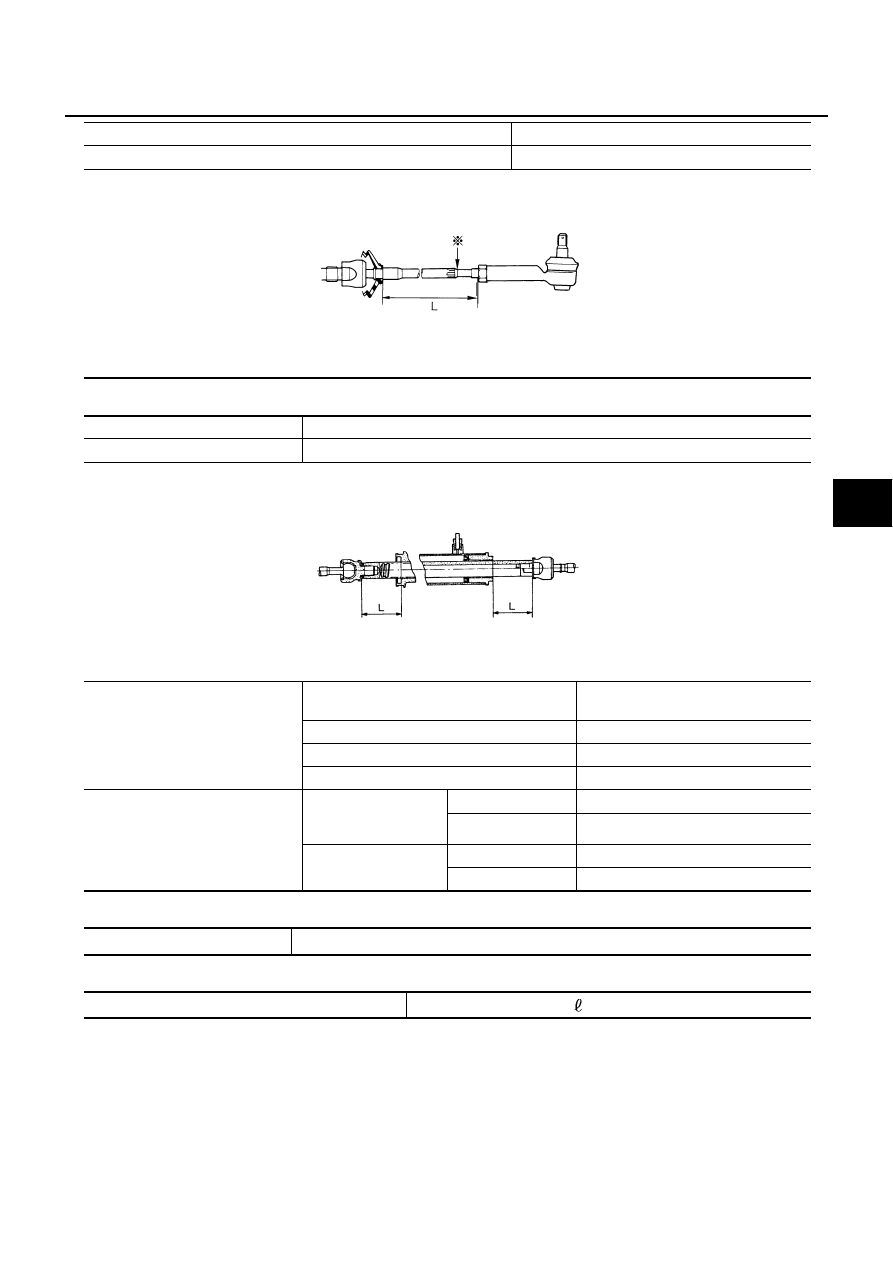

Tie rod length, Length L
160.0 mm (6.30 in)
Steering gear type
PR26AF
STC1006D
Steering gear model
PR26AF
Rack neutral position, dimension L
68.5 mm (2.697 in)
Retainer adjustment
Screw lock nut
Tightening torque
40 - 58N·m (4.0 - 6.0kg-m,29 -43 ft-lb)
Primary tightening torque
4.9 N·m (0.5 kg-m,4 in-lb)
Re-tightening torque after tightening
4.9 N·m (0.5 kg-m,4 in-lb)
Loosen Adjusting screws.
60 - 80
°
Rack sliding torque:
Range within
±
11.5 mm
from neutral position
((at power ON)
Area average value
245.2 - 294.2N (25 - 30 kg, 55 -66 lb)
Allowable variation
58 N (6.0 kg, 13 lb) or less
Whole area (at power
OFF)
Peak value
294 N (30.0 kg, 66 lb) or less
Allowable variation
147 N (15.0 kg, 33 lb) or less
STC0101D
Oil pump relief hydraulic pressure
8,630 - 9,219 kPa (88 -94 kg/cm
2
, 1,251 - 1,337 psi)
Fluid capacity
approx. 1.0
(1-1/8 us qt, 7/8 Imp qt)
