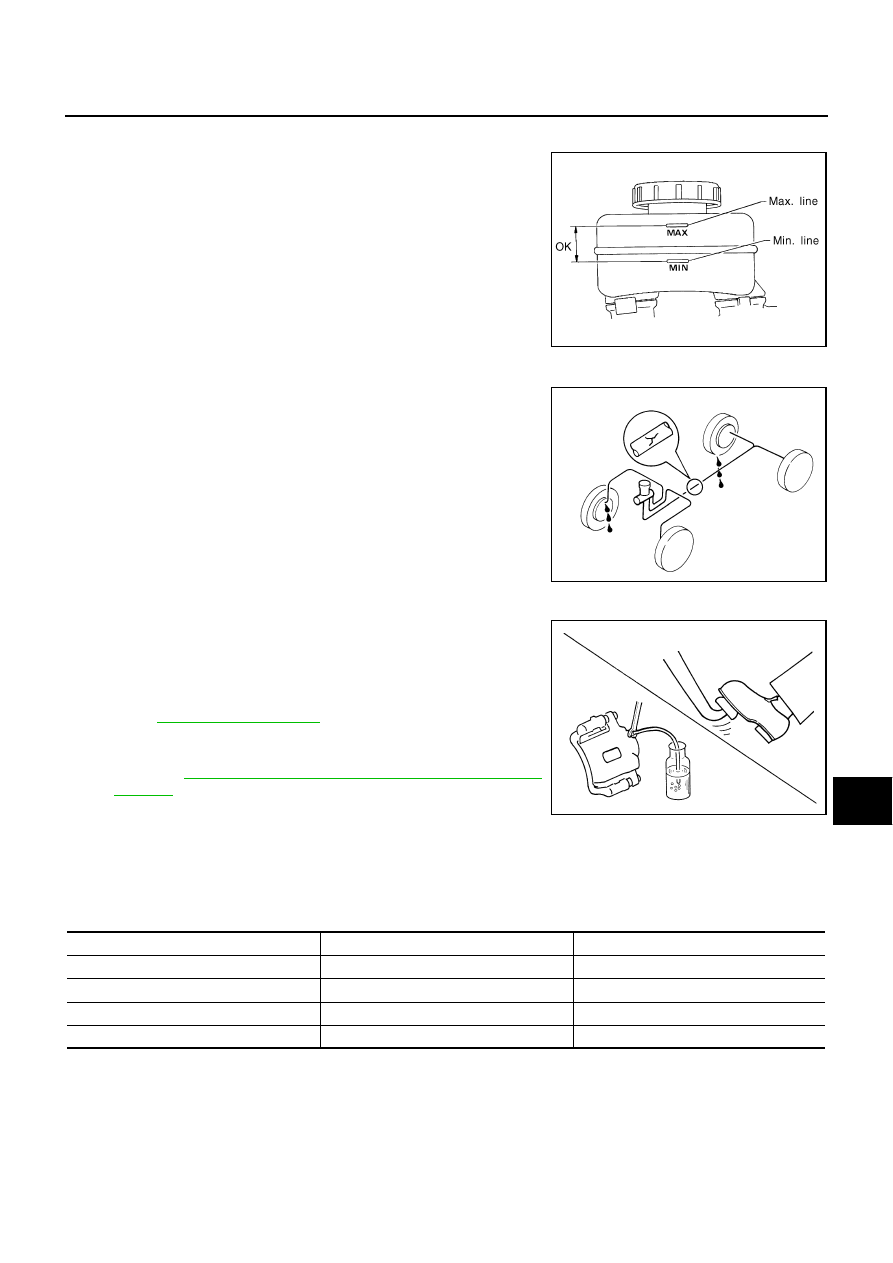

Checking Brake Fluid Level and Leaks

ELS0001K

●

If fluid level is extremely low, check brake system for leaks.

Checking Brake Lines and Cables

ELS0001L

●

Check brake fluid lines and parking brake cables for improper
attachment, leaks, chafing, abrasions, deterioration, etc.

Changing Brake Fluid

ELS0003R

1.

Drain brake fluid from each air bleeder valve.

2.

Refill until new brake fluid comes out from each air bleeder
valve.
Use same procedure as in bleeding hydraulic system to refill
brake fluid.
Refer to

BR-9, "Drain and Refill"

 .

●

Refill with recommended Genuine Brake Fluid or equivalent
DOT 3 (US FMVSS No. 116).
Refer to

MA-11, "RECOMMENDED FLUIDS AND LUBRI-

CANTS"

 .

●

Never reuse drained brake fluid.

●

Be careful not to splash brake fluid on painted areas.

Checking Disc Brake

ELS0001M

ROTOR

Check condition, wear, and damage.

Unit: mm (in)

SBR451D

SBR389C

SBR419C

Front

Rear

Brake model

CLZ31VA

AD14VD

Standard thickness

28.0 (1.10)

16.0 (0.63)

Maximum runout

0.05 (0.002)

0.07 (0.0028)

Minimum thickness (Wear limit)

26.0 (1.02)

14.0 (0.55)

MA-26

CHASSIS AND BODY MAINTENANCE

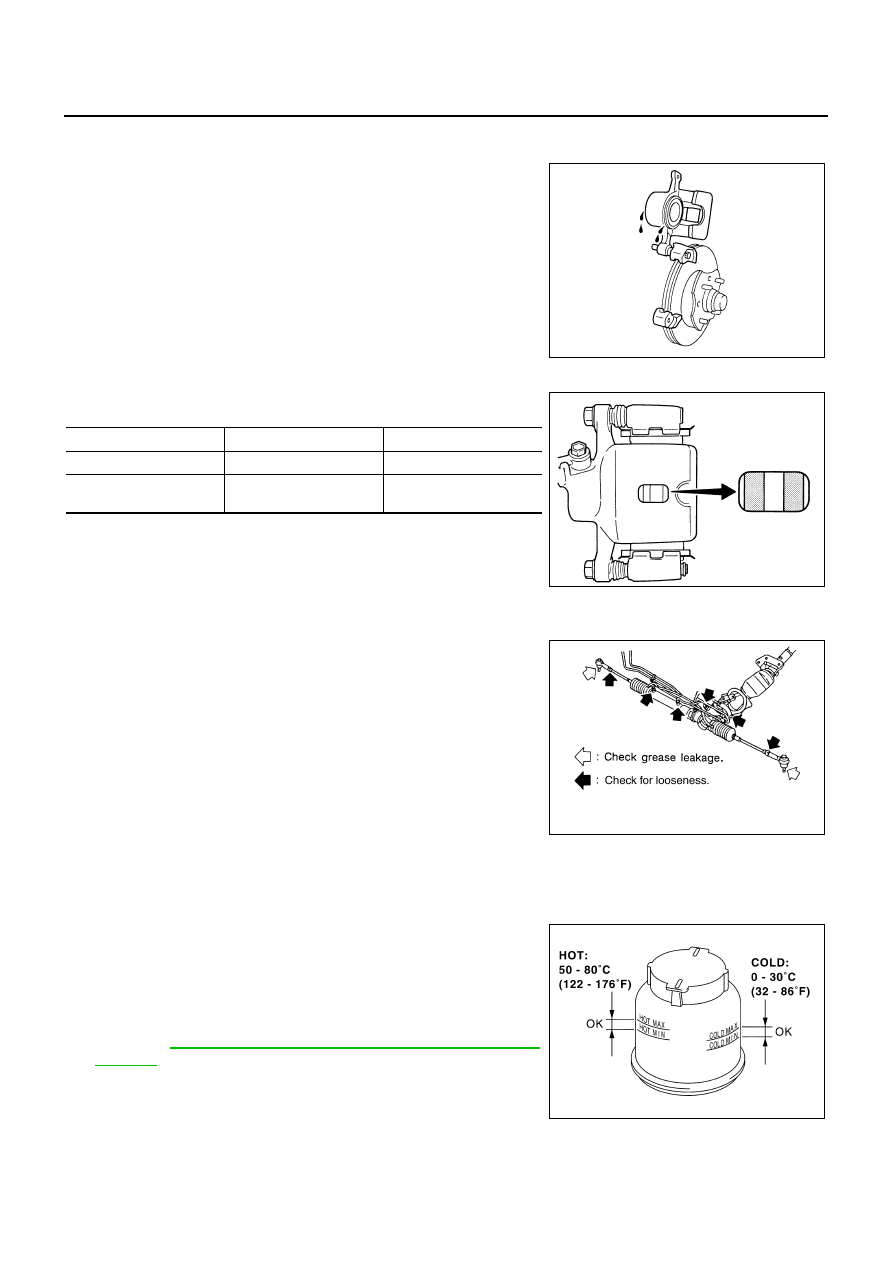

CALIPER

●

Check for leakage.

PAD

●

Check for wear or damage.

Unit: mm (in)

Checking Steering Gear and Linkage

ELS0001N

STEERING GEAR

●

Check gear housing and boots for looseness, damage and
grease leakage.

●

Check connection with steering column for looseness.

STEERING LINKAGE

Check ball joint, dust cover and other component parts for looseness, wear, damage and grease leakage.

Checking Power Steering Fluid and Lines

ELS0001O

Check fluid level in reservoir tank with engine off.
Use “HOT” range at fluid temperatures of 50 to 80

°

C (122 to 176

°

F)

or “COLD” range at fluid temperatures of 0 to 30

°

C (32 to 86

°

F).

CAUTION:

●

Do not overfill.

●

Recommended fluid is Genuine NISSAN PSF or equivalent.
Refer to

MA-11, "RECOMMENDED FLUIDS AND LUBRI-

CANTS"



SMA922A

Brake model

CLZ31VA

AD14VD

Standard thickness

10.0 (0.394)

9.8 (0.386)

Minimum thickness (Wear
limit)

2.0 (0.079)

2.0 (0.079)

BRA0010D

SLIA0014E

SST850C

CHASSIS AND BODY MAINTENANCE

MA-27

C

D

E

F

G

H

I

J

K

M

A

B

MA

●

Check lines for improper attachment, leaks, cracks, dam-
age, loose connections, chafing and deterioration.

●

Check rack boots for accumulation of power steering fluid.

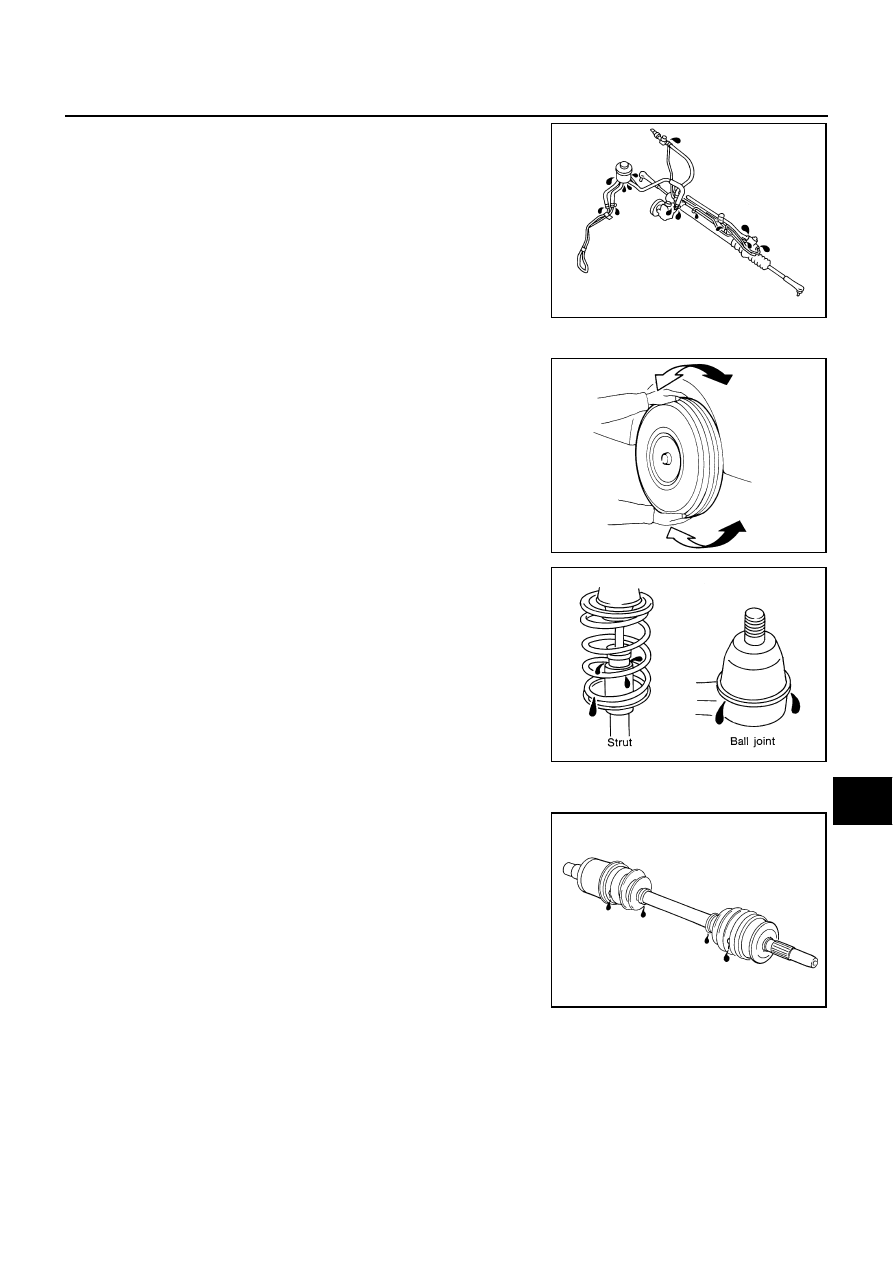

Axle and Suspension Parts

ELS0003U

Check front and rear axle and suspension parts for excessive play,
cracks, wear or other damage.

●

Shake each wheel to check for excessive play.

●

Check wheel bearings for smooth operation.

●

Check axle and suspension nuts and bolts for looseness.

●

Check strut (shock absorber) for oil leakage or other damage.

●

Check suspension ball joint for grease leakage and ball joint
dust cover for cracks or other damage.

Drive Shaft

ELS0003V

Check boot and drive shaft for cracks, wear, damage and grease
leakage.

SST851C

SMA525A

SFA392B

SFA108A

MA-28

CHASSIS AND BODY MAINTENANCE

Lubricating Locks, Hinges and Hood Latches

ELS0001P

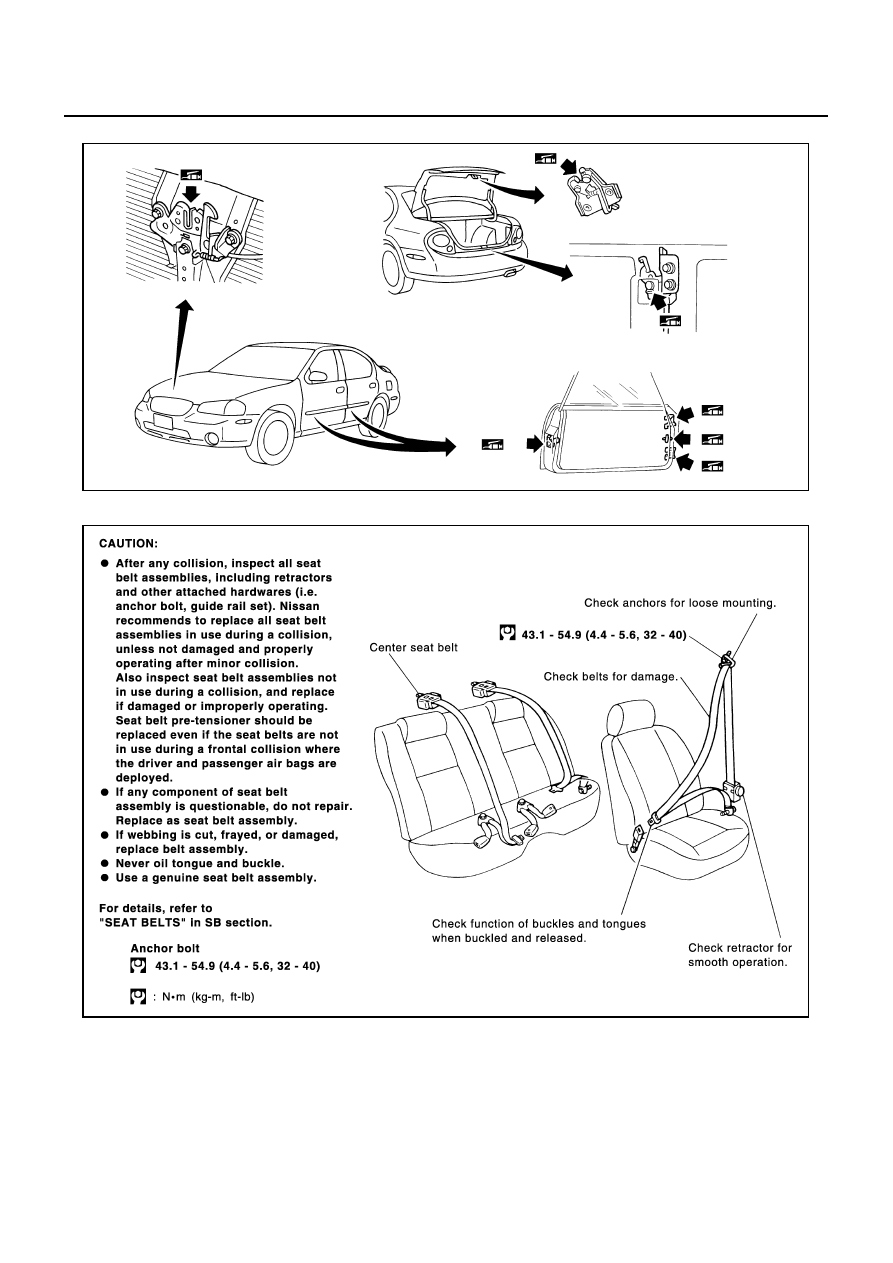

Checking Seat Belts, Buckles, Retractors, Anchors and Adjusters

ELS0001Q

SMA049D

SHIA0204E
