REAR VIEW MONITOR

DI-179

C

D

E

F

G

H

I

J

L

M

A

B

DI

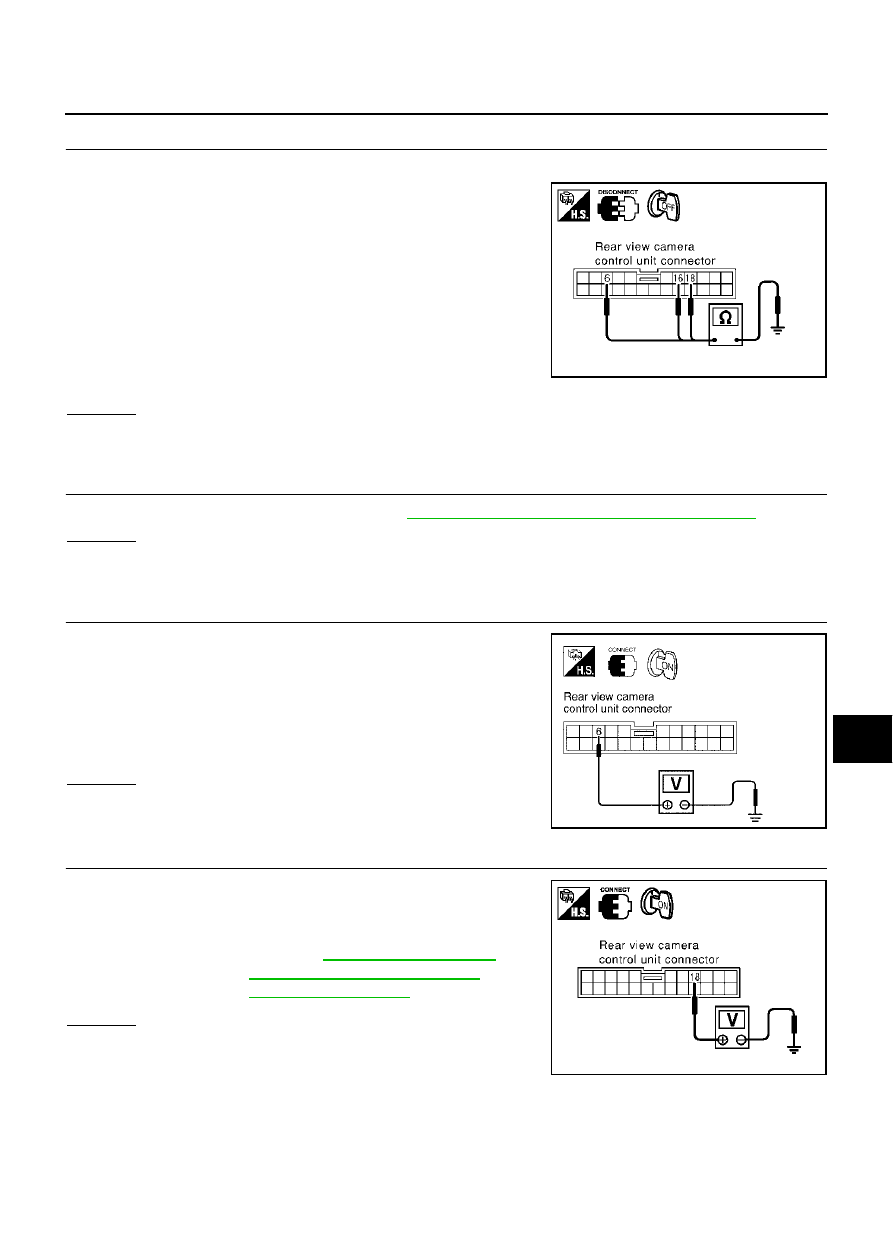

4.

CHECK REARVIEW CAMERA SHORT CIRCUIT

Check the following.

●

Continuity between rear view camera control unit harness con-
nector B236 terminal 6 (R/G) and ground.

●

Continuity between rear view camera control unit harness con-
nector B236 terminal 16 (BR) and ground.

●

Continuity between rear view camera control unit harness con-
nector B236 terminal 18 (Y) and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair harness on connector.

5.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check power supply and ground circuit. Refer to

DI-177, "Power Supply and Ground Circuit Check"

 .

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace power supply and ground circuit.

6.

CHECK REARVIEW CAMERA CONTROL UNIT OUTPUT SIGNAL

1.

Connect rear view camera control unit connector.

2.

Turn ignition switch ON.

3.

Shift A/T selector lever to R-position.

4.

Check voltage between rear view camera control unit harness
connector B236 terminal 6 (R/G) and ground.

OK or NG

OK

>> GO TO 7.

NG

>> Replace rear view camera control unit.

7.

CHECK REARVIEW CAMERA SIGNAL

1.

Connect the rear view camera connector.

2.

Check voltage between rear view camera control unit harness
connector B236 terminal 18 (Y) and ground.

OK or NG

OK

>> Replace rear view camera control unit.

NG

>> Replace rear view camera.

Continuity should not exist.

Continuity should not exist.

Continuity should not exist.

SKIA3735E

Approx. 9V

SKIA0574E

18 (Y) - Ground

: Refer to

DI-173, "Terminals and

Reference Value for Rear View
Camera Control Unit"

 .

SKIA1780E

DI-180

REAR VIEW MONITOR

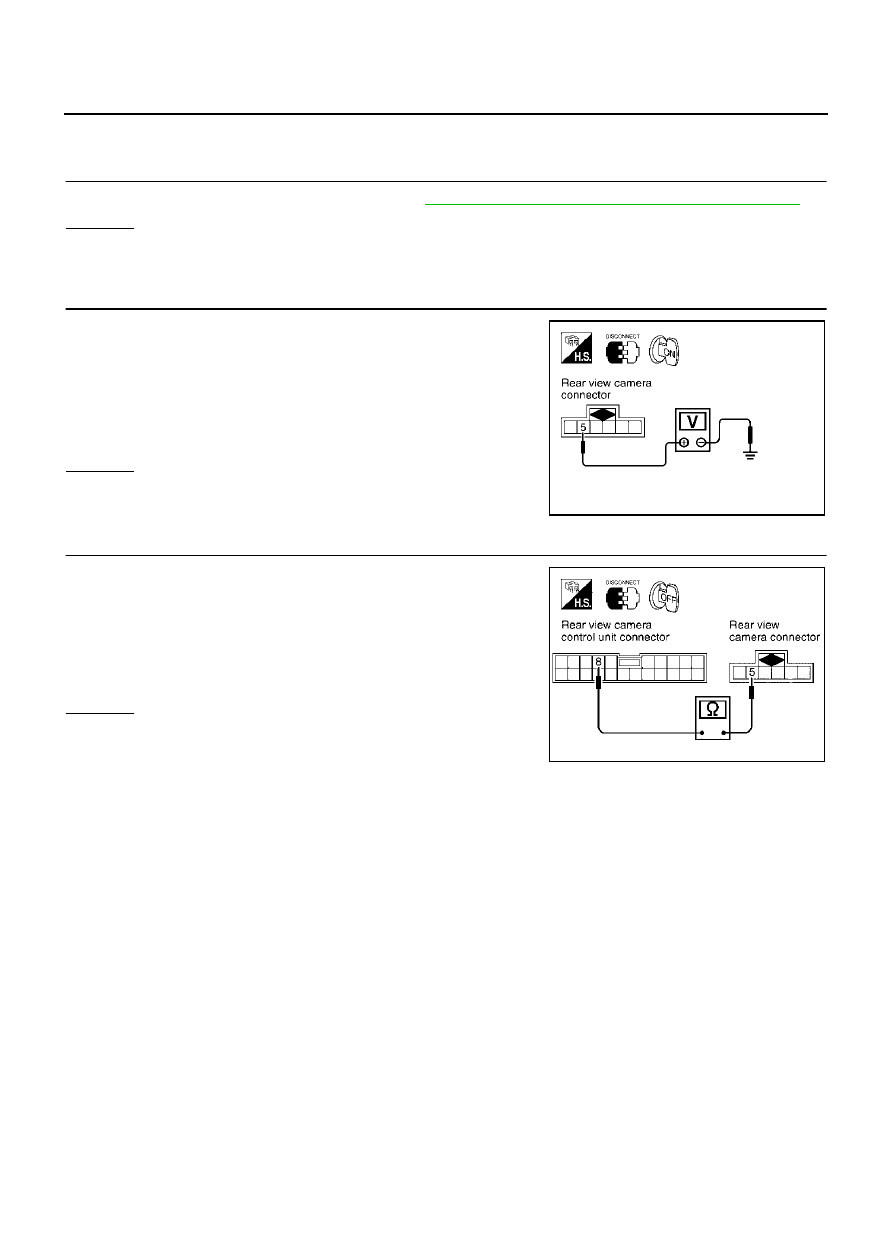

The Backlight Correction Does Not Work When The ENTER Switch Is Pressed.

EKS0012P

1.

CHECK MULTIFUNCTION SWITCH

Perform multifunction switch self-diagnosis, refer to

DI-118, "Multifunction Switch Self-Diagnosis Function"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Replace multifunction switch.

2.

CHECK REARVIEW CAMERA IRIS SIGNAL

1.

Disconnect rear view camera connector.

2.

Turn ignition switch ON.

3.

Shift the A/T selector lever to R-position.

4.

Check voltage between rear view camera harness connector
B50 terminal 5 (L) and ground.

OK or NG

OK

>> Replace rear view camera.

NG

>> GO TO 3.

3.

CHECK REARVIEW CAMERA IRIS SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect rear view camera control unit connector.

3.

Check continuity between rear view camera control unit harness
connector B236 terminal 8 (L) and rear view camera harness
connector B50 terminal 5 (L).

OK or NG

OK

>> Replace rear view camera control unit.

NG

>> Repair harness or connector.

Approx. 9V

SKIA4240E

Continuity should exist.

SKIA3915E

REAR VIEW MONITOR

DI-181

C

D

E

F

G

H

I

J

L

M

A

B

DI

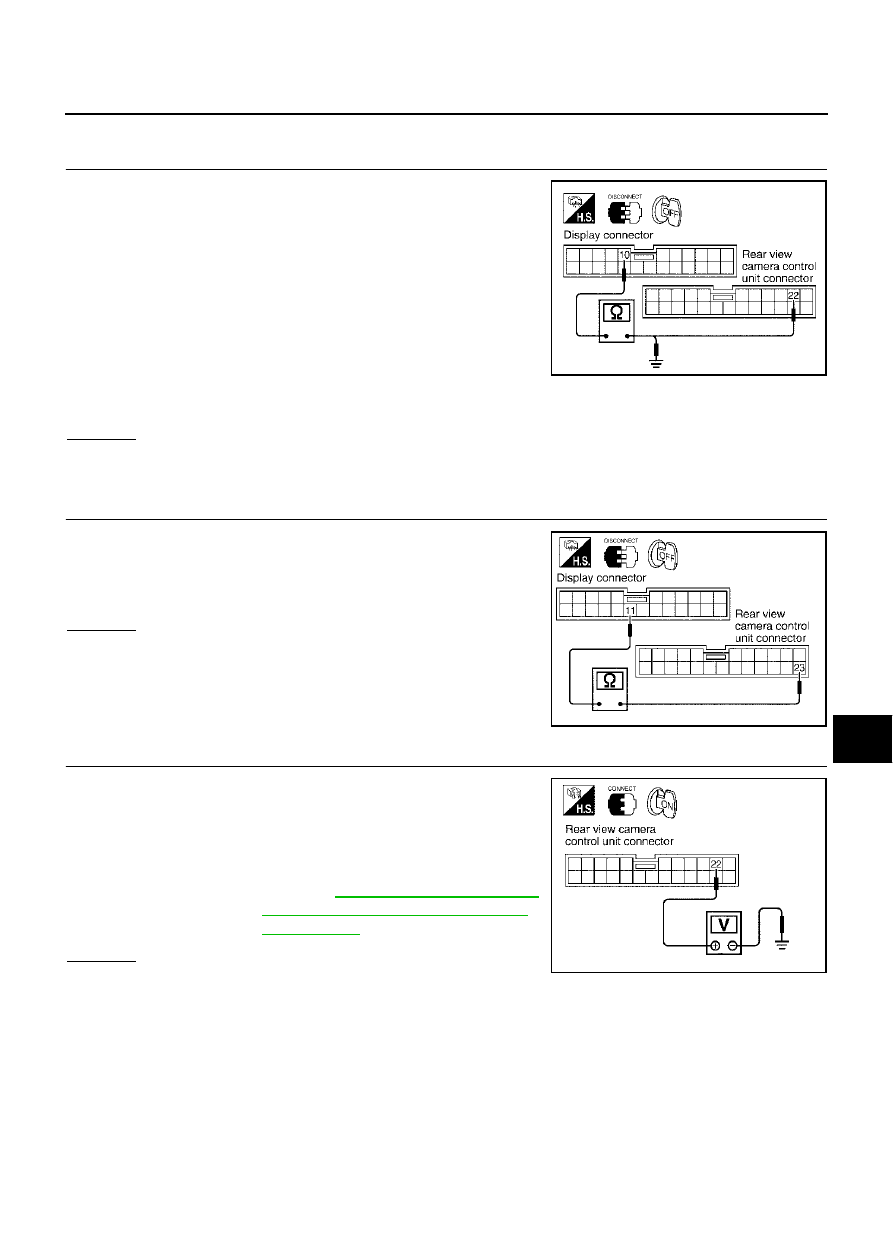

The Rear View Image Is Distorted.

EKS0012Q

1.

CHECK SYNCHRO SIGNAL OPEN OR SHORT CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect rear view camera control unit connector and display
connector.

3.

Check the following.

–

Continuity between rear view camera control unit harness con-
nector B236 terminal 22 (PU) and display harness connector
M82 terminal 10 (PU).

–

Continuity between display harness connector M82 terminal 10
(PU) and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Repair harness or connector.

2.

CHECK COMPO SIGNAL GROUND CIRCUIT

Check continuity between rear view camera control unit B236 har-
ness connector terminal 23 and display harness connector M82 ter-
minal 11.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

3.

CHECK REARVIEW CONTROL UNIT SYNCHRO SIGNAL

1.

Connect rear view camera control unit connector and display
connector.

2.

Turn ignition switch ON.

3.

Check signal between rear view camera control unit harness
connector B236 terminal 22 (PU) and ground.

OK or NG

OK

>> Replace rear view camera control unit.

NG

>> Replace display.

Continuity should exist.

Continuity should not exist.

SKIA0578E

Continuity should exist.

SKIA0579E

22 (PU) - Ground

: Refer to

DI-173, "Terminals and Ref-

erence Value for Rear View Camera
Control Unit"

 .

SKIA0580E

DI-182

REAR VIEW MONITOR

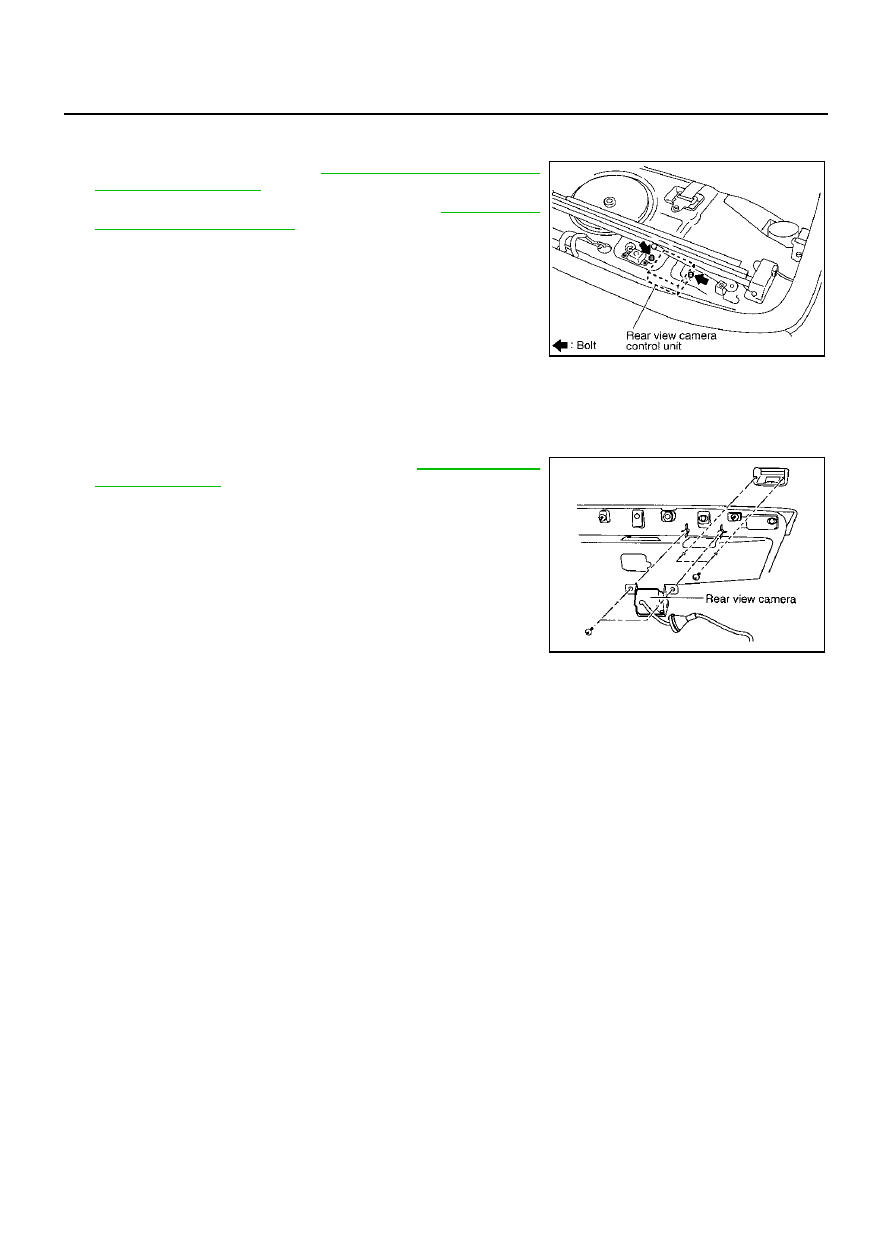

Removal and Installation of Rear View Camera Control Unit

EKS0012R

REMOVAL

1.

Remove the trunk trim. Refer to

EI-52, "TRUNK ROOM TRIM &

TRUNK LID FINISHER"

 .

2.

Remove the rear parcel shelf finisher. Refer to

EI-39, "REAR

PARCEL SHELF FINISHER"

 .

3.

Remove the bolts (2), and remove rear view camera control unit.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Rear View Camera

EKS0012W

REMOVAL

1.

Remove the license plate finisher. Refer to

EI-29, "LICENSE

LAMP FINISHER"

 .

2.

Remove the screws (2), and remove the rear view monitor cam-
era.

3.

Remove the screws (2), and remove the rear view monitor cam-
era cover.

INSTALLATION

Install in the reverse order of removal.

SKIA0581E

SKIA0583E
