Infiniti I35 (A33). Manual - part 334





Description

NHEC0596

SYSTEM DESCRIPTION

NHEC0596S01

Sensor

Input Signal to ECM

ECM func-

tion

Actuator

Mass air flow sensor

Amount of intake air

VIAS con-
trol

VIAS control solenoid valve

Throttle position sensor

Throttle position

Accelerator pedal position sensor

Accelerator pedal position

Ignition switch

Start signal

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed

Engine coolant temperature sensor

Engine coolant temperature

SEC916C

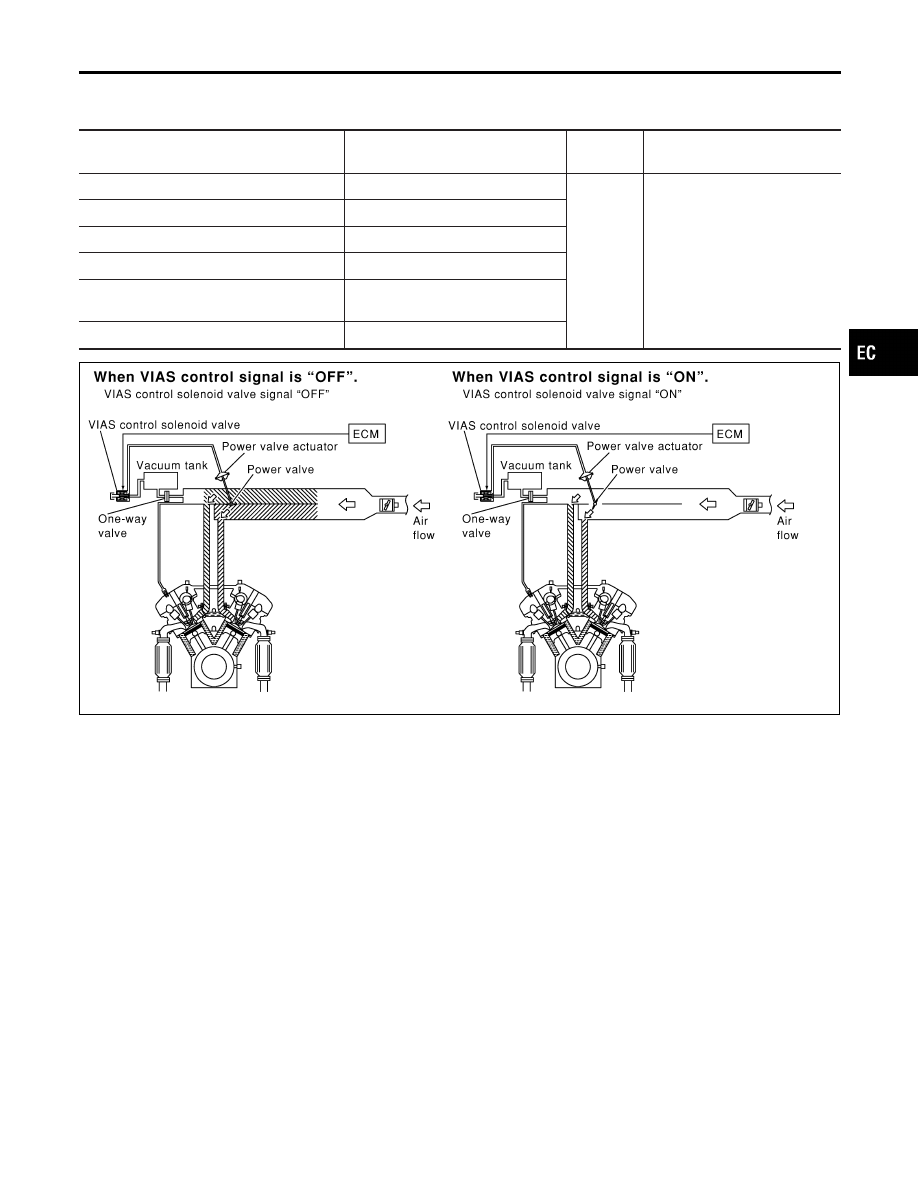

When the engine is running at low or medium speed, the power
valve is fully closed. Under this condition, the effective suction port
length is equivalent to the total length of the intake manifold collec-
tor’s suction port including the intake valve. This long suction port
provides increased air intake which results in improved suction
efficiency and higher torque generation.
The surge tank and one-way valve are provided. When engine is
running at high speed, the ECM sends the signal to the VIAS con-
trol solenoid valve. This signal introduces the intake manifold
vacuum into the power valve actuator and therefore opens the
power valve to two suction passages together in the collector.
Under this condition, the effective port length is equivalent to the
length of the suction port provided independently for each cylinder.
This shortened port length results in enhanced engine output with
reduced suction resistance under high speeds.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)

Description

EC-677

SEC059D

COMPONENT DESCRIPTION

NHEC0596S02

Power Valve

NHEC0596S0201

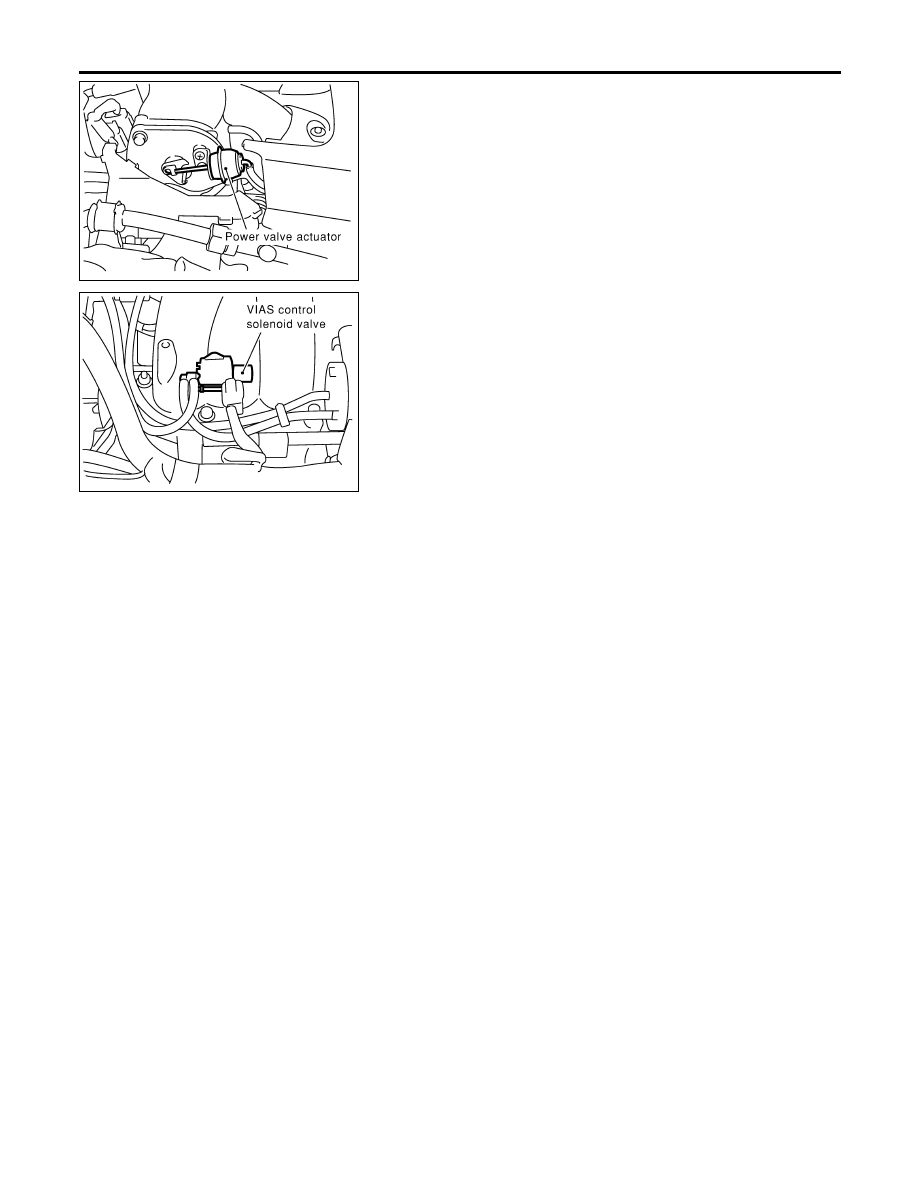

The power valve is installed in intake manifold collector and used
to control the suction passage of the variable induction air control
system. It is set in the fully closed or fully opened position by the
power valve actuator operated by the vacuum stored in the surge
tank. The vacuum in the surge tank is controlled by the VIAS con-
trol solenoid valve.

SEC058D

VIAS Control Solenoid Valve

NHEC0596S0202

The VIAS control solenoid valve cuts the intake manifold vacuum
signal for power valve control. It responds to ON/OFF signals from
the ECM. When the solenoid is off, the vacuum signal from the
intake manifold is cut. When the ECM sends an ON signal the coil
pulls the plunger downward and feeds the vacuum signal to the
power valve actuator.

VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)

Description (Cont’d)

EC-678

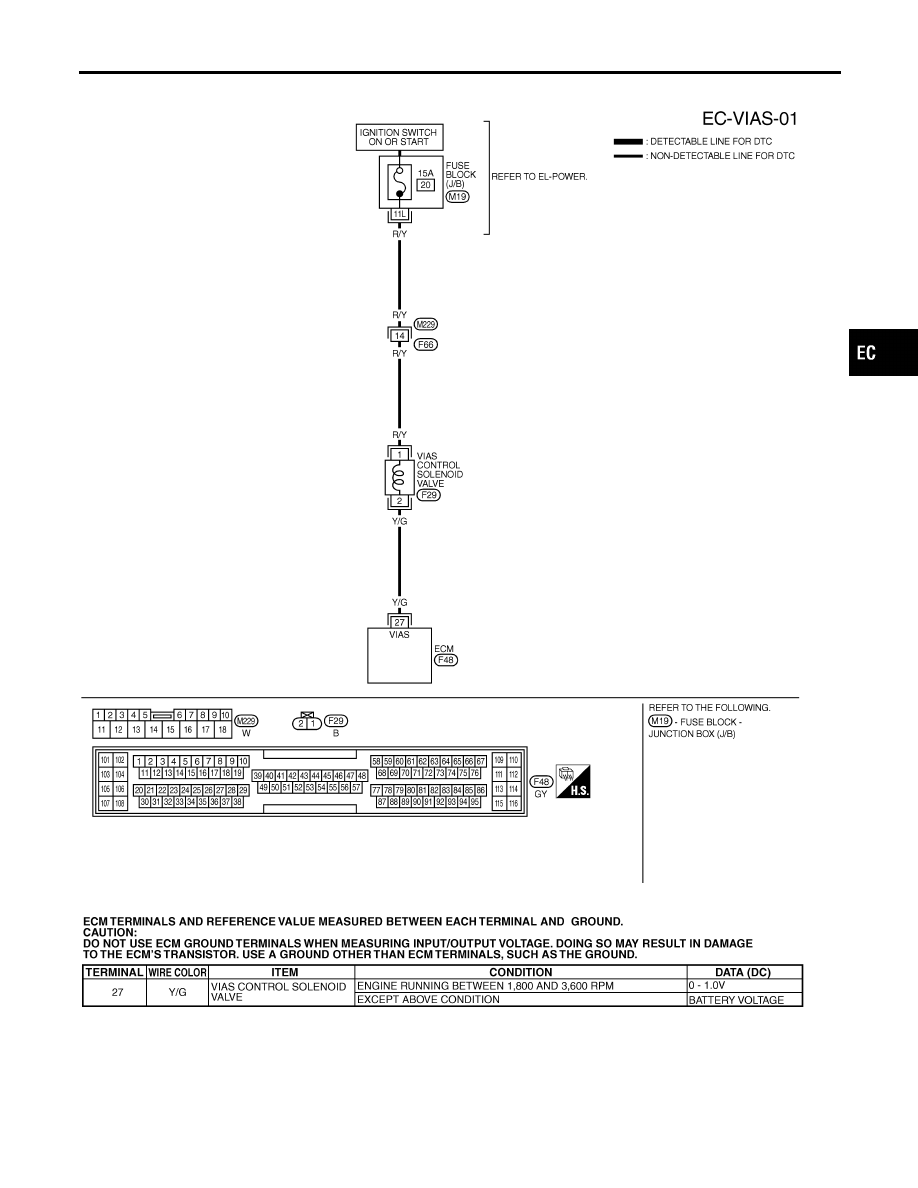

Wiring Diagram

NHEC0597

MEC897D

SEF636XC

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)

Wiring Diagram

EC-679

Diagnostic Procedure

NHEC0598

1

CHECK OVERALL FUNCTION

With CONSULT-II

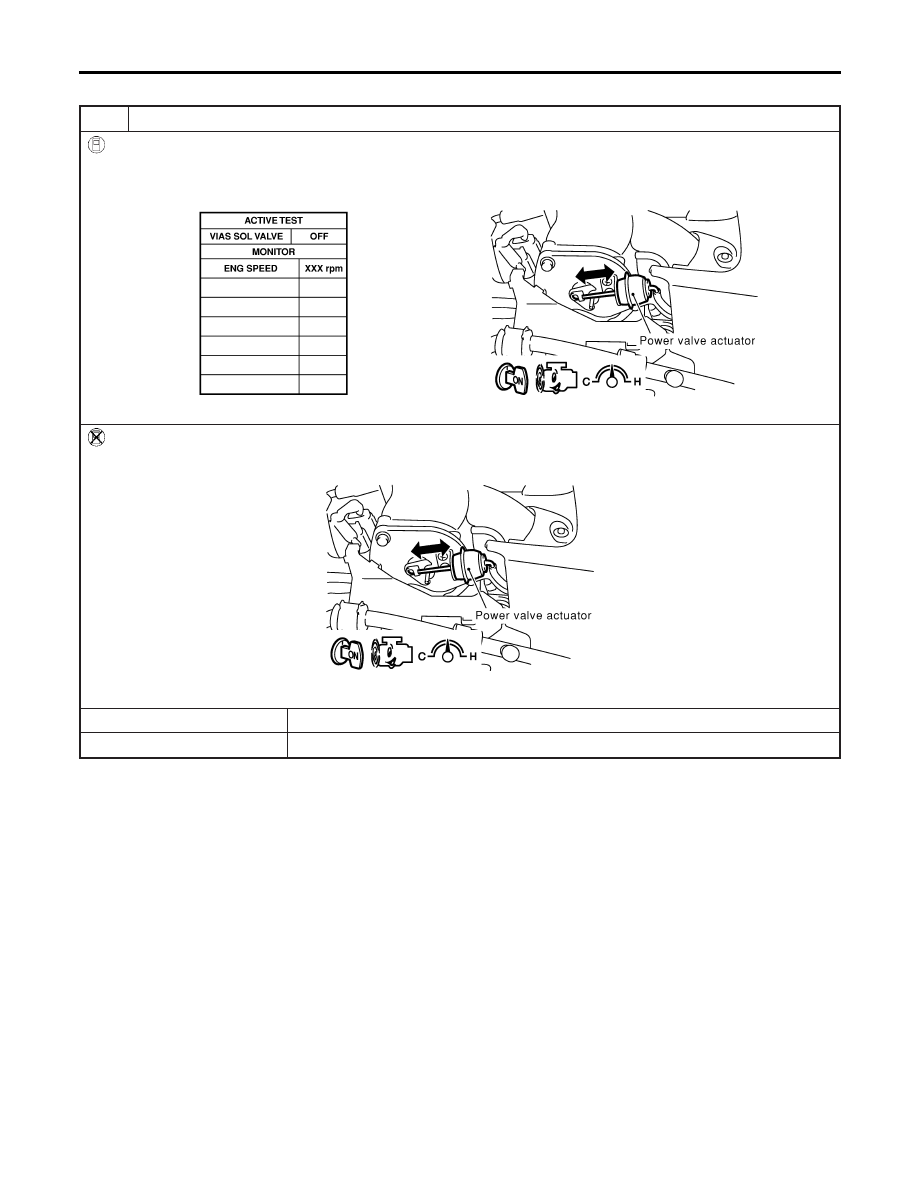

1. Start engine and warm it up to normal operating temperature.
2. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode with CONSULT-II.
3. Turn VIAS control solenoid valve “ON” and “OFF”, and make sure that power valve actuator rod moves.

SEC128D

Without CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Rev engine quickly up to above 5,000 rpm and make sure that power valve actuator rod moves.

SEC060D

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 2.

VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)

Diagnostic Procedure

EC-680
