BODY CONSTRUCTION

BRM-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

10. Hoodledge reinforcement

11.

Upper dash

12. Lower hinge plate

13. Lower dash crossmember

14. Lower front pillar gusset

15. Front fender bracket

16. Outer sill reinforcement

17. Lower front pillar reinforcement

18. Inner sill

19. Lower dash

20. Front side member outrigger

21. Outer step sill

22. Outer sill brace

23. Inner sill reinforcement

24. Front floor

25. 2nd crossmember

26. Rear fender

27. Lock pillar reinforcement

28. Center sill reinforcement

29. 3rd crossmember

30. Upper inner lock pillar reinforcement

31. Inner lock pillar

32. Lock pillar seat belt anchor

33. Rear pillar reinforcement

34. Inner side roof rail

35. Inner rear pillar

36. Outer rear sill reinforcement

37. Outer rear wheelhouse extension

38. Outer rear wheelhouse

39. Rear side member front

40. Rear tie down hook bracket

41. Rear side member front reinforce-

ment

42. Rear floor front

43. Outer rear wheelhouse brace

44. Inner rear wheelhouse

BRM-18

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

BODY ALIGNMENT

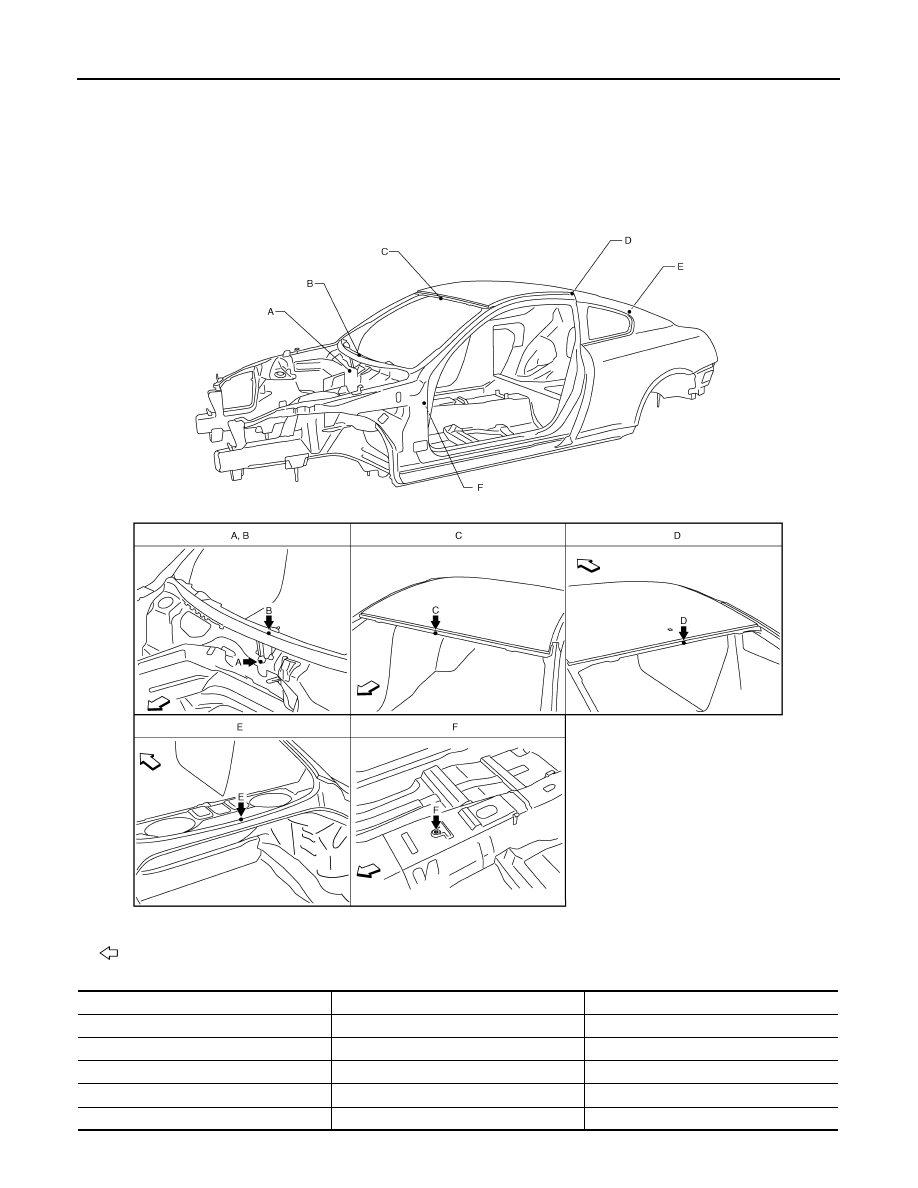

Body Center Marks

INFOID:0000000001672394

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.

Unit: mm (in)

: Vehicle front

Points

Portion

Marks

A, B

Upper dash

Embossment

C

Front roof

Embossment

D

Rear roof

Embossment

E

Rear waist

Embossment

F

Trans control reinforcement

Hole 14

×

12 (0.55

×

0.47)

JSKIA0372GB

BODY ALIGNMENT

BRM-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Description

INFOID:0000000001672396

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

• The coordinates of the measurement points are the distances measured from the standard line of

″

X

″

,

″

Y

″

and

″

Z

″

.

•

″

Z

″

: Imaginary base line [200 mm (7.87 in) below datum line (

″

0Z

″

 at design plan)]

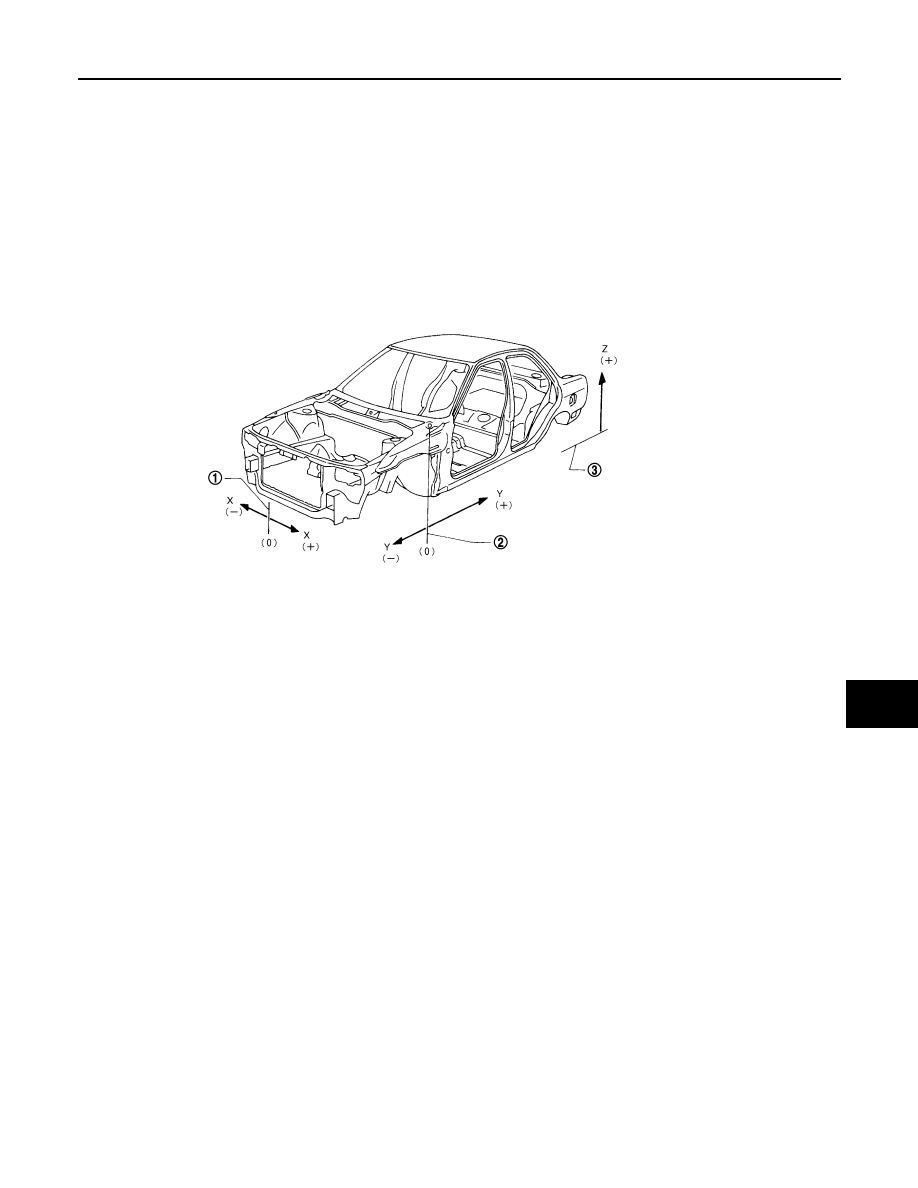

Engine Compartment

INFOID:0000000001672397

Measurement

1.

Vehicle center

2.

Front axle center

3.

Imaginary base line

JSKIA0073GB

BRM-20

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

Figures marked with a (*) indicate symmetrically identical dimensions on both right and left hand of the vehicle.

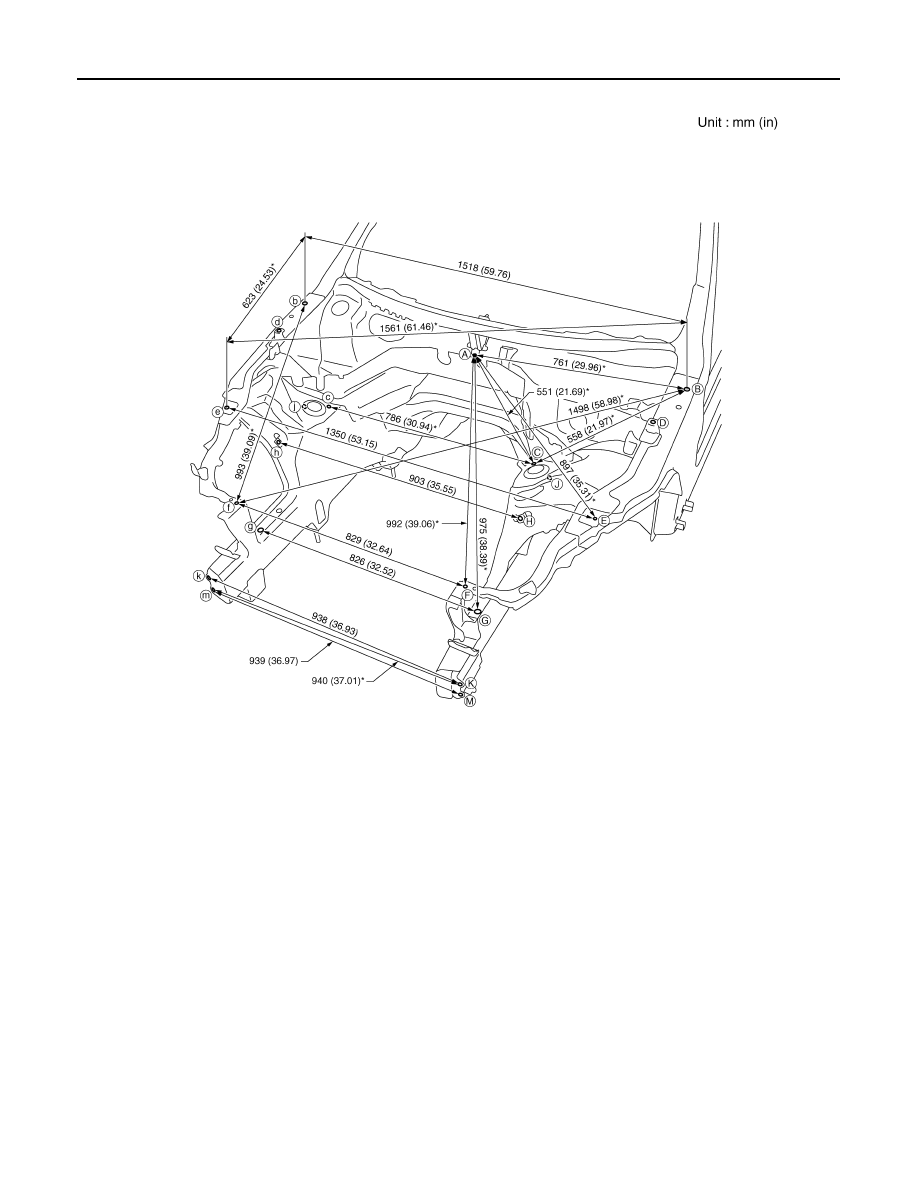

Measurement Points

JSKIA0352GB
