BODY ALIGNMENT

BRM-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

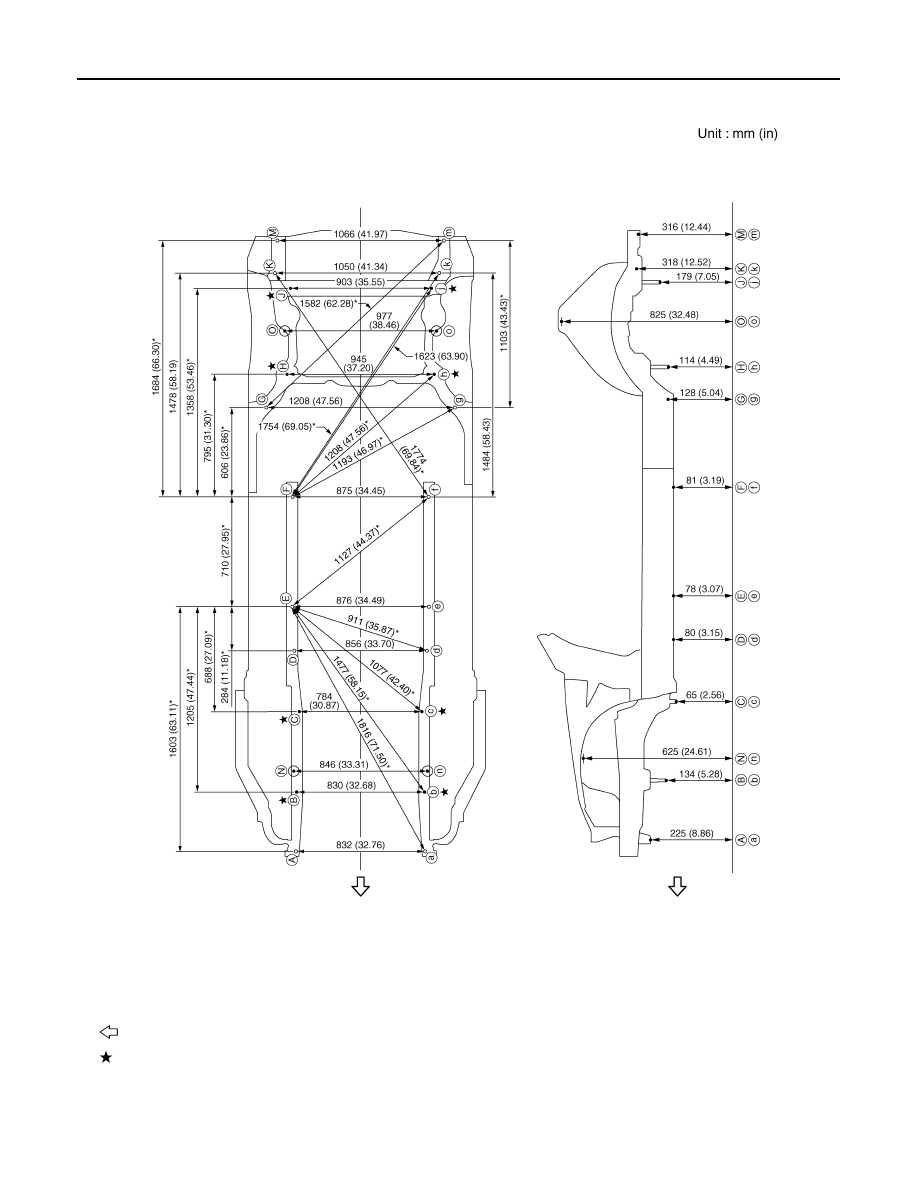

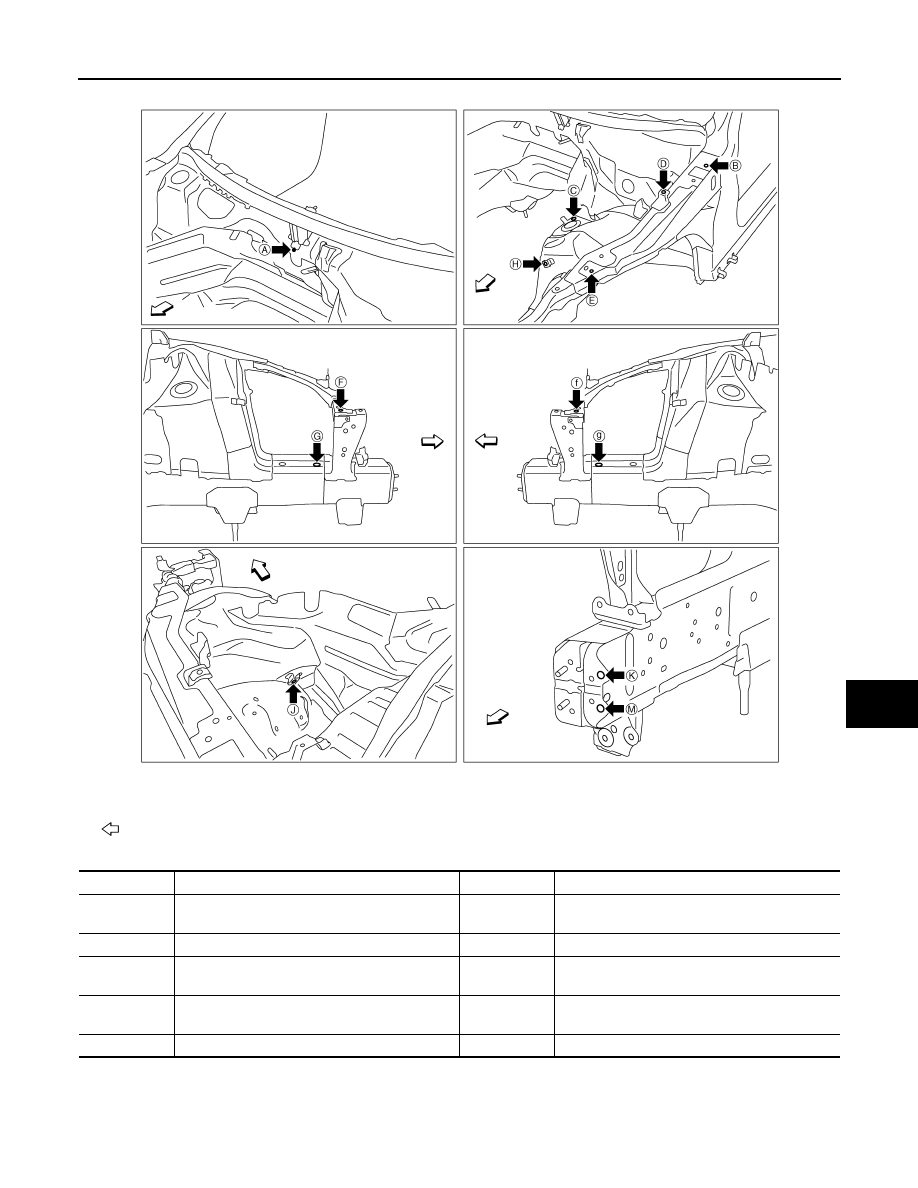

Underbody

INFOID:0000000001672398

Measurement

Figures marked with a (*) indicate symmetrically identical dimensions on both right and left hand of the vehicle.

: Vehicle front

JSKIA0353GB

Point

Material

Point

Material

A

Upper dash indent of center positioning mark

 F, f

Radiator core stay installing hole center

φ

12

(0.47)

B, b

Hood hinge installing hole center

φ

12 (0.47)

G, g

Front side member hole center

φ

20 (0.79)

C, c

Front strut installing hole center 16

×

10

(0.63

×

0.39)

H, h, J, j

Nut holder hole center

φ

16 (0.63)

D, d

Upper front fender bracket installing hole center

φ

7 (0.28)

K, k, M, m

Front bumper stay installing hole center

φ

11

(0.43)

E, e

Hoodledge reinforcement hole center

φ

12 (0.47)

BRM-22

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

As viewed from underside.

Measurement Points

: Vehicle front

: Bolt head

JSKIA0354GB

BODY ALIGNMENT

BRM-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

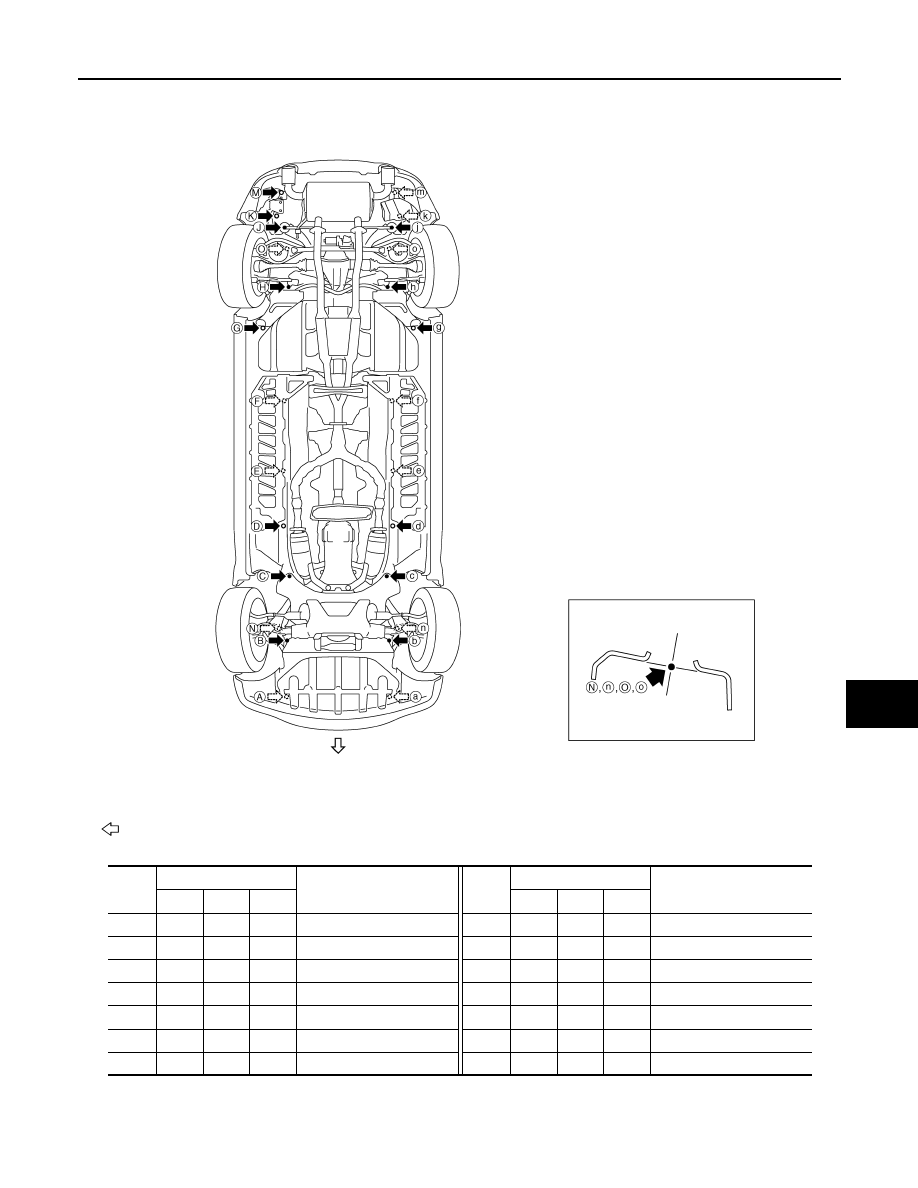

Passenger Compartment

INFOID:0000000001672399

Measurement

: Vehicle front

Points

Coordinates

Remarks

Points

Coordinates

Remarks

X

Y

Z

X

Y

Z

A, a

±

416

-496

225

Hole

φ

13 (0.51)

H, h

±

473

2604

114

Bolt head

B, b

±

415

-104

134

Bolt head

J, j

±

452

3164

179

Bolt head

C, c

±

392

414

65

Bolt head

K

550

3265

318

Hole

φ

8 (0.31)

D, d

±

428

817

80

Hole 16

×

18 (0.63

×

0.71)

k

-500

3273

318

Hole

φ

8 (0.31)

E, e

±

438

1100

78

Hole

φ

16 (0.63)

M, m

±

533

3475

316

Hole

φ

16 (0.63)

F, f

±

438

1810

81

Hole

φ

16 (0.63)

N, n

±

423

38

675

Hole

φ

50 (1.97)

G, g

±

604

2391

128

Hole

φ

13 (0.51)

O, o

±

488

2892

825

Hole

φ

68 (2.68)

JSKIA0355GB

BRM-24

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

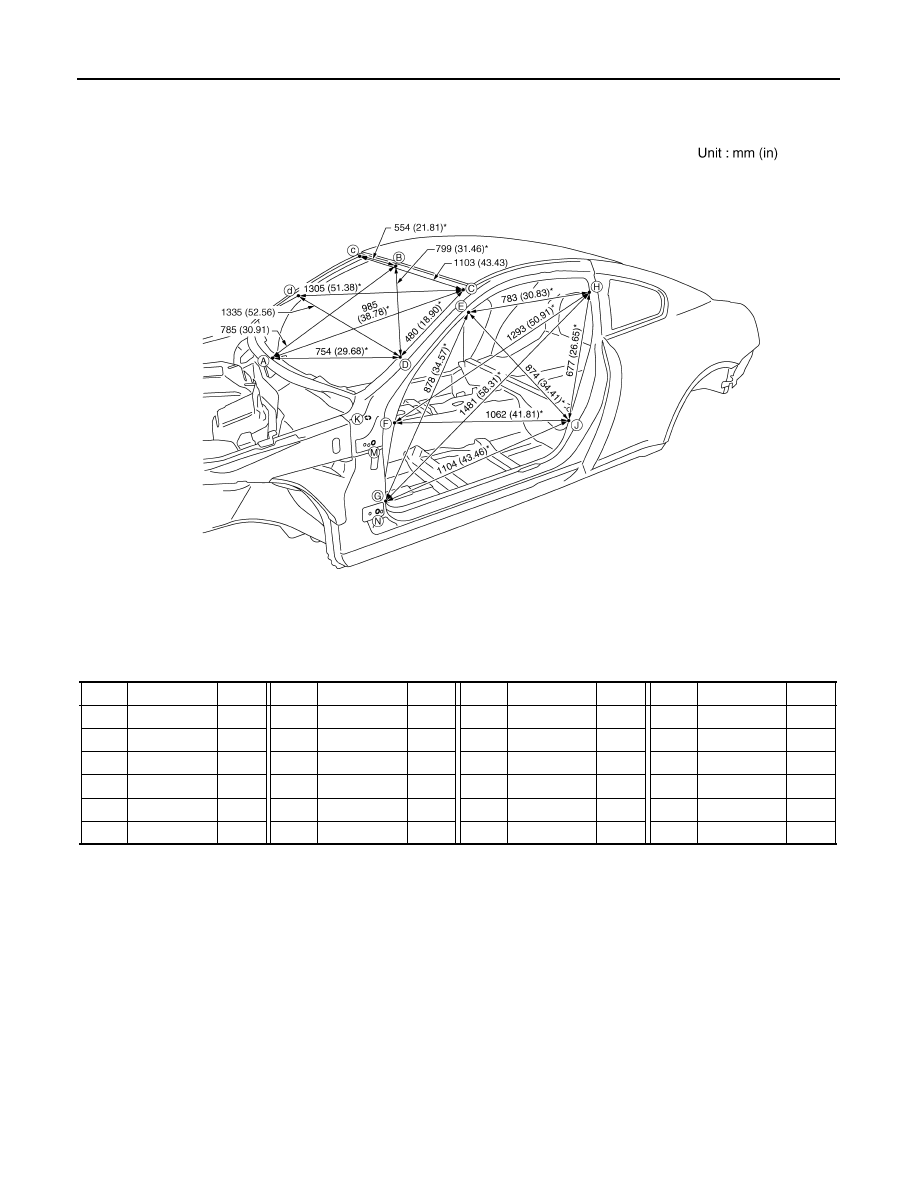

Figures marked with a (*) indicates symmetrically identical dimensions on both right and left hand of the vehi-
cle.

«The others»

Unit: mm (in)

Measurement Points

JSKIA0356GB

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

E - e

1253 (49.33)

F - j

1796 (70.71)*

J - j

1451 (57.13)

M - H

1434 (56.46)*

E - g

1607 (63.27)*

G - g

1447 (56.97)

K - E

987 (38.86)*

M - J

1186 (46.69)*

E - h

1472 (57.95)*

G - h

1997 (78.62)*

K - F

793 (31.22)*

N - H

1558 (61.34)*

E - j

1607 (63.27)*

G - j

1822 (71.73)*

K - G

749 (29.49)*

N - J

1170 (46.06)*

F - f

1446 (56.93)

H - h

1240 (48.82)

K - H

1443 (56.81)*

F - h

1861 (73.27)*

H - j

1503 (59.17)*

K - J

1164 (45.83)*
