BRC-18

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

ABS

ABS

System Diagram

INFOID:0000000000958509

System Description

INFOID:0000000000958510

• Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls

braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-
verability for avoiding obstacles.

• Electrical system diagnosis by CONSULT-III is available.

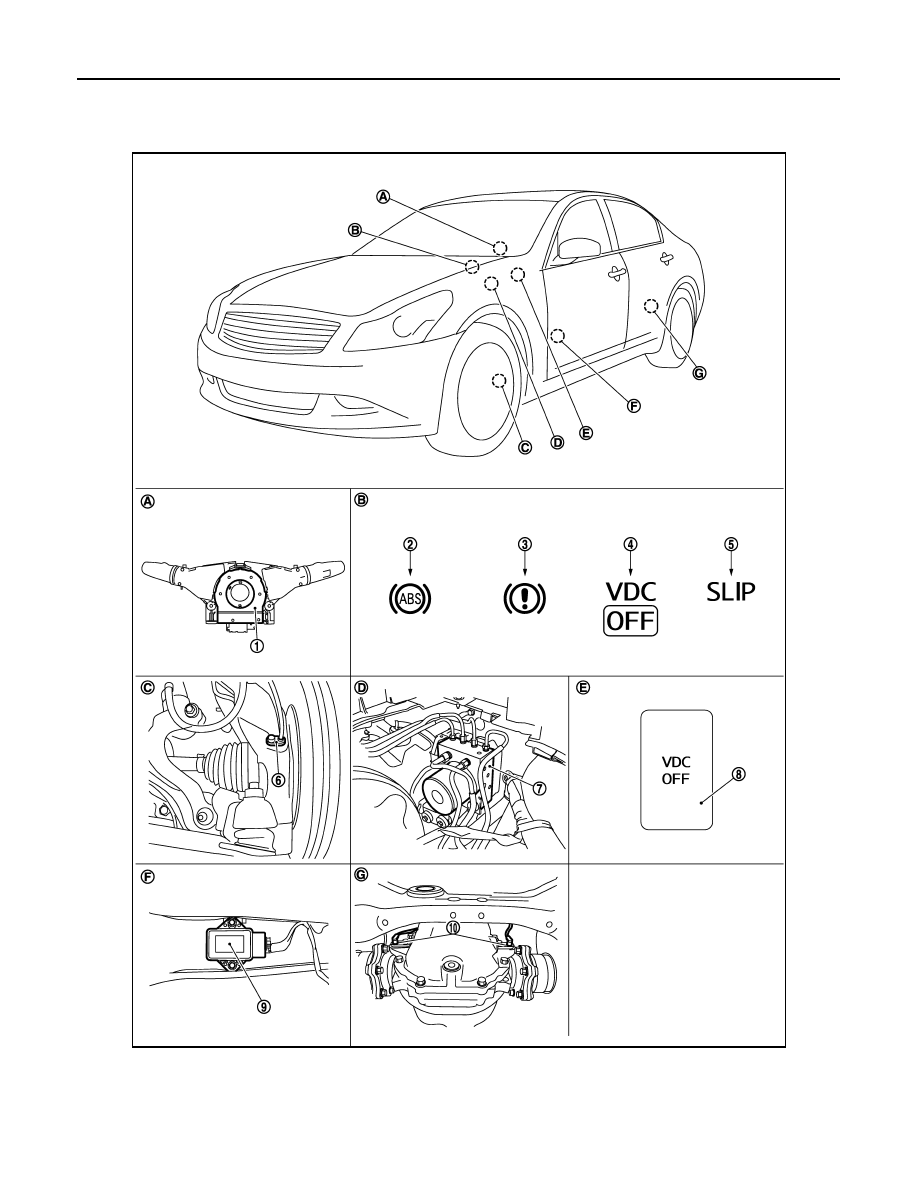

Component Parts Location

INFOID:0000000000958511

JSFIA0006GB

ABS

BRC-19

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

For USA

JSFIA0024ZZ

1.

Steering Angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

Front wheel sensor

7.

ABS actuator and electric unit (con-
trol unit)

8.

VDC OFF switch

9.

Yaw rate/side G sensor

10. Rear wheel sensor

A.

Back of spiral cable assembly

B.

Combination meter

C.

Steering knuckle

BRC-20

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

ABS

For Canada

D.

Inside brake master cylinder cover

E.

Instrument driver lower panel

F.

Under center console

G.

Rear final drive assembly

JSFIA0005ZZ

1.

Steering Angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

Front wheel sensor

7.

ABS actuator and electric unit (con-
trol unit)

8.

VDC OFF switch

9.

Yaw rate/side G sensor

ABS

BRC-21

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000000958512

10. Rear wheel sensor

A.

Back of spiral cable assembly

B.

Combination meter

C.

Steering knuckle

D.

Inside brake master cylinder cover

E.

Instrument driver lower panel

F.

Under center console

G.

Rear final drive assembly

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-39, "Description"

Motor

Actuator relay (Main relay)

BRC-41, "Description"

Solenoid valve

BRC-48, "Description"

Wheel sensor

BRC-30, "Description"

ABS warning lamp

BRC-73, "Description"

Brake warning lamp

BRC-74, "Description"
