BRC-14

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

TCS

TCS

System Diagram

INFOID:0000000000958505

System Description

INFOID:0000000000958506

• Traction Control System is a function that electronically controls engine torque, brake fluid pressure and A/T

gear position to ensure the optimum slippage ratio at drive wheels by computing wheel speed signals from 4
wheel sensors. When ABS actuator and electric unit (control unit) detects a spin at drive wheels (rear
wheels), it compares wheel speed signals from all 4 wheels. At this time, LH and RH rear brake fluid pres-
sure are controlled, while fuel being cut to engine and throttle valve being closed to reduce engine torque by
the control unit. Further more, throttle position is continuously controlled to ensure the optimum engine
torque at all times.

• During TCS operation, it informs driver of system operation by flashing SLIP indicator lamp.
• Electrical system diagnosis by CONSULT-III is available.

Component Parts Location

INFOID:0000000000958507

JSFIA0004GB

TCS

BRC-15

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

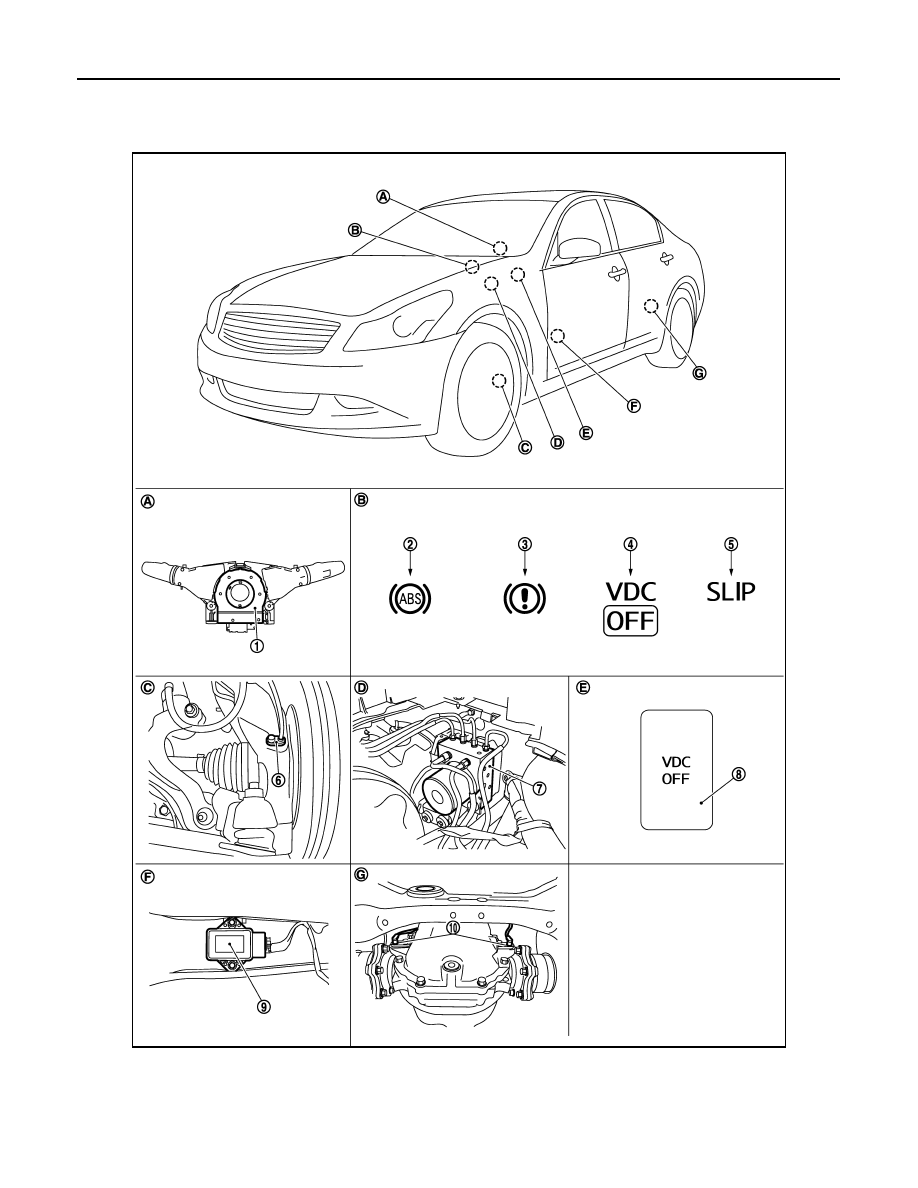

For USA

JSFIA0024ZZ

1.

Steering Angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

Front wheel sensor

7.

ABS actuator and electric unit (con-
trol unit)

8.

VDC OFF switch

9.

Yaw rate/side G sensor

10. Rear wheel sensor

A.

Back of spiral cable assembly

B.

Combination meter

C.

Steering knuckle

BRC-16

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

TCS

For Canada

D.

Inside brake master cylinder cover

E.

Instrument driver lower panel

F.

Under center console

G.

Rear final drive assembly

JSFIA0005ZZ

1.

Steering Angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

Front wheel sensor

7.

ABS actuator and electric unit (con-
trol unit)

8.

VDC OFF switch

9.

Yaw rate/side G sensor

TCS

BRC-17

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000000958508

10. Rear wheel sensor

A.

Back of spiral cable assembly

B.

Combination meter

C.

Steering knuckle

D.

Inside brake master cylinder cover

E.

Instrument driver lower panel

F.

Under center console

G.

Rear final drive assembly

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-39, "Description"

Motor

Actuator relay (Main relay)

BRC-41, "Description"

Solenoid valve

BRC-48, "Description"

Pressure sensor

BRC-56, "Description"

VDC switch-over valve (CV1, CV2, SV1, SV2)

BRC-63, "Description"

Wheel sensor

BRC-30, "Description"

Yaw rate/side G sensor

BRC-60, "Description"

Steering angle sensor

BRC-58, "Description"

VDC OFF switch

BRC-71, "Description"

ABS warning lamp

BRC-73, "Description"

Brake warning lamp

BRC-74, "Description"

VDC OFF indicator lamp

BRC-75, "Description"

SLIP indicator lamp

BRC-76, "Description"
