[FRONT WINDOW ANTI-PINCH]

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : De-
scription

INFOID:0000000000961648

Initial setting is necessary when battery terminal is removed.

CAUTION:

The following specified operations are not performed under the non-initialized condition.
• Auto-up operation
• Anti-pinch function
• Retained power operation

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Spe-
cial Repair Requirement

INFOID:0000000000961649

INITIALIZATION PROCEDURE

1.

Disconnect battery minus terminal or power window main switch connector. Reconnect it after a minute or
more.

2.

Turn ignition switch ON.

3.

Operate power window switch to fully open the window. (This operation is unnecessary if the window is
already fully open)

4.

Continue pulling the power window switch UP (AUTO-UP operation). Even after glass stops at fully closed
position, keep pulling the switch for 3 seconds or more.

5.

Inspect anti-pinch function.

CHECK ANTI-PINCH FUNCTION

1.

Fully open the door window.

2.

Place a piece of wood near fully closed position.

3.

Close door glass completely with AUTO-UP.

• Check that glass lowers for approximately 150 mm or 2 seconds without pinching  piece of wood and stops.
• Check that glass does not rise when operating the power window main switch while lowering.

CAUTION:

• Do not check with hands and other part of body because they may be pinched.  Do not get pinched.
• Check that AUTO-UP operates before inspection when system initialization is performed.
• It may switch to fail-safe mode if open/close operation is performed continuously. Perform initial set-

ting in that situation.  Refer to

PWC-212, "Fail Safe"

.

• Perform initial setting when auto-up operation or anti-pinch function does not operate normally.
• Finish initial setting. Otherwise, next operation cannot be done.
1.

Auto-up operation

2.

Anti-pinch function

3.

Retained power operation when ignition switch is OFF.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000000961650

Initial setting is necessary when replacing power window main switch.

CAUTION:

The following specified operations are not performed under the non-initialized condition.
• Auto-up operation
• Anti-pinch function
• Retained power operation

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000000961651

INITIALIZATION PROCEDURE

1.

Disconnect battery minus terminal or power window main switch connector. Reconnect it after a minute or
more.

INSPECTION AND ADJUSTMENT

PWC-129

< BASIC INSPECTION >

[FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

2.

Turn ignition switch ON.

3.

Operate power window switch to fully open the window. (This operation is unnecessary if the window is
already fully open)

4.

Continue pulling the power window switch UP (AUTO-UP operation). Even after glass stops at fully closed
position, keep pulling the switch for 3 seconds or more.

5.

Inspect anti-pinch function.

CHECK ANTI-PINCH FUNCTION

1.

Fully open the door window.

2.

Place a piece of wood near fully closed position.

3.

Close door glass completely with AUTO-UP.

• Check that glass lowers for approximately 150 mm or 2 seconds without pinching  piece of wood and stops.
• Check that glass does not rise when operating the power window main switch while lowering.

CAUTION:

• Do not check with hands and other part of body because they may be pinched.  Do not get pinched.
• Check that AUTO-UP operates before inspection when system initialization is performed.
• It may switch to fail-safe mode if open/close operation is performed continuously. Perform initial set-

ting in that situation.  Refer to

PWC-212, "Fail Safe"

.

• Perform initial setting when auto-up operation or anti-pinch function does not operate normally.
• Finish initial setting. Otherwise, next operation cannot be done.
1.

Auto-up operation

2.

Anti-pinch function

3.

Retained power operation when ignition switch is OFF.

PWC-130

< FUNCTION DIAGNOSIS >

[FRONT WINDOW ANTI-PINCH]

POWER WINDOW SYSTEM

FUNCTION DIAGNOSIS

POWER WINDOW SYSTEM

System Diagram

INFOID:0000000000961652

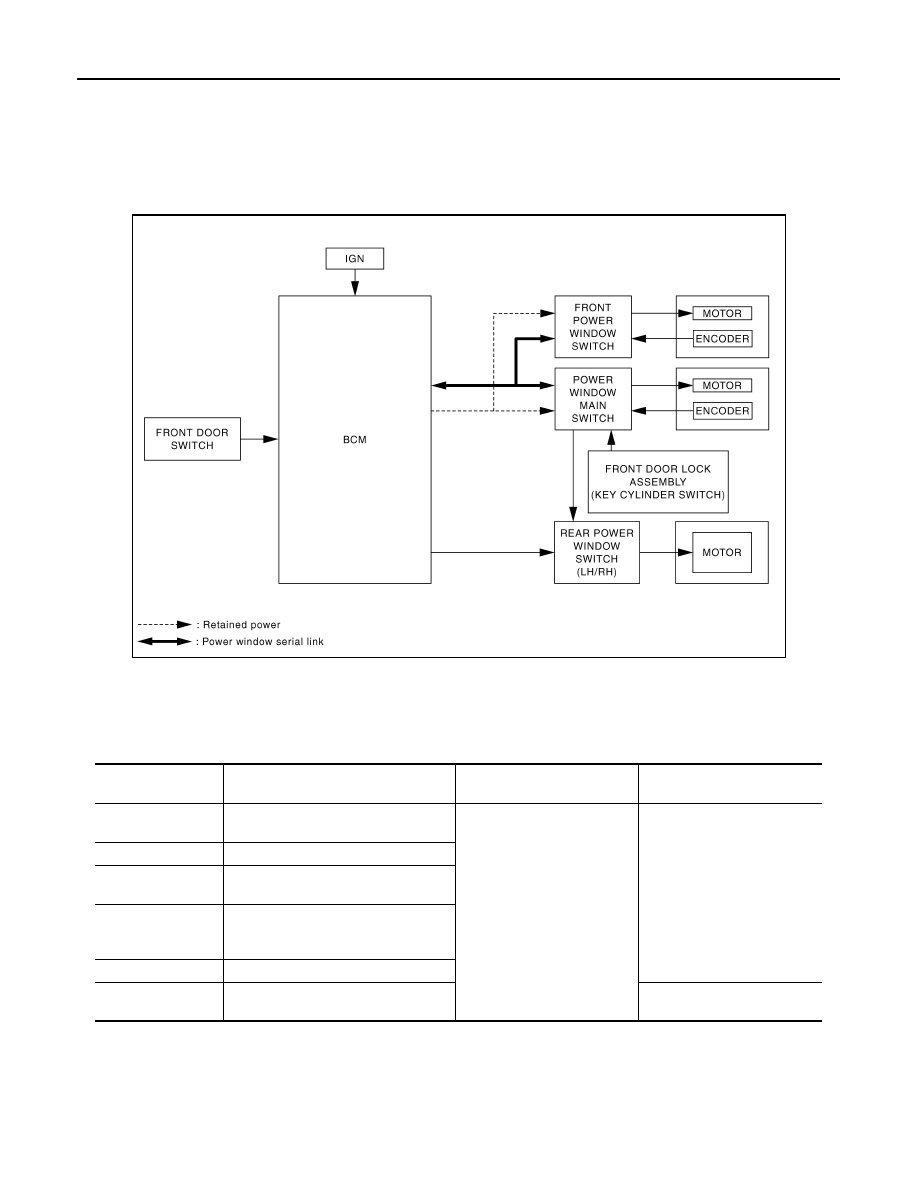

FRONT WINDOW ANTI-PINCH SYSTEM

System Description

INFOID:0000000000961653

POWER WINDOW MAIN SWITCH

INPUT/OUTPUT SIGNAL CHART

FRONT POWER WINDOW SWITCH

INPUT/OUTPUT SIGNAL CHART

JMKIA0069GB

Item

Input signal to power window main

switch

Power window main switch

function

Actuator

Key cylinder switch

LOCK/UNLOCK signal (more than 1.5
seconds over)

Power window control

Front power window motor

Encoder

Encoder pulse signal

Power window main
switch

Front power window motor (driver side)
UP/DOWN signal

Front power window
switch (passenger
side)

Front power window motor (passenger
side) UP/DOWN signal

BCM

RAP signal

Rear power window
switch

Rear power window motor UP/DOWN
signal

Rear power window motor

POWER WINDOW SYSTEM

PWC-131

< FUNCTION DIAGNOSIS >

[FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW OPERATION

• Power window system is operable during the retained power operation timer after turning ignition switch ON

and OFF.

• Power window main switch (driver side) can open/close all windows.
• Front & rear power window switch can open/close the corresponding windows.

POWER WINDOW AUTO-OPERATION (FRONT DRIVER SIDE & PASSENGER SIDE)

• AUTO UP/DOWN operation can be performed when power window main switch & front power window

switch (passenger side) turns to AUTO.

• Encoder continues detecting the movement of power window motor and transmits to power window switch

as the encoder pulse signal while power window motor is operating.

• Power window switch reads the changes of encoder signal and stops AUTO operation when door glass is at

fully opened/closed position.

• Power window motor is operable in case encoder is malfunctioning.

RETAINED POWER OPERATION

• Retained power operation is an additional power supply function that enables power window system to oper-

ate during the 45 seconds even when ignition switch is turned OFF

Retained power function cancel conditions

• Front door CLOSE (door switch OFF)

→

OPEN (door switch ON).

• When ignition switch is ON.
• When timer time passes. (45 seconds)

POWER WINDOW LOCK

Ground circuit inside power window main switch shuts off when power window lock switch is ON. This inhibits
power window switch operation except with the power window switch.

ANTI-PINCH OPERATION (FRONT DRIVER SIDE & PASSENGER SIDE)

• Pinch foreign material in the door glass during AUTO-UP operation,and it is the anti-pinch function that low-

ers the door glass 150 mm or 2 seconds when detected.

• Encoder continues detecting the movement of power window motor and transmits to power window switch

as the encoder pulse signal while power window motor is operating.

• Resistance is applied to the power window motor rotation that changes the frequency of encoder pulse sig-

nal if foreign material is trapped in the door glass.

• Power window switch controls to lower the window glass for 150 mm or 2 seconds after it detects encoder

pulse signal frequency change.

OPERATION CONDITION
• When all door glass AUTO-UP operation is performed (anti-pinch function does not operate just before the

door glass closes and is fully closed)

NOTE:
Depending on environment and driving conditions, if a similar impact or load is applied to the door glass, it
may lower.

KEY CYLINDER SWITCH OPERATION

Hold the door key cylinder to the LOCK or UNLOCK direction for 1.5 seconds or more to OPEN or CLOSE all
power windows when ignition switch is OFF. In addition, it stops when key position is moved to NEUTRAL
when operating.
OPERATION CONDITION
• Ignition switch OFF
• Hold door key cylinder to LOCK position for 1.5 seconds or more to perform CLOSE operation of the door

glass.

Item

Input signal to front power window

switch

Front power window switch

function

Actuator

Front power window
switch (passenger
side)

Front power window motor (passen-
ger side) UP/DOWN signal

Power window control

Front power window motor
(passenger side)

Encoder

Encoder pulse signal

BCM

RAP signal
