PWC-132

< FUNCTION DIAGNOSIS >

[FRONT WINDOW ANTI-PINCH]

POWER WINDOW SYSTEM

• Hold door key cylinder to UNLOCK position for 1.5 seconds or more to perform OPEN operation of the door

glass.

KEYLESS POWER WINDOW DOWN OPERATION (FRONT DRIVER SIDE & PASSENGER SIDE)

All power windows open when the unlock button on Intelligent Key is activated and kept pressed for more than
3* seconds with the ignition switch OFF. The windows keep opening if the unlock button is continuously
pressed.
The power window opening stops when the following operations are performed:
• When the unlock button is kept pressed more than 15 seconds.
• When the ignition switch is turned ON while the power window opening is operated.
• When the unlock button is released.
While retained power operation activate, keyless power window down function cannot be operated.
Keyless power window down operation mode can be changed by “PW DOWN SET” mode in “WORK SUP-
PORT”. Refer to

DLK-51, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

NOTE:
Use CONSULT-III to change settings.
MODE 1 (3sec) / MODE 2 (OFF) / MODE 3 (5sec)

Component Parts Location

INFOID:0000000000961654

Component Description

INFOID:0000000000961655

FRONT WINDOW ANTI-PINCH SYSTEM

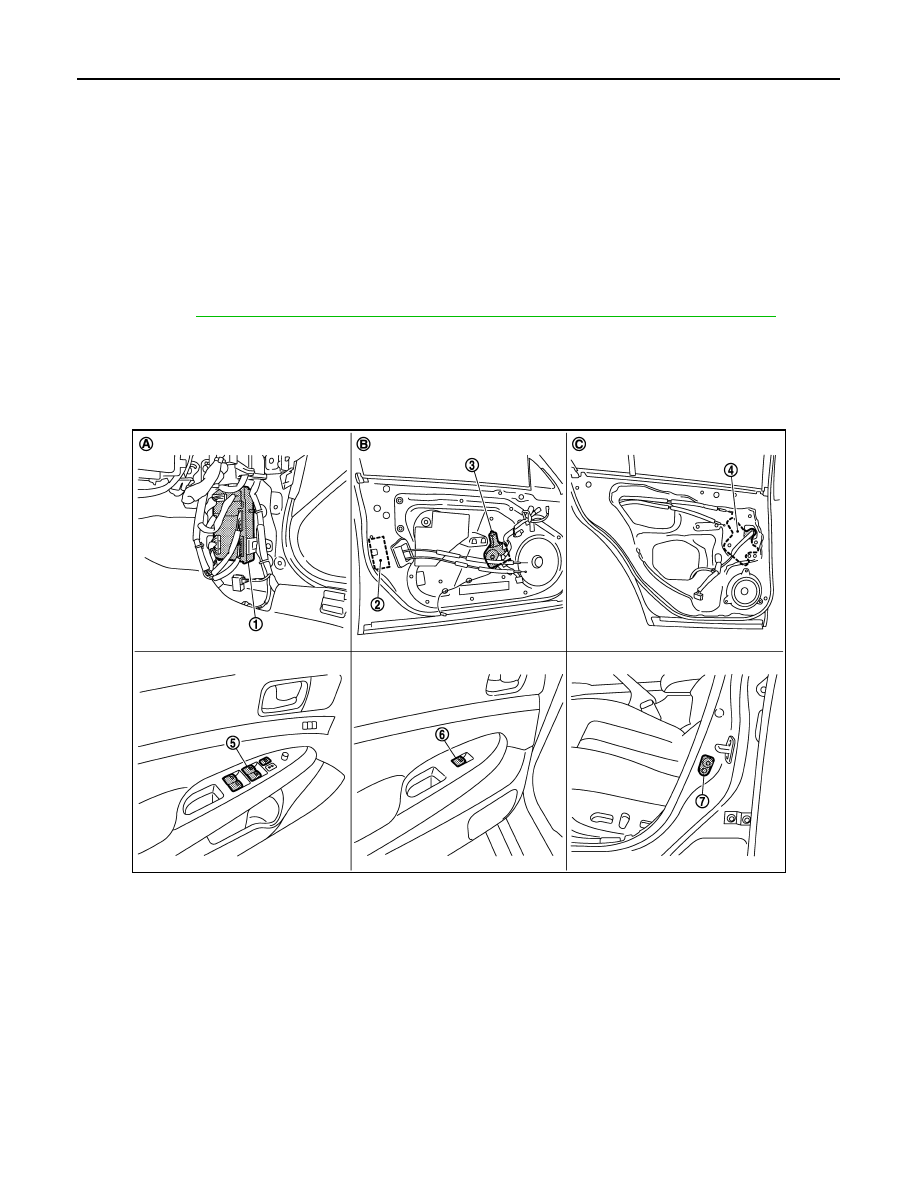

JMKIA0030ZZ

1.

BCM M118,M119,M122,M123

2.

Front door lock actuator (driver side)
(key cylinder switch) D15

3.

Front power window motor (driver
side) D10

4.

Rear power window motor LH D52

5.

Power window main switch D8,D9

6.

Rear power window switch LH D54

7.

Front door switch (driver side) B16

A.

View with dash side lower (passen-
ger side)

B.

View with front door finisher removed C.

View with rear door finisher removed

POWER WINDOW SYSTEM

PWC-133

< FUNCTION DIAGNOSIS >

[FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Component

Function

BCM

• Supplies power supply to power window switch.
• Controls retained power.

Power window main switch

• Directly controls all power window motor of all doors.
• Controls anti-pinch operation of power window.

Front power window switch

• Controls power window motor of front passenger side door.
• Controls anti-pinch operation of power window.

Rear power window switch

• Controls power window motor of rear right and left doors.

Front power window motor

• Integrates the ENCODER POWER and WINDOW MOTOR.
• Starts operating with signals from power window main switch & front power window

switch (passenger side).

• Transmits power window motor rotation as a pulse signal to power window switch.

Rear power window motor

Starts operating with signals from power window main switch & rear power window
switch.

Front door lock assembly (key cylinder
switch)

Transmits operation condition of key cylinder switch to power window main switch.

Front door switch

Detects door open/close condition and transmits to BCM.

PWC-134

< FUNCTION DIAGNOSIS >

[FRONT WINDOW ANTI-PINCH]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000000961656

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

*: This item is displayed, but is not used.

RETAIND PWR

RETAIND PWR : CONSULT-III Function (BCM - RETAINED PWR)

INFOID:0000000000961657

Data monitor

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-74, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

This function is not used even though it is displayed.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

Air conditioner*

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

IVIS - NATS

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONI-
TOR)

×

×

×

DIAGNOSIS SYSTEM (BCM)

PWC-135

< FUNCTION DIAGNOSIS >

[FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Monitor Item

Description

DOOR SW-DR

Indicates [ON/OFF] condition of driver side door switch.

DOOR SW-AS

Indicates [ON/OFF] condition of passenger side door switch.
