System Description

NCEL0168

The parking, license and tail lamp operation is controlled by the lighting switch which is built into the combi-
nation switch and headlamp battery saver control unit. The battery saver system is controlled by the head-
lamp battery saver control unit and smart entrance control unit.
Power is supplied at all times

I

to tail lamp relay terminals 1 and 3

I

through 10A fuse (No. 34, located in the fuse and fusible link box), and

I

to headlamp battery saver control unit terminal 7

I

through 10A fuse [No. 24, located in the fuse block (J/B)].

When ignition switch is in ON or START position, power is supplied

I

to headlamp battery saver control unit terminal 1

I

through 10A fuse [No. 16, located in the fuse block (J/B)], and

I

to headlamp battery saver control unit terminal 10, and

I

to smart entrance control unit terminal 33

I

through 10A fuse [No. 8, located in the fuse block (J/B)].

Ground is supplied to headlamp battery saver control unit terminals 4 and 11.

LIGHTING OPERATION BY LIGHTING SWITCH

NCEL0168S01

When lighting switch is in 1ST (or 2ND) position, ground is supplied

I

to tail lamp relay terminal 2 from headlamp battery saver control unit terminals 6 and 14

I

through headlamp battery saver control unit terminals 5 and 13, and

I

through body grounds E9 and E28.

Tail lamp relay is then energized and the parking, license and tail lamps illuminate.

BATTERY SAVER CONTROL

NCEL0168S02

When the ignition switch is turned from ON (or START) to OFF (or ACC) positions while parking, license and
tail lamps are illuminated, the RAP signal is supplied to terminal 10 of the headlamp battery saver control unit
from smart entrance control unit terminal 5.
After counting 45 seconds by the RAP signal from the smart entrance control unit to headlamp battery saver
control unit, the ground supply to terminal 2 of the tail lamp relay from headlamp battery saver control unit
terminals 6 and 14 is terminated.
Then the parking, license and tail lamps are turned off.
The parking, license and tail lamps are turned off when driver or passenger side door is opened even if 45
seconds have not passed after the ignition switch is turned from ON (or START) to OFF (or ACC) positions
while parking, license and tail lamps are illuminated.
When the lighting switch is turned from OFF to 1ST (or 2ND) after the parking, license and tail lamps are turned
off by the battery saver control, ground is supplied.

I

to headlamp battery saver control unit terminals 5 and 13 from lighting switch terminal 11, and

I

to tail lamp relay terminal 2 from headlamp battery saver control unit terminals 6 and 14.

Then the parking, license and tail lamps illuminate again.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

PARKING, LICENSE AND TAIL LAMPS

System Description

EL-53

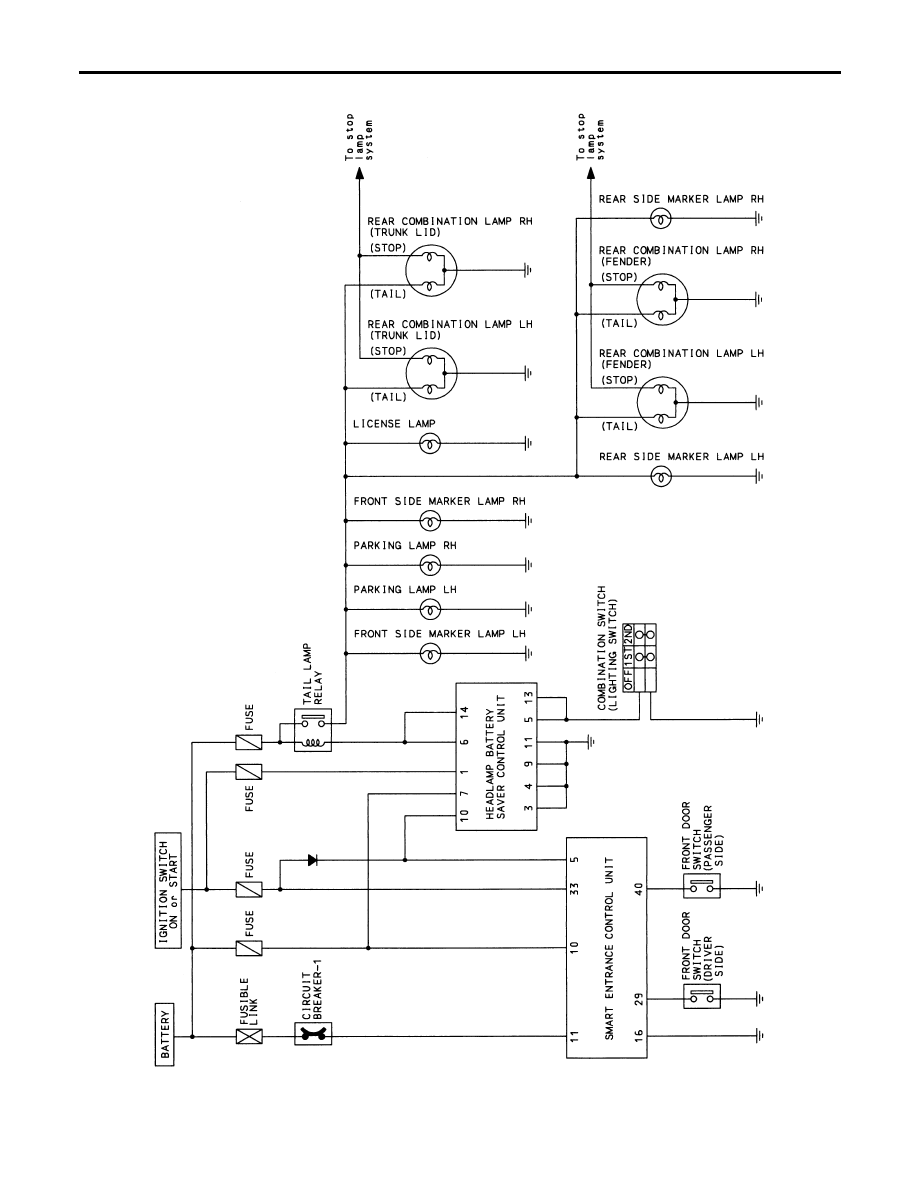

Schematic

NCEL0169

TEL483B

PARKING, LICENSE AND TAIL LAMPS

Schematic

EL-54

Wiring Diagram — TAIL/L —

NCEL0024

TEL838B

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

PARKING, LICENSE AND TAIL LAMPS

Wiring Diagram — TAIL/L —

EL-55

TEL839B

PARKING, LICENSE AND TAIL LAMPS

Wiring Diagram — TAIL/L — (Cont’d)

EL-56
