NOTE:
Diagnosis for this DTC will occur when engine coolant temperature
is below 50 to 60°C (122 to 140°F). Therefore, it will be better to
turn ignition switch “ON” (start engine) at the engine coolant tem-
perature below 30°C (86°F) when starting DTC confirmation
procedure.
Possible Cause
NCEC0581
I

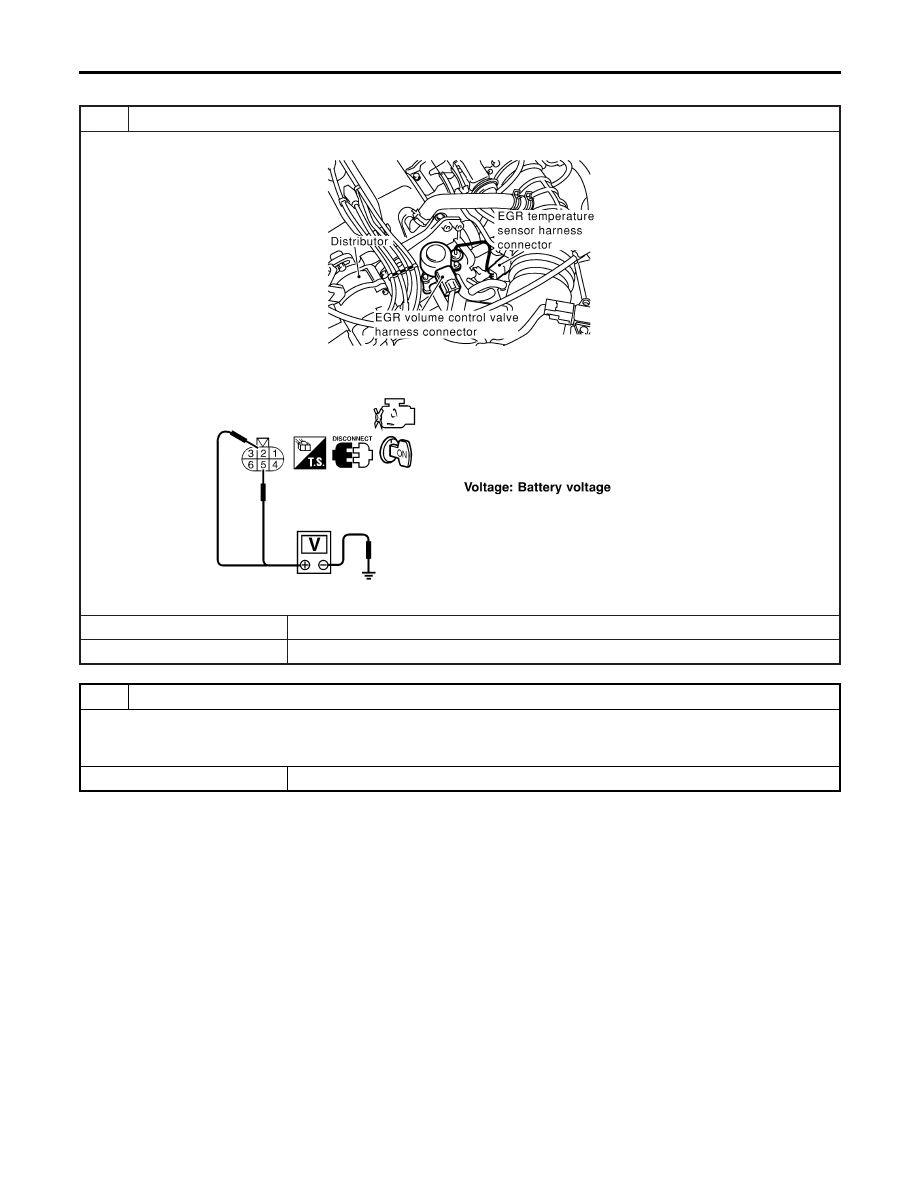

Harness or connectors
(EGR volume control valve circuit is open or shorted.)
I
EGR volume control valve leaking or stuck open
I
EGR temperature sensor
SEF202Y
SEF203Y

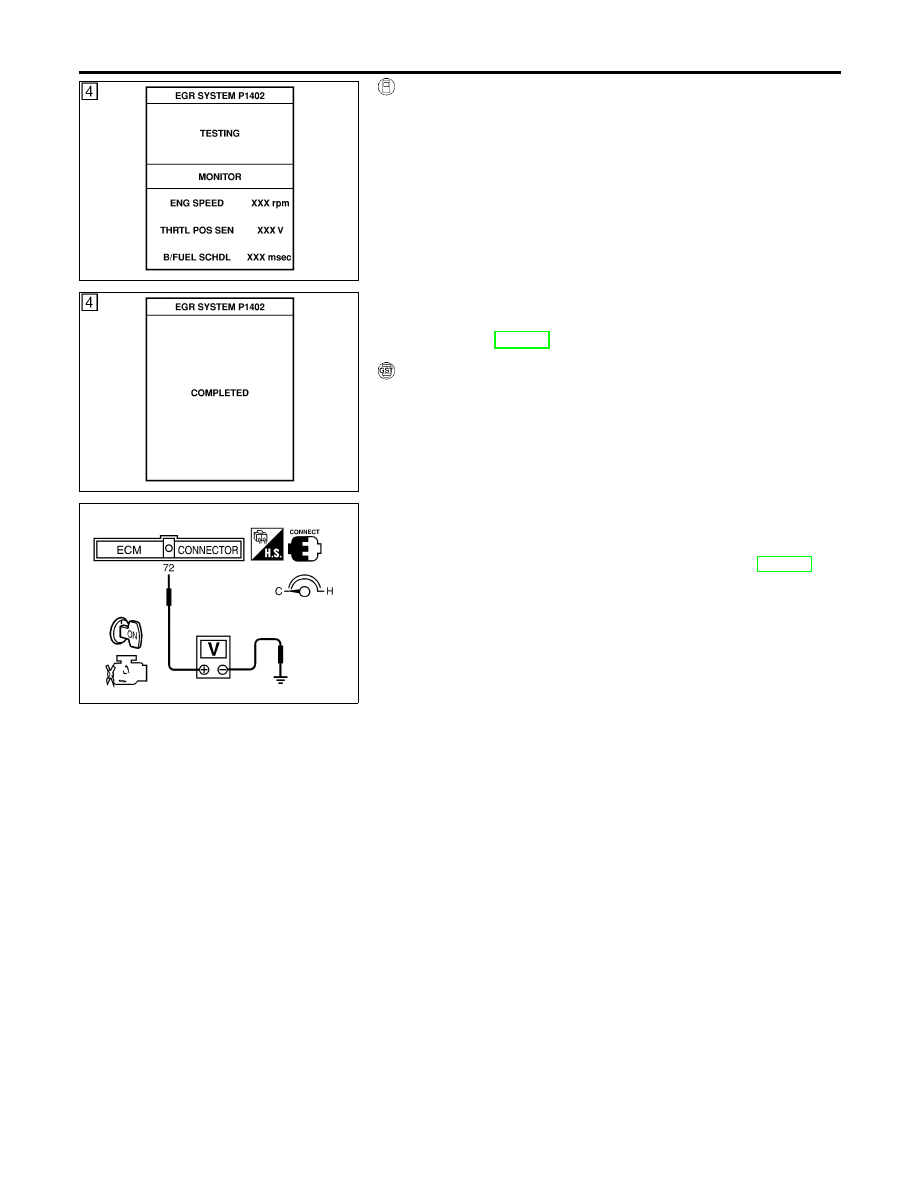

DTC Confirmation Procedure
NCEC0582
NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 10 seconds
before conducting the next test.
TESTING CONDITION:
I
Always perform the test at a temperature above −10°C
(14°F).
I

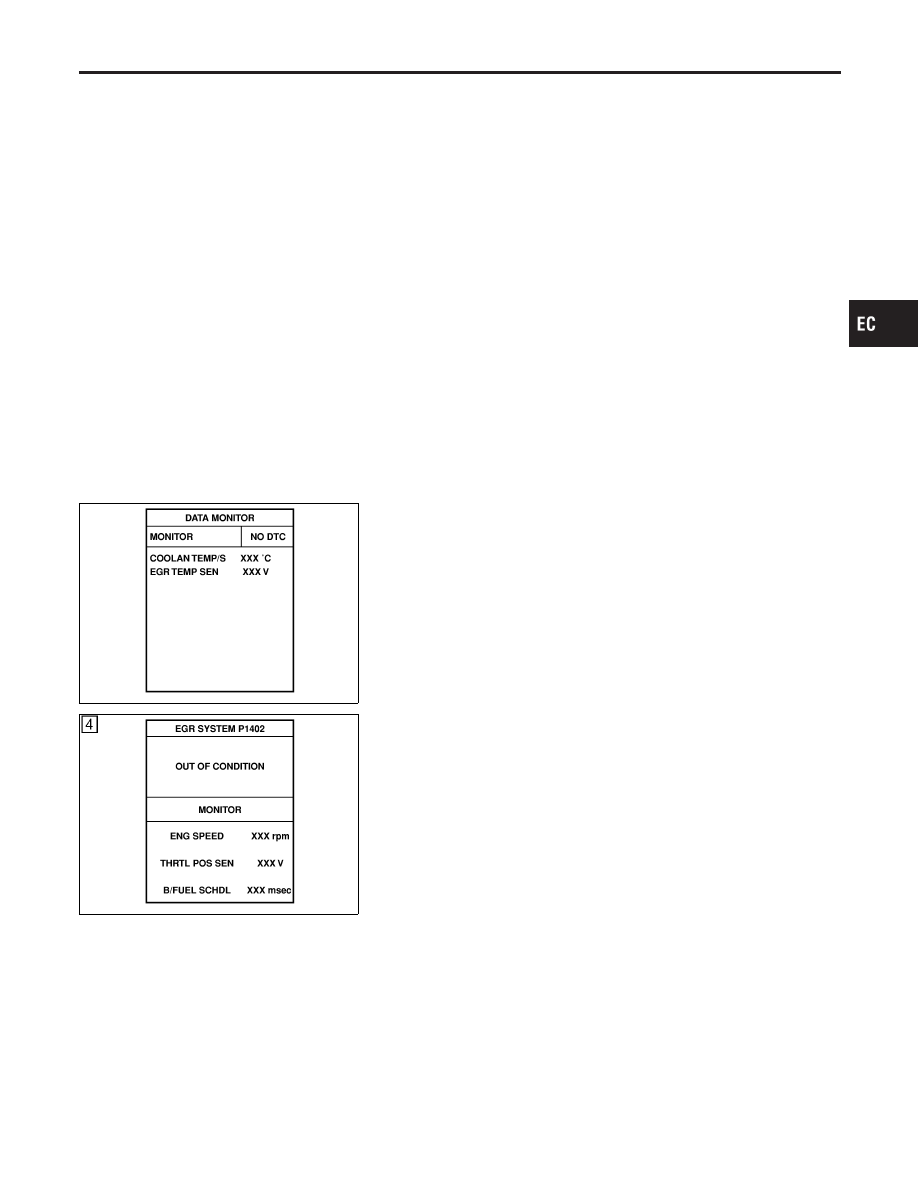

Engine coolant temperature and EGR temperature must
be verified in “DATA MONITOR” mode with CONSULT-II
before starting DTC WORK SUPPORT test. If it is out of
range below, the test cannot be conducted.
COOLAN TEMP/S: −10 to 50°C (14 to 122°F)*
EGR TEMP SEN: Less than 4.8V
If the values are out of the ranges indicated above, park
the vehicle in a cool place and allow the engine tempera-
ture to stabilize. Do not attempt to reduce the engine cool-
ant temperature or EGR temperature with a fan or means
other than ambient air. Doing so may produce an inaccu-
rate diagnostic result.
*: Although CONSULT-II screen displays “–10 to 40°C (14 to
104°F)” as a range of engine coolant temperature, ignore it.
