SAT204D

8.

Install drive plates, driven plates, retaining plate and dish plate
for overrun clutch.

9.

Install snap ring for overrun clutch.

SAT227D

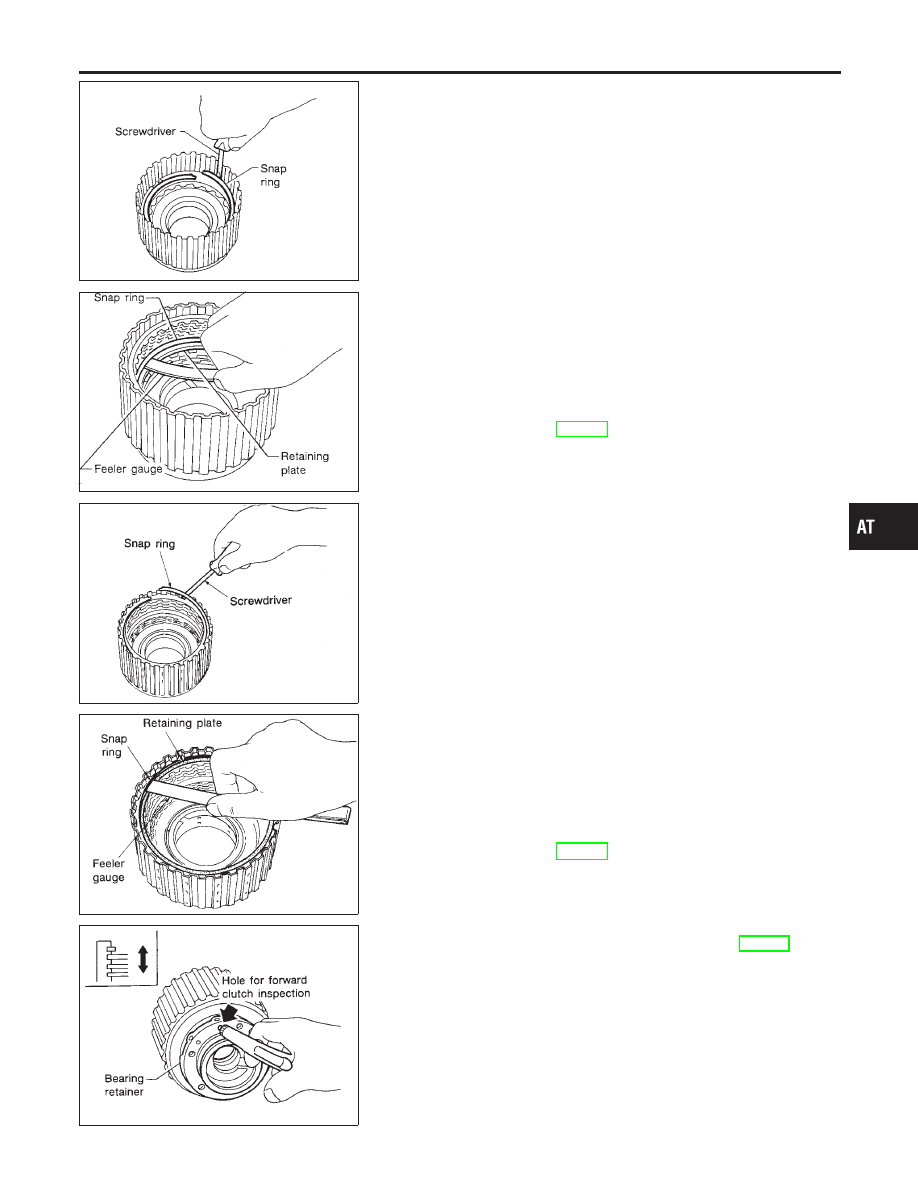

10. Measure clearance between overrun clutch retaining plate and

snap ring.
If not within allowable limit, select proper retaining plate.

Specified clearance:

Standard: 1.0 - 1.4 mm (0.039 - 0.055 in)
Allowable limit: 2.0 mm (0.079 in)

Overrun clutch retaining plate:

Refer to SDS, AT-391.

SAT203D

11. Install drive plates, driven plates, retaining plate and dish plate

for forward clutch.

Take care with the order and direction of plates.
12. Install snap ring for forward clutch.

SAT228D

13. Measure clearance between forward clutch retaining plate and

snap ring.
If not within allowable limit, select proper retaining plate.

Specified clearance:

Standard: 0.45 - 0.85 mm (0.0177 - 0.0335 in)
Allowable limit: 1.85 mm (0.0728 in)

Forward clutch retaining plate:

Refer to SDS, AT-391.

SAT201D

14. Check operation of forward clutch.

Refer to “Forward Clutch and Overrun Clutch”, AT-336.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Forward Clutch and Overrun Clutch (Cont’d)

AT-341

SAT202D

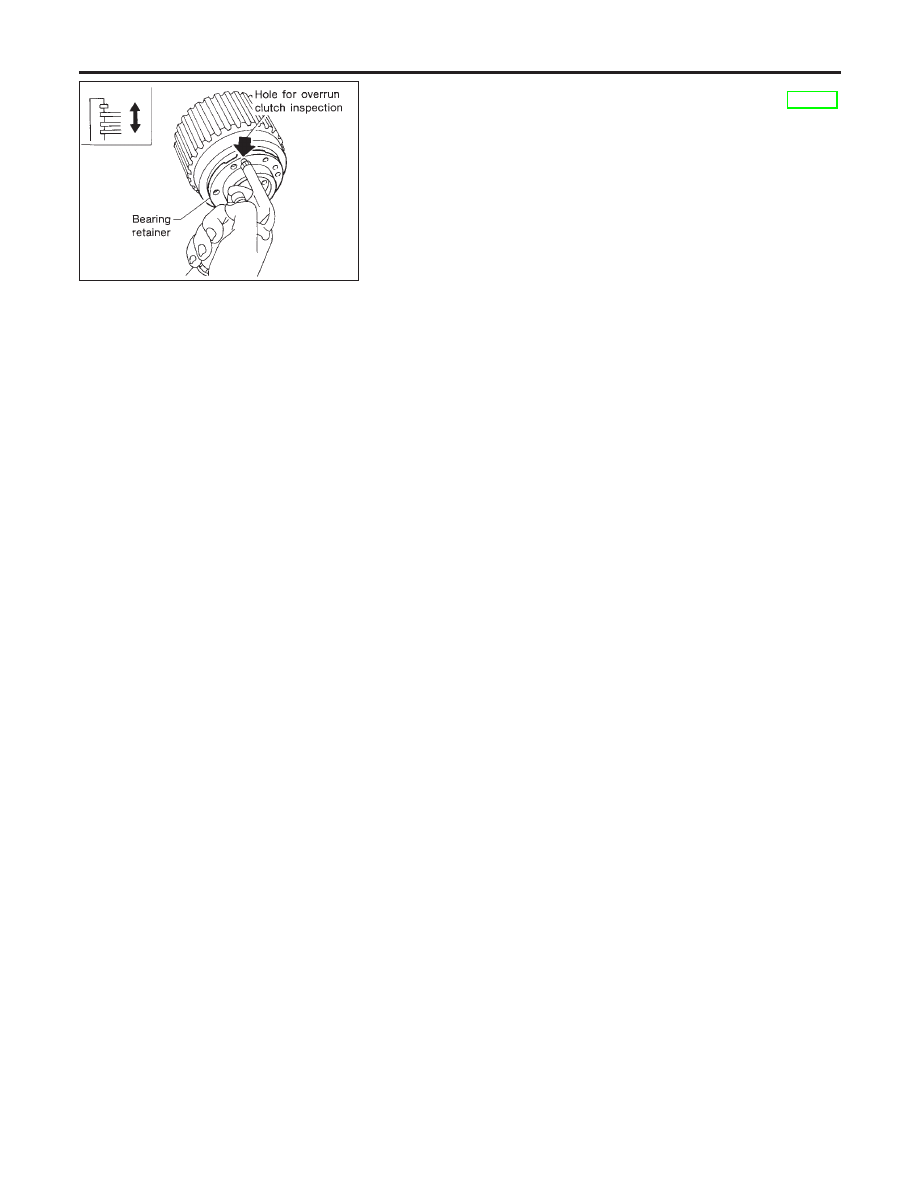

15. Check operation of overrun clutch.

Refer to “Forward Clutch and Overrun Clutch”, AT-336.

REPAIR FOR COMPONENT PARTS

Forward Clutch and Overrun Clutch (Cont’d)

AT-342

Low & Reverse Brake

COMPONENTS

=NCAT0153

SAT486JA

SAT230D

DISASSEMBLY

NCAT0154

1.

Check operation of low & reverse brake.

a.

Apply compressed air to oil hole of transmission case.

b.

Check to see that retaining plate moves to snap ring.

c.

If retaining plate does not contact snap ring:

I

D-ring might be damaged.

I

Oil seal might be damaged.

I

Fluid might be leaking past piston check ball.

SAT231D

2.

Stand transmission case.

3.

Remove snap ring.

4.

Remove drive plates, driven plates, retaining plate from trans-
mission case.

AAT687

5.

Set Tool on spring retainer and remove snap ring while com-
pressing return springs.

I

Set Tool directly above return springs.

I

Do not expand snap ring excessively.

6.

Remove spring retainer and return springs.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Low & Reverse Brake

AT-343

SAT303E

I

Do not remove return springs from spring retainer.

SAT234D

7.

Apply compressed air to oil hole of transmission case while
holding piston.

8.

Remove piston from transmission case by turning it.

SAT767G

9.

Remove D-ring and oil seal from piston.

INSPECTION

NCAT0155

Low & Reverse Clutch Snap Ring, Spring Retainer and
Return Springs

NCAT0155S01

I

Check for deformation, fatigue or damage.

I

Replace if necessary.

I

When replacing spring retainer and return springs,
replace them as a set.

REPAIR FOR COMPONENT PARTS

Low & Reverse Brake (Cont’d)

AT-344
