Infiniti G20 (P11). Manual - part 85





SAT203D

2.

Remove snap ring for forward clutch.

3.

Remove drive plates, driven plates, retaining plate and dish
plate for forward clutch.

SAT204D

4.

Remove snap ring for overrun clutch.

5.

Remove drive plates, driven plates, retaining plate and dish
plate for overrun clutch.

AAT685

6.

Set Tool on spring retainer and remove snap ring from forward
clutch drum while compressing return springs.

I

Set Tool directly above return springs.

I

Do not expand snap ring excessively.

7.

Remove spring retainer and return springs.

SAT216D

8.

Remove forward clutch piston with overrun clutch piston from
forward clutch drum by turning it.

SAT215D

9.

Remove overrun clutch piston from forward clutch piston by
turning it.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Forward Clutch and Overrun Clutch (Cont’d)

AT-337

SAT140E

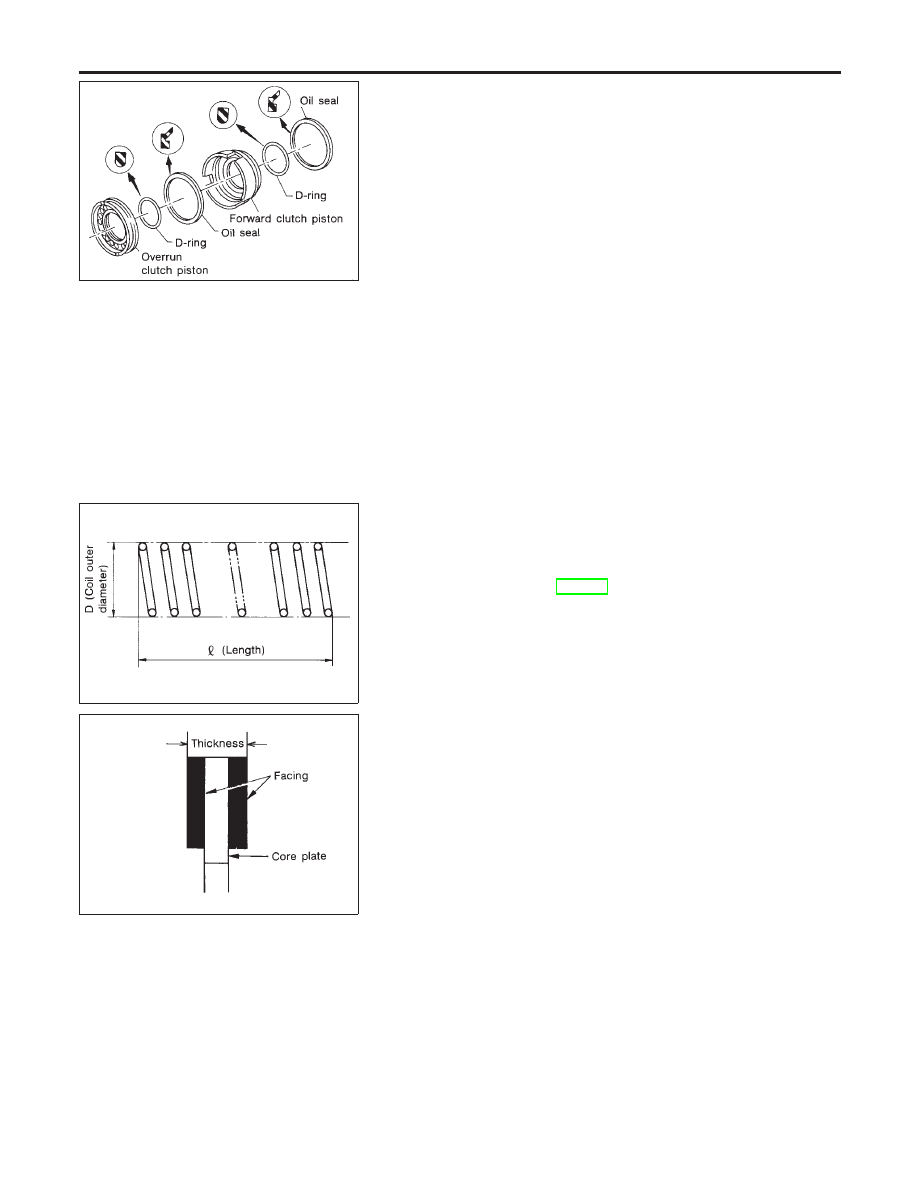

10. Remove D-rings and oil seals from forward clutch piston and

overrun clutch piston.

INSPECTION

NCAT0151

Snap Rings and Spring Retainer

NCAT0151S01

I

Check for deformation, fatigue or damage.

SAT138D

Forward Clutch and Overrun Clutch Return Springs

NCAT0151S02

I

Check for deformation or damage.

I

Measure free length and outer diameter.

Inspection standard:

Refer to SDS, AT-392.

I

Replace if deformed or fatigued.

SAT162D

Forward Clutch and Overrun Clutch Drive Plates

NCAT0151S03

I

Check facing for burns, cracks or damage.

I

Measure thickness of facing.

Thickness of drive plate:

Forward clutch

Standard value: 1.8 mm (0.071 in)
Wear limit: 1.6 mm (0.063 in)

Overrun clutch

Standard value: 1.6 mm (0.063 in)
Wear limit: 1.4 mm (0.055 in)

I

If not within wear limit, replace.

REPAIR FOR COMPONENT PARTS

Forward Clutch and Overrun Clutch (Cont’d)

AT-338

SAT163D

Forward Clutch and Overrun Clutch Dish Plates

NCAT0151S04

I

Check for deformation or damage.

I

Measure thickness of dish plate.

Thickness of dish plate “t”:

Forward clutch: 2.5 mm (0.098 in)
Overrun clutch: 2.15 mm (0.0846 in)

I

If deformed or fatigued, replace.

SAT213D

Forward Clutch Drum

NCAT0151S05

I

Make sure check balls are not fixed.

I

Apply compressed air to check ball oil hole from outside of
forward clutch drum. Make sure air leaks past ball.

I

Apply compressed air to oil hole from inside of forward clutch
drum. Make sure there is no air leakage.

SAT212D

Overrun Clutch Piston

NCAT0151S06

I

Make sure check balls are not fixed.

I

Apply compressed air to check ball oil hole opposite the return
spring. Make sure there is no air leakage.

I

Apply compressed air to oil hole on return spring side. Make
sure air leaks past ball.

SAT208DA

ASSEMBLY

NCAT0152

1.

Install D-rings and oil seals on forward clutch piston and over-
run clutch piston.

I

Take care with direction of oil seal.

I

Apply ATF to both parts.

SAT215D

2.

Install overrun clutch piston assembly on forward clutch piston
while turning it slowly.

I

Apply ATF to inner surface of forward clutch piston.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Forward Clutch and Overrun Clutch (Cont’d)

AT-339

SAT216D

3.

Install forward clutch piston assembly on forward clutch drum
while turning it slowly.

I

Apply ATF to inner surface of drum.

SAT217D

4.

Align notch in forward clutch piston with groove in forward
clutch drum.

SAT218D

5.

Install return spring on piston.

6.

Install spring retainer on return springs.

AAT685

7.

Set Tool on spring retainer and install snap ring while com-
pressing return springs.

I

Set Tool directly above return springs.

SAT220D

I

Do not align snap ring gap with spring retainer stopper.

REPAIR FOR COMPONENT PARTS

Forward Clutch and Overrun Clutch (Cont’d)

AT-340
