FRONT FENDER

FRONT FENDER

Removal and Installation

INFOID:0000000001327788

REMOVAL

1.

Remove the front bumper. Refer to

EI-14, "Component Parts Location"

.

2.

Remove the headlamp. Refer to

LT-30, "Removal and Installation"

.

3.

Remove the front fender protector. Refer to

EI-24, "Component Parts Location"

.

4.

Remove the mounting bolt and remove the front fender.

CAUTION:

While removing use a shop cloth to protect body from damaging.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• After installing, apply touch-up paint (the body color) onto the head of the front fender mounting

bolts.

• After installing, check front fender adjustment. Refer to

BL-13, "Fitting Adjustment"

 and

BL-131, "Fit-

ting Adjustment"

.

1.

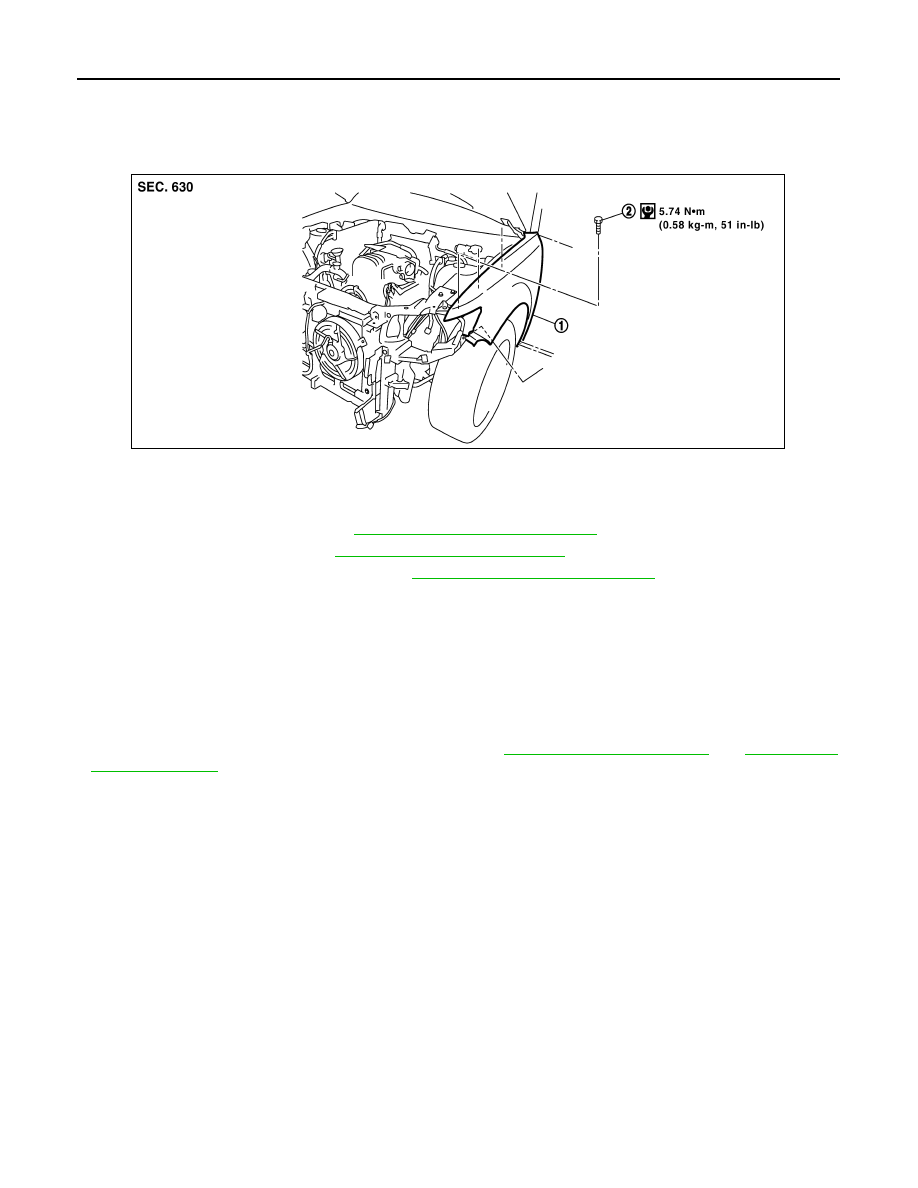

Front fender

2.

Bolt

PIIA6076E

POWER DOOR LOCK SYSTEM

BL-21

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

BL

N

O

P

POWER DOOR LOCK SYSTEM

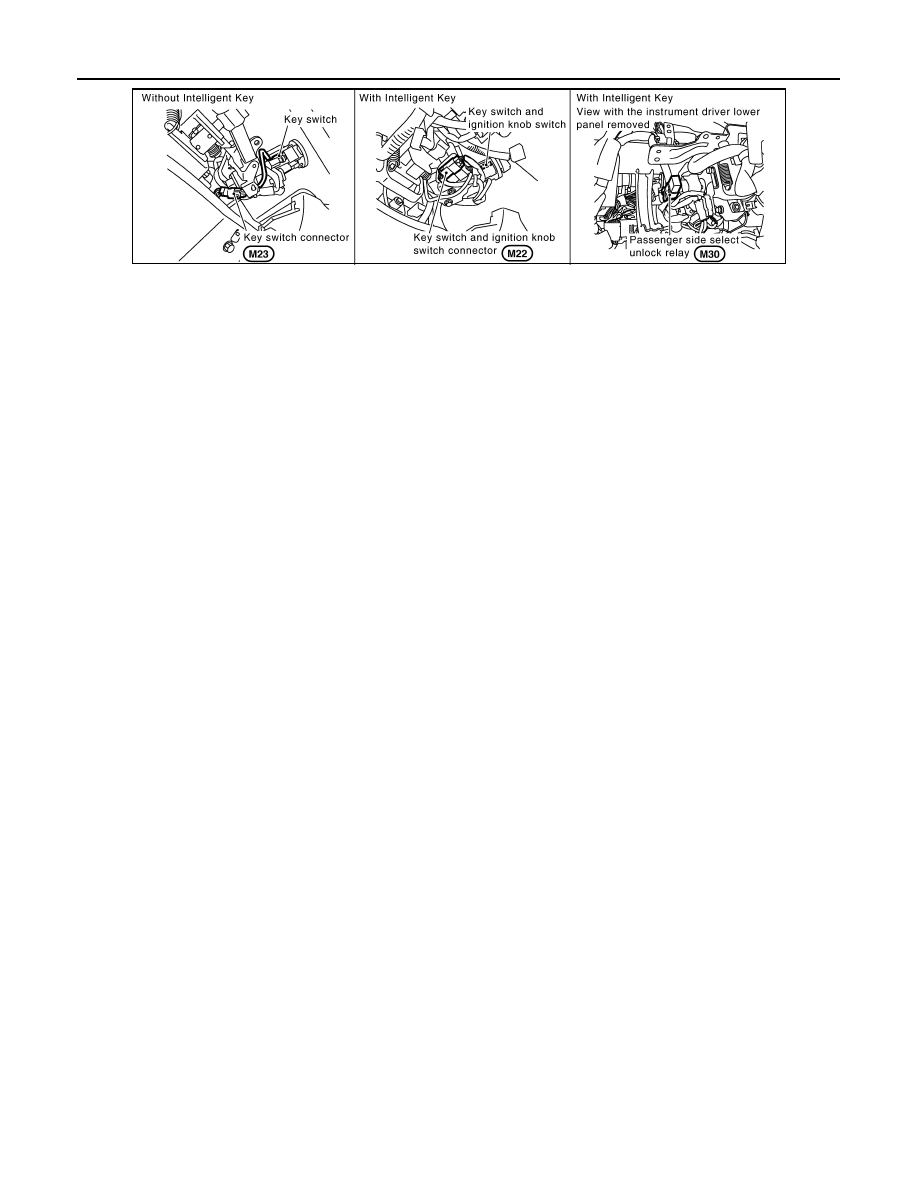

Component Parts and Harness Connector Location

INFOID:0000000001327789

PIIA9926E

BL-22

< SERVICE INFORMATION >

POWER DOOR LOCK SYSTEM

System Description

INFOID:0000000001327790

Power is supplied at all times
• through 50A fusible link (letter M, located in the fuse and fusible link box).
• to BCM terminal 55
• thought 15A fuse [No. 22, located in the fuse block (J/B)]
• to BCM terminal 42
• thought 15A fuse [No. 22, located in the fuse block (J/B)]
• to key switch terminal 2 (without intelligent key system)
• thought 15A fuse [No. 22, located in the fuse block (J/B)].
• to key switch and ignition knob switch terminal 3 (with intelligent key system)
When key switch is ON (key is inserted in ignition key cylinder), power is supplied
• through key switch terminal 1 (without intelligent key system) or 4 (with intelligent key system).
• to BCM terminal 37
When the door is locked or unlocked with power window main switch (door lock and unlock switch), ground is
supplied
• to CPU of power window main switch
• through power window main switch (door lock and unlock switch) terminal 17
• through grounds M35, M45 and M85.
Then power window main switch (door lock and unlock switch) operation signal is supplied.
• through power window main switch terminal 14.
• to BCM terminal 22
When the door is locked or unlocked with front power window switch (passenger side) (door lock and unlock
switch), ground is supplied
• to CPU of front power window switch (passenger side)
• through front power window switch (passenger side) (door lock and unlock switch) terminal 11
• through grounds M35, M45 and M85.
Then front power window switch (passenger side) (door lock and unlock switch) operation signal is supplied
• through front power window switch (passenger side) terminal 16.
• to BCM terminal 22
When the door is locked with front door key cylinder switch, ground is supplied
• to power window main switch terminal 4
• through key cylinder switch terminals 1 and 5
• through grounds M35, M45 and M85.
Then key cylinder switch operation signal (lock) is supplied
• through power window main switch terminal 14.
• to BCM terminal 22
When the door is unlocked with key cylinder switch, ground is supplied
• to power window main switch terminal 6
• through key cylinder switch terminal 6 and 5
• through grounds M35, M45 and M85.
Then key cylinder switch operation signal (unlock) is supplied
• through power window main switch terminal 14.
• to BCM terminal 22
BCM is connected to power window main switch and front power window switch (passenger side) as serial
link.
When the front door switch (driver side) is ON (door is OPEN), ground is supplied
• to BCM terminal 62
• through front door switch (driver side) terminal 1
• through front door switch (driver side) case ground.

PIIA6412E
