TM-172

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

PARKING COMPONENTS

8.

Remove tightening bolts for rear extension assembly and trans-
mission case.

9.

Tap rear extension assembly with a soft hammer (A).

10. Remove rear extension assembly (with needle bearing) from

transmission case.

11. Remove bearing race (1) from output shaft (2).

12. Remove output shaft (1) from transmission case by rotating left/

right.

1

: Self-sealing bolt

A

:  Bolt

JPDIA0026ZZ

JPDIA0027ZZ

SCIA3431E

JPDIA0057ZZ

JPDIA0028ZZ

PARKING COMPONENTS

TM-173

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

13. Remove parking gear (1) from output shaft (2).

14. Remove seal rings (1) from output shaft.

15. Remove needle bearing (1) from rear extension.

16. Remove parking actuator support (1) from rear extension.

17. Remove parking pawl (with return spring) (1) and pawl shaft (2)

from rear extension.

JPDIA0029ZZ

JPDIA0030ZZ

SCIA6179J

JPDIA0031ZZ

JPDIA0032ZZ

TM-174

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

PARKING COMPONENTS

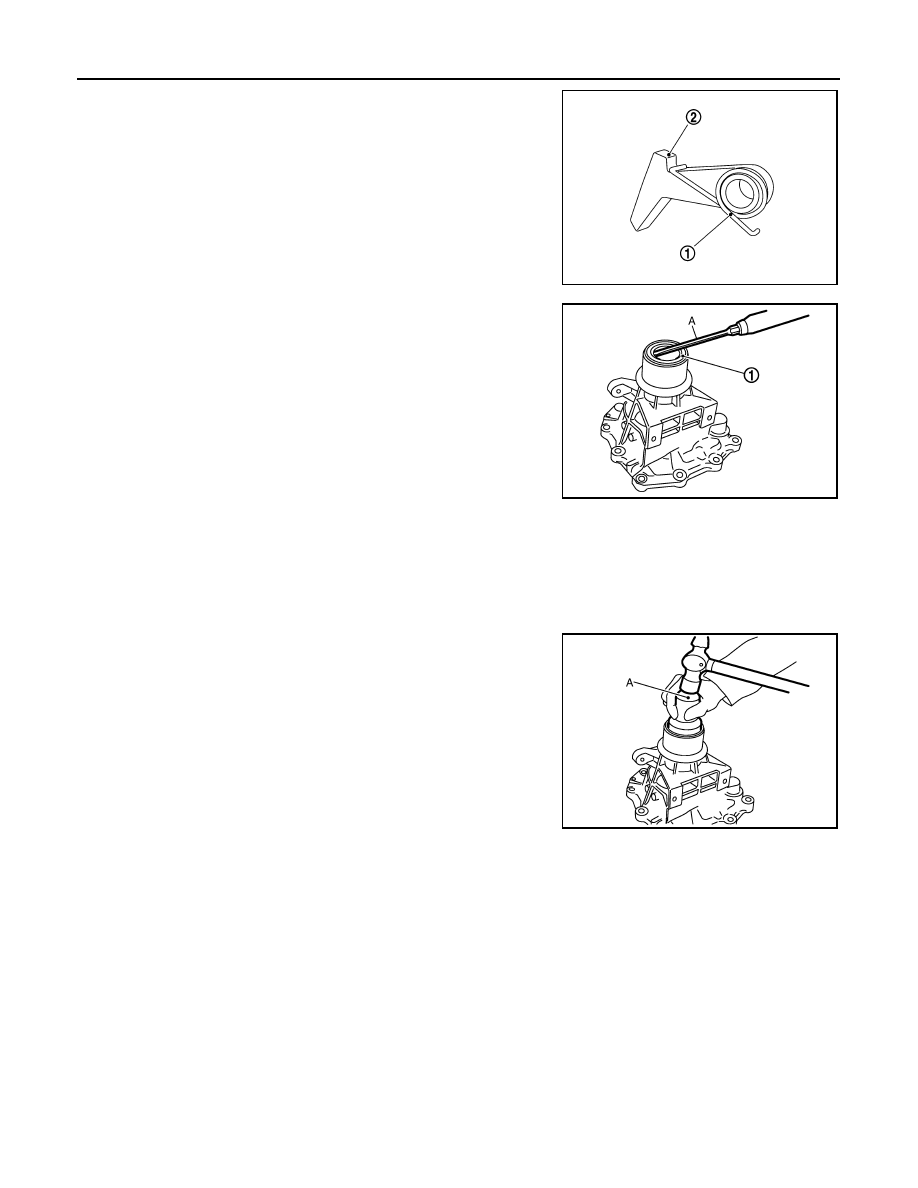

18. Remove return spring (1) from parking pawl (2).

19. Remove rear oil seal (1) from rear extension using flat-blade

screwdriver (A).

CAUTION:

Be careful not to scratch rear extension.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Do not reuse seal rings and drain plug gasket.
• Apply petroleum jelly to needle bearing and seal rings.
• Insert the tip of parking rod between the parking pawl and the parking actuator support when assem-

bling the rear extension assembly.

• As shown in the figure, use a drift [SST: ST33400001 (J-26082)]

(A) to drive rear oil seal into the rear extension until it is flush.

CAUTION:

• Do not reuse rear oil seal.
• Apply ATF to rear oil seal.

• Refer to the followings installing rear extension assembly.

SCIA6180J

JPDIA0033ZZ

JPDIA0035ZZ

PARKING COMPONENTS

TM-175

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

- Apply recommended sealant (Genuine Anaerobic Liquid Gasket or

equivalent. Refer to

GI-15, "Recommended Chemical Products

and Sealants"

.) to rear extension assembly as shown in the figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc. from
the transmission case and rear extension assembly mounting
surfaces.

- Tighten rear extension assembly bolts to the specified torque.

2WD : Inspection

INFOID:0000000003130619

INSPECTION AFTER REMOVAL

A

: Start and finish point shall be in
the center of two bolts.

B

: 3 – 5 mm (0.12 – 0.20 in)

Sealant
width (C)

: 1.0 – 2.0 mm (0.04 – 0.08 in)

Sealant
height (C)

: 0.4 – 1.0 mm (0.016 – 0.04 in)

JPDIA0036ZZ

1

: Self-sealing bolt

A

:  Bolt

JPDIA0026ZZ
