BODY CONSTRUCTION

BC-27

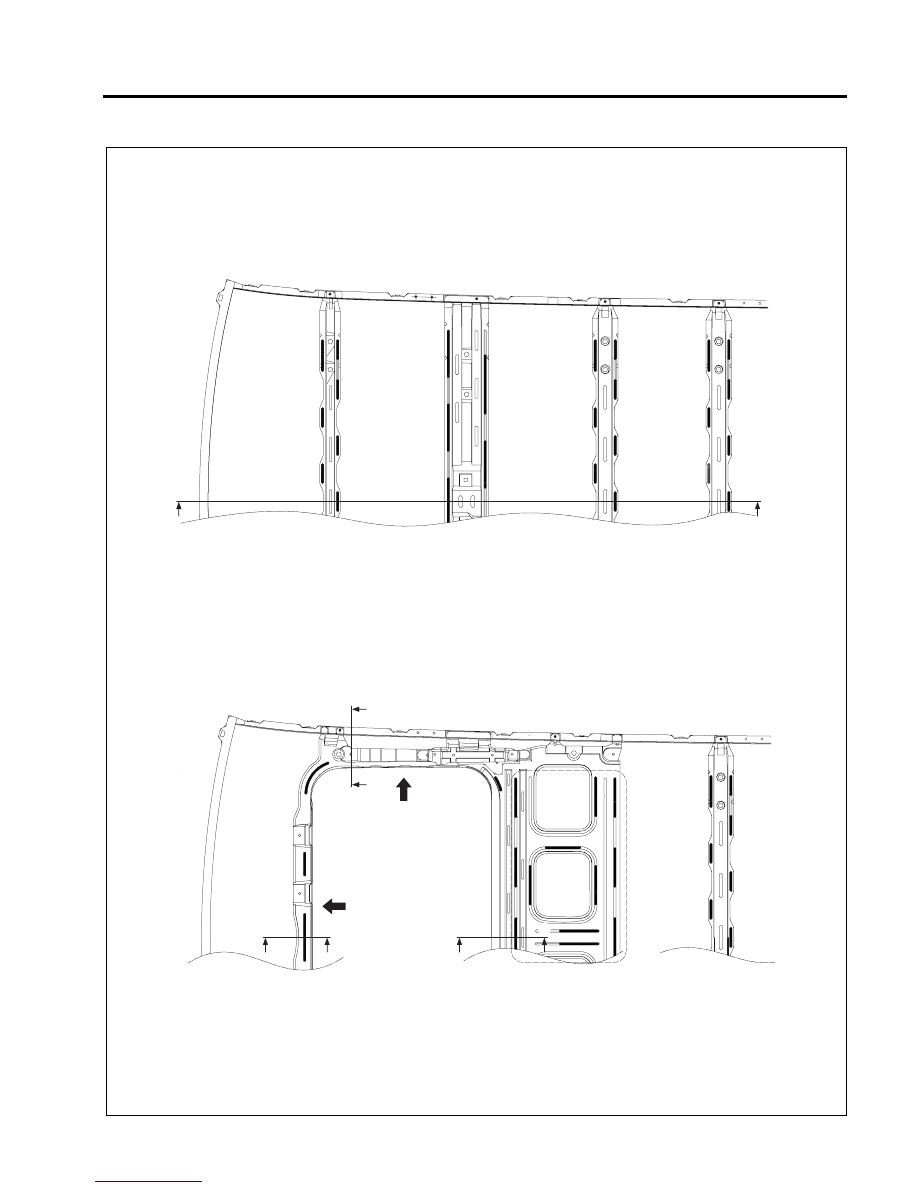

< Cross-Sectional Views >

BFDBC6168

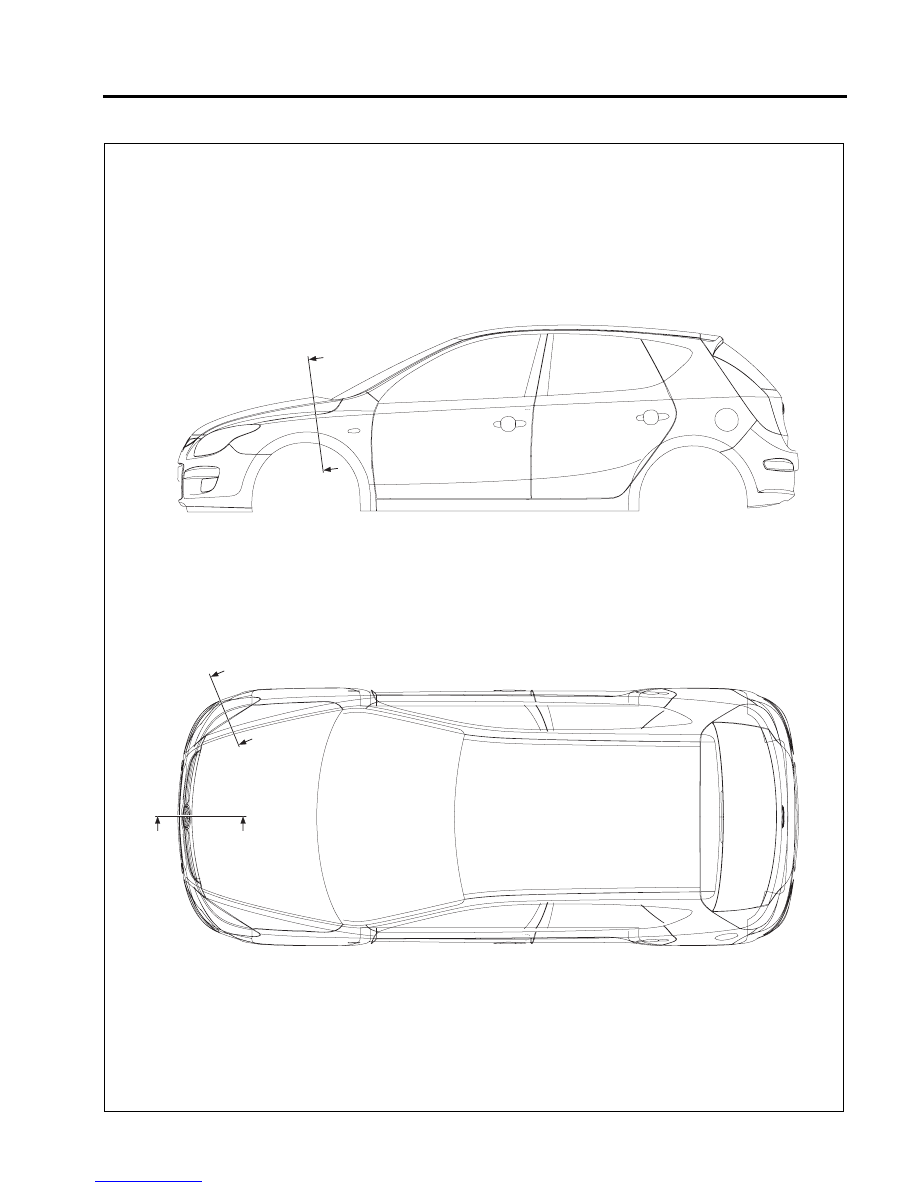

[ ROOF ]

[  SUN ROOF ]

C

C

E

E

A

A

B

B

Y

Z

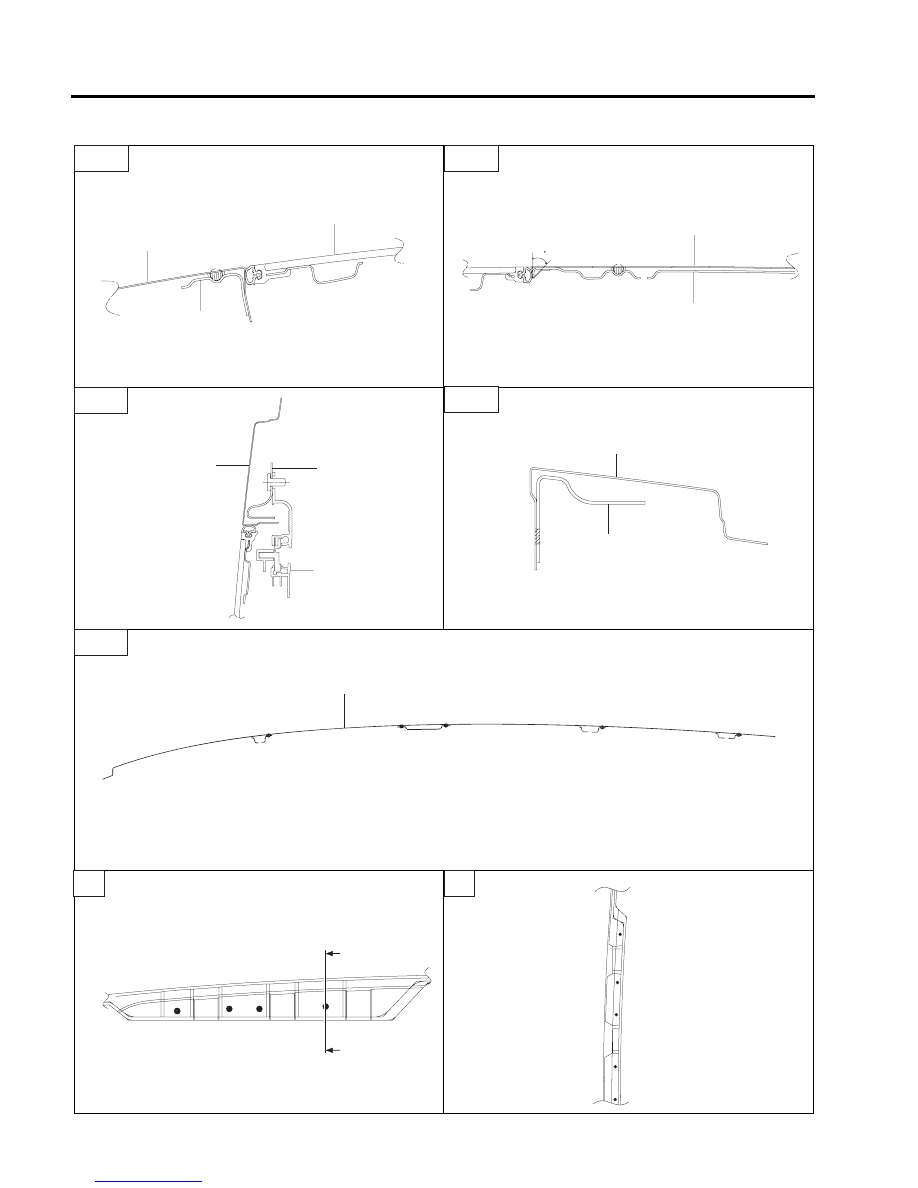

BC-28

BODY CONSTRUCTION

BFDBC6173

BFDBC6174

BFDBC6174A

BFDBC6172

BFDBC6171

BFDBC6170

BFDBC6169

A - A

B - B

D - D

C - C

E - E

Y

Z

D

D

45

Sun roof assembly

Sun roof panel

Sun roof panel

Sun roof panel

Sun roof panel

Sun roof panel

Sun roof

reinforcement

ring assembly

Sun roof reinforcement
ring assembly

Sun roof

reinforcement

ring assembly

Sun roof

reinforcement

ring assembly

Sun roof assembly

BODY CONSTRUCTION

BC-29

< Cross-Sectional Views >

BFDBC6197

C

C

A

A

B

B

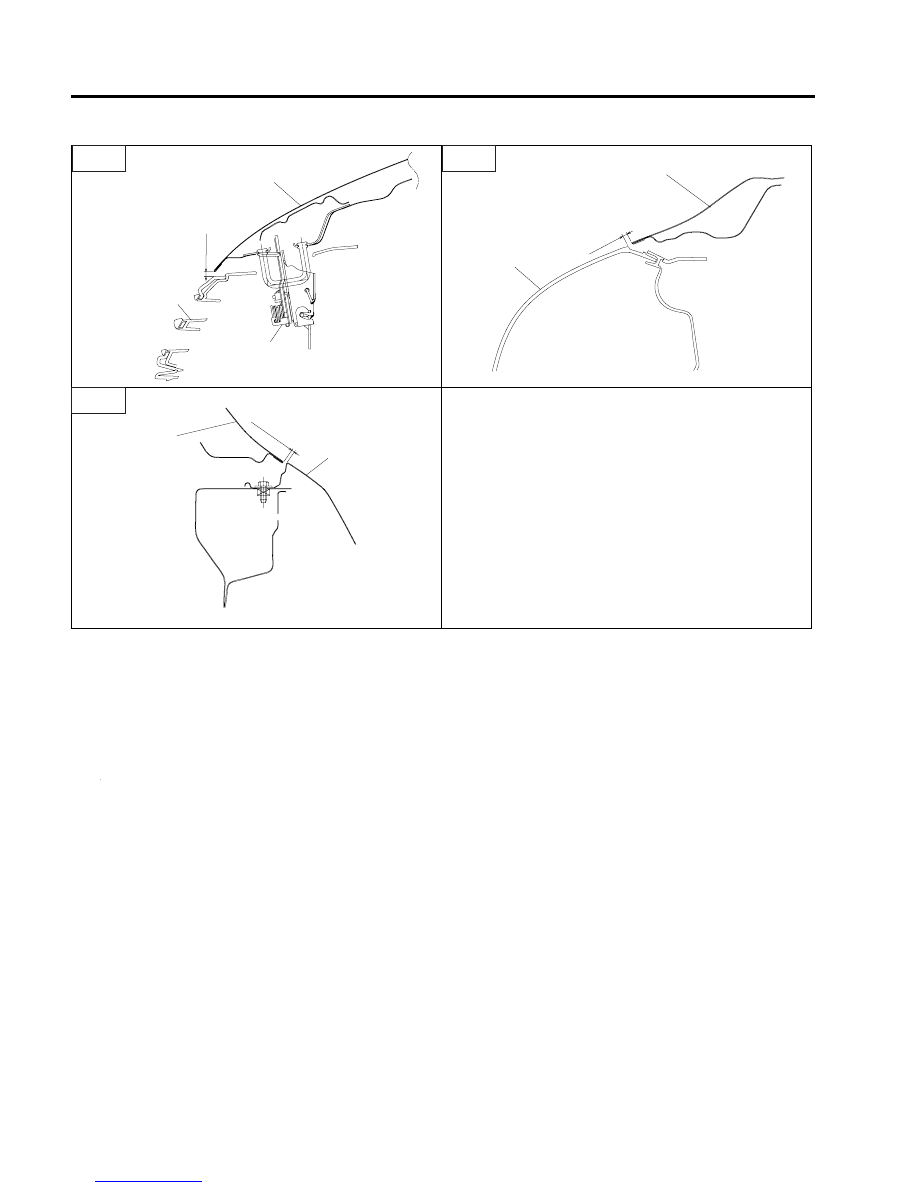

HOOD

BC-30

BODY CONSTRUCTION

BFDBC6200

BFDBC6199

BFDBC6198

A - A

B - B

C - C

Radiator grille

Hood panle assembly

Hood panle

assembly

Fender panel assembly

Hood panle assembly

Head lamp

Hood latch assembly

+_

5   0.5 mm

+_

3   0.5 m

m

+

_

5   0.5 mm
