BODY CONSTRUCTION

BC-19

BFDBC6152

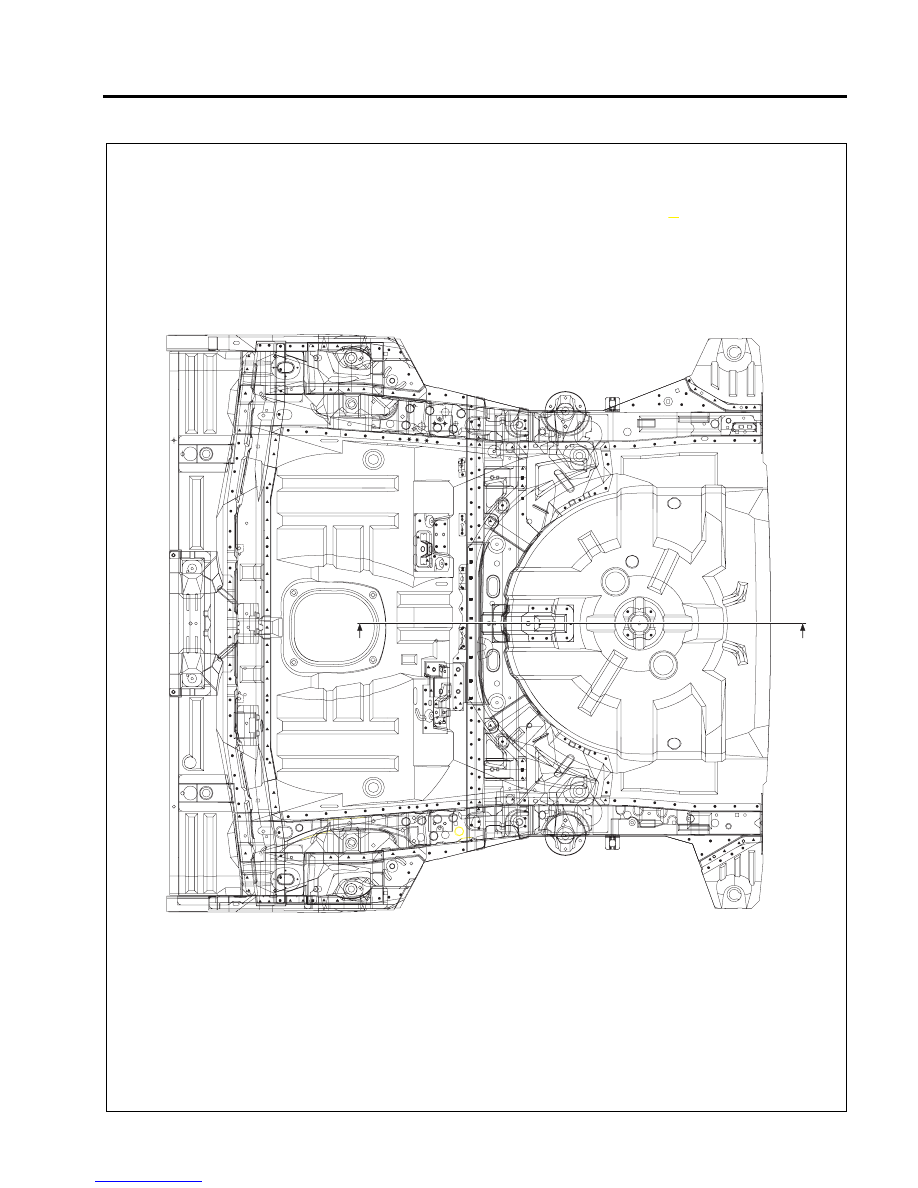

BFDBC6151

BFDBC6153A

BFDBC6154

BFDBC6153

BFDBC6150

Center floor reinforcement assembly

Center floor reinforcement assembly

Center floor side member

Rear seat outer
mounting bracket

Side sill
inner panel
assembly

Center floor panel

Front seat mounting

member assembly

Seat rear inner

mounting bracket

Seat rear inner

mounting bracket

Front seat mounting
member assembly

Center floor panel

Front seat mounting

member assembly

A - A'

C - C'

B - B'

D - D'

F'- F'

E - E'

BC-20

BODY CONSTRUCTION

REAR FLOOR PANEL

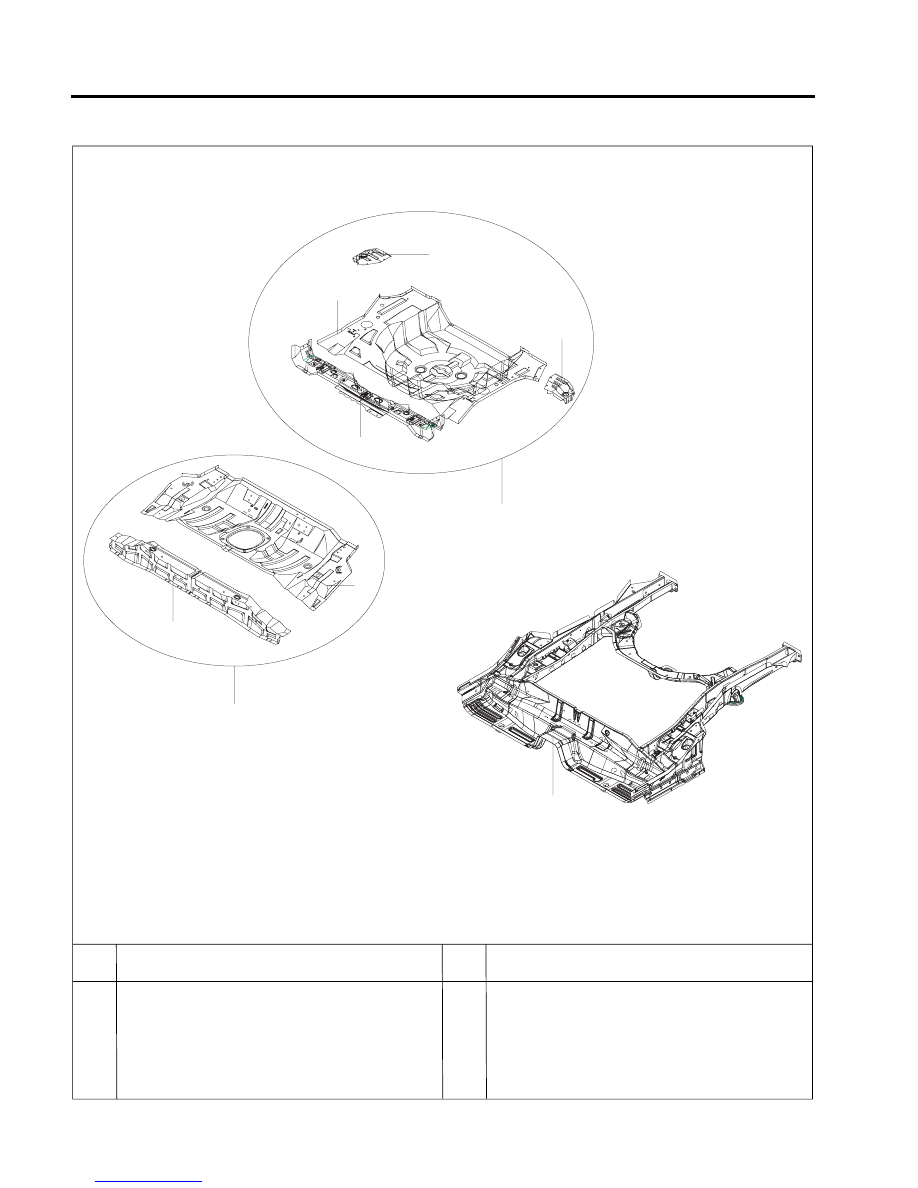

BFDBC6155

1

2

3

4

5

6

7

8

9

PART NAME

No.

Rear floor front complete panel assembly

Rear floor exteansion assemby

Rear floor front panel

Rear floor complete member assembly

Rear floor rear complete panel assemby

Rear floor center cross upper member assemby

Rear floor rear panel assembly

Rear floor side panel (RH)

Rear floor side panel (LH)

PART NAME

No.

1

3

4

7

8

9

5

2

6

BODY CONSTRUCTION

BC-21

BFDBC6156

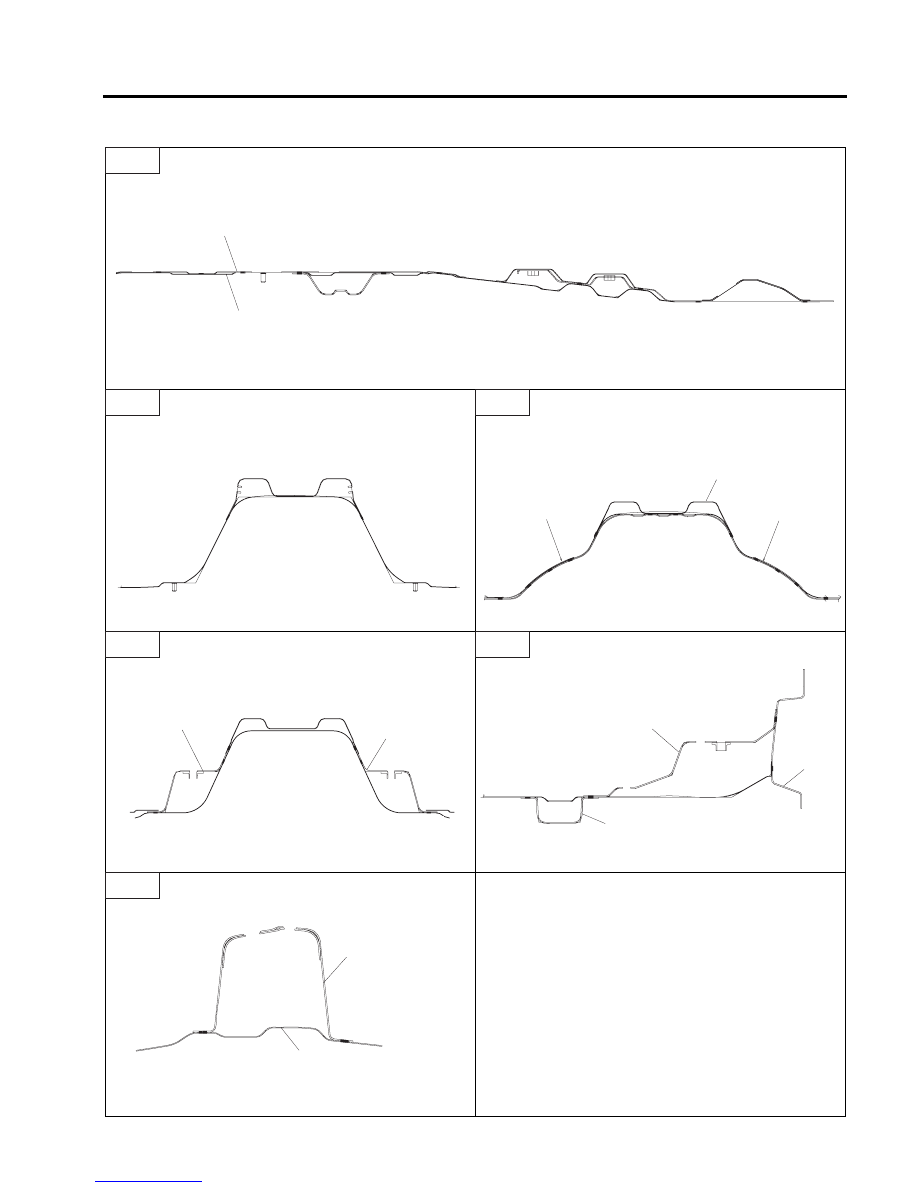

< Cross-Sectional Views >

A

A

BC-22

BODY CONSTRUCTION

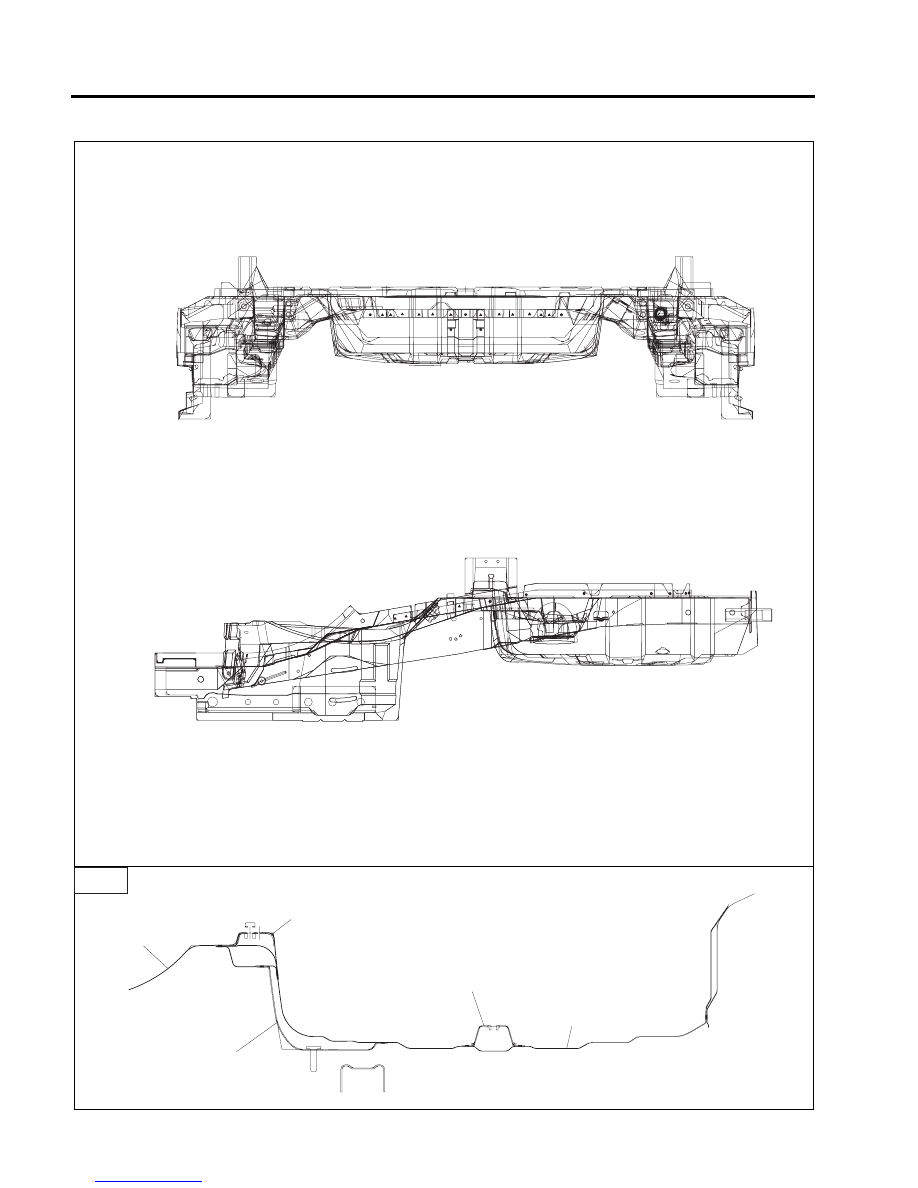

BFDBC6160

BFDBC6161

A - A

Rear floor front panel

Rear floor complete

member assembly

Rear floor center cross upper member assembly

Rear floor rear panel assembly

Spare tire mounting bracket assembly

< Cross-Sectional Views >

[ REAR VIEW ]

[ SIDE VIEW]
