Hummer H3. Manual - part 1629

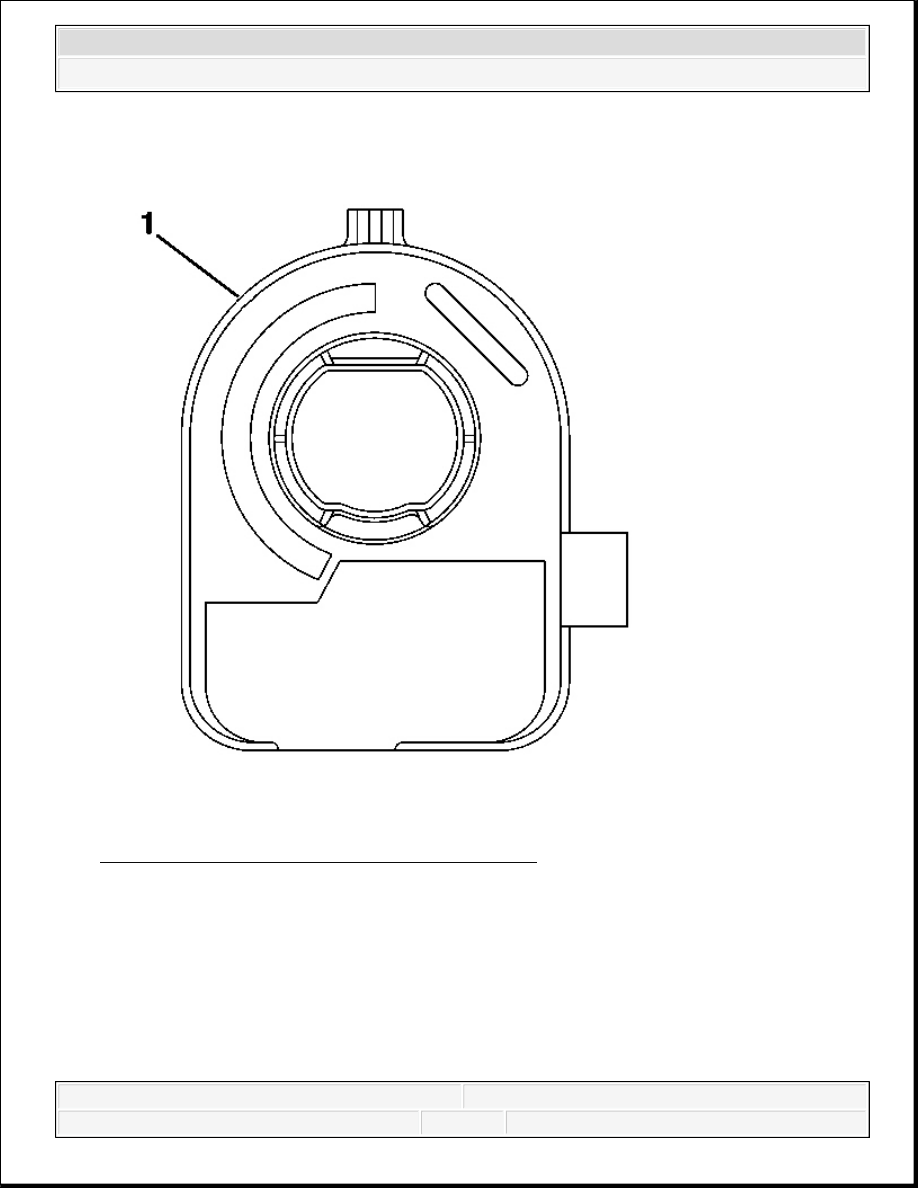

Fig. 50: View Of Steering Wheel Position Sensor
Courtesy of GENERAL MOTORS CORP.

2. From the technicians point of view, the FRONT of the sensor (1) connector will be on the

right.

IMPORTANT: If reusing the existing sensor, you do not have to align the

sensor before removal. Centering is not required when it is
time to reinstall.



2007 Hummer H3

2007 STEERING Steering Wheel and Column - H3



3. Remove the connector from the sensor.

4. Remove the sensor (1) from the adapter and bearing assembly.

5. To install the sensor, proceed to step 1 in the installation section.

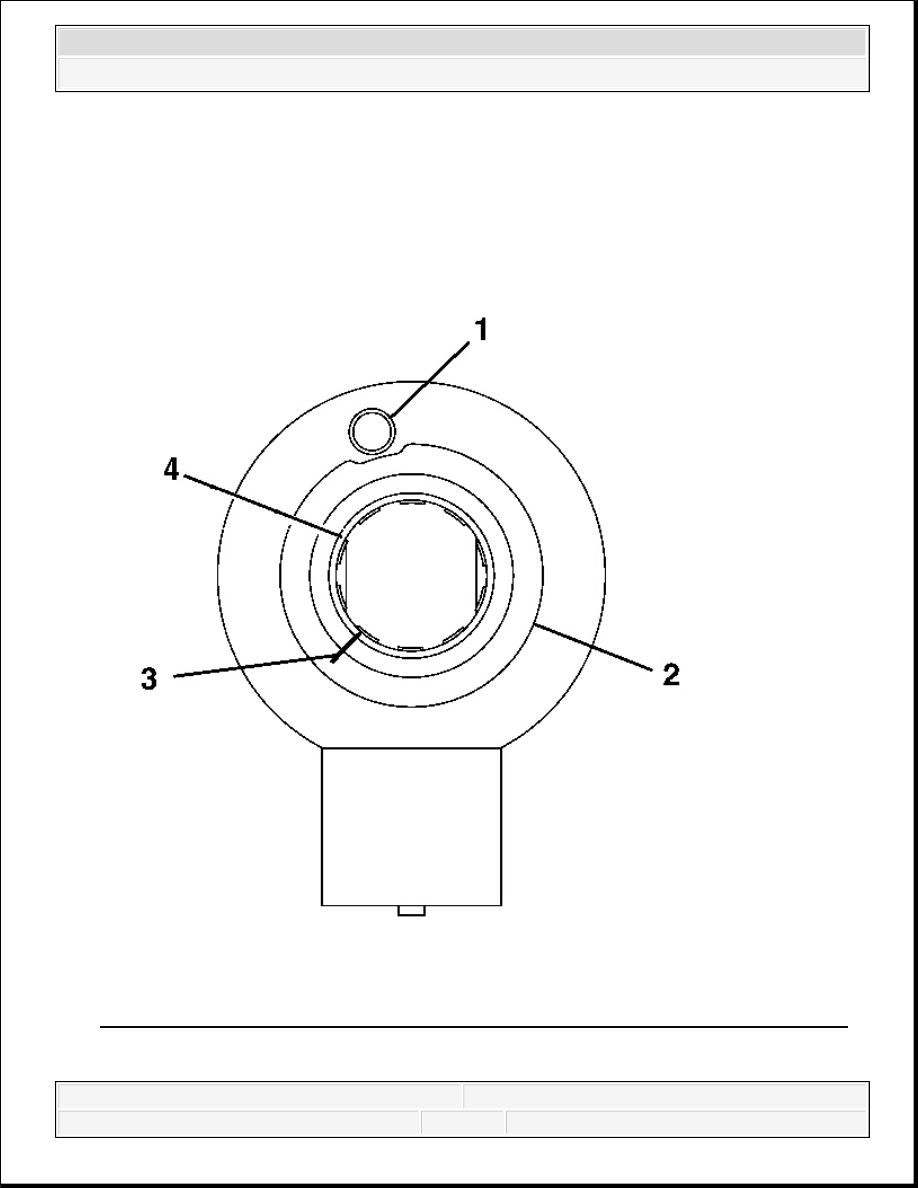

Fig. 51: Steering Wheel Position Sensor Foam Ring, Pin Hole & Rotor Flange Cuff
Courtesy of GENERAL MOTORS CORP.



2007 Hummer H3

2007 STEERING Steering Wheel and Column - H3



6. From the technicians point of view, the FRONT of the sensor will have:



A foam ring (2)



A pin hole (1) for centering the pin-Note the location of the pin hole.



A flush rotor flange cuff (4)

7. Make an alignment mark on the flush rotor flange cuff (3).

8. Remove the connector from the sensor.

9. Remove the sensor from the adapter and bearing assembly.

10. To install the sensor, proceed to step 5 in the installation procedure.

IMPORTANT: If reusing the existing sensor, you must make an alignment

mark on the rotor flange cuff (3) before removing the sensor.
Failure to do so will cause misalignment when installing the
sensor. A new sensor will be required if misaligned.



2007 Hummer H3

2007 STEERING Steering Wheel and Column - H3

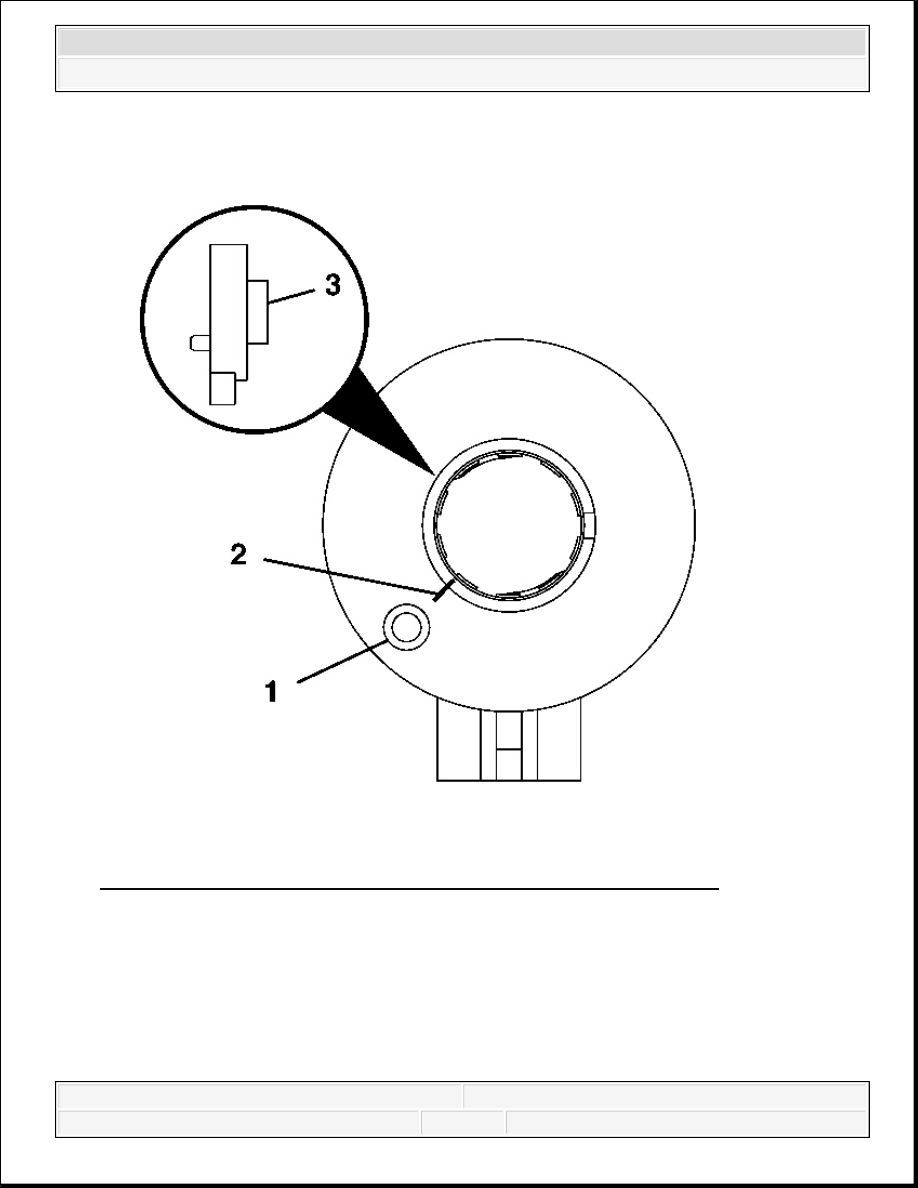

Fig. 52: Identifying Steering Wheel Position Sensor Alignment Mark
Courtesy of GENERAL MOTORS CORP.

11. From the technicians point of view, the FRONT of the sensor will have:



A raised rotor flange cuff (3)



An alignment mark (2) on the rotor flange cuff (3) for installation



A pin hole (1) for the centering pin-Note the location of the pin hole.

12. Remove the connector from the sensor.



2007 Hummer H3

2007 STEERING Steering Wheel and Column - H3
