Cargo Area Light: 3 CP

Cargo Area Light 1

Cargo Area Light 2

22-180

22-180

Exterior Lights

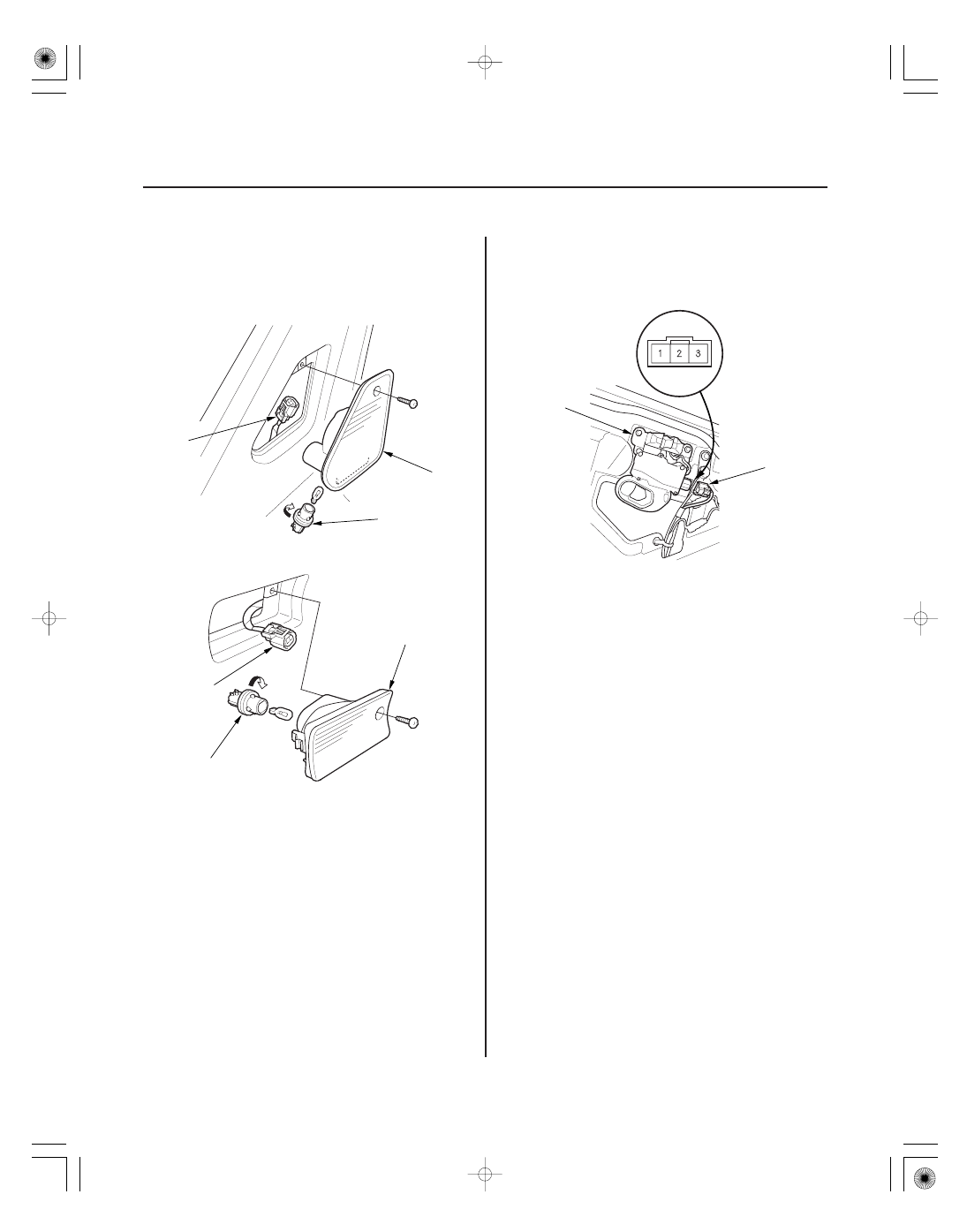

Cargo Area Light Replacement

In-Bed Trunk Lid Latch Switch Test

A

B

C

A

B

C

A

B

1. Remove the screw and cargo area light (A).

2. Disconnect the 2P connector (B) from the light.

3. Turn the bulb socket (C) 45 ° counterclockwise to

remove the bulb.

4. Install the light in the reverse order of removal.

1. Open the in-bed trunk lid.

2. Disconnect the 3P connector (A) from the in-bed

trunk lid latch switch (B).

3. Check for continuity between the No. 2 and No. 3

terminals.

• There should be continuity with the in-bed trunk

lid latch unlatched (trunk open).

• There should be no continuity with the in-bed

trunk lid latch latched (trunk closed).

4. If the continuity is not as specified, replace the

in-bed trunk lid latch switch.

01

02

SJC8A00J32133131123FHAT00

22-181

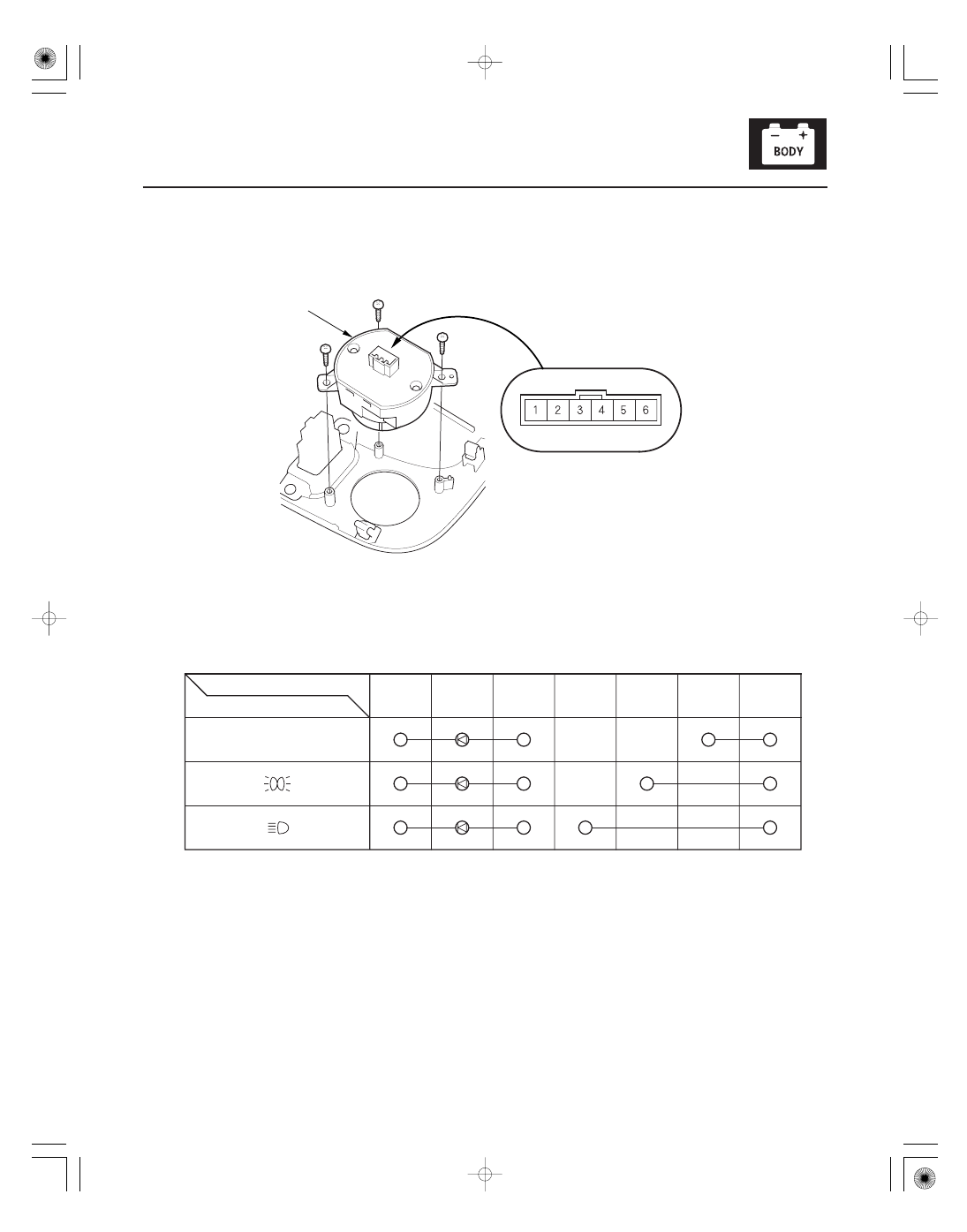

Headlight Switch Test/Replacement

A

Terminal

Position

1

2

3

4

5

6

OFF

1. Remove the instrument panel (see page 20-81).

2. Remove the screws, then remove the headlight switch (A).

3. Inspect the connector terminals to be sure they are all making good contact.

• If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
• If the terminals are OK, check for continuity between the terminals in each switch position according to the

tables.
– If continuity is not as specified, replace the switch.

01

SJC8A00J32118658571FHAT00

Test/Replacement

Adjustment

22-182

Exterior Lights

Tailgate Switch Test/Replacement/Adjustment

B

C

D

A
5.4 N·m
(0.54 kgf·m)

1. Open the tailgate in swing mode.

2. Remove the tailgate mounting screws (A), and pull-out the tailgate switch (B).

3. Disconnect the tailgate switch 2P connector (C). Remove the switch and note the number of adjustment shims (D).

NOTE: The maximum number of shims allowed is 4.

4. Check continuity between the No. 1 and No. 2 terminals of the connector. There should be continuity when the

tailgate is opened.

5. Install the new tailgate switch in reverse order of removal with the original mounting screws, and the same

number of shims removed, and then check the adjustment.

1. Fully close the tailgate switch mode to see if the cargo area lights go off. If the lights stay on, remove the switch

and add a shim, then go to step 2. If the lights go off, go to step 2.

NOTE: The maximum number of shims allowed is 4.

2. Open the tailgate in swing mode.

3. Close the tailgate, but do not latch it.

4. Release the tailgate, it should push open a little and the cargo area lights should come on. If the lights do not

come on, remove a shim and retest.

5. Fully close the tailgate, and open it in down mode. The cargo area lights should not come on or flicker.

6. With the tailgate in down mode, push down on the tailgate. The cargo area lights should not come on or flicker.

7. Lift up on the tailgate slightly and let it drop or bounce. The cargo area lights should not come on or flicker.

8. If the cargo area lights flickered or came on in steps 5 through 7, add a shim and retest.

9. Once the adjustment is completed, remove and discard the original mounting screws one at a time, and replace

them with new screws. Tighten the screws to the specified torque.

*01

SJC8A00J32320100000EAAT00

22-183

Dash Lights Brightness Controller

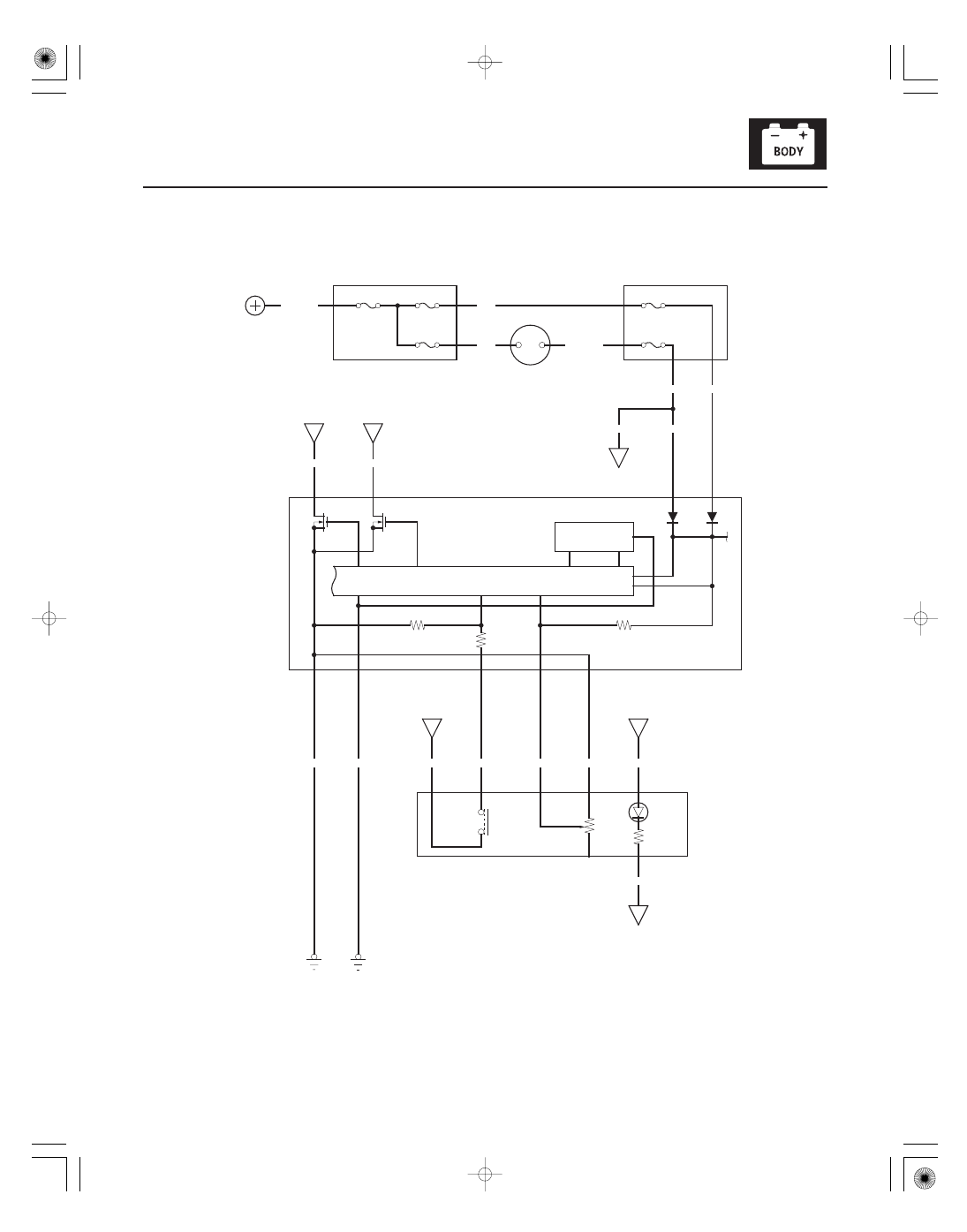

Circuit Diagram

DASH LIGHTS BRIGHTNESS CONTROLLER

6

3

YEL

LT BLU

BLU/BLK

BLU/WHT

RED/BLK

BLK

G402

G401

RED

RED/BLU

C1

C20

YEL

A6

B4

G1

D6

BLK/YEL

C10

A5

X35

N44

YEL

5

LCD DISPLAY

RED

1

BLK

A10

A4

2

4

GAUGE CONTROL MODULE

A19

A20

A3

No.21 (7.5 A)

No.7 (7.5 A)

WHT/RED

No.15 (40 A)

No.22 (BAT) (120 A)

YEL

WHT

IG1

BAT

BLK/YEL

YEL

No.23 (IG) (50 A)

UNDER HOOD FUSE/RELAY BOX

BATTERY

IGNITION SWITCH

UNDER DASH
FUSE/RELAY BOX

POWER SUPPLY CIRCUIT/CONTROLLER
AREA NETWORK CONTROLLER

IG1 HOT in ON (II) and
START (III)

CANCEL
SWITCH

DASH
LIGHTS
(LED)

DASH
LIGHTS
(BULB)

DASH LIGHTS
BRIGHTNESS
CONTROLLER
(In the gauge
control module)

LIGHT
(0.56 W)

No.4 (15 A) FUSE
(UNDER HOOD
FUSE/RELAY BOX)

No.21 (7.5 A) FUSE
(UNDER DASH
FUSE/RELAY BOX)

CANCEL
SWITCH

1

1
