Cowl Cover Replacement (cont’d)

Roof Molding Replacement

Fastener Locations

: Clip, 2

A

: Clip, 4

B

: Clip, 7

I

G

H

F

F

C

C

D

B

B

B

A

I

I

A

I

E

I

J

I

I

I

B

Fastener Locations

: Clip, 3

A

B

5. Remove the clips (A). Detach the clips (B) and

hooks (C) by carefully pulling the driver’s cowl
cover (D) upward. Pull the cover forward to release
the hooks (E), and pull the hinge cover (F) out from
the front fender (G) and windshield molding (H).

6. If necessary, using a trim tool, detach the clips (I),

then remove the hood rear seal (J) from the driver’s
cowl cover.

7. Install the covers in the reverse order of removal,

and note these items:

• Check if the clips are damaged or stress-

whitened, and if necessary, replace them with
new ones.

• Push the clips into place securely.
• Make sure the washer tubes are connected

securely.

KTC trim tool set SOJATP2014

Available through the American Honda Tool and
Equipment Program; call 888-424-6857

NOTE:

• Take care not to scratch the body.
• Use the appropriate tool from the KTC trim tool set to

avoid damage when prying components.

• The steel core in the roof molding cannot be restored

to its original shape once it is bent. Replace the roof
molding when the steel core is bent.

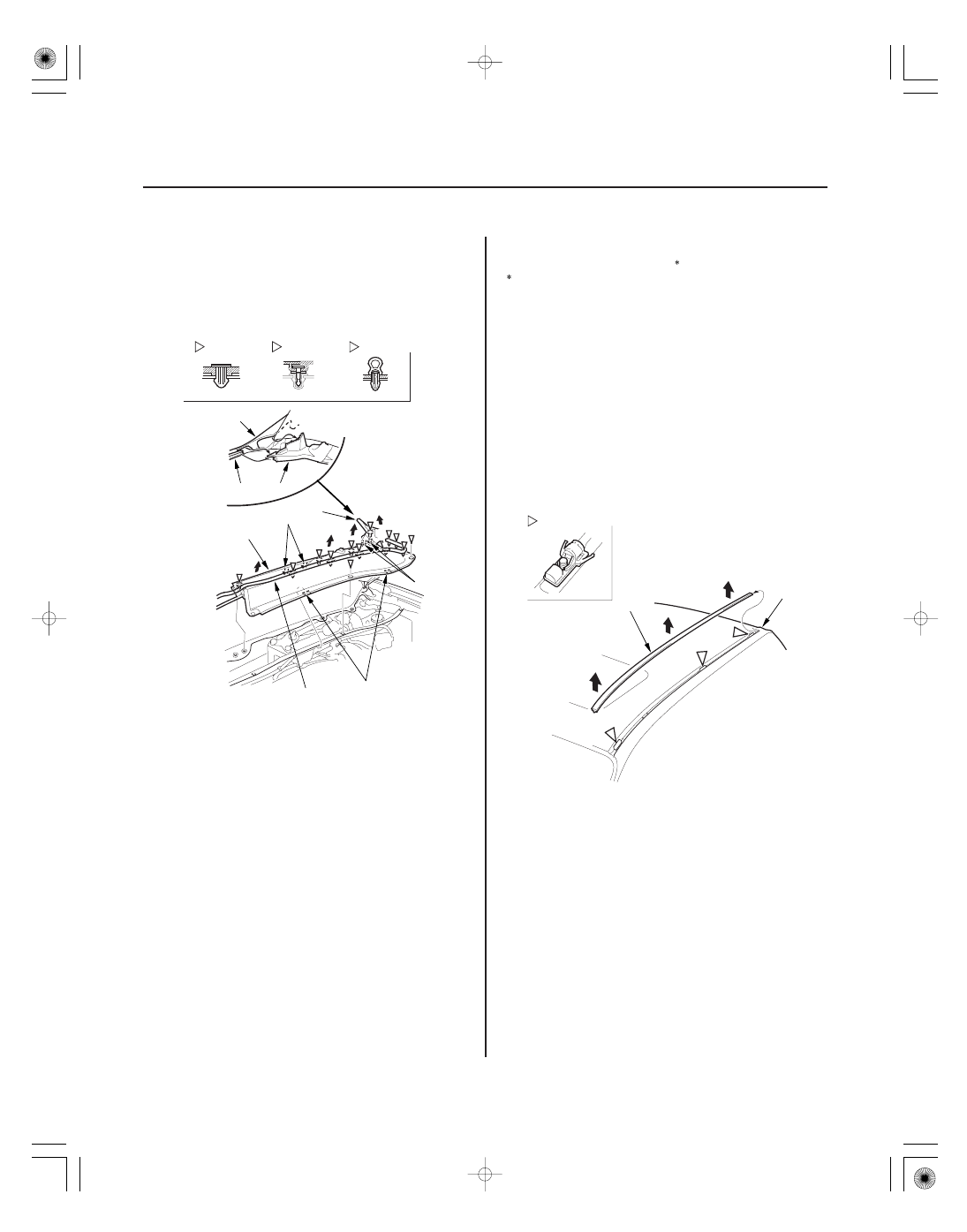

1. Using a trim tool and a shop towel on the body,

starting at the front, detach the clips by prying up
the roof molding (A), and release the molding from
under the rear roof trim (B).

*02

03

01

02

SJC8A00J18573451694KBAT00

Special Tools Required

20-175

20-175

Rear Roof Trim Replacement

Fastener Locations

: Clip, 3

A

B

B

C

A

A

C

C

Fastener Locations

: Clip, 7

B

C

B

B B

B

B

B

B

A

Fastener Locations

: Nut, 2

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)

C

B

A

A

A

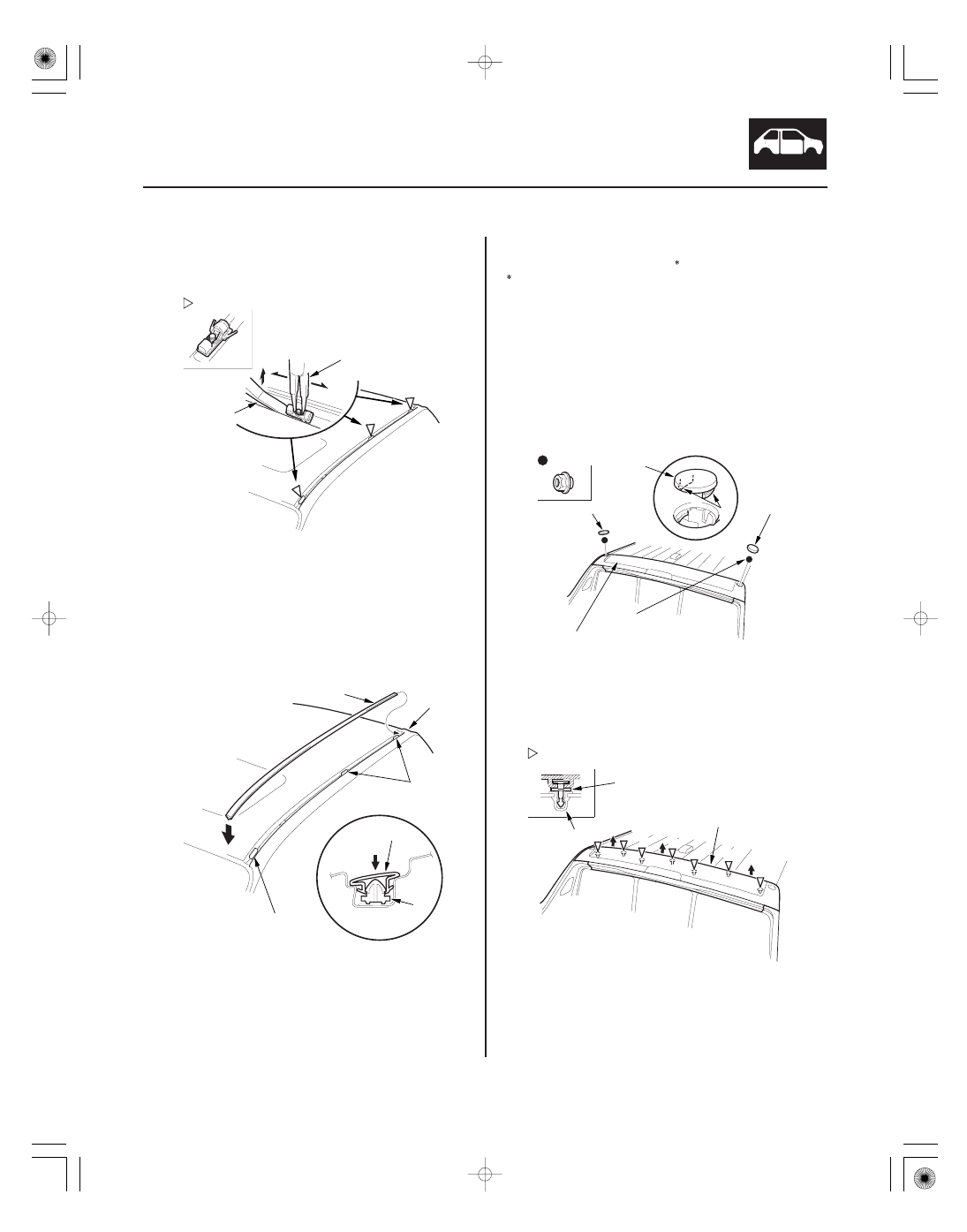

2. Using a trim tool (A) and the pliers (B), remove the

clips from the body.

3. Replace any damaged clips.

4. Install the clips to the body. The clip should be

installed with its hook toward the rear.

5. Insert the rear end of the roof molding (A) under

the rear roof trim (B), and align the front edge of the
molding with the body, then push on the clips (C)
portions until the molding snap into place.

KTC trim tool set SOJATP2014

Available through the American Honda Tool and
Equipment Program; call 888-424-6857

NOTE:

• Take care not to scratch the body.
• Use the appropriate tool from the KTC trim tool set to

avoid damage when prying components.

1. Using a trim tool, pry the caps (A) up to detach the

hooks (B), then remove them, and remove the nuts
securing the rear roof trim (C).

2. Using a trim tool, carefully pry up the on rear roof

trim (A) along three front clips (B) to release them
from the grommets (C). Start with the left front clip,
and work your way to the right clip.

3. Place your hand under the rear roof trim and lift to

release the four remaining clips from the
grommets.

(cont’d)

Replace.

03

04

20-176

Exterior Trim

Rear Roof Trim Replacement (cont’d)

A

D

B

C

C

B

B

D

A

D

B

C

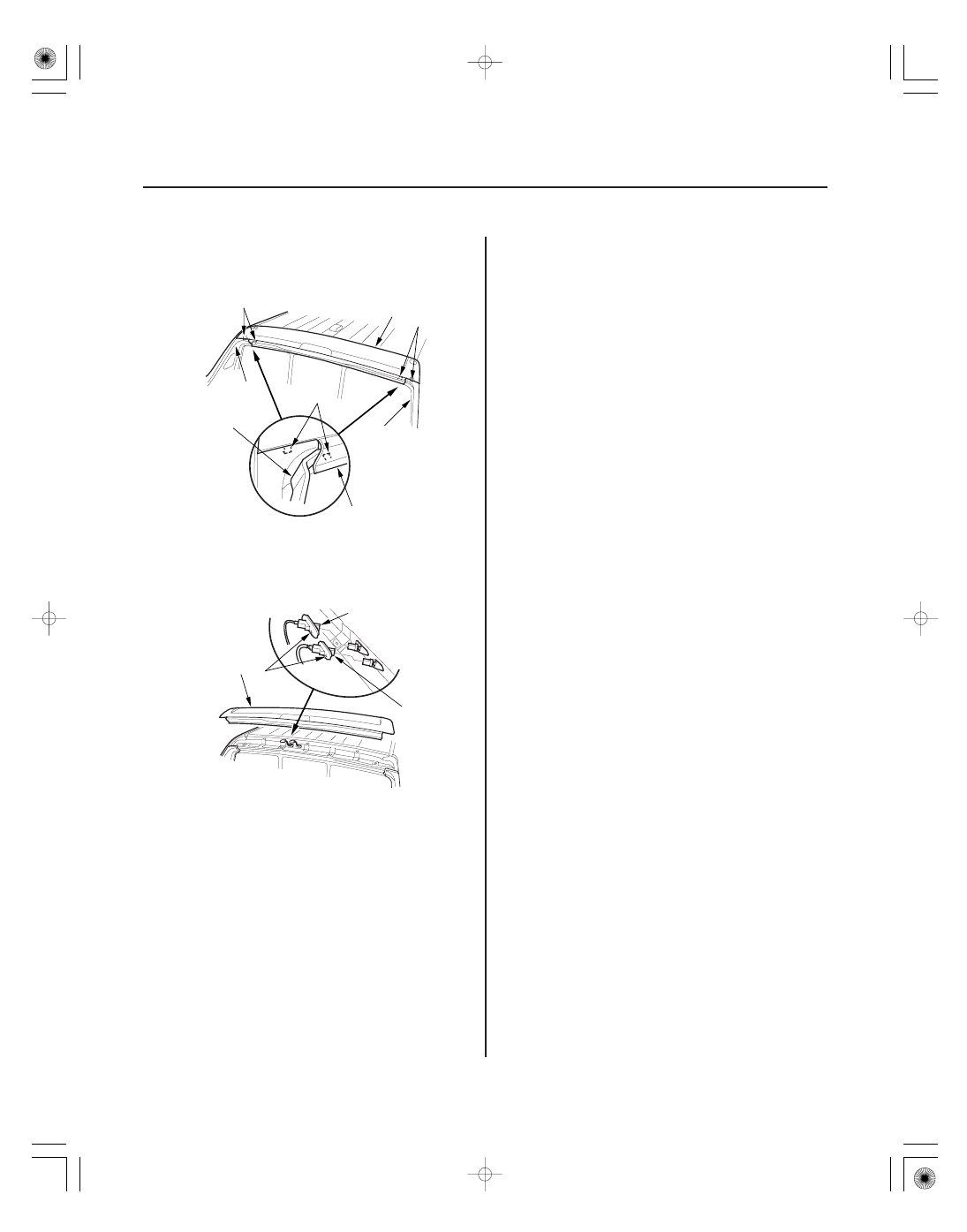

4. Using a trim tool (A), detach the hooks (B) of the

rear roof trim (C) from the C-pillar outer trim (D) on
both sides while pulling out the rear roof trim.

5. Remove the connector grommets (A) from the body,

and then disconnect the antenna connector (B) and
high mount brake light connector (C), then remove
the rear roof trim (D).

6. Remove the clips from the rear roof trim, and

remove the grommets from the body. Replace the
clips and grommets with new ones.

7. Install the trim in the reverse order of removal, and

note these items:

• Check if the clips are damaged or stress-

whitened, and if necessary, replace them with
new ones.

• Make sure the antenna connector and high

mount brake light connector are plugged in
properly.

• Make sure the each connector grommet is

installed securely.

• Push the clips into place securely.
• Make sure the clips are set securely and the nuts

tightened.

01

SJC8A00J18573424101KBAT00

20-177

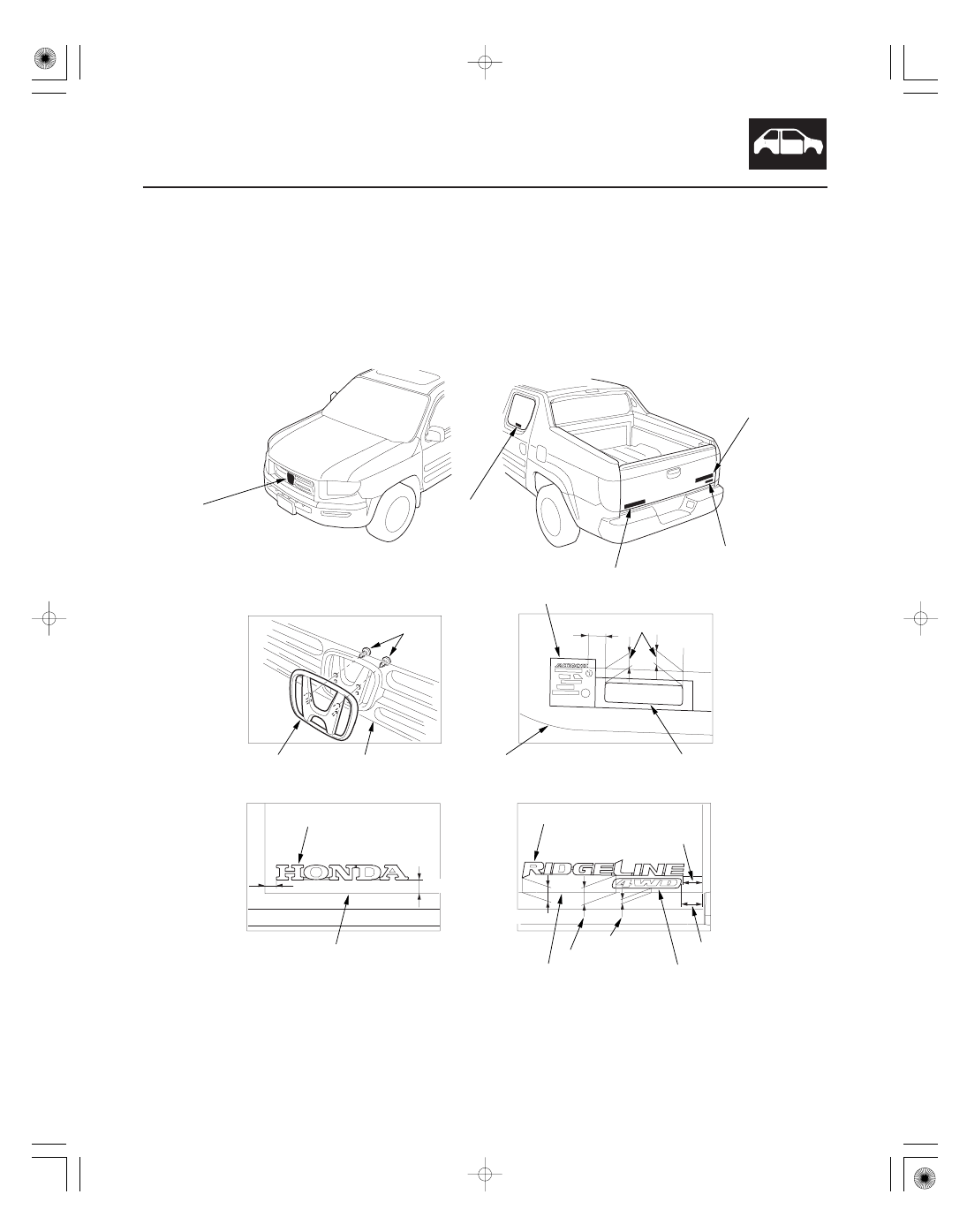

Emblem/Sticker Replacement

FRONT ’’H’’ EMBLEM

ULEV STICKER
(For some models)

REAR RIDGELINE
EMBLEM

REAR 4WD EMBLEM

REAR HONDA EMBLEM

GLASS MARK

15 (0.59)

8 (0.31)

Edge of the
rear door panel

ULEV STICKER
Onto the inside face of
the rear door glass

Unit: mm (in.)
Adhesive tape (Back of the rear HONDA emblem,
rear RIDGELINE emblem, and rear 4WD emblem):
Thickness 0.8 mm (0.03 in.)

SCREWS

FRONT BUMPER MESH

FRONT ’’H’’ EMBLEM

REAR RIDGELINE EMBLEM

37 (1.46)

39 (1.54)

REAR 4WD EMBLEM

36 (1.42)

30 (1.18)

Edge of the tailgate

28 (1.1)

34 (1.34)

REAR HONDA EMBLEM

Edge of the tailgate

10 (0.39)

NOTE: When using dental floss to cut the emblem adhesive, take care not to scratch the body.

1. To remove the front ‘‘H’’ emblem, remove the front bumper mesh (see page 20-172).

2. Clean the bonding surface with a sponge dampened in isopropyl alcohol. After cleaning, keep oil, grease, and

water from getting on the surface.

3. Apply the emblems where shown.
