Honda Odyssey 2004. Manual - part 169

−

＊０１

０１

０２

Ｓ０Ｘ４ＡＡ２Ｋ７７１０００９０７１５ＦＡＡＴ００

1999-2000 Models

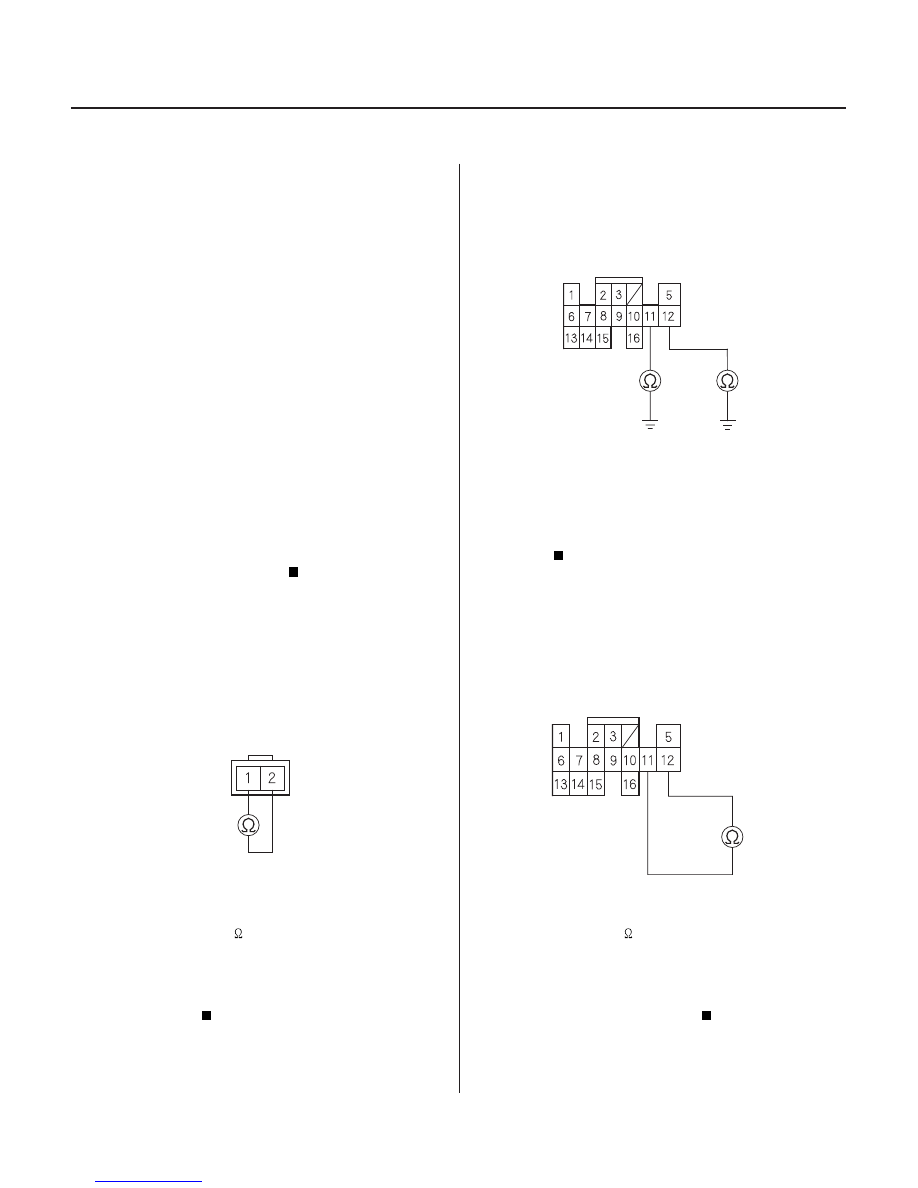

DTC P0715:

YES

14-70

Automatic Transmission

DTC Troubleshooting

MAINSHAFT SPEED SENSOR
CONNECTOR

PCM CONNECTOR D (16P)

NMSG (WHT)

NM (RED)

PCM CONNECTOR D (16P)

NMSG (WHT)

NM (RED)

Problem in Mainshaft Speed

Sensor Circuit

NOTE: Record all freeze data and review General
Troubleshooting Information (see page 14-3) before
you troubleshoot.

Code P0715 (15) on the PCM doesn’t always mean
there’s an electrical problem in the mainshaft or
countershaft speed sensor circuit; code P0715 (15) may
also indicate a mechanical problem in the transmission.
Any problem causing irregular countershaft to
mainshaft speed difference can cause this code.

1. Check the mainshaft and countershaft speed

sensor installation.

Go to step 2.

Reinstall and recheck.

2. Disconnect the 2P connector from the mainshaft

speed sensor.

3. Measure mainshaft speed sensor resistance at the

sensor connector.

Go to step 4.

Replace the mainshaft speed sensor (see

page 14-134).

4. Disconnect the D (16P) connector from the PCM.

5. Check for continuity between body ground and the

D11 terminal and D12 terminal individually.

Repair short to ground in the wires between

the D11 and D12 terminals and the mainshaft speed
sensor.

Go to step 6.

6. Connect the mainshaft speed sensor connector.

7. Measure the resistance between the D11 and D12

terminals.

Run the Electrical Troubleshooting Flowchart

for code P0720 (code 9). Check for loose terminal fit
in the PCM connectors. If necessary, substitute a
known-good PCM and recheck.

Go to step 8.

Terminal side of male terminals

Wire side of female terminals

Ar e the mainshaf t and the counter shaf t speed
sensor s installed pr oper ly?

Is ther e 400

600

Is ther e continuity?

Is ther e 400

600

03/07/29 09:30:59 61S0X050_140_0073

−

０３

＊０２

YES

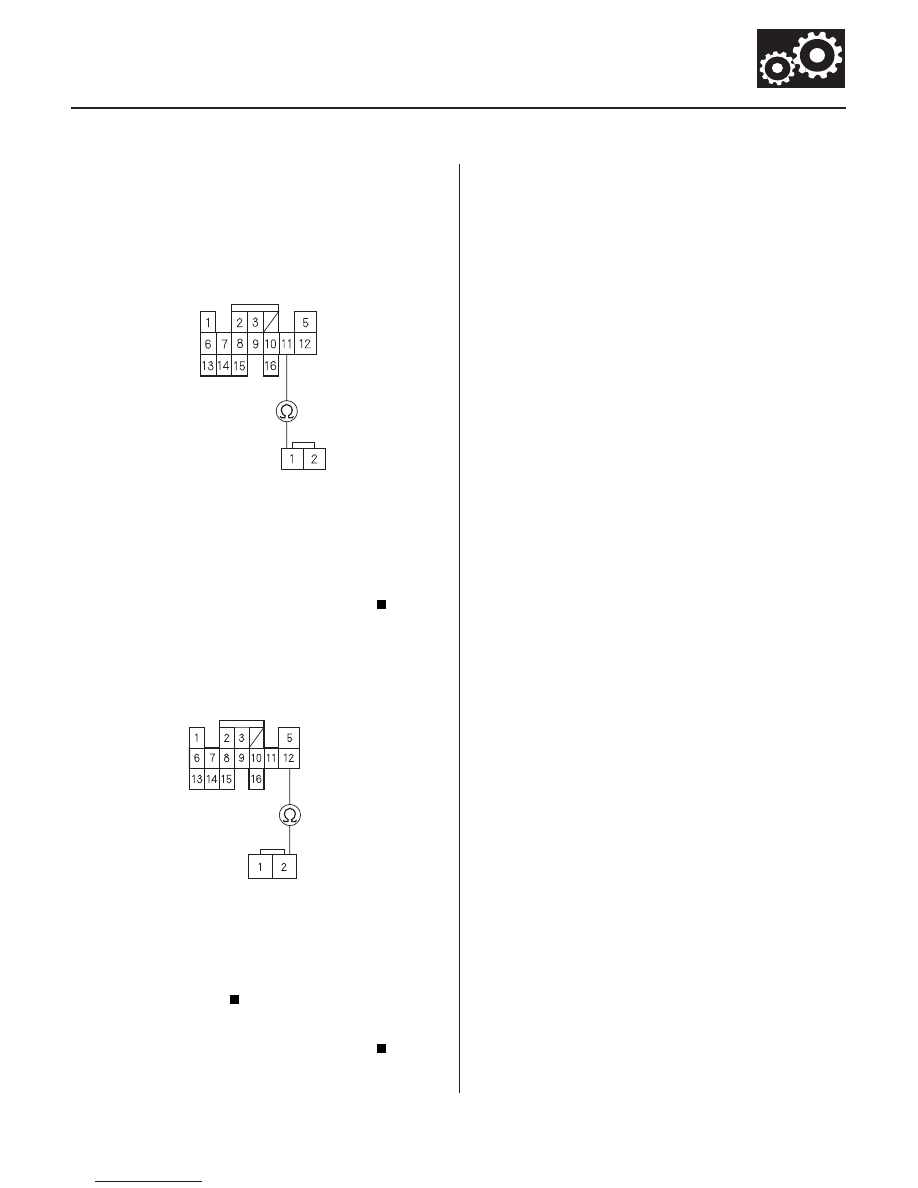

14-71

PCM CONNECTOR D (16P)

NM (RED)

RED

MAINSHAFT SPEED
SENSOR CONNECTOR

PCM CONNECTOR D (16P)

NMSG (WHT)

WHT

MAINSHAFT SPEED
SENSOR CONNECTOR

8. Disconnect the 2P connector from the mainshaft

speed sensor.

9. Check for continuity between the D11 terminal and

the No. 1 terminal of the mainshaft speed sensor
connector.

Go to step 10.

Repair open in the wire between the D11

terminal and the mainshaft speed sensor.

10. Check for continuity between the D12 terminal and

the No. 2 terminal of the mainshaft speed sensor
connector.

Check for loose terminal fit in the PCM

connectors. If necessary, substitute a known-good
PCM and recheck.

Repair open in the wire between the D12

terminal and the mainshaft speed sensor.

Wire side of female terminals

Is ther e continuity?

03/07/29 09:31:00 61S0X050_140_0074

−

＊０１

０１

０２

Ｓ０Ｘ４ＡＡ２Ｋ７７１０００９０７２０ＦＡＡＴ００

1999-2000 Models

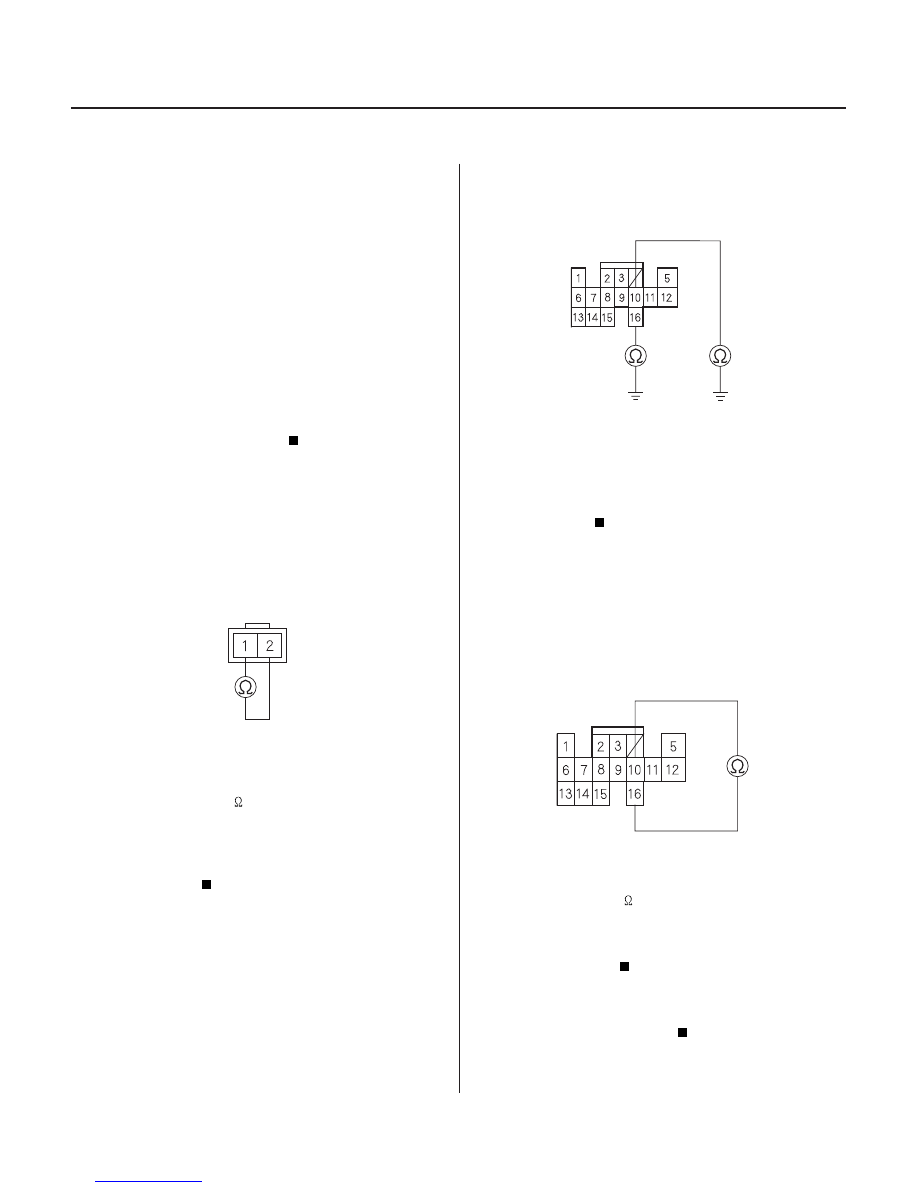

DTC P0720:

YES

14-72

Automatic Transmission

DTC Troubleshooting (cont’d)

COUNTERSHAFT SPEED
SENSOR CONNECTOR

PCM CONNECTOR D (16P)

NC (BLU)

NCSG (GRN)

PCM CONNECTOR D (16P)

NC (BLU)

NCSG (GRN)

Problem in Countershaft Speed

Sensor Circuit

NOTE: Record all freeze data and review General
Troubleshooting Information (see page 14-3) before
you troubleshoot.

1. Check the countershaft speed sensor installation.

Go to step 2.

Reinstall and recheck.

2. Disconnect the 2P connector from the countershaft

speed sensor.

3. Measure countershaft speed sensor resistance at

the sensor connector.

Go to step 4.

Replace the countershaft speed sensor (see

page 14-134).

4. Disconnect the D (16P) connector from the PCM.

5. Check for continuity between body ground and the

D10 terminal and D16 terminal individually.

Repair short to ground in the wires between

the D10 and D16 terminals and the countershaft
speed sensor.

Go to step 6.

6. Connect the countershaft speed sensor connector.

7. Measure the resistance between the D10 and D16

terminals.

Check for loose terminal fit in the PCM

connectors. If necessary, substitute a known-good
PCM and recheck.

Repair loose terminal or open in the wires

between the D10 and D16 terminals and the
countershaft speed sensor.

Terminal side of male terminals

Wire side of female terminals

Is the counter shaf t speed sensor installed
pr oper ly?

Is ther e 400

600

Is ther e continuity?

Is ther e 400

600

03/07/29 09:31:00 61S0X050_140_0075

−

Ｓ０Ｘ４ＡＡ２Ｋ７７１０００９０７３０ＦＡＡＴ００

1999-2000 Models

DTC P0730:

YES

14-73

Problem in Shift Control System

NOTE:

• Record all freeze data and review General

Troubleshooting Information (see page 14-3) before
you troubleshoot.

• Keep replacement control solenoid valves on hand:

– Lock-up control solenoid valve/shift control

solenoid valve A assembly

– Shift control solenoid valves B and C
– A/T clutch pressure control solenoid valve A/B

assembly

1. Check whether the scan tool or the HDS indicates

another code.

Perform the Troubleshooting Flowchart for

the indicated Code(s). Recheck for code P0730 after
troubleshooting.

Go to step 2.

NOTE: Do not continue with this troubleshooting
until the causes of any other DTCs have been
corrected.

2. Measure the 1st, 2nd, 3rd, and 4th clutch pressure

(see page 14-128).

Go to step 3.

Repair the hydraulic system as necessary.

3. Replace the Solenoid Assembly set (lock-up control

solenoid valve/shift control solenoid valve A
assembly (see page 14-130), the shift control
solenoid valves B and C (see page 14-131) and the
A/T clutch pressure control solenoid valve A/B
assembly (see page 14-133)).

4. Clear the DTC with the scan tool or the HDS.

5. Drive the vehicle at a speed over 12 mph (20 km/h)

in 1st, 2nd, 3rd, and 4th gear in D4 position for
more than 30 seconds.

6. Recheck for code P0730.

Replace the transmission.

The system is OK at this time.

Does the scan tool or the HDS indicate another
code?

Is each clutch pr essur e within the ser vice limit?

Does the scan tool or the HDS indicate code
P07 30?

03/07/29 09:31:01 61S0X050_140_0076
