P2227 (13)

o

Barometric Pressure
(BARO) Sensor
Range/Performance
Problem

ON

P2228 (13)

--

Barometric Pressure
(BARO) Sensor Circuit
Low Voltage

ON

P2229 (13)

--

Barometric Pressure
(BARO) Sensor Circuit
High Voltage

ON

P2238 (48)

--

Air Fuel Ratio (A/F)
Sensor (Sensor 1) AFS+
Circuit Low Voltage

ON

P2252 (48)

--

Air Fuel Ratio (A/F)
Sensor (Sensor 1) AFS-
Circuit Low Voltage

ON

P2270 (63)

o

Secondary Heated Oxygen
Sensor (Secondary HO2S
(Sensor 2)) Circuit Signal
Stuck Lean

ON

P2271 (63)

o

Secondary Heated Oxygen
Sensor (Secondary HO2S
(Sensor 2)) Circuit Signal
Stuck Rich

ON

P2422 (117)

o

Evaporative Emission
(EVAP) Canister Vent
Shut Valve Stuck Closed
Malfunction

ON

P2552 (40)

--

Throttle Actuator Control
Module Relay Malfunction

ON

P2610 (132)

--

Engine Control Module
(ECM)/Powertrain Control
Module (PCM) Ignition
Off Internal Timer
Performance Problem

ON

P2646 (22)

--

Rocker Arm Oil Pressure
Switch Circuit Low
Voltage

ON

P2647 (22)

--

Rocker Arm Oil Pressure
Switch Circuit High
Voltage

ON

P2648 (21)

--

Rocker Arm Oil Control
Solenoid Circuit Low
Voltage

ON

P2649 (21)

--

Rocker Arm Oil Control

ON



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element



Solenoid Circuit High
Voltage

P2A00 (61)

o

Air Fuel Ratio (A/F)
Sensor (Sensor 1) Circuit
Range/Performance
Problem

ON

U0028 (126)

--

F-CAN Malfunction (BUS-
OFF)

ON

U0107 (30)

--

Lost Communication With
Throttle Actuator Control
Module

ON

U0122 (126)

--

F-CAN Malfunction
(Engine Control Module
(ECM/Powertrain Control
Module (PCM)-VSA
modulator-control unit)

OFF

U0155 (126)

--

F-CAN Malfunction
(Engine Control Module
(ECM/Powertrain Control
Module (PCM)-Gauge
Control Module)

ON

NOTE:

The above DTCs are indicated when the PGM-Fl system is selected in the HDS. Some automatic
transmission DTCs cause the MIL to come on. If the MIL is on and no DTCs are indicated in the PGM-
Fl system, select the A/T system, and check for automatic transmission DTCs.

(1)

These DTCs are indicated by a blinking MIL when the SCS line is jumped with the HDS.

(2)

M/T.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element



2007-2008 BRAKES

VSA (Vehicle Stability Assist) System Components - Element

COMPONENT LOCATION INDEX

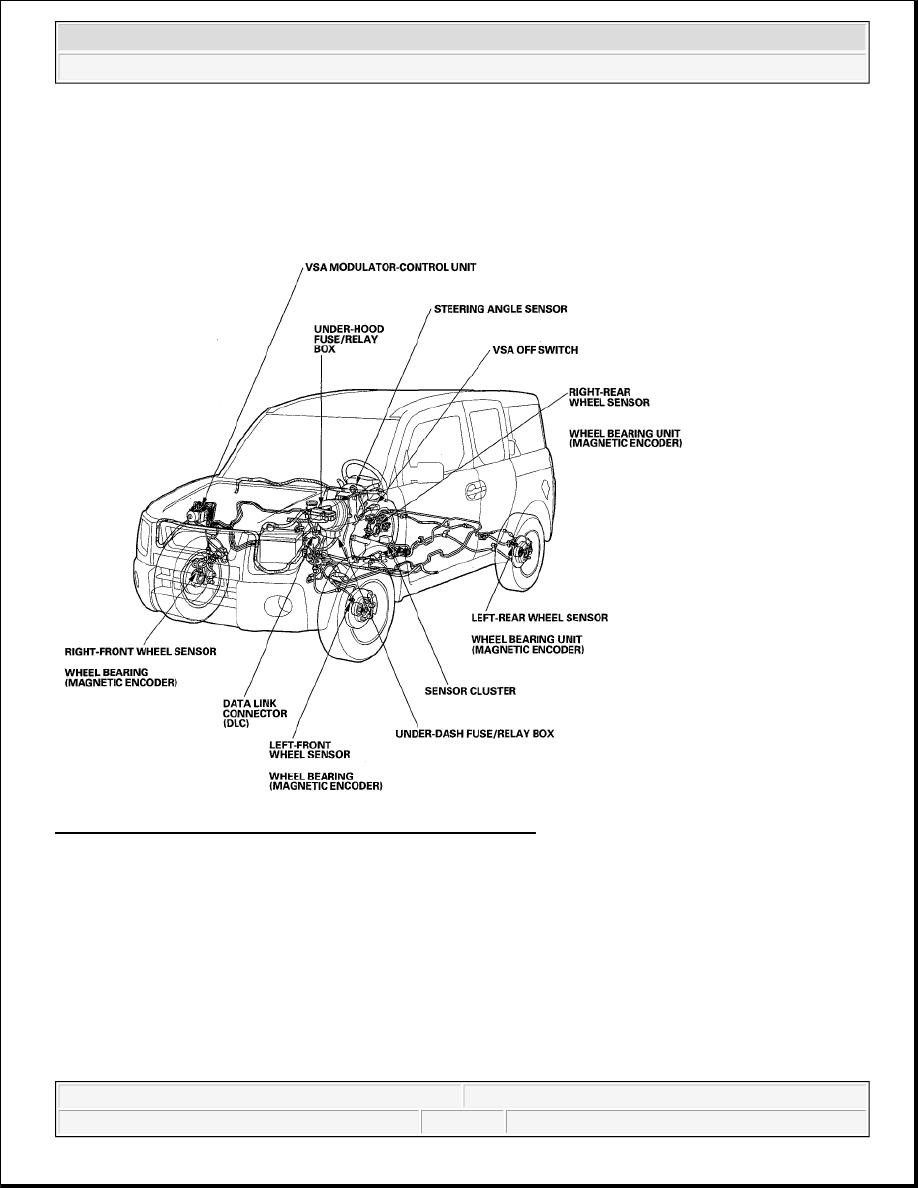

Fig. 1: Identifying Vehicle Stability Assist System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

GENERAL TROUBLESHOOTING INFORMATION

SYSTEM INDICATOR

This system has four indicators:



ABS indicator (A)



Brake system indicator (B)



VSA indicator (C)



2007 Honda Element EX

2007-2008 BRAKES VSA (Vehicle Stability Assist) System Components - Element





2007 Honda Element EX

2007-2008 BRAKES VSA (Vehicle Stability Assist) System Components - Element





VSA activation indicator (D)

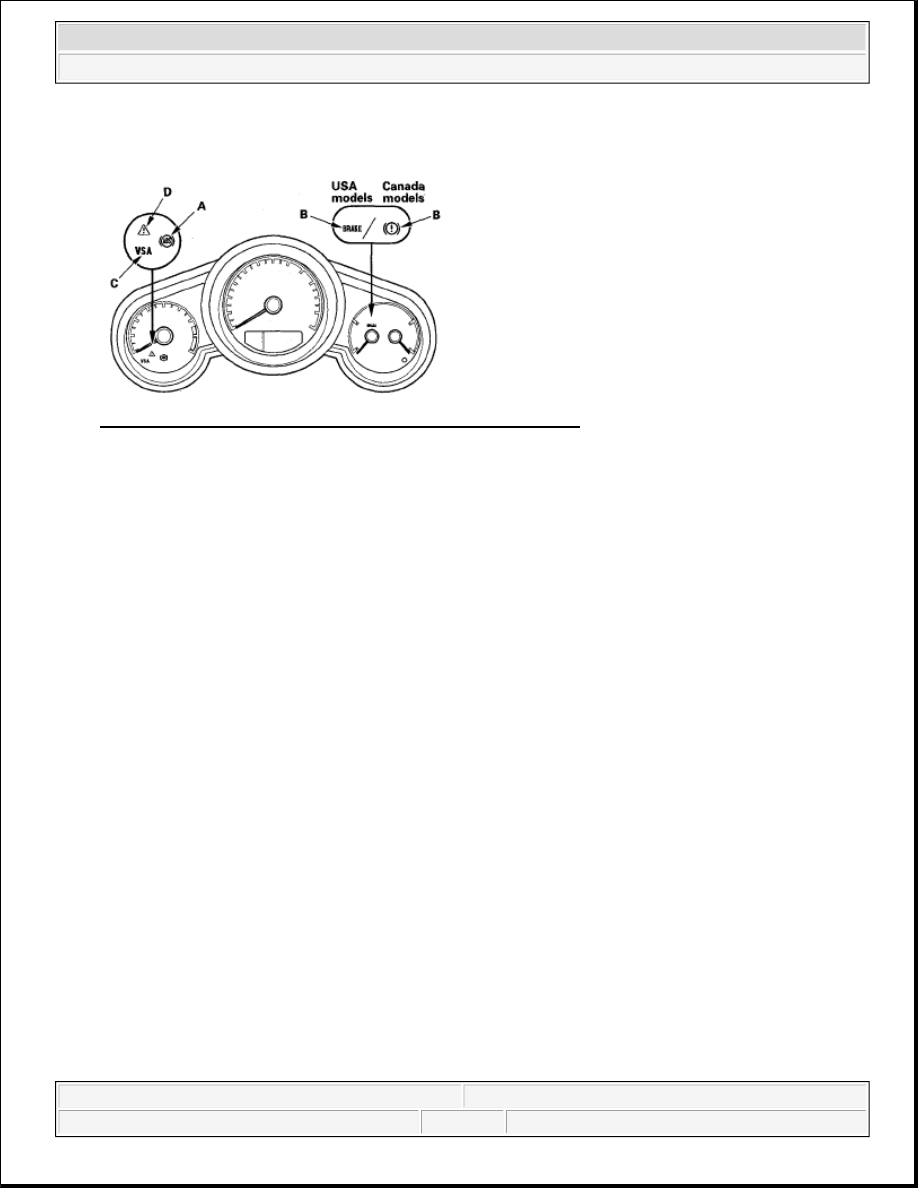

Fig. 2: Identifying ABS Indicator And Brake System Indicator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

When the system detects a problem, it will turn the appropriate indicator on. Depending on the failure, the VSA
modulator-control unit determines which indicators are turned on.

When the system is OK, each indicator comes on for about 2 seconds after turning the ignition switch ON (II),
then goes off.

ABS Indicator

The ABS indicator comes on when the ABS function is lost. The brakes still work like a conventional system.

Brake System Indicator

The brake system indicator comes on when the EBD function is lost, the parking brake is applied, and/or the
brake fluid level is low.

VSA Indicator

The VSA indicator comes on, when VSA function is lost.

VSA Activation Indicator

The VSA activation indicator blinks, when the VSA function is activating. The VSA activation indicator comes
on, when the VSA is turned OFF by using the VSA OFF switch, or the VSA function is lost.

ABS/VSA INDICATOR



If the system is OK, the ABS and VSA indicators go off 2 seconds after turning the ignition switch ON
(II).



The ABS and VSA indicators come on when the control unit detects a problem in the system. However,
even though the system is operating properly, the indicator may come on under these conditions:
