shaft (D).

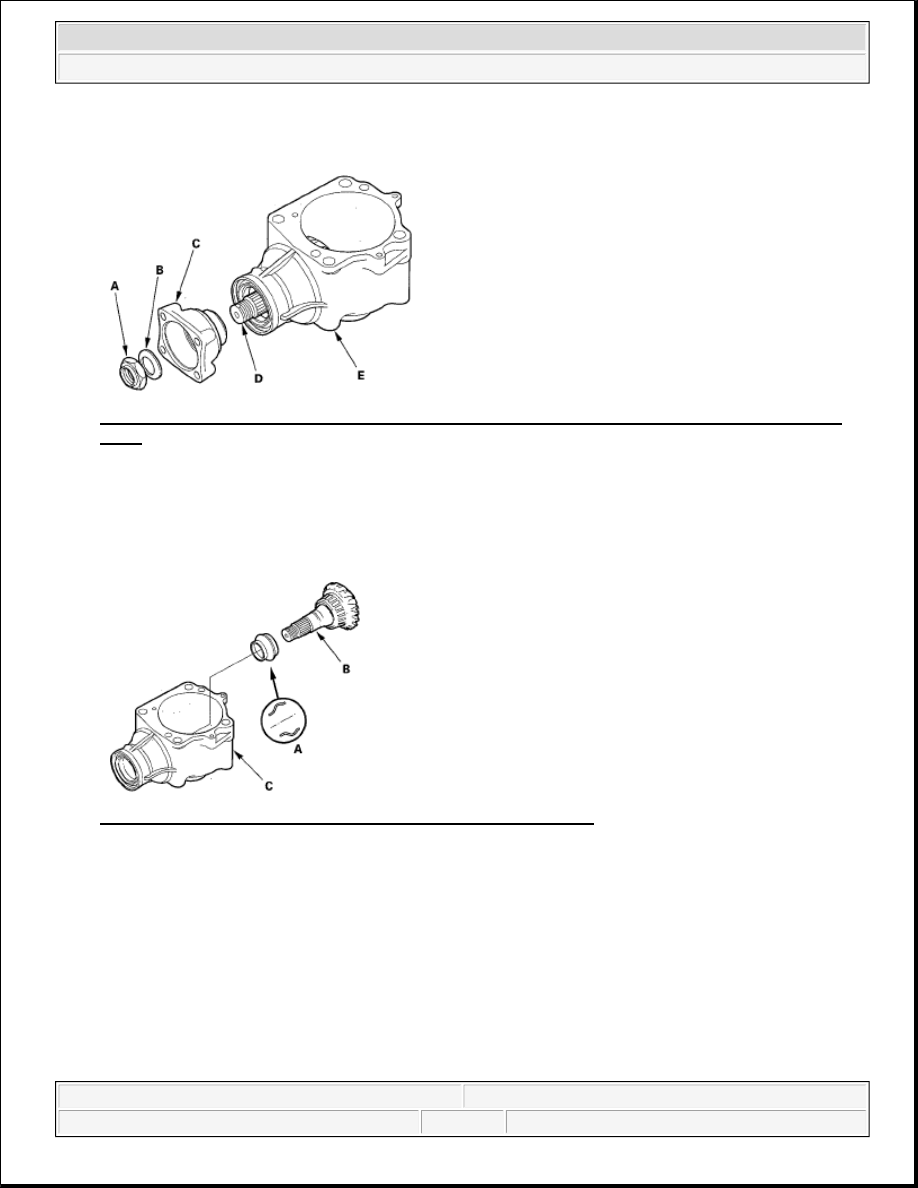

Fig. 216: Identifying Locknut, Conical Spring Washer, Companion Flange And Transfer Output
Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. Remove the transfer output shaft from the transfer housing (E).

24. Install the new transfer spacer (A) on the transfer output shaft (B) in the direction shown, then install

them in the transfer housing (C).

Fig. 217: Identifying Transfer Spacer On Transfer Output Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

25. Install the companion flange (A), new O-ring (B), back-up ring (C), conical spring washer (D), and

locknut (E) on the transfer output shaft (F).

NOTE:



Coat the threads of the locknut, O-ring, and transfer output shaft with
MTF before installing the locknut.



Install the conical spring washer in the direction shown.



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



26. Securely clamp the transfer housing (A) in a bench vise (B) with wood blocks.

Fig. 219: Tightening Transfer Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

27. Install the holder handle (C) and companion flange holder (D) on the companion flange, then tighten the

transfer output shaft locknut while measuring the starting torque of the transfer output shaft.

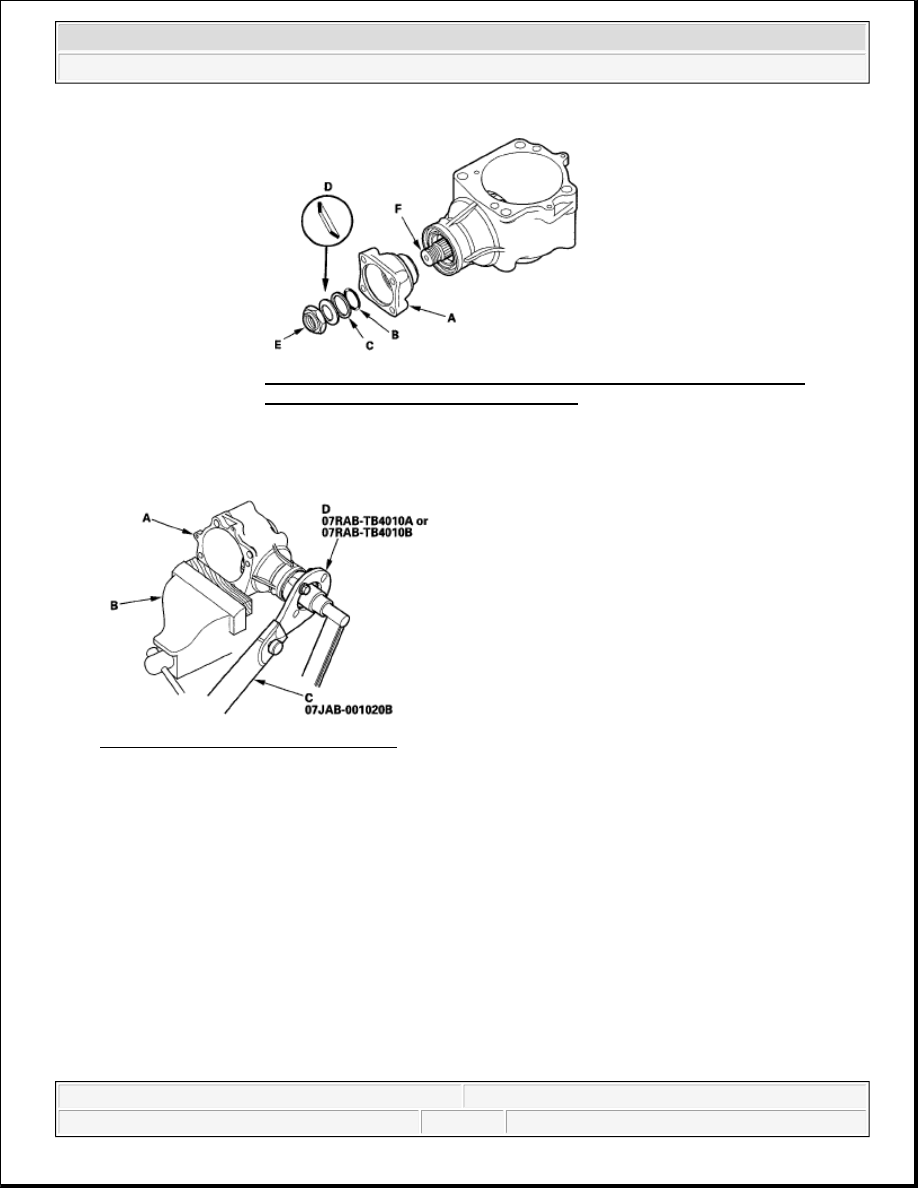

Fig. 218: Identifying Companion Flange, O-Ring, Back-Up Ring,
Conical Spring Washer And Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:



Rotate the companion flange several times to seat the tapered roller
bearings, then measure the starting torque.



If the starting torque exceeds 1.39 N.m (14.2 kgf.cm, 12.3 lbf.in.),
replace the transfer spacer and reassemble the parts. Do not adjust
the starting torque with the locknut loose.



If the tightening torque exceeds 260 N.m (26.5 kgf.m, 192 lbf.ft),
replace the transfer spacer and reassemble the parts.



Write down the measurement of the starting torque, it is used to
measure the total starting torque.



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Starting Torque: 0.98-1.39 N.m (10.0-14.2 kgf.cm, 8.7-12.3 lbf.in.)

Tightening Torque: 132-260 N.m (13.5-26.5 kgf.m, 97.6-192 lbf.ft)

28. Remove the holder handle and companion flange holder.

29. Stake the locknut into the transfer output shaft using a 3.5 mm punch.

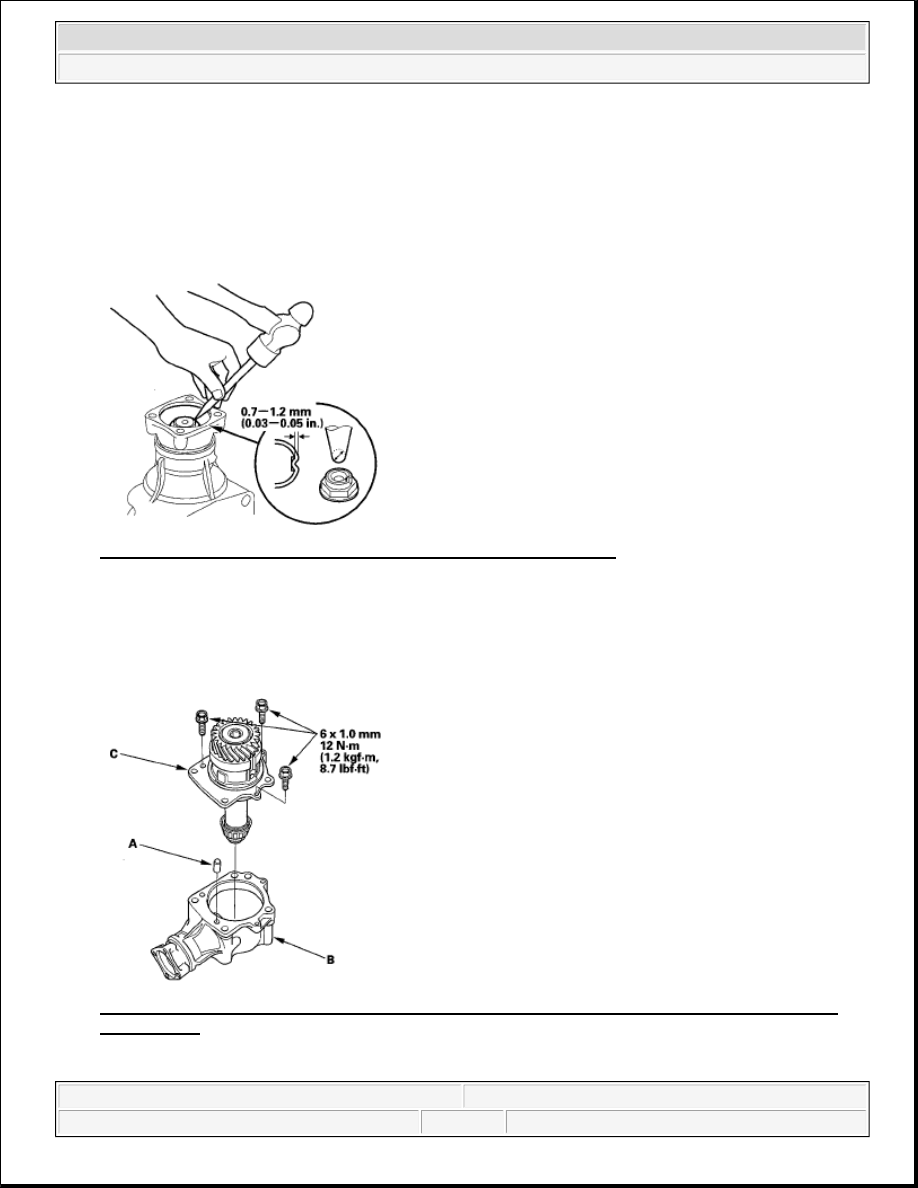

Fig. 220: Removing Holder Handle And Companion Flange Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.

30. Install the dowel pin (A) in the transfer housing (B), then install the transfer holder assembly (C).

Fig. 221: Identifying Dowel Pin, Transfer Housing And Transfer Holder Assembly With Torque
Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

Do not install the O-ring in this step.



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



31. Securely clamp the transfer housing (A) in a bench vise (B) with wood blocks. Then rotate the companion

flange several times to seat the tapered roller bearings.

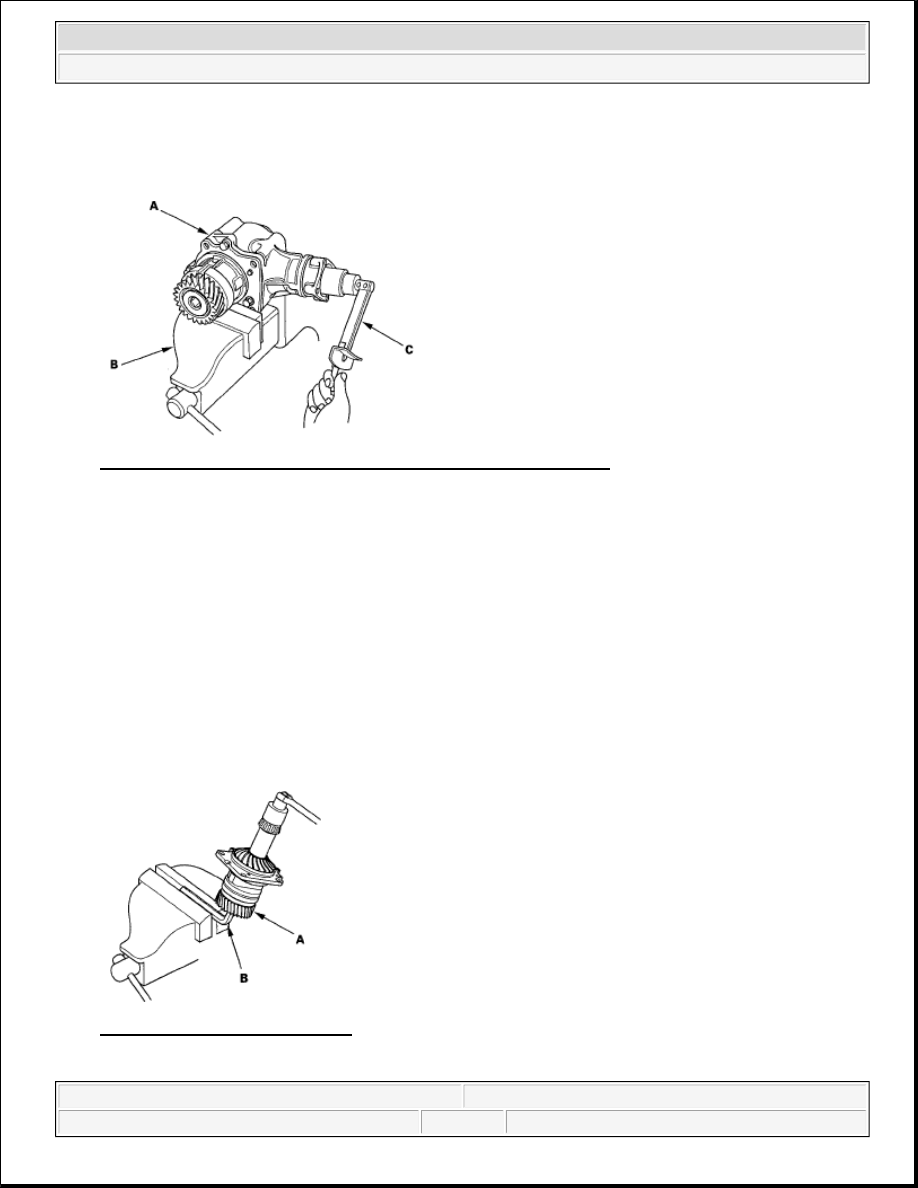

Fig. 222: Rotating Companion Flange To Tapered Roller Bearings
Courtesy of AMERICAN HONDA MOTOR CO., INC.

32. Measure the total starting torque using the torque wrench (C).

Total Starting Torque: 1.30-2.47 N.m (13.3-25.2 kgf.cm, 11.5-21.9 lbf.in) + Transfer Driven Gear
Shaft Starting Torque Value (written down in step 25).

33. Remove the transfer holder assembly from the transfer housing.

34. If the measurement is not within the standard, go to step 35.

If the measurement is within the standard, go to step 47.

35. Hold the transfer shaft (A) with a 14 mm hex wrench (B) clamped in a bench vise then loosen the

locknut.

Fig. 223: Holding Transfer Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element
