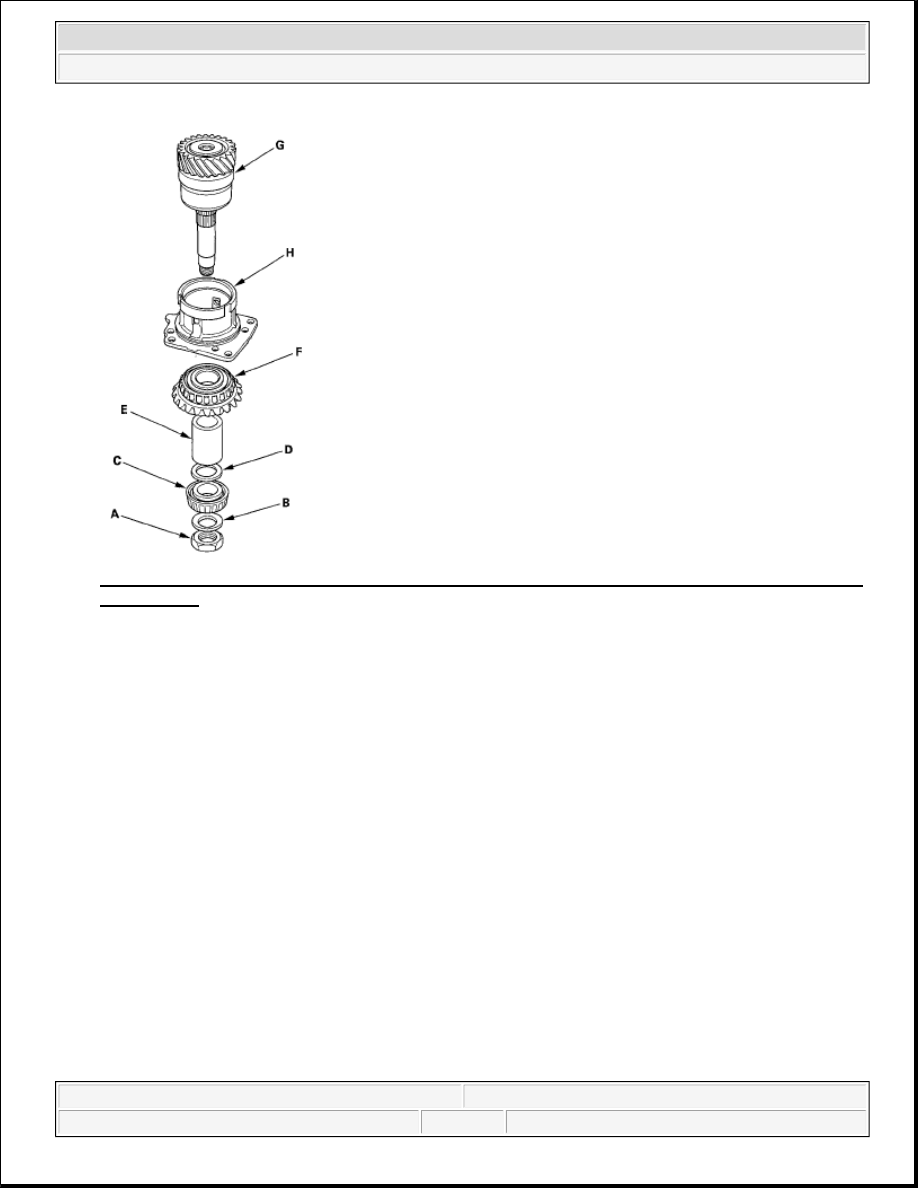

Fig. 190: Identifying Transfer Shaft Locknut, Conical Spring Washer, Tapered Roller Bearing And
Thrust Shim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRANSFER HOLDER TAPERED ROLLER BEARING OUTER RACE
REMOVAL/INSTALLATION

Special Tools Required



Attachment, 72 x 75 mm 07746-0010600



Driver 07749-0010000

1. Remove the 76 mm tapered roller bearing outer race (A) and 76 mm thrust shim (B) from the transfer

holder.

NOTE:

Coat all parts with manual transmission fluid (MTF) during reassembly.



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



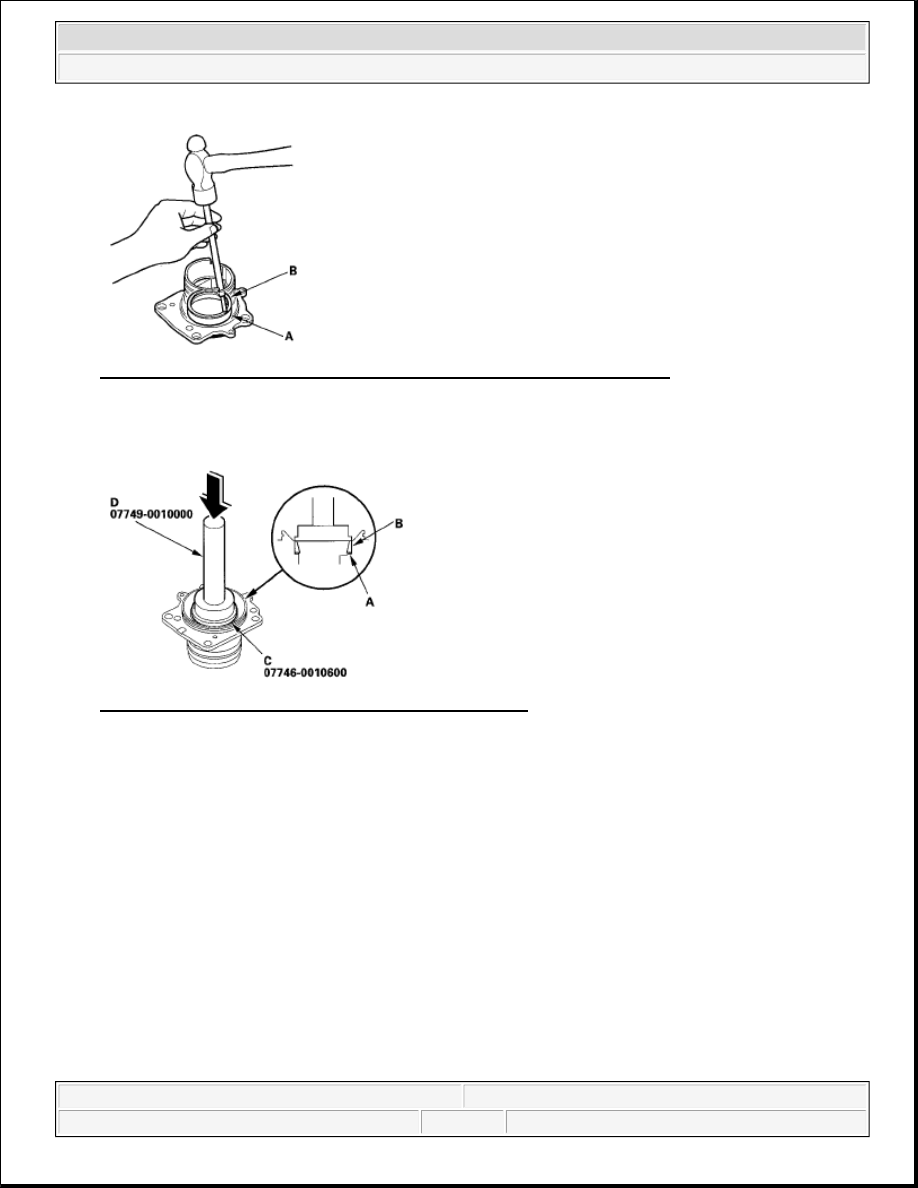

Fig. 191: Removing Tapered Roller Bearing Outer Race And Thrust Shim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the 76 mm thrust shim (A) in the transfer holder.

Fig. 192: Identifying Thrust Shim And Transfer Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the 76 mm tapered roller bearing outer race (B) using the 72 x 75 mm attachment (C), driver (D),

and a press in the direction shown.

TRANSFER DRIVE GEAR BEARING REPLACEMENT

Special Tools Required



Attachment, 37 x 40 mm 07746-0010200



Attachment, 42 x 47 mm 07746-0010300



Driver 07749-0010000

1. Remove the 76 mm tapered roller bearing (A) from the transfer drive gear (B) using a commercially

available bearing separator (C), the 37 x 40 mm attachment (D), driver (E), and a press.

NOTE:

Coat all parts with manual transmission fluid (MTF) during reassembly.



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Fig. 193: Identifying Tapered Roller Bearing, Transfer Drive Gear, Bearing Separator And Driver
Courtesy of AMERICAN HONDA MOTOR CO., INC.

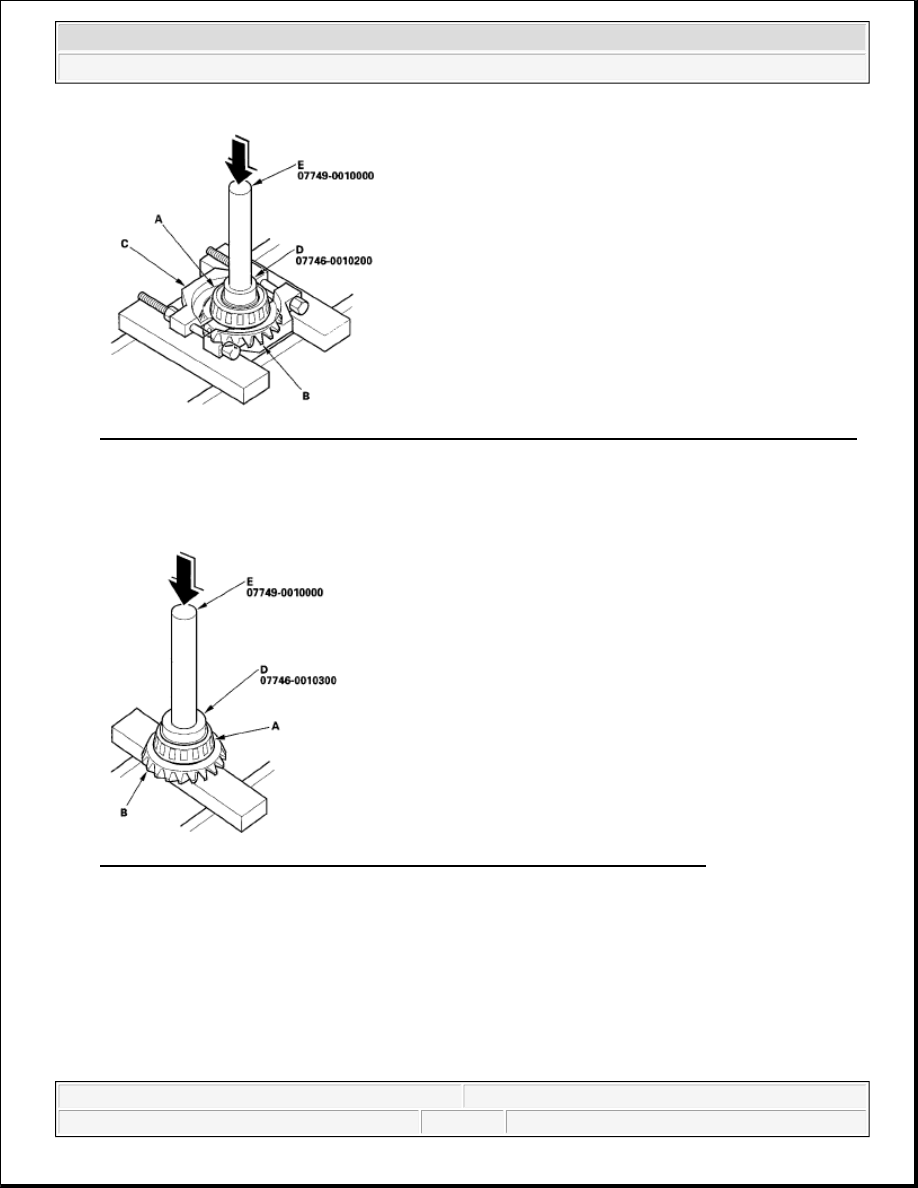

2. Install the new 76 mm tapered roller bearing (A) on the transfer drive gear (B) using the 42 x 47 mm

attachment (D), driver (E), and a press.

Fig. 194: Identifying Tapered Roller Bearing, Transfer Drive Gear And Driver
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRANSFER OUTPUT SHAFT BEARING REMOVAL/INSTALLATION

Special Tools Required



Driver handle 07746-0030100



Attachment, 35 mm I.D. 07746-0030400



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



1. Remove the 62 mm tapered roller bearing (A) from the transfer output shaft (B) using a commercially

available bearing separator (C), an adapter (D), and a press.

Fig. 195: Installing Adapter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

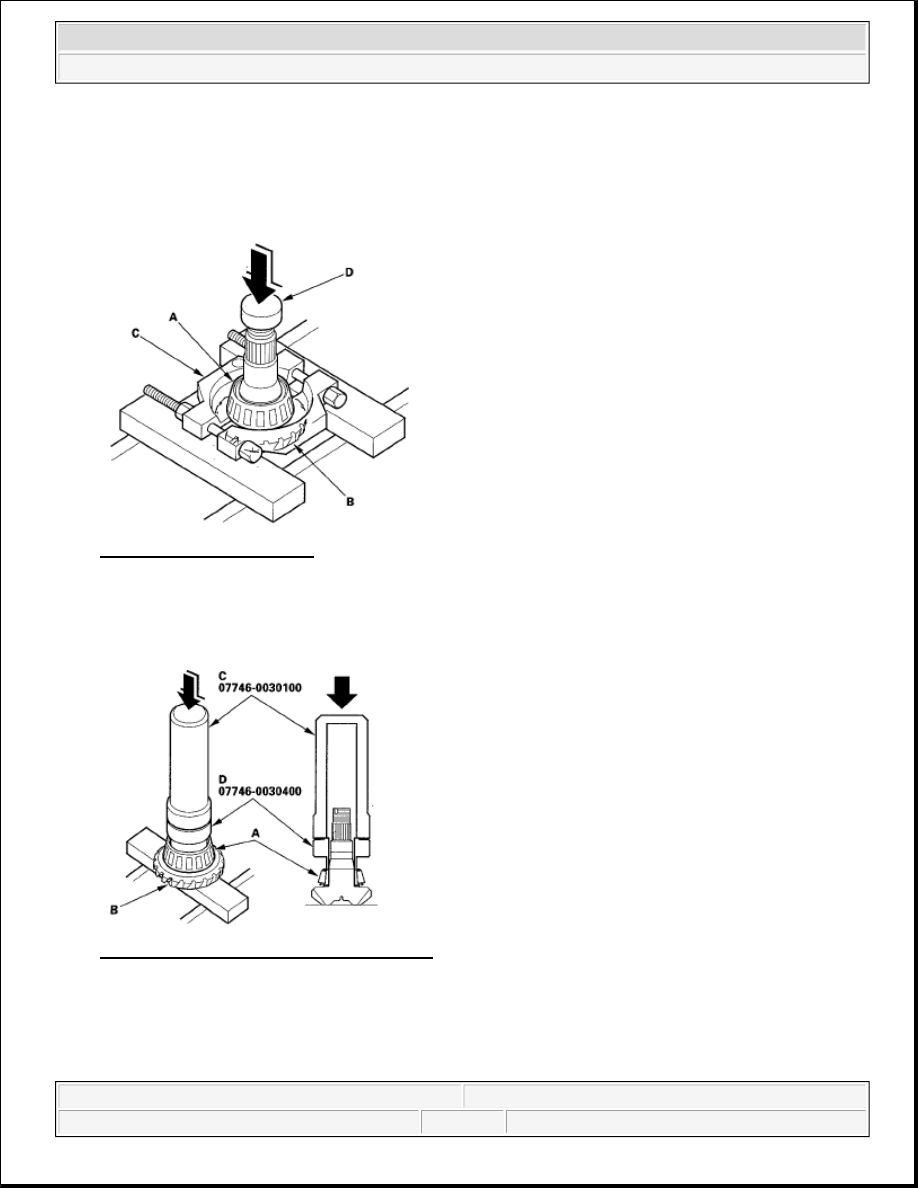

2. Install the new 62 mm tapered roller bearing (A) on the transfer output shaft (B) using the driver handle

(C), 35 mm I.D. attachment (D), and a press.

Fig. 196: Installing Tapered Roller Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRANSFER HOUSING TAPERED ROLLER BEARING OUTER RACE
REPLACEMENT

NOTE:

Coat all parts with manual transmission fluid (MTF) during reassembly.



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element
