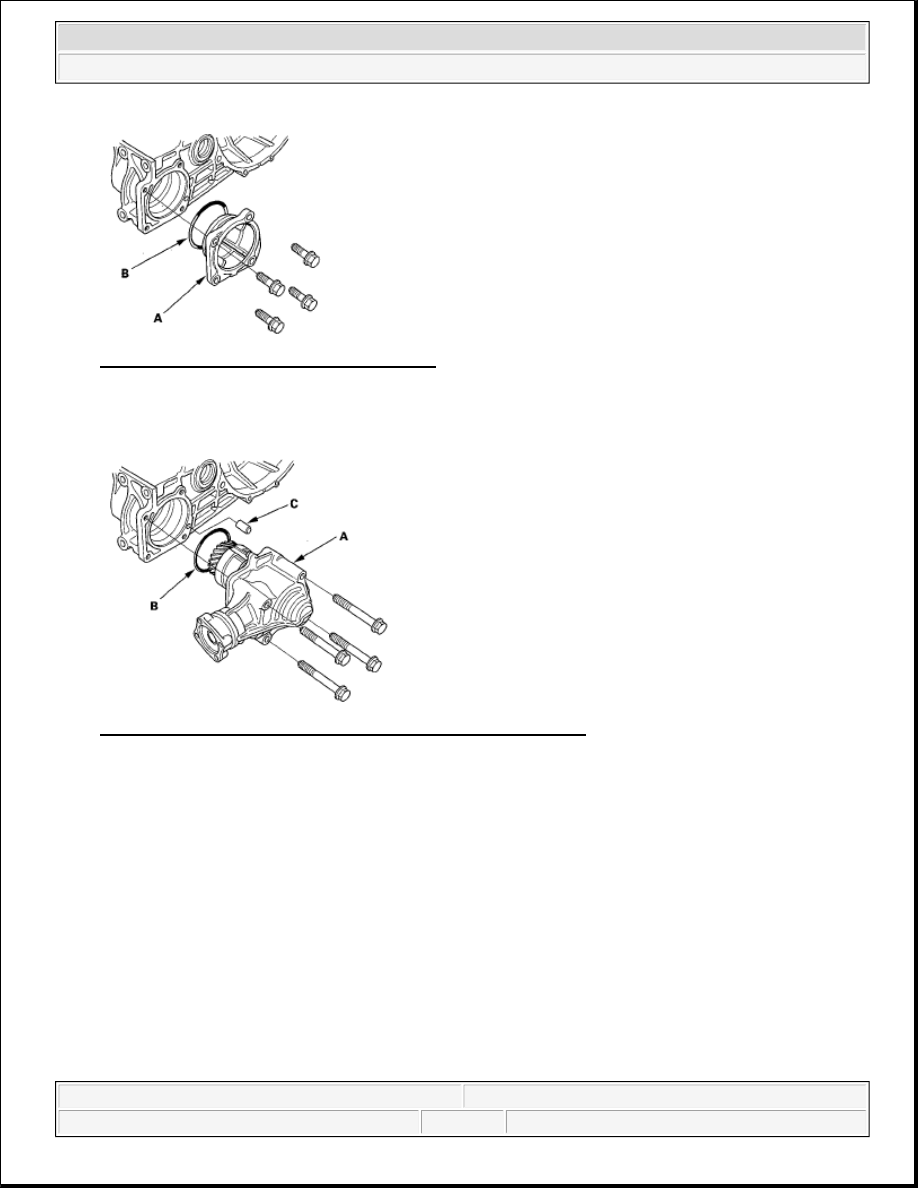

Fig. 44: Identifying Side Cover And O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. 4WD: Remove the transfer assembly (A), O-ring (B), and 10 x 20 mm dowel pin (C).

Fig. 45: Identifying Transfer Assembly, O-Ring And Dowel Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the detent bolts (A), springs, steel balls washers and, the back-up light switch (B), and the

transmission hanger (C).



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element

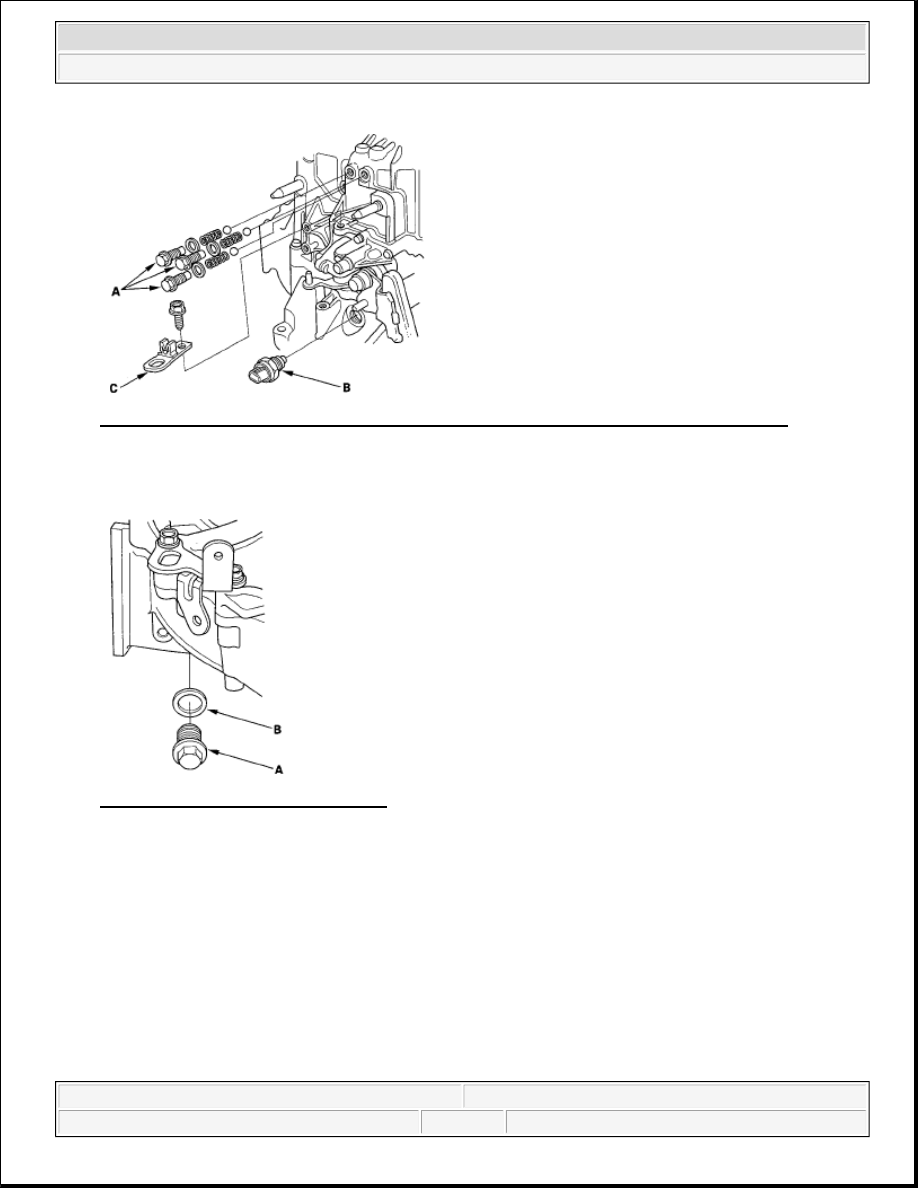

Fig. 46: Identifying Detent Bolts, Springs, Steel Balls Washers And Back-Up Light Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the 20 mm bolt (A) and 20 mm washer (B).

Fig. 47: Identifying Bolt And Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the interlock bolt (A), then remove the change lever assembly (B) and 8 x 14 mm dowel pins

(C).



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element

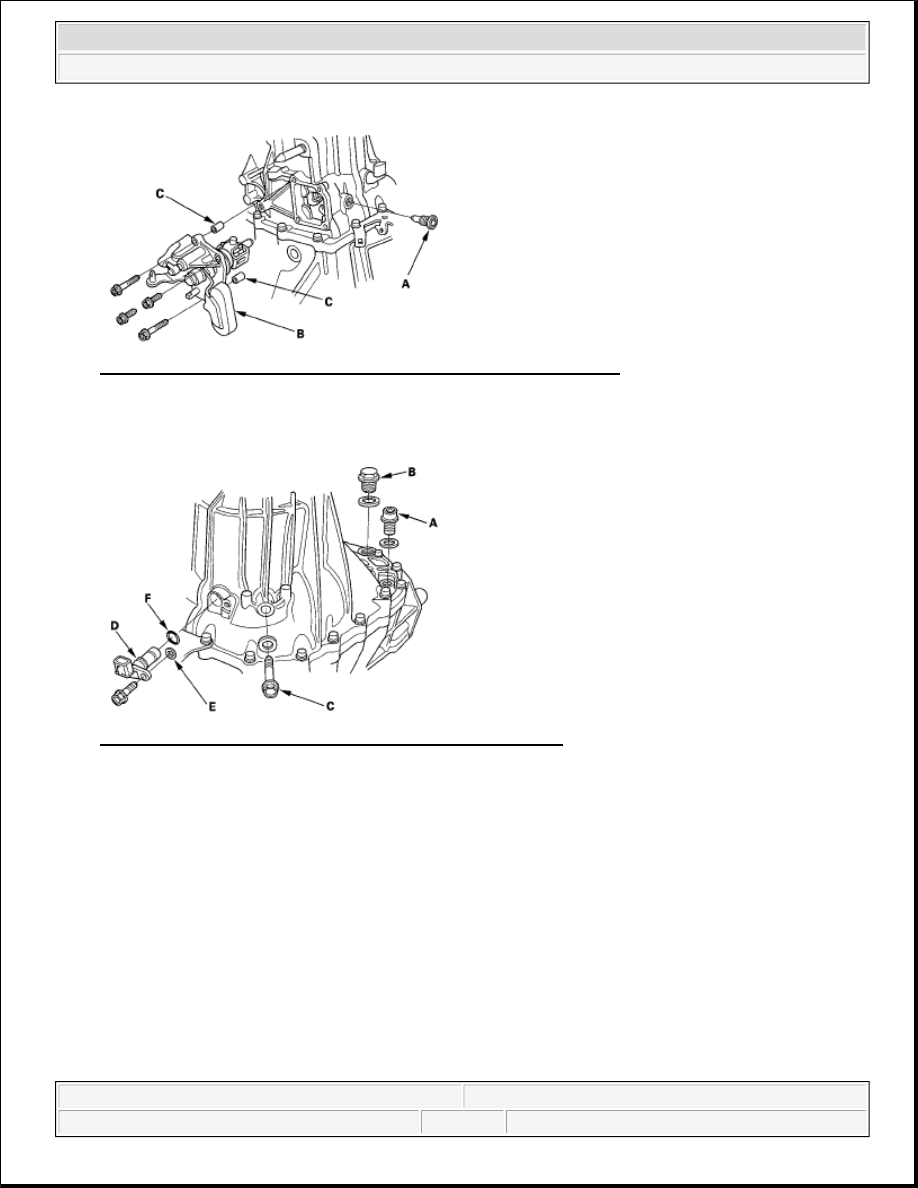

Fig. 48: Identifying Interlock Bolt, Lever Assembly And Dowel Pins
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Remove the drain plug (A), the filler plug (B), and the 10 mm flange bolt (C).

Fig. 49: Identifying Drain Plug, Filler Plug, And Flange Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the output shaft (countershaft) speed sensor (D), the plain washer (E), and the O-ring (F).

8. Remove the 8 mm flange bolts in a crisscross pattern in several steps.



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Fig. 50: Identifying Output Shaft Speed Sensor, Plain Washer, And O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Remove transmission hanger A and transmission hanger B.

10. Remove the 32 mm sealing cap (A).

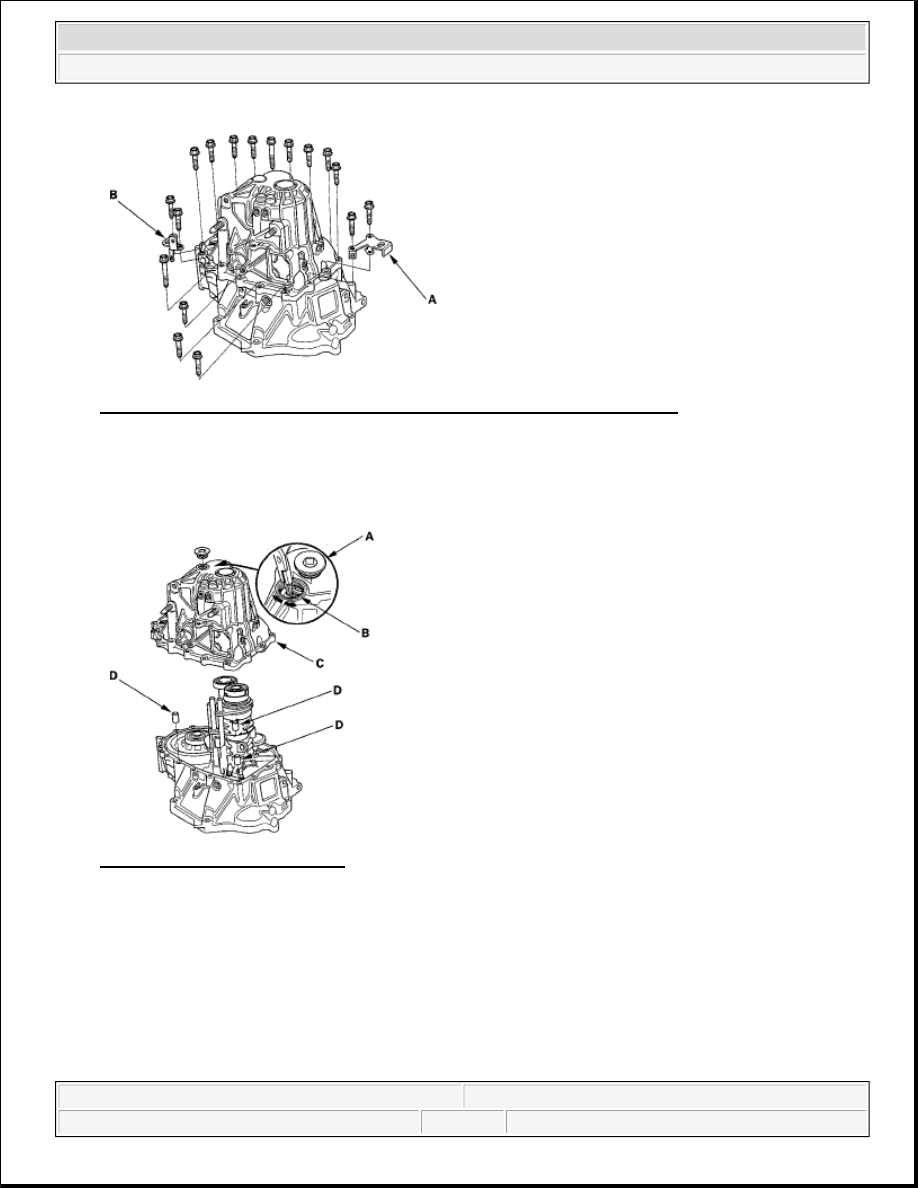

Fig. 51: Identifying Sealing Cap
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Expand the 72 mm snap ring (B) on the countershaft ball bearing, and remove it from the groove with

snap ring pliers.

12. Remove the transmission housing (C) and 14 x 20 mm dowel pins (D).

13. Remove the reverse lock cam (A).
